7-Segment Display Basics, Pinout, Types, Control, and Uses

This guide is all about how 7-segment displays work and how you can use them in your electronics projects. It explains the pins on the display, how each segment lights up, and the two common types: common cathode and common anode. You'll also learn how to turn segments on using a microcontroller, how to control brightness with resistors, and how to use transistors to safely handle power. The guide includes examples, diagrams, and shows how 7-segment displays are used in real devices like clocks, thermometers, and microwaves. Whether you're just starting or already building projects, this guide will help you understand and use 7-segment displays the right way.

Catalog

7-Segment Display Pinout

A typical single-digit 7-segment display has 10 pins. Each pin controls a specific segment, except for the two pins that act as common terminals for power. For example, Pin 1 connects to segment ‘e’ (bottom left), while Pin 2 controls segment ‘d’ (bottom). Pins 3 and 8 are the common terminals either all connected to ground (common cathode) or power (common anode). The rest of the pins light up segments ‘c’, ‘b’, ‘a’, ‘f’, ‘g’, and the decimal point.

Figure 2. 7-Segment Display Pin Configuration

Pin Number	Pin Name	Description
1	e	Controls the left bottom LED of the 7-segment display
2	d	Controls the bottom most LED of the 7-segment display
3	Com	Connected to Ground/Vcc based on type of display
4	c	Controls the right bottom LED of the 7-segment display
5	DP	Controls the decimal point LED of the 7-segment display
6	b	Controls the top right LED of the 7-segment display
7	a	Controls the top most LED of the 7-segment display
8	Com	Connected to Ground/Vcc based on type of display
9	f	Controls the top left LED of the 7-segment display
10	g	Controls the middle LED of the 7-segment display

Features of 7-Segment Displays

• Segment Structure: A 7-segment display includes seven lightable bars arranged to form numbers, resembling the shape of an “8.” These segments are labeled ‘a’ through ‘g’, with an optional eighth segment, the decimal point (DP), usually located at the bottom right. By combining these segments in different patterns, the display can represent digits 0–9 and a few simple letters like A–F. This straightforward layout makes it ideal for numeric displays due to its ease of use.

• Display Technology: These displays typically use LEDs, where each segment lights up when electrical current flows through it. LED-based models are bright, energy-efficient, and visible in various lighting conditions. Some versions use LCD technology, which consumes less power and is well-suited for battery-powered devices, though LCDs are generally dimmer and less visible in bright settings.

• Configuration Types: There are two primary wiring methods: Common Cathode (CC) and Common Anode (CA). In CC displays, all the negative terminals are connected together, and segments are activated by supplying a positive voltage. In CA displays, all positive terminals are connected, and segments are turned on by grounding the individual cathodes. The choice depends on the circuit design and how the display is driven.

• Character Representation: Although mainly designed for numbers, these displays can also show a limited range of letters especially A to F, which is useful for hexadecimal outputs. Due to having only seven segments, they can't accurately form most letters or complex symbols, but they suffice for basic alphanumeric needs.

• Control and Interfacing: Each segment can be turned on or off individually, often controlled by microcontroller GPIO pins. To simplify control, decoder/driver ICs like the 7447 or CD4511 can convert binary inputs into the proper segment combinations, reducing the number of connections needed.

• Advantages: Their main strengths include low cost, ease of control, and readability. LED types are bright and durable, while LCD variants conserve power. These traits make them popular for many electronic devices, especially where simple numerical output is sufficient.

• Limitations: The biggest drawback is the limited character set, they can’t display full text or intricate graphics. LED models may have narrow viewing angles, while LCDs can struggle with visibility in bright light. These limitations should be considered when selecting a display type for a project.

Alternative Display Modules

Display Type	Description	Advantages	Limitations
7-Segment Displays	Seven LED segments for digits and a few characters.	Very easy to use	Only displays digits and limited characters
Dot Matrix Displays	Grid of LEDs (e.g., 5x7 or 8x8) forming customizable characters and animations.	Inexpensive and widely available	Not suitable for text or graphics
		Low power consumption	More complex to program
		Used in signage, clocks, etc.
Alphanumeric LCDs	Preformatted LCDs (e.g., 16x2, 20x4) showing rows of fixed-size characters (usually 5x8 dot format).	Simple to interface (standard protocols)	Fixed-size characters
		Great for menus/status displays	Limited graphics capabilities
		Readable in various lighting	Slower refresh than graphic displays
OLED Screens	Self-emitting displays with high contrast; available in monochrome or full color.	High contrast & wide viewing angles	Higher cost
		Thin and light	Shorter lifespan (especially blue pixels)
		Low power when showing dark content	Needs more memory & processing
TFT Screens	Full-color, high-resolution LCDs with active matrix, often touch-enabled.	Rich color & detail	High power consumption
		Can include touch	Requires more RAM/processing
		Ideal for videos, GUIs, dashboards	Costlier & complex to integrate

How a 7-Segment Display Works?

The operation of a 7-segment display is based on forward biasing the Light Emitting Diodes (LEDs) inside each segment. When a voltage is applied in the correct direction, from the anode to the cathode, the segment lights up. Each segment can be controlled independently, usually through a microcontroller’s digital output pins or a specialized display driver IC. These controllers determine which segments are activated at any given time based on the desired character.

To prevent damage to the LEDs from excessive current, a current-limiting resistor is connected in series with each segment. This resistor ensures that the current flowing through each LED stays within a safe range, which is usually around 20 to 30 milliamperes (mA). However, the exact value may vary depending on the type of LED used and the required brightness. There are two main operational modes for 7-segment displays:

1. Static Mode: In this mode, each digit and its corresponding segments are turned on continuously. This setup requires a separate control line for each segment of each digit, which can become inefficient if many digits are used. However, it offers simplicity and constant brightness.

2. Multiplexed Mode: To reduce the number of control lines and power consumption, displays are often run in multiplexed mode. In this mode, only one digit is lit at a time, but the system rapidly switches between digits at a speed high enough to perceives all digits as being continuously lit. This switching is often handled using microcontroller timers or shift registers, which allow precise timing and control.

Figure 3. Segment Mapping in a 7-Segment LED Display

The figure above illustrates the structure and labeling of a 7-segment display. It shows the rectangular arrangement of the seven segments (a, b, c, d, e, f, and g) across ten different views of the display. In each image, different segments are shaded green to represent their activation. This helps visualize how each individual segment contributes to forming digits. The figure systematically highlights various combinations, aiding in the understanding of how turning on specific segments creates recognizable characters.

7-Segment Display Binary Codes

To show a digit, the microcontroller sends a binary code that turns on the right combination of segments. For example, to display “0,” segments a, b, c, d, e, and f are turned on, and g is off. For a common cathode display, this is binary 0b00111111 (or 0x3F in hex). For a common anode, the logic is inverted 0b11000000 (0xC0). The code must match the display type, or the wrong segments will light up. Using binary lookup tables saves processing time and ensures fast, accurate updates especially in dynamic applications like counters or timers.

The table below illustrates how numbers appear on a 7-segment display with a common anode configuration:

Number	g f e d c b a	Hex code
0	1000000	C0
1	1111001	F9
2	0100100	A4
3	0110000	B0
4	0011001	99
5	0010010	92
6	0000010	82
7	1111000	F8
8	0000000	80
9	0010000	90

The table below displays the digits as they appear on a 7-segment display using a common cathode configuration:

Number	g f e d c b a	Hex Code
0	0111111	3F
1	0000110	06
2	1011011	5B
3	1001111	4F
4	1100110	66
5	1101101	6D
6	1111101	7D
7	0000111	07
8	1111111	7F
9	1001111	4F

In this setup, each segment of a dual-digit 7-segment display is connected to the Arduino UNO through a current-limiting resistor (typically 220Ω to 330Ω). The segments labeled a to g (and optional decimal point DP) are wired in parallel across both digits and connected to digital pins D2 to D9 on the Arduino. For example, segment 'a' is connected to D2, 'b' to D3, and so on. Each digit has its own common cathode pin (cc), which controls whether that digit is enabled. These common pins are connected to Arduino pins D10 and D11 and are used for multiplexing: only one digit is activated at a time, but switching between them fast enough (usually >50Hz) makes both digits appear lit simultaneously. Use digitalWrite() to control which segments are on and which digit is active. A lookup table in your sketch maps numbers (0–9) to their corresponding segment combinations. To handle multiple digits efficiently, use multiplexing in your code or a library that supports it. This reduces the number of required Arduino I/O pins while enabling dynamic display updates.

Figure 4. 7-Segment Display Circuit with Arduino

Using a Common Cathode 7-Segment Display

In a common cathode (CC) 7-segment display, all the cathode terminals of the individual LEDs that form the display segments are internally connected and routed to one or more external common cathode pins. These common cathode pins are typically connected to ground (GND) in the circuit. Each of the individual segments, labeled from ‘a’ through ‘g’, as well as the optional decimal point (DP), has its own anode pin, which is controlled independently.

To illuminate a specific segment on this type of display, a HIGH voltage (typically +5V or +3.3V, depending on the system) must be applied to the corresponding anode pin. Because the cathodes are grounded, current will flow from the anode to the cathode, allowing the LED segment to light up. The use of a common cathode simplifies interfacing with microcontrollers, as the controller can actively source current to the individual segment pins rather than sinking it.

This configuration is popular in beginner electronics projects due to its straightforward wiring and programming logic. It allows to create numeric or limited alphabetic characters by combining different segments. For instance, to display the number “2,” the segments a, b, d, e, and g are turned on. The microcontroller activates each segment by setting its respective pin HIGH.

However, consideration arises when attempting to display characters like “8”, which require all seven segments to be on simultaneously. Each LED segment draws a certain amount of current (usually around 10-20 mA), and lighting all segments can add up to 140 mA or more. Most microcontroller I/O pins are not designed to source such a large total current across multiple pins simultaneously. If too much current is drawn, it can damage the microcontroller or cause it to malfunction. To mitigate this, many use external driver ICs (like the ULN2003A), transistor arrays, or current-limiting resistors to safely handle the load without overburdening the microcontroller.

Figure 5. Common Cathode 7-Segment Display Circuit Diagram

The figure shows the internal and external wiring of a Common Cathode 7-Segment Display. The display is labeled with segments a through g and a decimal point (DP). Each segment is connected to a diode symbol (D1 to D8), representing the individual LED segments. All cathodes are connected together and linked to ground, indicating the common cathode configuration. Applying a HIGH signal to any segment’s anode allows current to flow through the segment, illuminating it.

Using a Common Anode 7-Segment Display

In a common anode (CA) 7-segment display, all the anode terminals of the LED segments are internally connected together and are brought out to a common pin labeled as the Common Anode (CA). This common pin is connected to a positive voltage supply, often +5V. Each individual segment of the display, labeled a through g (with an optional decimal point labeled DP), has its cathode exposed for external connection and control.

To illuminate a specific segment, its cathode must be connected to ground (LOW) while the common anode remains at +5V (HIGH). This implies that the logic to control the segments is inverted unlike in a common cathode display, where segments are turned on with a HIGH signal, in a common anode display, they are turned on with a LOW signal. As a result, your control code must invert the binary pattern used for a common cathode display. For instance, a pattern that lights up the numeral “0” in a common cathode display may use a hexadecimal value like 0x3F; the same pattern for a common anode display would be 0xC0, which is the bitwise inverse.

Microcontrollers that are capable of sinking current (i.e., pulling the output pin to ground) are better suited for driving CA displays, as they can effectively complete the circuit for any segment that needs to be turned on. These displays are also advantageous in systems where other components operate with active-low logic, such as when using NPN transistors or certain types of logic gates. However, you must ensure that the firmware or driver logic is properly configured to account for this inverted behavior to avoid display errors.

Figure 6. Common Anode 7-Segment Display Circuit Diagram

The figure consists of two parts. On the left, there is a diagram of a common anode 7-segment display showing the internal segment labels (a to g and DP) and how they are arranged to form numerals. A single Common Anode pin is shown connected at the top. On the right, a simplified circuit schematic illustrates how each segment (a to g, DP) is connected to its corresponding diode (D1 through D8), with all anodes tied to a common high voltage (CA). Each cathode can be individually controlled by grounding to turn on the corresponding segment.

7-Segment DIP Display Outline

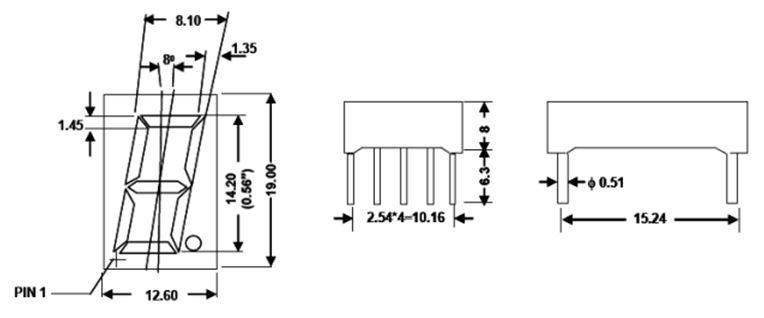

Figure 7. 7-Segment DIP Display Outline

The diagram above illustrates the standard dimensions for a 7-segment display in a Dual In-line Package (DIP) format, commonly used for through-hole PCB installations. The display stands 19.00 mm tall from base to top, with digits measuring 14.20 mm (0.56 inches) in height, a widely used size that ensures good visibility in both indoor and outdoor settings. The segments are angled inward at 8°, enhancing readability from an overhead perspective.

The display body is about 12.60 mm wide and has a thickness optimized for standard PCB layouts. Pin spacing follows the conventional 2.54 mm pitch, with each row containing four pins and measuring 10.16 mm in total length. The rows are spaced 15.24 mm apart across the package. Each pin has a diameter of 0.51 mm, compatible with standard DIP sockets or through-hole dimensions. The standoff between the PCB surface and the display base ranges from 6.3 mm to 8.0 mm, providing sufficient clearance for soldering and airflow.

How to Choose the Right 7-Segment Display?

To pick the right 7-segment display, start by deciding the right size. Smaller ones work well for handheld devices, while larger ones improve readability in meters or public displays. Next, think about color. Red LEDs are common because they’re energy-efficient and need lower voltage. Other colors like green or blue use more power and require higher voltage.

You’ll also need to match the display’s type( common anode or common cathode) to your circuit. For example, if your microcontroller can supply current (source), a common cathode display is a better fit. If it can only sink current, go with a common anode. Always check the datasheet for current ratings, brightness, and pin assignments. This ensures your display works as expected and avoids damage from incorrect voltages or currents.

Applications of 7-Segment Displays

Digital Clocks and Watches

One of the most common uses of 7-segment displays is in digital clocks and wristwatches. These displays are ideal for showing time in hours, minutes, and seconds due to their clarity and simplicity. Whether it's an alarm clock on a bedside table or a wall-mounted office clock, 7-segment displays provide a quick and easy way to read the time from a distance. Their bright illumination also makes them visible in low-light or dark environments.

Digital Thermometers

In both home and medical environments, digital thermometers often use 7-segment displays to show temperature readings. They are used in indoor/outdoor weather thermometers, body thermometers, and HVAC systems. Because they only need to display numbers, usually two or three digits, 7-segment displays are a perfect fit, offering fast, easy-to-read output without requiring a full graphical display.

Voltmeters and Multimeters

7-segment displays are a standard feature in digital voltmeters and multimeters, which are tools used to measure voltage, current, and resistance. These displays allow to instantly see precise numerical readouts. Their fast response time and legibility make them well-suited for electronics testing and troubleshooting.

Gas Pumps and Fuel Dispensers

At gas stations, fuel dispensers use large, robust 7-segment displays to show the amount of fuel dispensed, the cost per gallon/litre, and the total cost. Their ability to remain readable in sunlight and harsh outdoor conditions makes them ideal for this environment. They’re also rugged and long-lasting, which reduces maintenance needs.

Microwaves and Kitchen Appliances

Many kitchen appliances, especially microwaves, use 7-segment displays to show cooking time, countdowns, or power settings. The display is intuitive and easy to interpret, even you not be technologically inclined. Because they require minimal power and space, they are cost-effective solutions for appliance manufacturers.

Weighing Scales (Personal and Industrial)

Both home bathroom scales and industrial-grade weighing systems use 7-segment displays to present weight values. These displays are often chosen for their reliability and readability. In industrial contexts, the displays may be large enough to be seen from a distance in warehouses or production floors.

Industrial and Laboratory Equipment

In professional settings, 7-segment displays are frequently found on measurement instruments, power supplies, and monitoring systems. They are used to show key numeric data like frequency, pressure, voltage, or operating time. These displays offer durability, accuracy, and ease of integration into panel-mounted systems.

Low-Cost Embedded Systems

In many embedded applications where only numbers are required such as counters, timers, scoreboards, or basic diagnostic tools, 7-segment displays offer a low-cost alternative to more complex graphical interfaces. They consume little power and are easy to program, making them suitable for battery-powered or resource-limited systems.

How to Use Resistors with a 7-Segment Display?

One easy way to control a 7-segment display is to put a resistor in front of each segment. This helps protect the tiny lights inside the display, called LEDs, from getting too much electricity. Too much current can make the LEDs overheat or stop working. These resistors also help keep the light level even across all the segments. The value of each resistor is usually between 220 ohms (Ω) and 470 ohms (Ω). The exact number depends on two things: the power supply voltage and how bright you want the display to be. For example, if you are using a 5-volt power supply and each segment uses about 2 volts, then a 150-ohm resistor will let about 20 milliamps (mA) of current through. This is a good amount of current to make the display bright enough but still safe for the LEDs.

If you use bigger resistors, less current will flow, and the display will look dimmer. But this can help the LEDs last longer and use less power. If you use smaller resistors, more current flows, and the display looks brighter, but it can wear out faster and get hotter. In more advanced setups, like when one resistor is shared between several segments (called multiplexing), the brightness can look uneven. That’s because different segments may draw different amounts of current. In those cases, it’s better to use one resistor for each segment or use special chips that control the current automatically. These methods make the display look better and work more reliably.

Figure 8. Basic Resistor-Based 7-Segment Display Diagram

The figure illustrates a basic circuit diagram for driving a single 7-segment LED display using individual resistors for each segment. Each of the display's segments( labeled a, b, c, d, e, f, g, and dp (decimal point)) is connected in series with a 220Ω resistor, which limits current to safe levels. These resistors are controlled through switches that toggle the input between logic "high" and logic "low", allowing each segment to be turned on or off independently. The common pin of the 7-segment display is connected to a shared voltage source, enabling operation of the individual LEDs within the display based on the input logic signals. This configuration exemplifies the simplest and most direct way to test and operate a 7-segment display manually.

How to Use Transistors with a 7-Segment Display?

Transistors are like tiny electronic switches that help control which parts of a 7-segment display light up. In a “common cathode” setup, all the negative ends (cathodes) of the LEDs are joined together and connected to ground. To light up a segment, the microcontroller sends a signal to the positive end (anode). Since the ground needs to be turned on and off to control each digit, NPN transistors are used. The microcontroller sends a small signal to the base (middle leg) of the transistor, and this allows current to flow through it, lighting up the segment.

In a “common anode” setup, all the positive ends (anodes) are connected together and hooked up to power (usually 5V). Here, you can use PNP transistors or special switches like N-channel MOSFETs to control the negative ends (cathodes). The display lights up when the microcontroller sends a signal to pull the cathode low (close to 0V). For displays with more than one digit, multiplexing is used. This means the microcontroller turns on one digit at a time very quickly, so fast that it looks like all digits are on at once. Each digit uses its own transistor, which the microcontroller switches on and off in order, while sending the right signals to the segments.

To protect the microcontroller and make sure the transistors work properly, a small resistor (usually around 1,000 ohms) is placed between the microcontroller and the transistor’s base. This limits how much current flows in. Also, it’s important to pick transistors that can handle the amount of current needed by the LEDs. If the transistors are too weak, they can overheat or stop working, and the display may not look right. Choosing the right parts and managing heat carefully helps the display work well and last longer.

Figure 9. Transistor-Based Control of a 7-Segment Display Diagram

The diagram illustrates a simple method of driving a single-digit seven-segment display using eight switches (SW1 to SW8), each connected through a 220Ω resistor to the individual segments of the display. The segment control lines are routed to the display inputs, which are powered via a transistor switch (Q1). A 1kΩ resistor (R9) connects the transistor base to the 5V control line, allowing the display to be activated when the transistor is turned on. This setup ensures proper current control and efficient operation of the display.

Conclusion

A 7-segment displays are a simple and useful way to show numbers in electronic devices. Each segment is like a small light, and by turning on the right ones, you can show any digit from 0 to 9. You can use either a common cathode or common anode display, depending on your circuit. To protect the display and your microcontroller, you need to use resistors or transistors. If you have more than one digit, you can use a method called multiplexing to light them up one at a time really fast, so they all look lit. These displays are used in many things like digital clocks, scales, meters, and kitchen appliances because they’re cheap, easy to use, and clear to read. With the tips from this guide, you can safely and easily add 7-segment displays to your own projects.
