Camshaft Position Sensor: Function, Failure Symptoms, Testing, and Applications

In today's cars, the camshaft position sensor is a key part of the engine. This sensor helps the car's computer, known as the Engine Control Module (ECM), make sure everything in the engine runs smoothly. It checks where the camshaft is and how fast it’s moving, and tells the ECM to adjust the timing of fuel and spark delivery. This makes the car run better, use fuel more efficiently, and produce less pollution. This article will explain what the camshaft position sensor does, why it’s important, and what can go wrong with it.

Catalog

What is a Camshaft Position Sensor?

A camshaft position sensor is an important part of a car's engine. It helps the engine run smoothly by controlling when the spark plugs fire and when fuel is injected. This sensor keeps track of how fast the camshaft is spinning and where it is positioned. It then sends this information to the Engine Control Module (ECM), which uses the data to adjust engine timing for better performance, fuel efficiency, and lower emissions. The sensor is placed near the camshaft so it can collect accurate data. Its exact location depends on the engine design and the car manufacturer.

The sensor's job is to detect the camshaft’s movement without any interference. It also helps the engine know which cylinder is in the power stroke, making sure the fuel injection and ignition timing are in sync with the crankshaft. Even though the camshaft position sensor is small, it plays a big role in how well the engine works. It helps the engine start properly, run efficiently, and use fuel wisely. Without this sensor, the engine could misfire, stall, or have trouble starting. This makes it a main part of modern car technology.

Functions of the Camshaft Position Sensor

The primary function of the camshaft position sensor is to monitor and report the exact position and rotational speed of the camshaft for the engine control module (ECM) to regulate various aspects of engine operation. This sensor continuously gathers data to ensure that the ECM can accurately control fuel injection timing, ignition timing, and variable valve timing (VVT). Without precise input from this sensor, the ECM would struggle to synchronize these functions, leading to inefficient combustion, reduced power output, and increased fuel consumption. The sensor helps detect any irregularities in the camshaft’s movement, such as misfires or mechanical issues, which could negatively impact overall engine performance. By identifying these inconsistencies, the ECM can make adjustments to maintain smooth operation and prevent potential damage to engine components.

Figure 2. Diagram of a (DOHC) Engine with Camshaft Position Sensor

One of the key responsibilities of the camshaft position sensor is to aid in the precise timing of the intake and exhaust valves by relaying data to the ECM. Since the camshaft controls the opening and closing of these valves, the sensor’s data allows the ECM to determine the exact moment for fuel injection and spark ignition. This synchronization is important because the fuel-air mixture must be ignited at the ideal point in the combustion cycle to maximize power output while minimizing wasted fuel and emissions. If the camshaft position sensor fails or provides inaccurate data, the engine may experience rough idling, hesitation during acceleration, or even stalling, as the ECM would not be able to regulate valve timing effectively. Furthermore, because the camshaft rotates at half the speed of the crankshaft, the sensor ensures that the ECM can differentiate between intake and exhaust strokes, preventing miscalculations in timing that could otherwise lead to engine inefficiency. By continuously monitoring these movements, the sensor helps maintain the engine’s smooth and consistent operation.

Another function of the camshaft position sensor is its role in supporting the variable valve timing (VVT) system, which dynamically adjusts valve timing to optimize performance under different driving conditions. In vehicles equipped with VVT technology, the ECM relies on data from the camshaft position sensor to alter valve timing based on factors such as engine load, speed, and throttle position. By doing so, the system can improve fuel efficiency at lower speeds while maximizing power at higher speeds, creating a balance between performance and economy. By optimizing the timing of the intake and exhaust valves, the sensor contributes to lower emissions by ensuring more complete fuel combustion. Different types of camshaft position sensors, provide precise and reliable data transmission to the ECM, ensuring that the adjustments made to valve timing are accurate and responsive.

Location of the Camshaft Position Sensor

The camshaft position sensor is carefully placed in the engine to ensure it can accurately track the movement of the camshaft. While its exact location depends on the vehicle's make and model, it is commonly found near the cylinder head, attached to the timing cover, or mounted on the engine block. This strategic positioning allows the sensor to collect precise rotational data from the camshaft for regulating engine timing. By continuously monitoring the camshaft’s movement, the sensor helps ensure that the engine runs smoothly and efficiently. Without a properly positioned sensor, the engine control module (ECM) would not receive the data to adjust ignition timing and fuel injection correctly.

Figure 3. Location of the Camshaft Position Sensor

In some engines, the camshaft position sensor is hidden behind the timing cover, making it more challenging to access. Reaching the sensor in these cases may require additional steps, such as removing the cover or other nearby components. Despite the extra effort needed for access, this placement is important because it allows the sensor to detect changes in the camshaft’s position. The ECM relies on this data to make constant adjustments that improve engine performance, fuel efficiency, and overall drivability. Proper placement of the sensor ensures the engine operates at its best, reducing the risk of misfires or performance issues that can arise from incorrect timing.

How the Camshaft Position Sensor Works?

The camshaft position sensor functions by detecting the rotation of the camshaft and converting this movement into electronic signals. These signals are then sent to the engine control module (ECM), which uses the data to adjust engine timing and other operations. The way the sensor captures the camshaft’s movement depends on the specific type of technology it uses. The most common types include magnetic, inductive, Hall effect, and optical sensors.

A magnetic sensor operates based on changes in the magnetic field. As the camshaft rotates, it causes fluctuations in the magnetic field, which the sensor detects. These changes are then converted into an electrical signal that is sent to the ECM. Similarly, an inductive sensor works using a coil and magnet. When the camshaft rotates, metal teeth on a gear pass by the sensor, altering the magnetic field and generating a voltage signal.

A Hall effect sensor works differently by using a semiconductor chip to detect magnetic fields. Instead of relying on changing voltage levels, it produces a digital signal that switches on and off as the camshaft rotates. This allows the ECM to receive a clean and precise signal. On the other hand, an optical sensor uses a beam of light and a rotating disk with slots or holes. As the disk spins with the camshaft, it interrupts the light beam at regular intervals. The sensor detects these interruptions and converts them into signals that indicate the camshaft’s position.

Each type of camshaft position sensor has its own benefits, but all of them serve the same purpose, providing the ECM with accurate and data. This ensures proper engine performance, efficient fuel combustion, and smooth vehicle operation.

Types and Characteristics of Camshaft Position Sensors

There are different types of camshaft position sensors, and they are classified based on how they operate. The three main types are the magnetic type sensor, the AC output sensor, and the Hall effect sensor. Each of these sensors works in a slightly different way and is designed to meet the needs of specific engine systems. Understanding these types and their characteristics helps in choosing the right sensor for a vehicle and diagnosing any problems that may arise.

Magnetic Type Sensor

The magnetic camshaft position sensor works using the principle of electromagnetic induction. It contains a permanent magnet and a coil of wire. When the camshaft rotates, a toothed wheel or reluctor passes close to the sensor, causing changes in the magnetic field. These changes create an electric signal that varies in strength and frequency, depending on how fast the camshaft is rotating. This type of sensor is usually placed inside the distributor or near the camshaft.

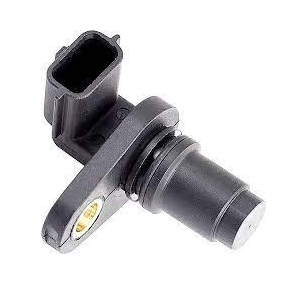

Figure 4. Magnetic Type Camshaft Position Sensor

It produces an analog voltage signal, which means the signal continuously changes as the camshaft moves. One of the biggest advantages of a magnetic sensor is its simplicity and durability. It does not need an external power source, making it reliable in many engine conditions. However, it does have some drawbacks. The strength of the signal can be affected by temperature changes and the exact position of the sensor. If the sensor is not placed correctly, or if it gets too hot, its performance may decrease.

AC Output Sensor

The AC output camshaft position sensor generates an alternating current (AC) signal when the camshaft rotates. This sensor works with a reluctor wheel, which has carefully spaced teeth. As these teeth pass by the sensor, they create an AC voltage that the ECM uses to determine the camshaft’s position and the timing of the engine’s cylinders. This sensor is usually located close to the camshaft and is often integrated with other engine timing components.

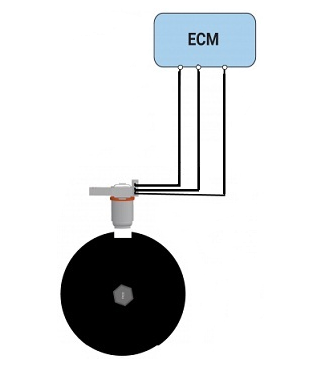

Figure 5. AC Output Sensor Type Sensor

Its main advantage is that it produces a strong signal, even when the engine is running at low speeds. This makes it a good choice for ensuring the ECM receives accurate data in all driving conditions. However, the signal from an AC output sensor needs to be processed before the ECM can use it correctly. This means the ECM must have the right technology to interpret the data properly.

Hall Effect Sensor

The Hall effect camshaft position sensor is more advanced than the other types. It works using a semiconductor chip that detects changes in a magnetic field. This sensor has three wires: one for power, one for ground, and one for sending the signal. When a metal object, such as a reluctor or timing wheel, moves past the sensor, it changes the magnetic field. This triggers the Hall effect, which produces a digital signal in the form of on/off pulses.

Figure 6. Hall Effect Camshaft Sensor

This type of sensor is placed near the camshaft sprocket or timing gear. Unlike magnetic sensors, which produce an analog signal, the Hall effect sensor generates a digital signal. This makes it more precise and reliable. It is also less affected by temperature changes or electrical interference, which means it provides accurate data under various conditions. However, this type of sensor requires a power source to operate. If it fails, it can be more difficult to diagnose and repair compared to simpler sensors.

Wiring and Signal Transmission of the Camshaft Position Sensor

The Camshaft Position Sensor (CMP) is an important component in modern internal combustion engines, responsible for monitoring the position and rotational speed of the camshaft. This data is then sent to the Electronic Control Unit (ECU), which uses it to regulate key engine functions such as ignition timing, fuel injection, and valve timing. By ensuring that the ECU receives accurate and information about the camshaft’s position, the sensor helps optimize engine efficiency, power output, and emissions control. Without a properly functioning camshaft position sensor, the ECU cannot precisely coordinate engine operations, which can lead to poor performance, increased fuel consumption, and even engine failure in severe cases. This sensor is important in modern engines that rely on sequential fuel injection and variable valve timing, as any inaccuracy in camshaft position data can disrupt the entire combustion process.

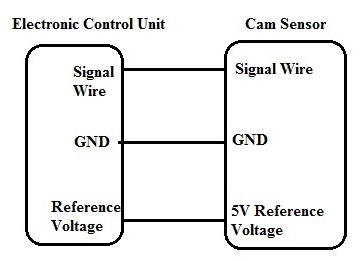

Figure 7. Camshaft Position Sensor Wiring

In a three-wire camshaft position sensor setup, the sensor is electrically connected to the ECU through three distinct wires: the signal wire, the ground (GND) wire, and the reference voltage wire. Each of these wires plays a role in ensuring that the sensor operates correctly. The signal wire is responsible for transmitting position data from the sensor to the ECU. As the camshaft rotates, the sensor detects its movement and converts it into an electrical signal, which is then sent through the signal wire to the ECU. This allows the ECU to determine the exact timing of fuel injection and spark ignition, ensuring smooth engine operation. The ground (GND) wire provides the electrical grounding to complete the circuit, preventing electrical fluctuations that could interfere with the sensor’s performance. The reference voltage wire, usually supplying a steady 5V from the ECU, powers the sensor, allowing it to generate an accurate and consistent signal. If any of these wires become damaged or disconnected, the sensor may fail to transmit data correctly, leading to engine performance issues.

As the camshaft rotates during engine operation, the camshaft position sensor continuously monitors its position and sends corresponding voltage signals to the ECU. The ECU then uses this information to adjust fuel delivery, ignition timing, and valve timing, ensuring optimal combustion efficiency. In engines equipped with variable valve timing (VVT) systems, the camshaft position sensor plays an even more important role by providing data that allows the ECU to adjust valve timing dynamically for better fuel economy and performance. A malfunctioning sensor or faulty wiring can lead to a variety of engine issues, including misfires, rough idling, hesitation during acceleration, poor fuel economy, and even an engine that fails to start. In many cases, the ECU will detect a fault in the sensor circuit and trigger the Check Engine Light (CEL), storing a diagnostic trouble code (DTC) that can be retrieved using an OBD-II scanner.

Regular inspection and maintenance of the camshaft position sensor and its wiring are need to ensuring reliable engine performance. If the engine exhibits symptoms of a failing sensor, a thorough diagnostic process should be conducted, including checking the sensor’s wiring connections, testing the voltage supply, and inspecting the sensor itself for damage or contamination. In some cases, a dirty or damaged sensor may cause intermittent signal loss, leading to sporadic engine performance issues. Replacing a faulty camshaft position sensor is typically a straightforward process, but ensuring proper wiring connections is just as important. A well-functioning camshaft position sensor allows the ECU to precisely control engine operations, improving efficiency, reducing emissions, and enhancing overall driving performance.

How to Detect Camshaft Position Sensor Issues?

A faulty camshaft position sensor can cause serious engine performance issues. Below are the key symptoms, their causes, and how they affect your vehicle:

Engine Misfires

When the camshaft position sensor malfunctions, the ECM receives incorrect data about the camshaft’s position. This disrupts the precise coordination between the fuel injectors and the ignition system, leading to improper fuel injection timing. As a result, combustion may not occur correctly in one or more cylinders, causing the engine to misfire. You may notice symptoms such as hesitation while driving, a rough or shaky driving experience, or a sudden loss of power when accelerating. Frequent misfires can increase emissions, reduce engine efficiency, and even cause long-term damage to engine components. If left unaddressed, repeated misfires can trigger the check engine light and lead to more severe mechanical failures.

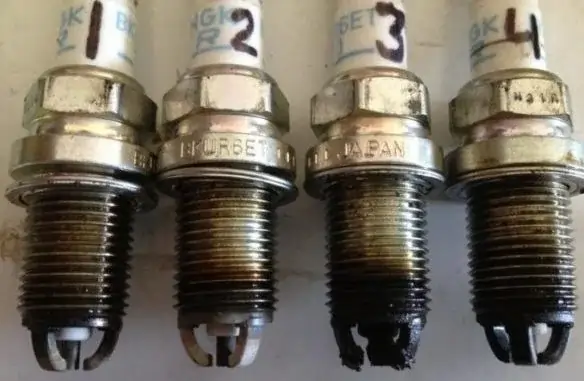

Figure 8. Fouled and Damaged Spark Plugs Due to Engine Misfires

Poor Fuel Economy

The camshaft position sensor plays a role in regulating fuel injection by helping the ECM determine the correct amount of fuel needed for optimal combustion. When the sensor fails, the ECM may inject too much or too little fuel, causing inefficient combustion and reducing overall fuel economy. This means the engine will burn more fuel than necessary, leading to higher fuel consumption and increased costs at the pump. A noticeable drop in fuel efficiency can also indicate that the engine is compensating for incorrect data by working harder than it should. Over time, this extra strain can accelerate wear and tear on various engine components, potentially leading to further mechanical issues. If you notice reduction in mileage, it’s important to diagnose and address the problem promptly.

Rough Idling

A failing camshaft position sensor can cause the engine to struggle to maintain a stable idle. Without accurate data from the sensor, the ECM may miscalculate the air-fuel mixture and ignition timing, leading to erratic engine behavior when the vehicle is at rest. You might experience excessive vibrations, fluctuating RPMs, or even hear unusual noises coming from the engine. In some cases, the engine may stall when stopped at a red light or while idling in traffic. This issue can become more severe over time, making it difficult to keep the engine running smoothly. Ignoring rough idling can lead to further damage to ignition and fuel system components, making repairs more costly in the long run.

Difficulty Starting the Engine

The camshaft position sensor helps the ECM determine the exact position of the pistons before ignition. If the sensor starts failing, it may send weak, delayed, or incorrect signals, making it difficult for the engine to start. This can result in the engine cranking for an extended period before finally turning over or, in some cases, failing to start altogether. Repeated starting issues can put additional strain on the battery and starter motor, increasing the risk of premature failure of these components. If your car frequently struggles to start, it’s important to diagnose whether the camshaft position sensor is the culprit. Replacing a failing sensor early can prevent unnecessary wear on other parts of the starting system.

Jerking or Stalling While Driving

Inconsistent signals from a faulty camshaft position sensor can lead to sudden power loss while driving. You may notice the vehicle jerking or hesitating, particularly during acceleration, as the engine struggles to maintain proper timing. This can make driving unpredictable and unsafe in traffic or at highway speeds. In severe cases, the engine may stall completely without warning, which poses safety hazard. A stalling engine can be dangerous if it happens in the middle of an intersection or while merging onto a highway. If your vehicle experiences frequent stalls or sudden jerking motions, it’s important to inspect and replace the camshaft position sensor as soon as possible to restore smooth and reliable performance.

Common Causes of Camshaft Position Sensor Failure

The camshaft position sensor plays a role in engine timing and performance, but like any component, it is susceptible to failure over time. Several factors contribute to its malfunction, ranging from environmental influences to mechanical wear and improper installation. Understanding these causes can help in diagnosing issues early and preventing unexpected engine problems.

Environmental Conditions

Harsh environmental conditions, such as extreme temperatures, high humidity, and exposure to dirt or debris, can have impact on the longevity of the camshaft position sensor. Since the sensor is located within the engine bay, it is constantly subjected to high levels of heat, which can lead to the degradation of its internal circuitry. Over time, prolonged exposure to excessive heat may cause the sensor’s electronic components to expand and contract, leading to microcracks in the circuitry and eventual failure. In cold climates, rapid temperature fluctuations can also contribute to condensation buildup, potentially causing internal short circuits that disrupt the sensor's signal transmission.

Moisture intrusion is another environmental factor that can negatively affect the sensor’s functionality. If water or humidity seeps into the sensor's housing, it can lead to corrosion of the internal wiring and connectors, weakening electrical conductivity. Road salt and chemicals used for de-icing in winter conditions can accelerate corrosion, further compromising the sensor’s effectiveness. Additionally, dust, dirt, and debris from unpaved roads or off-road driving can accumulate around the sensor, obstructing its ability to detect the camshaft’s position accurately. Without proper shielding and maintenance, prolonged exposure to these elements can gradually lead to sensor failure.

Contamination

Oil leaks and contamination from engine fluids can greatly impact the performance of the camshaft position sensor by interfering with its ability to detect the camshaft’s rotational position accurately. If the engine develops an oil leak due to a worn valve cover gasket, leaking camshaft seals, or a faulty crankcase ventilation system, oil can seep onto the sensor, creating a layer of grime and residue. This buildup can insulate the sensor from receiving proper magnetic signals from the camshaft, leading to inaccurate readings or complete sensor failure. Oil contamination can seep into the sensor’s electrical connectors, causing poor connectivity and intermittent signal loss, which may trigger the check engine light and affect engine performance.

Aside from oil contamination, metal shavings from internal engine wear can also compromise the sensor’s accuracy. Since many camshaft position sensors rely on a magnetic field to detect camshaft movement, the presence of tiny metal particles can disrupt this field, leading to erratic sensor readings. These metal shavings can originate from worn-out timing components, improper lubrication, or excessive engine wear over time. Regular oil changes and inspections can help reduce the risk of contamination and ensure that the sensor remains free from obstructions that could impair its function.

Mechanical Wear and Aging

Like any other engine component, the camshaft position sensor experiences natural wear and tear over time due to prolonged exposure to engine vibrations, heat cycles, and constant operation. As the sensor ages, its internal electronic components may degrade, leading to reduced accuracy in detecting the camshaft’s position. The plastic housing of the sensor may also become brittle from repeated exposure to heat and engine stress, increasing the likelihood of cracks and failure. Furthermore, the reluctor wheel or timing components that the sensor interacts with can wear down over time, causing the sensor to struggle with reading camshaft position accurately.

Electrical wiring and connectors associated with the sensor may also deteriorate with age, leading to intermittent connectivity issues. Frayed or brittle wiring can cause inconsistent electrical signals, resulting in engine misfires, stalling, or hesitation during acceleration. In some cases, loose or corroded electrical connectors may create poor contact, leading to erratic engine behavior and diagnostic trouble codes. Regular inspections of the sensor’s wiring and surrounding components can help detect signs of aging before they escalate into serious performance issues.

Improper Installation or Handling

Incorrect installation of the camshaft position sensor can lead to premature failure by placing unnecessary stress on the component or causing improper alignment with the camshaft. If the sensor is overtightened during installation, it can crack or distort the housing, affecting its ability to function correctly. On the other hand, if it is loosely installed, it may vibrate excessively, leading to inaccurate readings or complete detachment from its mounting position. Following the manufacturer’s recommended torque specifications is important to ensuring a secure yet non-damaging installation.

Using low-quality aftermarket sensors can increase the likelihood of premature failure. Cheap or poorly manufactured sensors may not meet the same durability and performance standards as OEM (Original Equipment Manufacturer) components, leading to shorter lifespans and frequent replacements. Rough handling during maintenance, such as dropping the sensor or pulling on the wiring harness too forcefully, can also damage delicate internal circuits. Mechanics and vehicle owners should take care when replacing the sensor to avoid introducing unwanted stress that could shorten its operational lifespan.

Testing and Maintaining the Camshaft Position Sensor

Ensuring the proper functioning of the camshaft position sensor is important for maintaining engine efficiency and performance. A faulty sensor can lead to issues such as rough idling, poor acceleration, misfiring, or even a no-start condition. To prevent these problems, regular testing and maintenance are needed.

Testing the Camshaft Position Sensor

One of the most effective ways to test the camshaft position sensor is by using a digital multimeter to measure voltage, resistance, and signal output. The testing process typically involves the following steps:

1. Visual Inspection

Before using any testing tools, start with a thorough visual inspection of the camshaft position sensor and its surrounding components. Look for any signs of physical damage, such as cracks, corrosion, oil contamination, or loose connectors. Since the sensor is often exposed to heat, vibration, and engine fluids, its electrical connectors and wiring harness can deteriorate over time. If there are any frayed wires or loose connections, they should be repaired or replaced before proceeding with further testing. Sometimes, a faulty sensor may not be the root cause of the issue. Damaged wiring, poor grounding, or a weak battery can also lead to inaccurate readings. Ensuring that the wiring is intact and the sensor is securely mounted can help eliminate false diagnoses and replacements. If everything looks intact during the inspection, proceed with electrical testing to confirm whether the sensor is functioning correctly.

2. Checking for Power Supply

Once the visual inspection is complete, the next step is to verify that the sensor is receiving the correct power supply voltage. Most camshaft position sensors operate on either 5V or 12V, which is provided by the Engine Control Unit (ECU). To check this, set your digital multimeter to DC voltage mode and connect the positive probe to the sensor’s power wire while grounding the negative probe. With the ignition turned to the ON position (without starting the engine), the multimeter should display the expected voltage range. If the sensor is not receiving power, the issue may lie in the wiring harness, fuse, or ECU rather than the sensor itself. A blown fuse or a damaged wire can interrupt the power supply, causing the sensor to malfunction. If voltage is present but still experiencing issues, further testing of the sensor's signal output is necessary to determine if the sensor itself is defective.

3. Measuring Signal Output

After confirming the power supply, the next step is to check the sensor’s signal output to ensure it is transmitting accurate data to the ECU. While the engine is running or cranking, connect the multimeter’s probes to the sensor’s signal wire and ground. The voltage should fluctuate as the camshaft rotates, between 0.5V and 5V in a Hall-effect sensor or producing an alternating current (AC) signal in a magnetic reluctance sensor. If the voltage remains constant or is outside the expected range, the sensor may not be detecting the camshaft's position correctly. A faulty signal can cause timing issues, leading to misfires, rough idling, or poor fuel efficiency. If an abnormal signal is detected, it is recommended to inspect the reluctor wheel (for magnetic sensors) or replace the sensor if necessary.

4. Resistance Testing (for Some Sensors)

Certain types of camshaft position sensors, magnetic reluctance sensors, can be tested by measuring their resistance. To perform this test, set the multimeter to the ohms (Ω) setting and connect the probes to the sensor’s terminals. Compare the resistance reading to the specifications provided by the vehicle manufacturer. A reading that is too high or too low could indicate an internal fault within the sensor. However, not all camshaft position sensors can be tested this way. Hall-effect sensors, which generate a digital square-wave signal, do not have measurable resistance. Instead, these sensors rely on voltage and signal testing. If your sensor type does support resistance testing, checking for deviations from the standard range can help determine whether it needs to be replaced.

5. Oscilloscope Testing (Advanced Method)

For a more in-depth analysis of the camshaft position sensor’s performance, an oscilloscope can be used to observe its signal waveform. Unlike a multimeter, which only provides numerical voltage readings, an oscilloscope displays a graph of the sensor’s output, allowing for more precise diagnostics. A properly functioning sensor will produce a steady, periodic waveform that corresponds to the camshaft’s rotational position. If the waveform is irregular, weak, or missing sections, this could indicate sensor degradation, wiring issues, or problems with the camshaft itself. Oscilloscope testing is useful when diagnosing intermittent sensor failures that may not be detected with a standard multimeter. While this method requires more advanced tools and knowledge, it provides the most accurate assessment of the sensor’s health.

Maintaining the Camshaft Position Sensor

Regular maintenance helps prevent premature sensor failure and ensures optimal engine performance. Best practices include:

1. Keeping the Sensor Clean

Dirt, oil, and debris can accumulate on the camshaft position sensor, potentially affecting its ability to detect the camshaft’s position accurately. Since the sensor operates in a high-heat, high-vibration environment, contaminants can interfere with its signal transmission, leading to erratic readings or complete failure. Regular cleaning is important to maintaining proper sensor function and preventing false signals that could trigger check engine lights or performance issues. To clean the sensor effectively, use an appropriate electrical contact cleaner or a non-residue spray designed for sensitive components. Avoid using harsh solvents or compressed air, as these could damage delicate sensor components. When cleaning, gently remove any dirt or oil buildup, ensuring that the sensor's surface remains free of obstructions. Make sure to inspect the surrounding area for leaks or excessive grime, as these could indicate larger engine issues contributing to sensor contamination.

2. Inspecting Wiring and Connectors

The camshaft position sensor relies on a stable electrical connection to function correctly. Over time, exposure to heat, moisture, and engine vibrations can lead to corrosion, frayed wires, or loose connectors, all of which may cause intermittent sensor failure or erratic readings. If the wiring harness is damaged, the sensor might not receive voltage, leading to incorrect timing signals and poor engine performance. To prevent these issues, regularly inspect the wiring harness and sensor connector for signs of wear or damage. Look for cracked insulation, bent pins, or corrosion at the terminals. If any issues are found, repair or replace the affected wiring immediately. Applying dielectric grease to the sensor connector can help prevent moisture buildup and corrosion, ensuring a consistent and reliable connection.

3. Monitoring Engine Performance

Changes in engine performance can often serve as an early warning sign of a failing camshaft position sensor. If the sensor begins to malfunction, the engine control unit (ECU) may receive incorrect data, leading to symptoms such as rough idling, hesitation during acceleration, or sudden power loss. In more severe cases, a faulty sensor may cause the engine to stall or fail to start altogether. Ignoring these warning signs can result in more extensive damage to engine components and increased repair costs. To stay ahead of potential issues, you should pay close attention to any unusual engine behavior and use an OBD-II scanner to check for trouble codes related to the camshaft position sensor. If diagnostic codes such as P0340 (Camshaft Position Sensor Circuit Malfunction) or P0341 (Camshaft Position Sensor Performance Issue) appear, further inspection and testing should be conducted immediately. Addressing sensor-related problems early can prevent further complications and keep the engine running smoothly.

4. Replacing the Sensor as Needed

Even with proper maintenance, camshaft position sensors can wear out over time due to heat exposure, electrical degradation, or internal component failure. If the sensor consistently produces erratic signals, fails diagnostic tests, or triggers persistent trouble codes, replacement is often the best solution. Continuing to use a failing sensor can lead to worsening performance problems, reduced fuel efficiency, and potential damage to other engine components.

Resetting the Camshaft Position Sensor

After servicing or replacing the camshaft position sensor, resetting the Engine Control Module (ECM) is an important step to ensure the vehicle operates efficiently. The ECM relies on sensor data to manage fuel injection, ignition timing, and overall engine performance. If the ECM is not reset after a new sensor is installed, it may continue using outdated data, leading to performance issues such as rough idling, poor acceleration, or even check engine warnings. There are several ways to reset the ECM after replacing the camshaft position sensor, ranging from simple manual resets to more advanced diagnostic tool methods.

Battery Disconnect Method (Basic Manual Reset)

This is the simplest way to reset the ECM and is effective for most vehicles. Disconnecting the battery temporarily cuts power to the ECM, forcing it to reset and clear any stored sensor data.

Steps:

• Ensure the Vehicle is in a Safe Location, Turned Off, and in Park (or Neutral for Manual Transmissions)

Before beginning, make sure the vehicle is parked on a level surface in a safe and stable location. Turn off the ignition completely, ensuring that all electrical components such as lights, radio, and climate control are switched off. For automatic transmissions, shift the gear into Park, while manual transmission vehicles should be set to Neutral with the parking brake engaged to prevent any movement.

• Open the Hood and Locate the Vehicle’s Battery

Pop the hood using the hood release lever inside the vehicle, typically located near the driver’s seat or under the dashboard. Once the hood is open, use the hood prop rod (if necessary) to secure it. Locate the battery, which is found in the engine bay but may sometimes be positioned in the trunk or under the rear seats in certain vehicles. The battery will have two terminals: one positive (+) and one negative (-), typically marked by red and black covers, respectively.

• Use a Wrench to Disconnect the Negative (-) Terminal of the Battery

With a wrench or socket set, carefully loosen the nut securing the negative (-) battery terminal cable. Always disconnect the negative terminal first to reduce the risk of electrical short circuits. Once the nut is loosened, gently remove the cable from the terminal and set it aside, ensuring it does not come into contact with any metal surfaces or the positive terminal. Some vehicles may have plastic covers over the terminals that need to be removed before access is possible.

• Wait for at Least 15 to 30 Minutes to Allow Residual Power to Drain from the System

After disconnecting the battery, wait at least 15 to 30 minutes to ensure that any remaining electrical charge dissipates from the vehicle’s electronic systems. This allows the ECM to fully reset. In some cases, particularly with newer vehicles or those with complex onboard computers, waiting up to an hour may be need for a complete reset. During this time, pressing the brake pedal or turning on the headlights for a few seconds can help drain any lingering power from the system more quickly.

• Reconnect the Negative Terminal and Tighten it Securely

Once the waiting period has elapsed, reattach the negative (-) battery cable to the terminal. Secure it by tightening the nut with a wrench, ensuring the connection is firm and stable. A loose connection may cause electrical issues or prevent the ECM from functioning correctly. If the vehicle has a battery management system (BMS), it may need to be reset using a scan tool or by following manufacturer-specific procedures.

• Start the Vehicle and Allow it to Idle for a Few Minutes While the ECM Relearns the New Sensor Data

After reconnecting the battery, start the engine and let it idle for a few minutes. This allows the ECM to relearn parameters, such as fuel mixture and idle speed, based on sensor data. During this period, avoid revving the engine or driving immediately, as the system needs time to recalibrate. Some vehicles may require driving under specific conditions, such as maintaining a steady speed for a few miles, to complete the relearning process.

OBD-II Scanner Reset Method (Recommended for Accuracy)

Using an OBD-II scanner (On-Board Diagnostics scanner) provides a more precise way to reset the ECM and ensure all previous sensor error codes are cleared.

Steps:

• Locate the OBD-II Port

The first step is to find the OBD-II port, which is positioned beneath the dashboard on the driver’s side. In most vehicles, it is located near the steering column, close to where the driver’s knees would be when seated. If you are unsure of the exact location, refer to your vehicle’s owner’s manual or look for a small, rectangular, 16-pin connector.

• Plug in the OBD-II Scanner and Turn on the Ignition

Once the OBD-II port is identified, insert the OBD-II scanner’s connector firmly into the port. After plugging it in, turn the ignition key to the On position without starting the engine. This will power up the vehicle’s electrical system and allow the scanner to establish a connection with the ECM. Some vehicles may require pressing a power button on the scanner itself to activate it.

• Check for Stored Trouble Codes

Using the scanner’s menu, navigate to the Read Codes function. This feature allows you to retrieve any active or stored trouble codes related to the camshaft position sensor or other engine components. Reviewing these codes can help confirm whether the issue has been resolved or if additional repairs are needed before proceeding with the reset.

• Clear the Error Codes

After reviewing the trouble codes, select the Clear Codes or Reset ECM option on the scanner. This command will instruct the ECM to erase any stored error messages, resetting the system. The process may take a few moments, and in some cases, the scanner may prompt you to confirm the reset before proceeding.

• Turn Off the Ignition and Unplug the Scanner

Once the codes have been successfully cleared, turn off the vehicle’s ignition completely. Carefully unplug the OBD-II scanner from the port, ensuring that no damage occurs to the connector pins. At this point, the ECM has been reset, and any previous error codes related to the camshaft position sensor should no longer be present.

• Start the Engine and Let the Vehicle Idle

With the scanner disconnected, start the engine and let it idle for a few minutes. This allows the ECM to reinitialize and recognize the newly installed camshaft position sensor. During this time, observe the dashboard for any new warning lights. If the Check Engine Light remains off and the engine runs smoothly, the reset has been successful. However, if warning lights reappear, further diagnosis may be required to address any underlying issues.

Drive Cycle Recalibration (Automatic ECM Reset)

In some vehicles, the ECM may not require a manual reset, as it can automatically relearn the new sensor's data over a period of driving cycles. However, this process can take time and may lead to temporary performance issues if the ECM is still adjusting.

Steps:

• Start the Vehicle and Let It Idle

Begin by starting the engine and allowing it to idle for approximately 5-10 minutes. This helps the ECM gather baseline data from the new sensor and stabilize engine parameters. Avoid pressing the accelerator or revving the engine during this phase, as the goal is to let the vehicle settle into its normal idle state.

• Drive Under Varied Conditions

After the initial idle period, take the vehicle for a drive that includes a mix of driving conditions. Ideally, drive between 20-50 miles, incorporating both steady highway speeds (55-65 mph) and stop-and-go city traffic. These varying conditions allow the ECM to analyze sensor readings under different engine loads, ensuring it properly adapts to the changes. If possible, avoid sudden acceleration or aggressive braking, as smooth driving helps the system recalibrate more effectively.

• Turn Off the Engine and Restart

Once the drive cycle is complete, park the vehicle and turn off the engine. Wait for a few moments before restarting to allow the ECM to process the new data. After restarting, check for any remaining Check Engine Light (CEL) warnings or performance issues. If the light remains off and the vehicle runs smoothly, the ECM has likely completed its adaptation process. However, if the CEL persists or the vehicle exhibits ongoing performance problems, further troubleshooting may be required.

Interfacing a Camshaft Position Sensor with a Microcontroller

Integrating a camshaft position sensor with a microcontroller, such as an Arduino or PIC, requires understanding the sensor's signal type and ensuring proper connections. Camshaft position sensors output different signal types, including digital (ON/OFF), analog voltage, or Pulse Width Modulation (PWM). Hall Effect sensors generate a digital HIGH/LOW signal in response to changes in magnetic fields as the camshaft rotates. Optical sensors, which use light to detect camshaft movement, also produce digital pulse signals corresponding to different positions. Magnetic (Variable Reluctance) sensors, on the other hand, generate a variable voltage signal where amplitude changes with rotation, providing position data.

To interface these sensors with a microcontroller, it is required to select appropriate input pins based on the signal type, digital sensors connect to digital input pins, while analog sensors require analog inputs. The microcontroller’s input voltage range must also match the sensor’s output to ensure compatibility. When wiring the sensor, its output should be connected to the corresponding microcontroller pin, and if voltage levels differ, voltage dividers or level shifters should be used to prevent damage. The sensor must receive the correct power supply, typically 5V or 12V, and must share a common ground with the microcontroller for stable operation.

Programming the microcontroller to process sensor data involves writing code in languages like C, C++, or Python. Functions such as digitalRead() are used for digital sensors, while analogRead() captures data from variable voltage sensors. Once the data is retrieved, it must be processed accordingly digital sensors provide simple HIGH/LOW signals that can be used directly in application logic, while analog sensor readings must be converted into meaningful positional information for accurate camshaft monitoring.

Replacing the Camshaft Position Sensor

The camshaft position sensor is a main component in modern engines, responsible for monitoring the position and speed of the camshaft. This data helps the engine control module (ECM) optimize fuel injection and ignition timing. When the sensor fails, it can lead to poor performance, misfires, difficulty starting, or even engine stalling. Replacing a faulty camshaft position sensor is important restoring engine efficiency and reliability.

Before beginning the replacement process, it's important to disconnect the battery by removing the negative terminal. This prevents electrical hazards and protects sensitive engine components. Once the battery is disconnected, locate the camshaft position sensor, which is found near the camshaft, timing cover, or cylinder head. Consulting the vehicle’s service manual can help pinpoint the exact location.

Next, remove the faulty sensor by unplugging its electrical connector and unscrewing the mounting bolt. Carefully pull out the old sensor, ensuring that no surrounding components are damaged in the process. Before installing the new sensor, compare it with the old one to confirm compatibility. Then, align it properly, secure it with the mounting bolt, and reconnect the electrical connector.

Once the new sensor is installed, reconnect the battery and start the engine. Check for any warning lights or irregular engine behavior. If needed, use an OBD-II scanner to clear error codes and verify that the sensor is functioning correctly. By following these steps, you can ensure a successful replacement, helping the engine run smoothly and efficiently.

Applications of the Camshaft Position Sensor

Automotive Engines

The camshaft position sensor, a component in modern internal combustion engines, playing a role in regulating ignition timing, fuel injection, and valve timing. By providing data to the engine control unit (ECU), the sensor helps optimize engine timing, ensuring efficient combustion that enhances performance and fuel economy. It is especially great in Variable Valve Timing (VVT) systems, where it enables precise adjustments based on driving conditions, improving power output and reducing emissions. The sensor aids in misfire detection by identifying irregular camshaft movement, allowing the ECU to make corrections, such as adjusting fuel delivery or notifying the driver of potential issues. During cold starts, the sensor ensures the ECU delivers the right amount of fuel and adjusts ignition timing, facilitating smoother and more reliable engine startups, even in low temperatures.

Industrial Automation

Beyond automotive applications, the camshaft position sensor plays a role in industrial automation for precise motor synchronization and timing. In manufacturing equipment, automated assembly lines and production machines rely on accurate timing to ensure seamless operation. The sensor helps synchronize motors and mechanical components, enhancing efficiency and accuracy. In robotics and motion control, industrial robots and automated systems depend on camshaft position sensors to coordinate movements, improving precision in repetitive or high-speed tasks. These sensors support predictive maintenance by monitoring rotational data to detect early signs of wear and tear in mechanical components. This proactive approach helps prevent unexpected failures, reducing downtime and maintenance costs.

Motor Control Systems

The camshaft position sensor plays a role in motor-driven applications, including electric and hybrid vehicles, as well as industrial motor control systems. In hybrid powertrains, it helps manage the transition between electric and gasoline engines by ensuring precise timing and synchronization, leading to smoother operation and improved fuel efficiency. In industrial settings, high-performance electric motors used in manufacturing and processing industries depend on precise control of rotational speed and torque. The sensor provides accurate position feedback, enhancing performance and energy efficiency. In generators and backup power systems, the sensor helps maintain synchronization between mechanical components, ensuring stable power output and preventing malfunctions.

Conclusion

The camshaft position sensor is excellent for making sure a car's engine works well and uses fuel efficiently. It helps the car's computer fine-tune the engine operation, which improves the car’s performance and keeps it running smoothly. If this sensor stops working right, it can cause problems like poor engine performance and increased fuel consumption. Keeping this sensor in good shape and fixing it when needed is important for maintaining your car’s health. This article has covered how the sensor works, its role in the engine, and what to do if it fails, a better understanding of vehicle's operation.
