Complete Guide to TRIACs: Working Principle, Types (BT136 & BT139), Applications, and Comparisons

This guide is all about TRIACs, which are special electronic parts used to control AC power like the electricity that comes from your wall socket. Unlike other switches that only let electricity flow in one direction, a TRIAC can let it flow both ways, making it perfect for controlling things that run on AC power. In this article, you’ll learn what a TRIAC is, how it works, and what makes it different from other similar parts like SCRs and DIACs. It also explains two common TRIAC types, BT136 and BT139, and shows where and how they are used in different devices. Whether you're building a small project or designing something for work, this guide helps you understand TRIACs in a simple way.

Catalog

What is a TRIAC?

A TRIAC (Triode for Alternating Current) is a semiconductor device used to control power in AC (Alternating Current) circuits. Unlike MOSFETs or IGBTs, which are primarily used in DC systems and allow current flow in only one direction, a TRIAC can conduct in both directions, making it ideal for AC applications. It has three terminals: Main Terminal 1 (MT1), Main Terminal 2 (MT2), and a Gate. The Gate allows the device to be triggered with either a positive or negative voltage, enabling flexible switching regardless of AC polarity. Internally, a TRIAC functions like two thyristors (SCRs) connected in opposite directions, reducing the need for additional components in bidirectional control systems.

Figure 2. Symbol of TRIAC

The TRIAC symbol, visually represents its bidirectional nature. It features two opposing arrows within the symbol, indicating current can flow in both directions between MT1 and MT2. A vertical line connects to the Gate terminal, illustrating its control function. This compact and efficient design allows TRIACs to be widely used in AC power control applications such as light dimmers, motor speed controllers, heating systems, and other household or industrial AC switching circuits.

What is the BT136 TRIAC?

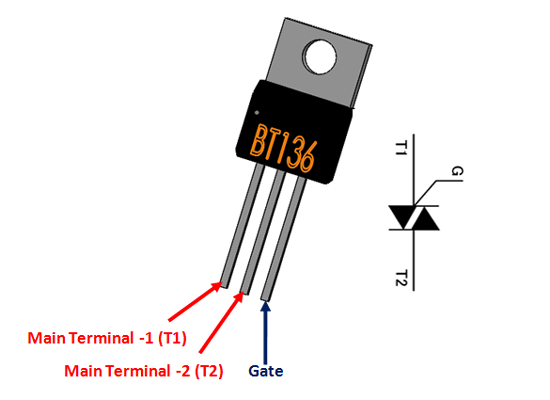

Figure 3. The BT136 TRIAC

The BT136 is a popular TRIAC model used in both household and industrial AC switching tasks. It features a sensitive gate, which means it can be triggered with a very small current. This makes it ideal for use with low-power devices like microcontrollers and logic ICs. The BT136 is built using planar passivation technology, which improves its long-term reliability and makes it more resistant to voltage spikes. It can operate in all four AC conduction quadrants, so it performs well even if the gate signal polarity varies. This TRIAC supports a high blocking voltage, suitable for 230V AC systems. It also has a low holding current, which helps keep it turned on even under low-load conditions. These features make the BT136 a solid choice for applications such as fan speed control, lighting dimming, and temperature regulation in heating systems.

Features of BT136

• Low gate current requirement allows direct control by microcontrollers or logic chips.

• High blocking voltage protects against voltage surges in AC lines.

• Low holding current ensures steady conduction during low load.

• Four-quadrant triggering provides flexibility in gate drive circuit design.

• Planar passivated design improves stability and electrical ruggedness over time.

Applications of BT136

• Light dimmers that adjust lamp brightness by controlling AC conduction.

• Fan speed regulators in appliances like ceiling fans and air conditioners.

• Heating element controllers in devices like electric ovens and water heaters.

• Smart home systems that link microcontrollers to high-voltage AC loads.

What is the BT139 TRIAC?

Figure 4. The BT139 TRIAC

The BT139 is a more robust TRIAC designed for higher current applications. It can handle up to 9A, making it suitable for heavier AC loads such as industrial motors, commercial lighting systems, and heating units. Like the BT136, it supports bidirectional conduction and can be triggered in all four quadrants. It has a rugged design and can withstand voltage transients typically found in industrial environments. This makes it a reliable choice for demanding conditions.

Features of BT139

• High current capacity (up to 9A) for controlling large or inductive loads

• Four-quadrant triggering allows flexible circuit design.

• High blocking voltage handles standard AC mains and transient conditions.

• Sensitive gate compatible with low-power control signals.

• Planar passivation ensures long-term durability and voltage tolerance.

Applications of BT139

• Industrial fan or pump speed control where startup current is high.

• Phase-controlled dimming for commercial lighting systems.

• Precision heating control in HVAC systems and industrial ovens.

• Smart energy systems and programmable timers in large-scale automation.

• High-end residential devices like washing machines and air conditioners.

How a TRIAC Works?

Figure 5. Working Diagram of TRIAC

TRIACs (Triode for Alternating Current) are semiconductor devices designed to control power in AC circuits. The device is importantly two SCRs (Silicon Controlled Rectifiers) connected in inverse parallel with a shared gate terminal, allowing it to conduct in both directions when triggered. In Figure 5, we see the symbol of a TRIAC along with its equivalent circuit depicting two back-to-back thyristors controlled by a common gate. The terminals are labeled as Anode 1 (or Main Terminal 1 - MT1), Anode 2 (or MT2), and the Gate. The gate terminal is used to initiate conduction through the TRIAC, making it ideal for AC power switching applications.

Figure 6. Physical Construction of the TRIAC(Left), Two Transistor Analogy(Middle), TRIAC Symbol(Right)

The internal structure of a TRIAC, as shown in Figure 6, includes a complex arrangement of alternating P and N layers forming five semiconductor regions. These allow the TRIAC to conduct in either direction, depending on the triggering signal. The central image in Figure 6 represents the simplified circuit model, and the rightmost image is its symbolic representation used in circuit diagrams. The gate signal controls the latching process of internal transistors, enabling current flow between MT1 and MT2. This bidirectional nature of TRIACs makes them useful in dimmer switches, motor speed controls, and heating regulation where AC current direction continuously alternates.

TRIAC Voltage-Current Behavior

The voltage-current (V-I) characteristic of a TRIAC is divided into four quadrants, based on the polarity of the main terminal MT2 with respect to MT1, and the polarity of the gate signal. This division is important in understanding how the TRIAC behaves under different triggering conditions and is needed when designing circuits that require controlled switching.

Figure 7. Voltage vs Current Characteristics of a TRIAC

Refer to the V-I characteristic curve in the diagram above, where:

• The horizontal axis represents the voltage across MT1 and MT2.

• The vertical axis represents the current through the TRIAC.

• The positive and negative halves of each axis show the TRIAC’s ability to conduct in both directions, making it suitable for AC applications.

Quadrant I: MT2 Positive, Gate Positive (T2+)

This operating mode is considered the most sensitive and efficient for triggering a TRIAC. In Quadrant I, both the main terminal 2 (MT2) and the gate are positive with respect to the main terminal 1 (MT1). Under these conditions, the TRIAC is easy to activate. Because of the high sensitivity in this quadrant, only a small gate current is required to initiate conduction. This makes Quadrant I highly desirable for control applications, particularly in AC power control, where minimizing the gate drive requirements can reduce complexity and cost.

The TRIAC swiftly enters the "on" or conducting state in this mode, allowing current to flow between MT2 and MT1. As such, this quadrant is widely used in practical AC switching and phase-control circuits, such as light dimmers, motor speed controllers, and heater regulators. In graphical representations of TRIAC triggering characteristics, Quadrant I appears in the top-right section of the curve, where both voltage and gate current polarities are positive.

Quadrant II: MT2 Positive, Gate Negative

In this operating quadrant, the main terminal 2 (MT2) is held at a positive voltage with respect to the main terminal 1 (MT1), while the gate terminal is negative with respect to MT1. This configuration still allows the device such as an SCR or TRIAC to be triggered, but it is notably less sensitive compared to operation in Quadrant I.

The reduced sensitivity is due to the fact that the gate current flows in the direction opposite to that of the MT2 current. This opposing polarity between the gate and MT2 results in a less efficient injection of carriers into the device's structure, which in turn requires a higher gate current to achieve triggering. Consequently, more effort (in terms of gate drive) is needed to turn the device on in this mode.

This mode of operation is illustrated in the top-left quadrant of the V-I characteristic curve. Despite the reduced sensitivity, triggering in Quadrant II is still viable and commonly utilized in practical applications, especially in AC switching where both polarities are encountered.

Quadrant III: MT2 Negative, Gate Negative (T2−)

In this operating region, both the main terminal 2 (MT2) and the gate are at negative potential relative to the main terminal 1 (MT1). This mode is functionally similar to Quadrant I, where both terminals are positive, but it operates in the opposite polarity. Although the sensitivity in Quadrant III is slightly lower than in Quadrant I, it is still considered a sensitive mode of operation. The gate requires only a modest current to trigger conduction, making this quadrant a viable option for applications where low-power control signals are used.

Quadrant III operation is useful in systems that handle negative input signals, such as those found in alternating current (AC) control circuits or specific types of bidirectional switching where the polarity of signals varies dynamically. This mode is graphically represented in the bottom-left quadrant of the four-quadrant triggering characteristic diagram, corresponding to the negative-negative combination of gate and MT2 voltages.

Despite its slightly reduced sensitivity compared to Quadrant I, Quadrant III still offers reliable and responsive triggering behavior, which makes it a practical choice in many bidirectional or symmetrical switching applications, where triggering from both polarities is required.

Quadrant IV: MT2 Negative, Gate Positive

This quadrant represents one of the less sensitive operational modes of the thyristor, much like Quadrant II. In this configuration, the main terminal 2 (MT2) is negative with respect to the main terminal 1 (MT1), while the gate receives a positive current. Due to this polarity arrangement, triggering the device requires a higher gate current compared to the more sensitive modes found in Quadrants I and III.

On the V-I characteristic curve, Quadrant IV is located in the bottom-right section, where the applied voltage is negative and the gate current is directed positively. The conduction in this mode is relatively inefficient, making it the least favorable in terms of gate sensitivity and energy usage. Many avoid using this quadrant for triggering when high efficiency or low gate drive is required. However, understanding its behavior is still important for fully characterizing the performance limits of the thyristor and ensuring safe operation under all possible conditions.

Thyristor (SCR) vs TRIAC

Feature	SCR (Silicon Controlled Rectifier)	TRIAC (Triode for Alternating Current)
Family	Thyristor	Thyristor
Conduction Direction	Unidirectional (one direction only)	Bidirectional (both directions)
Gate Triggering	Requires a positive gate pulse	Can be triggered by either positive or negative gate pulse
Triggering Component	Often triggered using a UJT	Often triggered using a DIAC
Holding Current Behavior	Stays on until current drops below holding level	Same, but in both directions
Application Focus	Best for DC or one-way AC control	Ideal for AC control (both directions)
Power Handling	High voltage and high current capability	Moderate voltage and current handling
Thermal Management	Requires heat sinks	Typically needs only one heat sink
Operational Modes	Operates in a single mode	Supports four modes of operation
V-I Characteristics	Operates in one quadrant	Operates in two quadrants
Reliability	More reliable	Less reliable than SCR

DIAC vs TRIAC

Feature	DIAC	TRIAC
Structure	Two-terminal device	Three-terminal device (MT1, MT2, Gate)
Triggering Method	Turns on when voltage exceeds a certain threshold (no external trigger)	Can be triggered by applying a gate pulse
Gate Terminal	No gate terminal	Has a gate terminal for triggering
Control	Voltage-controlled; uncontrolled switching	Gate-controlled; allows precise switching
Polarity Sensitivity	Bidirectional conduction	Bidirectional conduction
Common Use	Used to trigger TRIACs in control circuits	Used for switching and control in AC circuits
Application Example	Part of light dimmers, motor soft-starts (as a trigger for TRIAC)	Phase control, motor speed control, dimmers, AC switching
Function in Pairing	Helps ensure smooth and consistent TRIAC triggering	Main switching/control component, triggered by DIAC in some circuits

Advantages and Disadvantages of TRIACs

Advantages of TRIACs

1. Bidirectional Current Conduction

One of the advantages of a TRIAC (Triode for Alternating Current) is its ability to conduct current in both directions. Unlike standard SCRs (Silicon Controlled Rectifiers), which only allow current flow in one direction, TRIACs can control AC power without needing additional components to handle reverse current flow. This bidirectional capability makes them useful in AC switching applications.

2. Gate Triggering with Positive or Negative Signals

TRIACs can be triggered into conduction by applying either a positive or negative voltage to the gate terminal. This flexibility allows for greater ease in circuit design, as the triggering mechanism is not restricted to one polarity. This is useful when designing circuits to work with both halves of the AC waveform.

3. Simplifies Circuit Design Compared to Dual SCRs

Because a single TRIAC can control current flow in both directions, it can often replace two SCRs arranged in anti-parallel. This reduces the overall component count, which simplifies circuit layout, reduces space requirements, and cuts down on potential failure points in the system.

4. Requires Only One Heat Sink and One Fuse

Using a TRIAC instead of a pair of SCRs simplifies thermal management and protection. Since there's only one power-dissipating component, a single heat sink is sufficient. Similarly, a single fuse can be used for protection, simplifying the design and potentially reducing costs.

5. Compact and Cost-Effective for Low to Medium Power Applications

TRIACs are widely used in household and light industrial devices such as dimmer switches, motor speed controls, and heater regulators. They are compact, inexpensive, and easy to integrate into circuits, making them ideal for applications where high power handling isn't a primary concern.

Disadvantages of TRIACs

1. Reduced Reliability in High-Power or High-Noise Environments

TRIACs are generally less robust than SCRs when used in high-power or electrically noisy environments. They are more susceptible to false triggering due to electrical noise, which limits their use in heavy industrial applications where such conditions are common.

2. Sensitive to dv/dt (Rate of Voltage Change)

TRIACs are more sensitive to rapid changes in voltage, known as dv/dt. A sudden spike in voltage can unintentionally trigger the device into conduction, even without a gate signal. To counteract this, additional snubber circuits are often required, which can complicate the design.

3. Lower Voltage and Current Ratings Compared to SCRs

While suitable for many consumer and light industrial applications, TRIACs have lower current and voltage handling capabilities than SCRs. For high-power systems, especially those operating at high voltages, SCRs are usually the preferred choice.

4. Quadrant Sensitivity Can Lead to Unintended Conduction

TRIACs can be triggered in different “quadrants” depending on the polarity of the gate signal and the main terminals. Some quadrants are more sensitive than others, and if not properly accounted for in the design, this can lead to accidental conduction or unreliable operation. You must carefully consider gate drive conditions to ensure reliable performance.

Applications of TRIACs

TRIACs are electronic components used to control the flow of AC (alternating current) electricity. They are found in many devices that need to switch or adjust power. Here are some common applications:

Light Dimmers

TRIACs play a central role in light dimmer circuits by enabling phase control of AC voltage. By controlling the point during each AC cycle at which the TRIAC switches on, it effectively limits how much voltage reaches the lamp. This technique, called phase-angle control, reduces the average power delivered, dimming the light without causing flickering. TRIACs are compact and efficient, making them ideal for fitting into wall switches and lighting fixtures. Additionally, TRIAC-based dimmers work well with resistive loads like incandescent bulbs. However, modern TRIAC dimmers are also designed to handle newer lighting technologies, including certain dimmable LEDs and CFLs.

Fan Speed Controllers

In household appliances such as ceiling fans, exhaust fans, and some ventilation systems, TRIACs are commonly used to regulate motor speed. By adjusting the conduction angle of the AC cycle, TRIACs control the amount of voltage reaching the fan motor, which in turn changes its speed. This provides smooth, continuous control as opposed to fixed speed levels. TRIAC-based fan controllers are more efficient and quieter than older mechanical methods. They also allow for more compact designs without moving parts. This makes TRIACs an excellent choice for energy-efficient, low-noise fan control in both residential and commercial settings.

Temperature Regulators

TRIACs are widely used in electric heaters, ovens, and thermostatically controlled appliances to manage temperature levels. The TRIAC acts as a switch, turning the heating element on and off quickly to maintain a constant temperature. This rapid switching is often controlled by a thermostat or a microcontroller, which monitors temperature using sensors. Because TRIACs have no moving parts, they are more reliable and durable than mechanical relays. They also allow for more precise control, helping reduce energy consumption. In kitchen ovens, room heaters, and water boilers, TRIAC-based control systems help achieve consistent performance and improved energy efficiency.

Smart Home Systems

In smart home applications, TRIACs enable the automation of high-voltage appliances using low-voltage control signals. For example, a smart light switch or thermostat may use a TRIAC to turn a 230V AC appliance on or off based on commands or environmental sensors. TRIACs allow microcontrollers and wireless modules to control devices like lights, fans, and heaters without needing large relays or physical switches. This leads to more compact and efficient smart home devices. The quiet operation, low power consumption, and reliability of TRIACs make them well-suited for integration into smart home systems controlled by apps or voice assistants.

Industrial Automation

In industrial environments, TRIACs are important for controlling machinery and motor-driven systems. They are used to regulate the power supply to electric motors, pumps, and compressors by adjusting the phase angle of the AC voltage. This helps in managing speed, torque, and overall energy efficiency. TRIACs are also used in solid-state relays to switch heavy loads without mechanical wear, making them more reliable for continuous industrial operations. These applications benefit from TRIACs' fast switching capabilities, low maintenance needs, and compact design. In manufacturing and processing plants, TRIACs contribute to automation, cost reduction, and improved control over complex electrical systems.

Popular TRIAC Models

Two widely used TRIAC models are the BT136 and BT139. The BT136 is suitable for low to medium power applications, handling up to 4 amps, and is often used in household devices such as dimmers, timers, and low-power controllers. The BT139, on the other hand, supports higher current loads up to 16 amps and is better suited for industrial or heavier domestic use. Both models are commonly paired with microcontrollers or optoisolators to enable precise switching and isolation from control circuitry.

Conclusion

TRIACs are small but powerful tools that help control AC electricity in many everyday devices. They are great for turning things on and off or changing how much power something gets, like dimming a light or slowing down a fan. Because they work in both directions, they save space and reduce the number of parts needed in a circuit. TRIACs are found in homes and factories, and are often controlled by tiny computers like microcontrollers. This guide has explained how TRIACs work, what they are made of, how to use them, and where they are most useful. With this knowledge, you’ll be ready to choose and use the right TRIAC for your own projects or products.
