Isolated vs Non-Isolated Power Converters: What’s the Difference?

When working with power electronics, you need to understand the difference between isolated and non-isolated power converters. This article explains what each type is, how they work, and how they transfer energy in a circuit. You’ll also learn the common converter types used in each category. In addition, it covers their advantages, applications, and how to choose the right one for your system.

Catalog

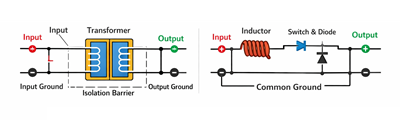

Figure 1. Isolated vs Non-Isolated Power Converter Overview

What Is an Isolated Power Converter?

An isolated power converter is a type of power conversion circuit that transfers energy between input and output without a direct electrical connection. Its primary purpose is to provide electrical safety and noise isolation by separating the input and output grounds. This separation is achieved through galvanic isolation, which prevents current from flowing directly between the two sides. Instead of a conductive path, energy is transferred through an intermediate medium, typically using magnetic or optical coupling. This design helps protect sensitive components from voltage spikes or faults on the input side. Isolated power converters are defined by their ability to maintain electrical independence between input and output while still delivering controlled power.

What Is a Non-Isolated Power Converter?

A non-isolated power converter is a power conversion circuit where the input and output share a direct electrical connection. Its main purpose is to efficiently regulate voltage levels within systems that do not require electrical separation. In this design, both sides typically share a common ground, allowing current to flow directly between input and output. This shared reference simplifies the circuit structure and reduces component count. Because there is no galvanic isolation, the input and output are electrically linked at all times. Non-isolated power converters are therefore defined by their continuous conductive path and common grounding between source and load.

How Isolated and Non-Isolated Power Converters Work?

Working Principle of Isolated Converters (Magnetic Coupling)

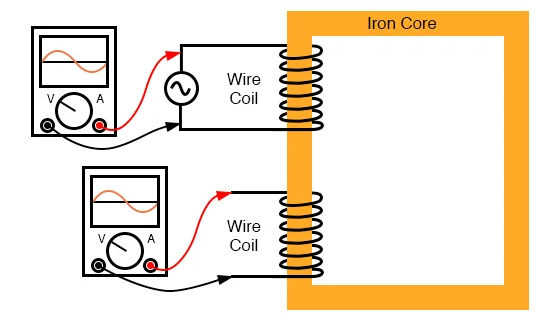

Figure 2. Transformer Isolation Diagram

Isolated converters operate by transferring energy through magnetic coupling rather than direct electrical conduction. A switching device rapidly turns the input voltage on and off, creating a time-varying current in the primary winding of a transformer. This changing current generates a magnetic field within the transformer core, which links to the secondary winding. The magnetic field induces a voltage in the secondary side, allowing energy transfer across the isolation barrier. Because there is no conductive path between windings, electrical separation is maintained throughout the process. The output side then converts the induced signal into a usable DC voltage using basic rectification and filtering stages. This method ensures controlled energy transfer while preserving galvanic isolation between input and output.

Working Principle of Non-Isolated Converters (Switching Regulation)

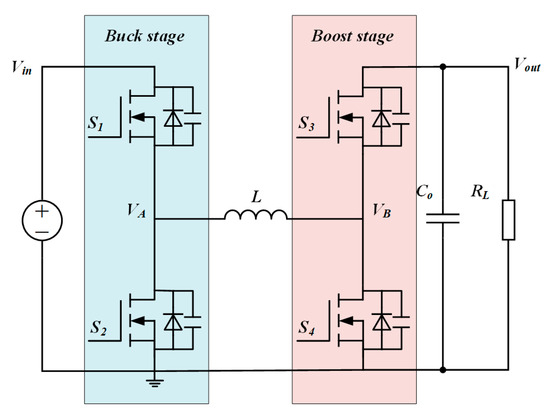

Figure 3. Non-Isolated Switching Circuit

Non-isolated converters regulate voltage through switching action within a continuous electrical path. A semiconductor switch rapidly turns on and off to control how energy flows from the input to the output. During switching, an inductor temporarily stores energy in its magnetic field and then releases it to the load. Capacitors are used to smooth the output and maintain a stable voltage level. Because the input and output share a common ground, energy transfer occurs directly through the circuit components. The switching process adjusts the duty cycle to regulate the output voltage according to system requirements. This approach enables efficient voltage conversion without the need for isolation components.

Types of Isolated and Non-Isolated Power Converters

Types of Isolated Power Converters

1. Flyback Converter

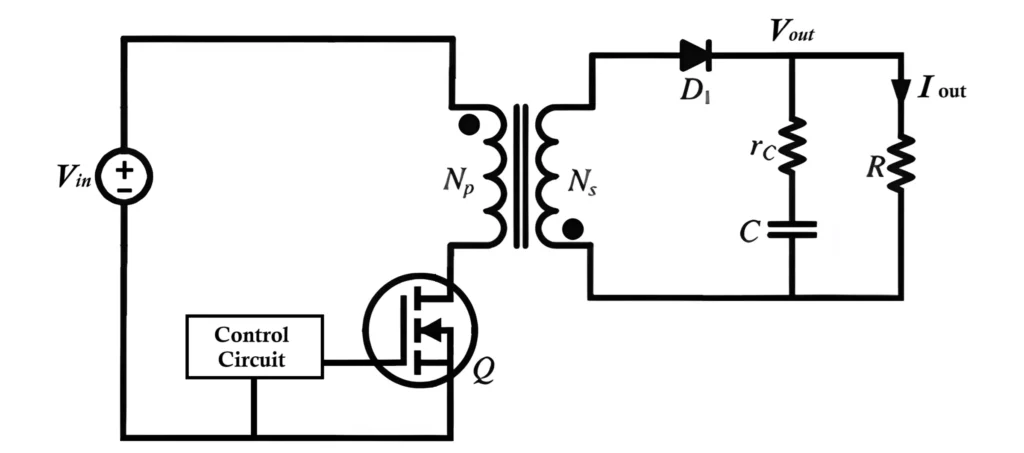

Figure 4. Flyback Converter Circuit Diagram

A flyback converter is a simple isolated power converter that stores energy in a transformer and delivers it to the output. It uses a transformer with primary and secondary windings, where the primary side is controlled by a switching device. When the switch operates, energy is first stored in the transformer and then transferred to the secondary side. The secondary circuit includes a diode and capacitor to convert and smooth the output voltage. This structure allows both voltage conversion and isolation within a compact design. The circuit shown highlights the basic arrangement of transformer coupling, switching control, and output rectification. Flyback converters are widely recognized for their simplicity and suitability in low-to-medium power applications.

2. Forward Converter

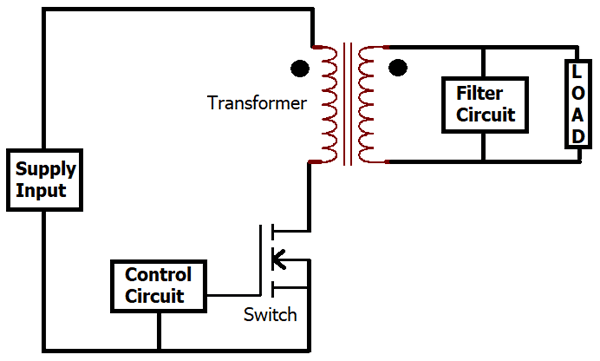

Figure 5. Forward Converter Circuit Diagram

A forward converter is an isolated power converter that transfers energy directly from input to output during the switching period. It uses a transformer where energy flows to the secondary side while the switch is active. The circuit includes a controlled switch on the primary side and a rectifier with filtering components on the secondary side. Unlike energy storage-based designs, the transformer delivers power continuously during conduction intervals. The diagram illustrates a clear path of energy transfer through the transformer to the output stage. This structure supports stable voltage conversion while maintaining electrical isolation. Forward converters are commonly used where improved efficiency and controlled power delivery are required.

3. Push-Pull Converter

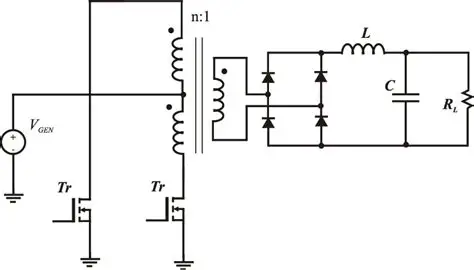

Figure 6. Push-Pull Converter Circuit Diagram

A push-pull converter is an isolated power converter that uses two switching devices to drive a transformer alternately. It features a center-tapped transformer primary winding, allowing current to flow in opposite directions during each switching cycle. Each switch operates in turn, energizing one half of the transformer at a time. This alternating action improves transformer utilization and supports efficient energy transfer. The secondary side includes rectification and filtering to produce a stable output voltage. The diagram reflects the symmetrical arrangement of switches and transformer windings. Push-pull converters are commonly used in medium-power applications requiring balanced operation.

4. Half-Bridge Converter

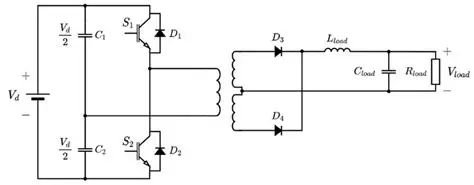

Figure 7. Half-Bridge Converter Circuit Diagram

A half-bridge converter is an isolated power converter that uses two switches to drive a transformer from a split input voltage. The circuit divides the input supply into two halves using capacitors, providing a midpoint reference. The switches operate alternately to apply voltage across the transformer primary winding. This configuration enables controlled energy transfer while reducing voltage stress on each switch. The transformer then delivers energy to the secondary side, where it is rectified and filtered. The diagram shows the balanced arrangement of two switches and the transformer interface. Half-bridge converters are commonly used in moderate-to-high power systems with efficient switching control.

5. Full-Bridge Converter

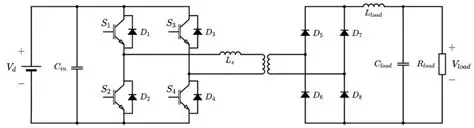

Figure 8. Full-Bridge Converter Circuit Diagram

A full-bridge converter is an isolated power converter that uses four switching devices to drive a transformer. The switches are arranged in an H-bridge configuration, allowing full utilization of the input voltage. By alternating the switching pairs, the circuit applies a bidirectional voltage across the transformer primary. This enables efficient energy transfer and supports high-power operation. The secondary side includes rectification and filtering to produce a stable DC output. The diagram illustrates the four-switch arrangement connected to the transformer and output stage. Full-bridge converters are widely used in high-power applications requiring robust and efficient energy conversion.

Types of Non-Isolated Power Converters

1. Buck Converter (Step-Down)

Figure 9. Buck Converter Circuit Diagram

A buck converter is a non-isolated DC-DC converter that reduces a higher input voltage to a lower output voltage. It uses a switching device to control how much energy is delivered from the source to the load, while an inductor helps smooth the current flow. A diode provides a current path when the switch is off, and a capacitor helps maintain a steady output voltage. This basic structure makes the buck converter one of the most common step-down power converter types in electronic systems. The circuit arrangement typically includes a switch, diode, inductor, and capacitor connected in a compact non-isolated layout. Because of this simple topology, buck converters are widely used wherever efficient voltage reduction is needed. In power electronics, the buck converter is valued as a practical solution for regulated low-voltage output from a higher DC supply.

2. Boost Converter (Step-Up)

Figure 10. Boost Converter Circuit Diagram

A boost converter is a non-isolated DC-DC converter that increases a lower input voltage to a higher output voltage. It works by storing energy in an inductor and then releasing that energy to raise the output voltage above the input level. The circuit normally includes an inductor, switch, diode, and capacitor, forming a standard step-up converter structure. As energy moves through the charging and discharging paths of the inductor, the output is built up and stabilized for the load. This makes the boost converter a widely used option in power supply design when a higher DC voltage is required from a lower source. Its non-isolated configuration keeps the circuit compact and electrically continuous from input to output. For many electronic systems, the boost converter provides a straightforward way to achieve efficient voltage step-up without isolation components.

3. Buck-Boost Converter (Step-Up/Down)

Figure 11. Buck-Boost Converter Circuit Diagram

A buck-boost converter is a non-isolated DC-DC converter that can either decrease or increase the output voltage depending on circuit requirements. It combines switching action with inductor-based energy transfer to provide flexible voltage regulation from a single topology. This converter is useful when the input voltage may be above or below the required output level during operation. Its circuit structure includes a switch, diode, inductor, and capacitor arranged to support both step-down and step-up conversion. In some configurations, the output polarity can be inverted, while in others the circuit is designed for regulated non-inverting output. The topology shown by this kind of circuit highlights its ability to adapt voltage levels without using a transformer. Because of this flexibility, the buck-boost converter is an important non-isolated converter type in modern power electronics.

Advantages of Isolated and Non-Isolated Power Converters

Advantages of Isolated Power Converters

• Provides electrical separation between input and output.

• Improves user and equipment safety.

• Helps reduce noise transfer between circuit sides.

• Supports high-voltage conversion more safely.

• Allows different ground references on each side.

• Offers strong design flexibility in power systems.

• Useful for multi-output power supply designs.

• Helps protect sensitive downstream circuits.

Advantages of Non-Isolated Power Converters

• Delivers high conversion efficiency in many designs.

• Uses fewer components and simpler layouts.

• Reduces overall circuit size and weight.

• Lowers manufacturing and design cost.

• Supports compact power supply integration.

• Responds well in low-voltage DC systems.

• Simplifies grounding and board-level design.

• Fits space-limited electronic devices easily.

Applications of Isolated and Non-Isolated Power Converters

1. Industrial Control Systems

Isolated power converters are widely used in industrial control systems such as PLCs, motor drives, and factory automation equipment. These systems often handle different voltage domains, so electrical separation is needed between control and power sections. Non-isolated converters are also used inside low-voltage subcircuits where direct regulation is sufficient. Their importance in industrial equipment lies in delivering stable power to monitoring, logic, and drive components.

2. Telecommunications Equipment

Telecom systems use both isolated and non-isolated converters in routers, base stations, switches, and communication modules. Isolated converters are commonly used in sections that require safety separation and noise control between power stages. Non-isolated converters are often placed near processors and communication chips for local voltage regulation. These converters are important because reliable power delivery directly affects signal processing and network uptime.

3. Consumer Electronics

Devices such as TVs, laptops, gaming systems, and smart home products rely on power converters to supply the required internal voltages. Isolated converters are often used in AC-DC adapter stages or power supplies that must separate the user side from the mains side. Non-isolated converters are commonly used inside the device for efficient onboard voltage conversion. Their importance comes from enabling compact, stable, and properly regulated power across many electronic functions.

4. Automotive Electronics

Modern vehicles use power converters in infotainment systems, lighting modules, battery management systems, sensors, and control units. Isolated converters are important in high-voltage sections of electric vehicles where different electrical domains must remain separated. Non-isolated converters are widely used for stepping voltage up or down within standard low-voltage automotive circuits. These converters are needed because automotive electronics require dependable power under changing operating conditions.

5. Medical Equipment

Medical devices such as patient monitors, imaging systems, diagnostic tools, and portable healthcare products depend on accurate and stable power conversion. Isolated converters are especially important in medical equipment because electrical separation is often required between the patient-connected side and the power source. Non-isolated converters may still be used in internal low-voltage sections where direct conversion is suitable. Their role is important because medical systems must maintain consistent power for sensitive electronic functions.

6. Renewable Energy Systems

Solar power systems, energy storage units, and related controllers use power converters to manage voltage conversion between sources, batteries, and loads. Isolated converters are used where electrical separation is needed between different system stages or interfaces. Non-isolated converters are often used in DC regulation paths for charging, monitoring, or local power conditioning. These converters are important because renewable energy systems must handle changing input conditions while maintaining usable output power.

7. Computing and Data Processing Equipment

Servers, embedded boards, data storage devices, and networking hardware use multiple power rails for processors, memory, and support circuits. Non-isolated converters are common in these systems because they efficiently regulate board-level voltages from intermediate DC buses. Isolated converters may also appear in main power supply sections or communication interfaces that require separation. Their importance lies in supporting stable operation of digital systems with different voltage requirements.

8. Aerospace and Defense Electronics

Aircraft electronics, satellite subsystems, and defense hardware often use specialized power conversion stages to match strict system requirements. Isolated converters are frequently selected where safety separation, noise control, or independent grounding is necessary. Non-isolated converters are also used in tightly integrated low-voltage modules where space and weight are required. These converters are important because mission-focused electronics require reliable power across complex operating environments.

Differences Between Isolated and Non-Isolated Power Converters

Aspect	Isolated Power Converter	Non-Isolated Power Converter
Isolation voltage rating	Typically 500 V to 5 kV isolation barrier	0 V (no isolation barrier)
Electrical path	Energy transferred without conductive path	Continuous conductive path from input to output
Ground potential difference	Can handle large ground differences (>100 V)	Limited to same ground potential (≈0 V difference)
Safety compliance	Meets reinforced/basic insulation standards (IEC/UL)	Not suitable for safety isolation standards
Transformer presence	Uses transformer or isolated coupling element	No transformer used
Switching frequency range	Typically 20 kHz to 500 kHz	Typically 100 kHz to 2 MHz
Efficiency range	~70% to 90% depending on topology	~85% to 98% depending on design
Power density	Lower due to magnetic components	Higher due to compact design
Component count	Higher (10–30+ components typical)	Lower (5–15 components typical)
Physical size	Larger due to transformer and spacing	Smaller, PCB-level integration possible
Weight	Heavier due to magnetic core	Lighter with minimal magnetics
EMI performance	Better isolation reduces conducted noise	More prone to conducted noise coupling
Voltage conversion ratio	Wide and flexible (e.g., 400V to 5V)	Limited conversion range (e.g., 12V to 5V)
Integration level	Often used as separate power modules	Easily integrated into IC-based regulators

How to Choose Between Isolated and Non-Isolated Converters

1. Check Whether Electrical Isolation Is Required

Start by determining whether the input and output must be electrically separated for safety or system protection. This is often the first and most important selection point in power converter design. If the system must prevent direct electrical contact between source and load, an isolated converter is usually the better choice. If no such separation is required, a non-isolated converter may be sufficient. This step helps narrow the decision based on the most basic system requirement.

2. Identify the Input and Output Voltage Relationship

Next, look at the voltage levels available at the source and the voltage needed by the load. Some systems only need simple step-down or step-up conversion within the same electrical ground, which often fits non-isolated designs well. Other systems involve wider voltage differences or separated power domains that may favor isolated solutions. The voltage relationship also affects topology selection and system layout. A clear voltage target makes the converter choice more practical and accurate.

3. Evaluate Safety and Regulatory Requirements

Review whether the product must meet safety standards related to user protection, insulation, or equipment separation. In many regulated systems, especially where hazardous voltages are involved, isolation may be required by design rules or certification needs. Non-isolated converters are generally more suitable in low-voltage systems where those requirements do not apply. This step is especially important in products intended for public, industrial, or sensitive environments. Safety compliance should always be considered early in the design process.

4. Consider Space, Weight, and Layout Limits

Physical size can strongly affect the best converter choice, especially in compact electronic products. Non-isolated converters are often preferred where the design must stay small, light, and easy to integrate onto a PCB. Isolated converters may need more space because they usually include additional magnetic and insulation-related components. The available board area and enclosure size should therefore be reviewed before making a final decision. This step ensures the selected converter will fit the product design realistically.

5. Set a Cost Target for the Power Stage

Budget is another key factor when selecting between isolated and non-isolated power converters. Non-isolated designs usually cost less because they use fewer parts and simpler structures. Isolated converters can increase material and design cost due to added isolation components and more complex implementation. The right choice depends on whether the application prioritizes low cost or added electrical separation. This step helps balance technical needs with product pricing goals.

6. Match the Converter to the End Application

The final decision should reflect the real operating environment and system purpose. A converter used in industrial, medical, or high-voltage equipment may need isolation because of the application’s design requirements. A converter used for onboard DC regulation in compact electronics may benefit more from a non-isolated approach. Looking at the full application context helps avoid choosing based on only one factor. This step connects the converter type to practical system use.

7. Review Long-Term Design Flexibility

It is also useful to think about future upgrades, system expansion, or design reuse. An isolated converter may offer more flexibility when separate grounds, multiple outputs, or wider system changes are expected later. A non-isolated converter may be the better choice when the design is fixed and optimized for compact performance. Planning for future needs can reduce redesign work and improve system scalability. This final step helps ensure the converter remains suitable beyond the first version of the product.

Conclusion

The main difference between isolated and non-isolated converters is whether the input and output are electrically separated. Isolated converters provide better safety and protection, while non-isolated converters are simpler, smaller, and more efficient. Each type has different designs that fit specific voltage and system needs. Choosing the right one depends on safety, voltage levels, size, cost, and how the system will be used.
