Miniature Circuit Breaker (MCB): Working Principle, Types, Ratings & Selection Guide

This article helps you understand what a miniature circuit breaker (MCB) is and how it protects an electrical circuit from overload and short circuit. You will learn its main parts, how it operates, and why it disconnects power during faults. It also explains trip curve types, pole configurations, and breaking capacity ratings. Finally, you’ll see common applications and how to choose the correct MCB for a circuit.

Catalog

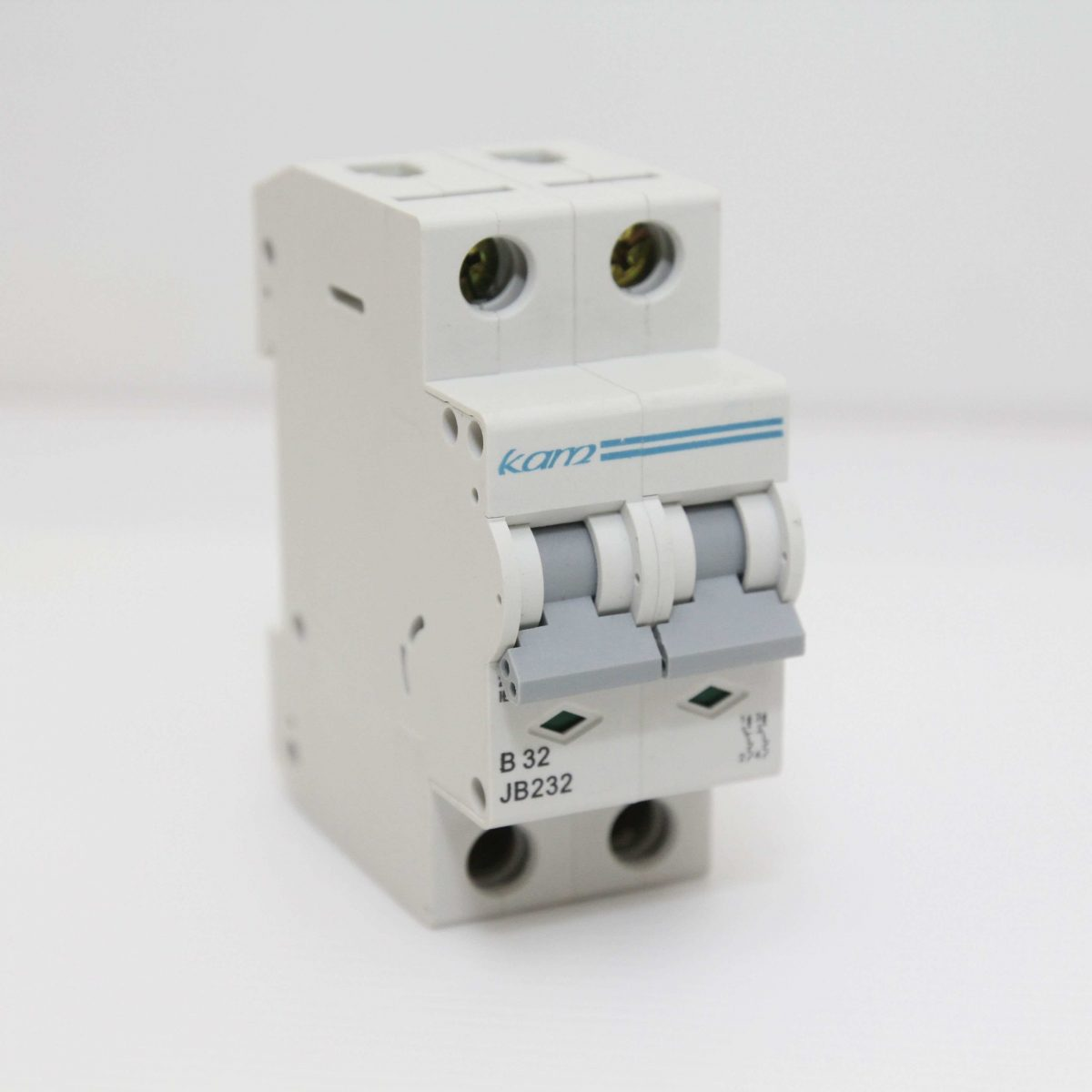

Figure 1. Miniature Circuit Breaker (MCB)

What is a Miniature Circuit Breaker?

A miniature circuit breaker (MCB) is an automatic electrical protection device used to stop excessive current in a circuit. Its main purpose is to protect wires and connected equipment from damage caused by overload or short circuit. When abnormal current appears, the MCB disconnects the power supply to keep the installation safe. Unlike a fuse, it can be reset and used again after the fault is cleared. Because of this reusable protection, MCBs are widely used in homes, buildings, and small electrical panels.

Construction of a Miniature Circuit Breaker

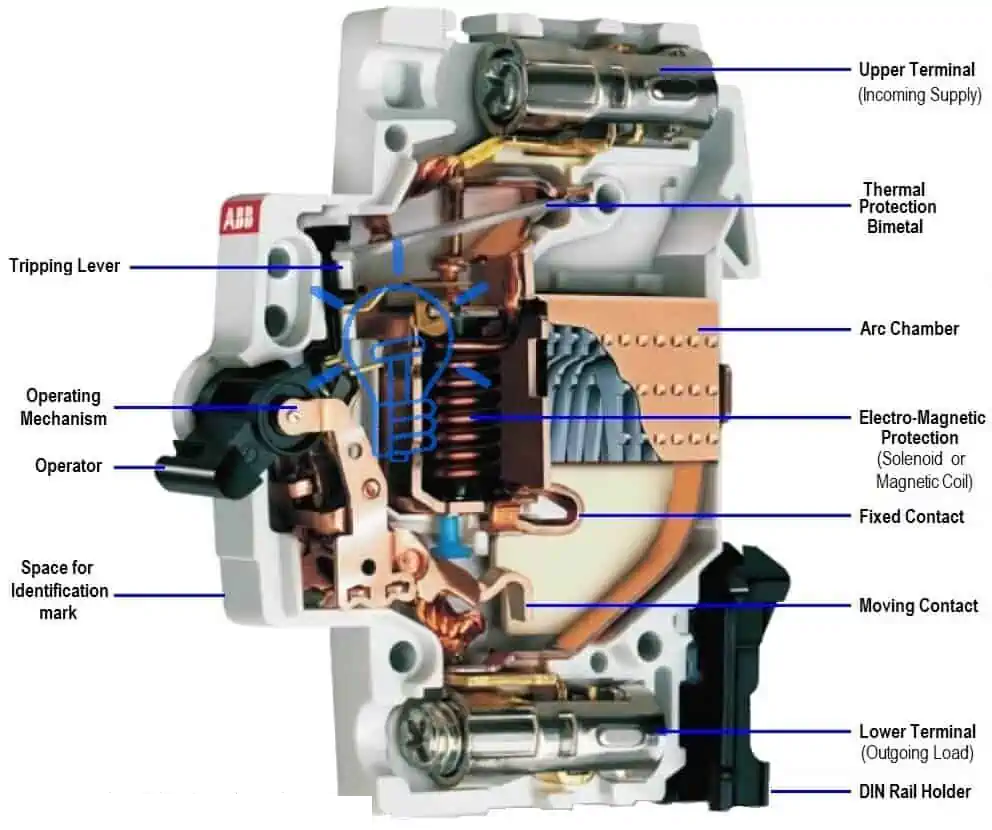

Figure 2. Internal Parts of a Miniature Circuit Breaker

• Upper Terminal (Incoming Supply)

The upper terminal connects the power source to the breaker. It provides a secure electrical entry point for the incoming conductor. This terminal ensures stable current transfer into the internal contacts.

• Lower Terminal (Outgoing Load)

The lower terminal connects the breaker to the protected circuit. Current flows out of the breaker through this point toward the load. It keeps the wiring connection tight and reliable.

• Thermal Protection Bimetal

The bimetal strip senses heat caused by excess current. It bends when temperature rises and prepares the mechanism to disconnect power. This part acts as a temperature-based safety element.

• Electromagnetic Coil (Magnetic Protection)

The magnetic coil reacts instantly to very high current levels. It produces a magnetic force that activates the release mechanism. This ensures fast reaction during severe faults.

• Fixed Contact

The fixed contact is the stationary conducting point inside the breaker. It remains in place while the moving contact opens or closes against it. Electrical current normally passes through this contact pair.

• Moving Contact

The moving contact physically opens and closes the circuit. It separates from the fixed contact when the breaker operates. This action interrupts the electrical flow safely.

• Arc Chamber (Arc Chute)

The arc chamber contains metal plates that divide and cool the electric arc. It reduces heat and prevents damage inside the breaker. This protects the device and nearby wiring.

• Operating Mechanism

The operating mechanism links the internal release system to the handle. It controls opening and closing of contacts. It also locks the breaker in ON or OFF position.

• Tripping Lever

The tripping lever transfers motion from protection elements to the contacts. When activated, it releases the latch system. This allows automatic disconnection.

• Operator (Toggle Handle)

The handle allows manual switching of the breaker. It can turn the circuit ON or OFF safely. It also shows the breaker status.

• DIN Rail Holder

The holder allows easy mounting inside distribution boards. It secures the breaker onto a standard rail. This simplifies installation and replacement.

Working Principle of MCB

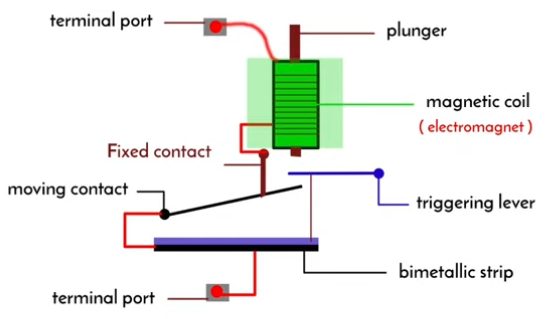

Figure 3. MCB Working Mechanism Diagram

When normal current flows, electricity passes through the contacts without interruption. During an overload, heat builds up in the sensing element and triggers the release mechanism after a short delay. The latch unlocks and the contacts separate, disconnecting the circuit. In a short circuit condition, a strong magnetic force activates the mechanism instantly. The contacts open rapidly and an electrical arc appears between them. The arc enters the arc chamber where it splits and cools until it disappears. After the fault is removed, the breaker can be reset and the circuit restored.

Types of MCB Based on Trip Curve

Figure 4. MCB Trip Curve Types (B, C, D)

Type B MCB

A Type B MCB is designed for low surge current circuits. It trips when current reaches about three to five times the rated value. This makes it suitable for lighting and household wiring. Small appliances and resistive loads operate reliably with this protection. The breaker disconnects quickly to protect cables from overheating. It is commonly used in residential electrical panels.

Type C MCB

A Type C MCB is intended for moderate starting current equipment. It operates at roughly five to ten times the rated current. This allows devices like fans and small motors to start normally. It balances protection and tolerance to temporary surges. Many commercial buildings use this breaker type. It is the most common choice for general purpose circuits.

Type D MCB

A Type D MCB is built for high inrush current loads. It trips only when current reaches about ten to twenty times the rated value. Heavy motors and transformers require this delay to start properly. The breaker avoids nuisance tripping during energizing. Industrial machinery often uses this category. It protects circuits while supporting large startup currents.

Types of MCB Based on Number of Poles

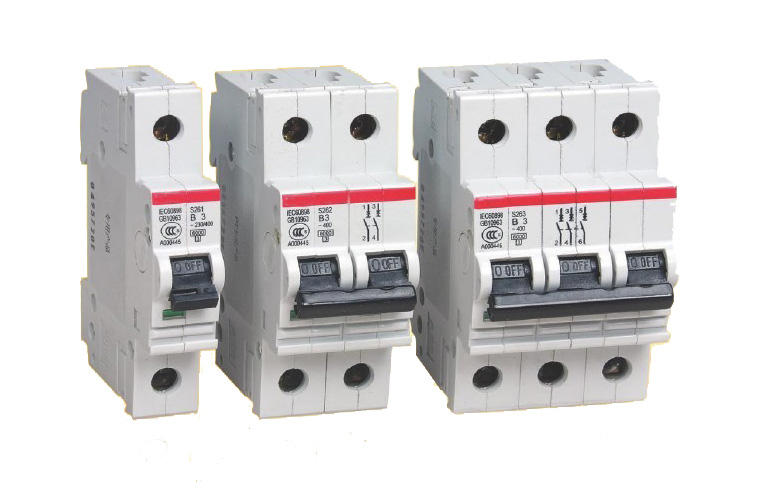

Figure 5. MCB Pole Configurations

MCBs also vary by how many wires they disconnect together. The pole type depends on the circuit supply system.

Single-Pole (SP)

A single-pole MCB protects one live conductor in a single-phase circuit. It disconnects only the phase wire when a fault occurs. This configuration is commonly used for lighting circuits. Residential distribution boards widely use SP breakers. It is compact and simple to install. Neutral remains directly connected in this setup.

Double-Pole (DP)

A double-pole MCB disconnects both phase and neutral conductors together. This provides complete isolation of the circuit. It improves safety during maintenance and troubleshooting. Appliances such as water heaters often use this configuration. The supply becomes fully separated from the load. It is common in single-phase equipment protection.

Triple-Pole (TP)

A triple-pole MCB protects three live conductors in a three-phase system. All phases disconnect simultaneously during a fault. This prevents phase imbalance damage to equipment. Industrial motors and machinery commonly use this arrangement. It ensures uniform isolation across the supply lines. Three-phase panels rely on TP breakers for balanced protection.

Types of MCB Based on Breaking Capacity

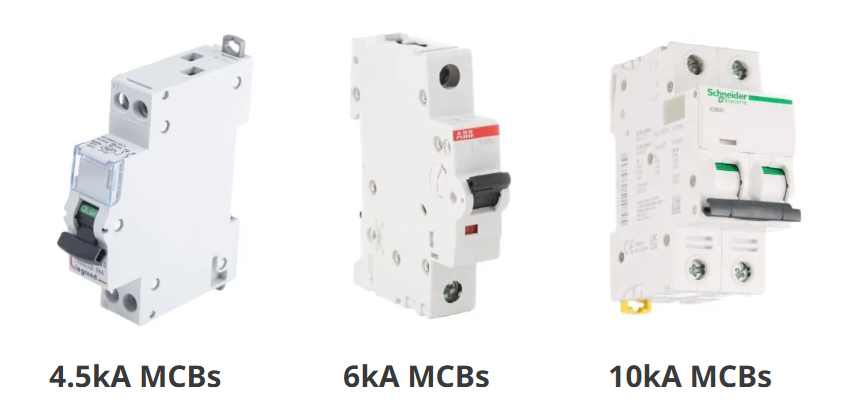

Figure 6. MCB Breaking Capacity Ratings

MCBs are classified by the maximum fault current they can interrupt. This depends on the strength of the electrical supply at the installation point.

4.5kA MCB

A 4.5kA MCB is a miniature circuit breaker with a short-circuit breaking capacity of 4.5 kiloamperes. It is designed for lower fault-level locations where the available short-circuit current is relatively small. This typically fits light-duty distribution points with longer feeder cables that reduce fault current. In these networks, a 4.5kA breaking capacity MCB can interrupt faults safely within its rated limit. It is common in basic consumer units where the upstream source is not very “stiff.” The key point is that 4.5kA suits weaker networks with limited prospective short-circuit current.

6kA MCB

A 6kA MCB is a miniature circuit breaker rated to interrupt up to 6 kiloamperes of fault current. It is used where the electrical supply can deliver a moderate short-circuit level at the distribution board. This often includes typical residential and small commercial networks fed by nearby transformers. Compared with 4.5kA devices, a 6kA breaking capacity MCB provides more fault withstand margin in stronger supplies. It helps ensure the breaker can clear higher prospective short-circuit current without damage. For many building installations, 6kA is a widely used breaking capacity class.

10kA MCB

A 10kA MCB is a miniature circuit breaker that can safely interrupt up to 10 kiloamperes of short-circuit current. It is intended for high fault-level points where the supply source is strong and impedance is low. This includes panels closer to transformers, larger commercial switchboards, and many industrial distribution sections. A 10kA breaking capacity MCB provides higher withstand capability for severe short-circuit conditions. It reduces the risk of breaker failure when the prospective fault current is high. In short, 10kA is chosen for stronger networks with higher available short-circuit current.

MCB Ratings and Specifications

Parameter	Specification
Rated current (In)	6A, 10A, 16A, 20A, 32A, 40A, 63A
Rated operational voltage (Ue)	230/400V AC
Rated frequency	50/60 Hz
Number of poles	1P, 1P+N, 2P, 3P, 3P+N (4P)
Trip curve class	B, C, D (sometimes K, Z)
Rated short-circuit breaking capacity	4.5kA, 6kA, 10kA (kA marking)
Standard / compliance marking	IEC 60898-1 (or IEC 60947-2)
Rated insulation voltage (Ui)	e.g., 500V
Rated impulse withstand voltage (Uimp)	e.g., 4kV, 6kV
Energy limiting class	Class 3 (if marked)
Terminal conductor size range	e.g., 1–25 mm² (varies by model)
Terminal tightening torque	e.g., 2.0 N·m (varies by model)
Mechanical endurance	e.g., 10,000–20,000 operations (if stated)
Electrical endurance	e.g., 4,000 operations (if stated)
Degree of protection (IP)	IP20 (typical for devices in enclosures)

Comparison Between MCB and Fuse

Both MCBs and fuses protect circuits against overcurrent, but they differ in operation and handling after a fault. The table below compares their functional behavior.

Parameter	MCB	Fuse
After-trip action	Resettable	Must be replaced
Fault indication	Clear ON/OFF/TRIP position	Often unclear unless blown indicator exists
Switching function	Can be used as a switch	Not intended for switching
Reuse after fault	Reusable after reset	Single-use element
Response consistency	Defined trip curve behavior	Depends on fuse type and condition
Overload protection	Built-in overload disconnection	Yes, but depends on fuse characteristics
Short-circuit interruption	Rated breaking capacity (kA marked)	High interrupting ability for many fuse types
Downtime after trip	Low (reset)	Higher (replace, check rating, install)
Maintenance effort	Low routine handling	Requires spare stock and replacement
Contact wear	Has mechanical contacts that age	No moving parts in the element
Arc handling	Internal arc chamber	Arc handled inside fuse body during melting
Selectivity control	Often coordinated with upstream breakers	Can be very selective with proper fuse grading
Operating feedback	Visible handle position	Element condition not always visible
Typical failure mode	Contact/mechanism wear over long life	Element melts permanently on operation

Applications of Miniature Circuit Breakers

1. Residential lighting circuits

MCBs protect lighting branch circuits from overloads caused by wiring faults or too many fixtures on one line. They provide fast disconnection when current exceeds safe limits for the conductor. Resetting is simple after the issue is corrected. This makes home distribution boards easier to maintain.

2. Socket outlet (receptacle) circuits

General-purpose outlets can see changing loads from appliances and tools. An MCB helps protect the wiring when several devices are plugged in at once. It reduces the risk of cable overheating from sustained overcurrent. This is a common use in homes and small offices.

3. Air-conditioning and HVAC branch circuits

Split-type AC units and small HVAC equipment are often protected by dedicated MCBs. The breaker isolates a single unit for service without shutting down the whole panel. It also protects the supply line feeding the equipment. This keeps faults localized to one circuit.

4. Water heaters and small fixed appliances

Many fixed loads run for long periods, so circuit protection needs to be stable and reliable. MCBs provide automatic disconnection when abnormal current occurs. They also allow convenient isolation for maintenance. This is common in apartments and commercial restrooms.

5. Distribution boards and subpanels

MCBs are used as outgoing feeders in main panels and subpanels. They protect branch circuits and help organize loads by area or function. This improves fault isolation and reduces troubleshooting time.

6. Commercial lighting and power circuits

Offices, shops, and small buildings use many separate circuits for lighting, outlets, and equipment. MCBs protect each circuit independently to limit fault impact. This keeps essential sections running if one circuit trips. It supports safer day-to-day operation.

7. Control panels and automation auxiliary circuits

Control wiring for relays, sensors, and auxiliary power supplies often needs compact protection. MCBs fit DIN-rail control panels and provide clear isolation. They help prevent small faults from spreading to other control sections. This is common in industrial control cabinets.

8. Small motors and pumps (branch protection)

Many small motors are fed from dedicated branch circuits protected by MCBs. The breaker separates the motor circuit quickly during abnormal current conditions. It also gives a simple ON/OFF isolation point at the panel. This is often used for boosters, fans, and small pumps.

How to Select the Right MCB?

Step 1: Determine the circuit load and choose the current rating

Start by listing the connected load and the normal running current of the circuit. Select an MCB rated current that can carry the expected load current without nuisance tripping. If the load varies, base the choice on the highest normal operating current, not the occasional brief peaks. Keep the rating aligned with the circuit conductor capacity used in that line. This step sets the basic “size” of the miniature circuit breaker.

Step 2: Select the trip curve based on inrush behavior

Check whether the load has a high starting surge, like motors, compressors, or transformers. Use a curve that tolerates the expected inrush while still providing fast disconnection for faults. Type B suits low-surge loads, Type C suits moderate inrush, and Type D suits high inrush equipment. Pick the curve that fits how the load starts, not just what it is called. This prevents repeated nuisance trips during start-up.

Step 3: Choose the number of poles to match the supply system

Identify if the circuit is single-phase or three-phase, and whether you need to isolate neutral with the phase. Use SP for a single live conductor, DP for isolating phase and neutral together, and TP for three-phase lines. For three-phase with neutral isolation, choose TPN/4P style protection as required by the system design. Pole selection is about safe disconnection of the right conductors together. This step ensures correct isolation and wiring compatibility.

Step 4: Check the prospective short-circuit level and select breaking capacity (kA)

Estimate the available fault current at the installation point using the supply data or a short-circuit calculation. Choose a breaking capacity rating (such as 4.5kA, 6kA, or 10kA) that is equal to or higher than that prospective short-circuit current. Stronger supplies and panels closer to transformers usually need a higher kA MCB. This choice is about withstanding and interrupting the maximum fault level safely. It is one of the most important safety checks.

Step 5: Final verification of labeling match for the selected MCB

Confirm the selected MCB’s nameplate matches the circuit requirement for poles, curve, and breaking capacity. Re-check that the chosen current rating aligns with the expected load level and the circuit design limit. Ensure the breaker selection is consistent across similar circuits in the same panel to keep protection coordination predictable. If the fault level is uncertain, use the safer option by selecting a higher breaking capacity class. This final step reduces mismatch errors before installation.

Conclusion

An MCB disconnects power during abnormal current and can be reset after the fault is cleared. Correct selection depends on load current, starting behavior, supply type, and fault level. Knowing its types and ratings helps ensure safe and stable circuit protection. Proper use reduces damage and improves electrical safety.
