PCA9615 I2C Bus Buffer: Pinout, Specs, Applications, and Datasheet

In today's fast-paced world of electronics design, maintaining reliable communication between components is serious, especially in electrically noisy environments. The PCA9615, a dual-channel differential I2C-bus buffer designed for Fast-mode Plus (Fm+) operation, offers a solution by enhancing data integrity and supporting hot-swap functionalities. This article explores PCA9615’s datasheet, pinout, applications, and circuit configurations. Providing in-depth technical insights and actual examples, it guides you on how to leverage the PCA9615 to optimize performance in their designs.

Catalog

Pinout of PCA9615

CAD Model of PCA9615

Symbol

Footprint

Overview of PCA9615

ThePCA9615 serves as an integral buffer for SMBus/I2C-bus communication, substantially enhancing data transmission within electrically noisy environments. By employing a differential physical layer (dI2C) that maintains transparency to the protocol layer, it adeptly mitigates data corruption. This capability ensures reliable communication across various applications, including industrial automation, automotive systems, and complex interconnected devices.

The PCA9615 is outfitted with two single-ended differential driver channels tailored for the SCL line. Extends the range and speed of SMBus/I2C signals. Preserves signal integrity. By converting single-ended signals to differential signals, the PCA9615 effectively diminishes electromagnetic interference (EMI) and crosstalk, which are prevalent in high-noise environments.

Differential signaling in the PCA9615 offers a host of advantages and provides superior noise rejection compared to single-ended signals. Mainly beneficial in industrial and automotive settings where electrical noise threatens data integrity. Supports longer cable lengths and higher data rates. Enables more flexible system designs. In actual applications, the PCA9615 integrates seamlessly into systems necessitating robust communication over extended distances. Differential signaling ensures reliable sensor data transmission between components such as the engine control unit and various sensors dispersed throughout the vehicle. The PCA9615 maintains clear communication between multiple controllers and field devices located across a large manufacturing floor.

Block Diagram of PCA9615

Technical Specifications

Here is the table format with technical specifications, attributes, and parameters of the NXP USA Inc. PCA9615DPJ , along with parts with similar specifications.

Type	Parameter
Factory Lead Time	7 Weeks
Mounting Type	Surface Mount
Package / Case	10-TFSOP, 10-MSOP (0.118, 3.00mm Width)
Surface Mount	Yes
Operating Temperature	-40°C ~ 85°C
Packaging	Tape & Reel (TR)
Published	2010
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	10
Type	Buffer, ReDriver
Applications	I2C
Voltage - Supply	2.3V ~ 5.5V
Terminal Position	Dual
Terminal Form	Gull Wing
Peak Reflow Temperature (Cel)	Not Specified
Number of Functions	1
Supply Voltage	3.3V
Terminal Pitch	0.5mm
Time@Peak Reflow Temperature-Max (s)	Not Specified
Base Part Number	PCA9615
Output	2-Wire Bus
Pin Count	10
JESD-30 Code	S-PDSO-G10
Number of Channels	2
Current - Supply	16μA
Input	2-Wire Bus
Data Rate (Max)	400kHz
Supply Voltage1-Nom	5V
Capacitance - Input	7pF
Length	3mm
Height Seated (Max)	1.1mm
Width	3mm
RoHS Status	ROHS3 Compliant

Key Features and Benefits

Hot-Swap Functionality

The PCA9615's design includes a robust hot-swap capability, which allows modules to be connected and disconnected without causing data flow interruptions. This feature is especially advantageous in complex systems where uptime and reliability are dominant, such as in telecommunications and data centers. By enabling seamless module replacement and expansion, the hot-swap feature ensures consistent system performance and minimal downtime, catering to the ever-present need for stability and efficiency in such demanding environments.

• EN Signal Input: The EN (Enable) signal input plays a decisive role in managing the hot-swap procedure. When a new module is connected, the EN signal ensures the procedure is carried out in an orderly manner. This mechanism prevents communication errors that could occur if modules were added or removed arbitrarily. In many practical applications, precise signal management upholds data integrity, which is especially valuable in environments where data loss is unacceptable and the stakes are high.

Internal Bus Idle Detection

The internal bus idle detect mechanism further enhances the hot-swap functionality by ensuring connections are made only when the bus is idle. This feature helps avoid potential data collisions and corruption, thus safeguarding the accuracy of the transmitted information. Bus idle detection operates transparently, working behind the scenes to provide a stable communication environment even under dynamic conditions.

• System Safeguards: The interplay of these components within the PCA9615 showcases how modern technology integrates multiple layers of safeguards to assure both operational efficiency and data security. The harmonious coordination between the EN signal input and the bus idle detection forms the foundation of reliable hot-swapping in dangerous systems. These elements collectively contribute to a resilient and dependable system, addressing the exact needs of high-stakes environments with precision and care.

PCA9615 Utilizations

The PCA9615 presents versatile solutions to a myriad of technical hurdles, addressing the distinctions of specific applications. These include monitoring remote sensors in noisy environments, managing power supplies prone to high interference, linking I2C buses across various equipment types, and controlling complex industrial systems like lighting, heating, and cooling.

Remote Sensor Monitoring

In environments rife with noise, the trustworthiness of sensor data can deteriorate. The PCA9615 supports steadfast communication between remote sensors and dominant processing units. Use cases such as industrial automation and environmental monitoring stations illustrate its benefits intensely. Maintaining data integrity becomes less of a gamble, similar to methodologies in telecommunication infrastructures where signal fidelity over long distances is used. You can harness differential signaling techniques, similar to those of PCA9615, to effectively alleviate noise-related issues.

High-Interference Power Supply Management

A challenging dominion is managing power supplies under high-interference conditions. The PCA9615 nurtures signal integrity despite electromagnetic noise, a frequent dilemma in power supplies with variable loads. Actual applications often pair the PCA9615 with shielding and grounding tactics, further reducing interference. This is reminiscent of aerospace production practices, where systems are crafted to perform reliably amongst notable electronic noise.

Linking I2C Buses Across Different Equipment

Complex systems integration often calls for connecting I2C buses between varied equipment. The PCA9615 smooths this connection by extending the communication range and securing immunity to ground potential disparities. For instance, in automotive contexts, bridging communication across multiple electronic control units (ECUs) with the PCA9615 mitigates concerns related to ground offsets and signal integrity. This aspect showcases its practicality in harmonizing diverse electronic components.

Industrial Systems Control

Within industrial settings, controlling systems, such as lighting, heating, and cooling, entail exactitude and dependability. The PCA9615’s capability to sustain stable communication under diverse conditions adds to its allure. Smart building management reflects the importance of consistent, reliable data transmission to ensure energy efficiency and operational efficacy. Here, the PCA9615 illustrates its role in orchestrating seamless control.

Long I2C Runs and Multiple Power Supplies

Long-distance I2C communication and systems with multiple power supplies introduce unique challenges, mainly due to notable ground offsets. The PCA9615 counters these issues by employing differential signaling, safeguarding data integrity over extended distances. This strategy is comparable to practices in data center management, where preserving signal quality over long cable stretches is useful for network reliability. The technique fortifies connection, ensuring robust communication in demanding environments.

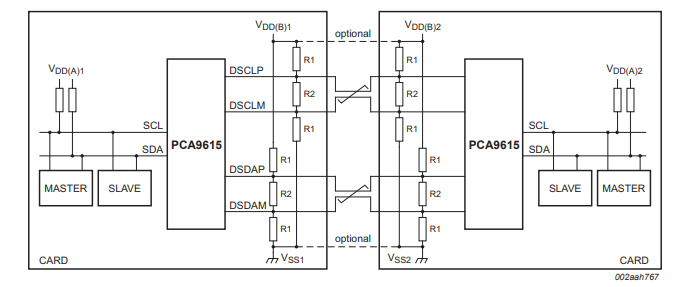

Typical Application Diagram

Circuit Diagram of PCA9615

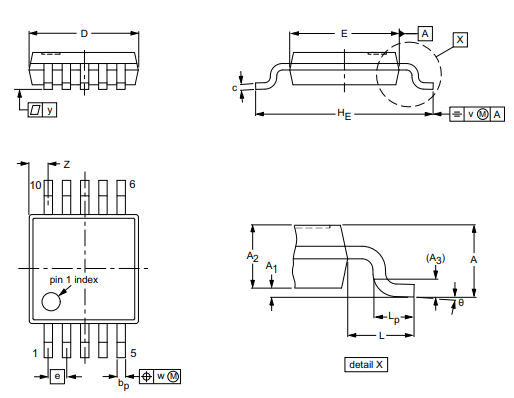

Package Information

Manufacturer Information

NXP Semiconductors N.V., a prominent force in secure connectivity solutions customized for embedded applications, has been consistently driving innovation across various sectors including automotive, industrial & IoT, mobile, and communication infrastructure markets. Their undying ambition is to create smarter, safer, and better-connected solutions.

Innovations in Automotive Sector

NXP's advancements in the automotive sector stand out significantly. Their sophisticated microcontrollers and processors have significantly boosted vehicle safety, improved infotainment systems, and advanced autonomous driving capabilities. Integration of these high-level technologies enriches the driving experience while ensuring vehicular safety and efficiency. Leading car manufacturers incorporating their solutions highlight the drive to meet modern transportation demands.

Industrial & IoT Advancements

In the industrial and IoT dominions, NXP’s solutions have instigated major changes in factory automation, smart metering, and sensor networks. Their products aim to optimize performance and reliability, dynamic in high-stress industrial settings. The continuous refinement and implementation of their IoT solutions foster interconnected ecosystems promoting smooth data exchange, effective resource management, and superior operational control.

Mobile Market Impact

NXP’s presence in the mobile market significantly enhances privacy, secures payment mechanisms, and facilitates contactless interactions. Leveraging Near Field Communication (NFC) technology, they revolutionize consumer-device interactions, delivering faster and more secure transactions. Ongoing innovations in this sphere focus on bolstering data security while boosting user convenience amidst a growing digital landscape.

Communication Infrastructure

In communication infrastructure, NXP's high-performance RF solutions and processors are requisite in advancing network capabilities. These contributions enable the development of more efficient and dependable communication systems, major for global connectivity expansion. By enhancing network efficiency and scalability, NXP underpins the infrastructure required for the advancement of modern communication techniques like 5G.

Datasheet PDF

PCA9615DPJ Datasheets:

PCA9615DP.pdf

PCA9615DP.pdf

Frequently Asked Questions [FAQ]

1. What is PCA9615 used for?

PCA9615 serves to disable the bus buffer, proving instrumental in fault finding, power-up sequencing, and segment isolation in large bus systems. By aiding in fault finding and segment isolation, it enhances reconfiguration and allows for specific sections to be inactive when not constantly required. In settings where operational efficiency takes precedence, PCA9615 facilitates the strategic management of system resources. Temporarily disabling unused bus segments optimizes the overall system's performance. In complex industrial environments where continuous operation and minimal downtime are required, the role of PCA9615 becomes requisite for large-scale manufacturing plants, isolating bus segments for maintenance without halting the entire system increases productivity and reduces risks. Dynamic reconfiguration of bus segments creates a more adaptive and resilient infrastructure. Regarding power-up sequencing, PCA9615 ensures controlled activation of different bus system parts. This approach promotes stability and prevents potential startup overloading in high-density data environments, such as data centers, it ensures synchronized component activation, avoiding bottlenecks and ensuring smooth initialization.
