PCB vs PCBA: What’s the Difference and Why it Matters in Electronics

A PCB and a PCBA are the basic building blocks of almost every electronic device you use today. In this article, you will learn what a PCB and a PCBA are, how they are different, and how they work together to form electronic circuits. It explains the main PCB types, common PCBA assembly methods, and the key materials and components involved. This helps you clearly understand how electronic boards are designed, built, and assembled.

Catalog

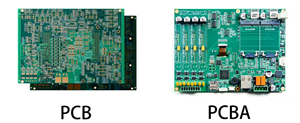

Figure 1. PCB vs PCBA

What is a PCB (Printed Circuit Board)?

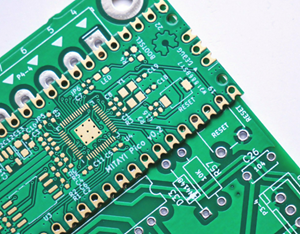

Figure 2. PCB (Printed Circuit Board)

A PCB (Printed Circuit Board) is a flat board used to hold and connect electronic parts in an organized way. It is made from an insulating material, usually fiberglass, with thin copper lines that act as electrical paths. These copper paths guide electricity between different connection points on the board, keeping circuits neat and reliable. A PCB does not work by itself because it has no components attached yet. Its main purpose is to provide a strong base and clear electrical routes so electronic devices can be built accurately and consistently.

What is PCBA (Printed Circuit Board Assembly)?

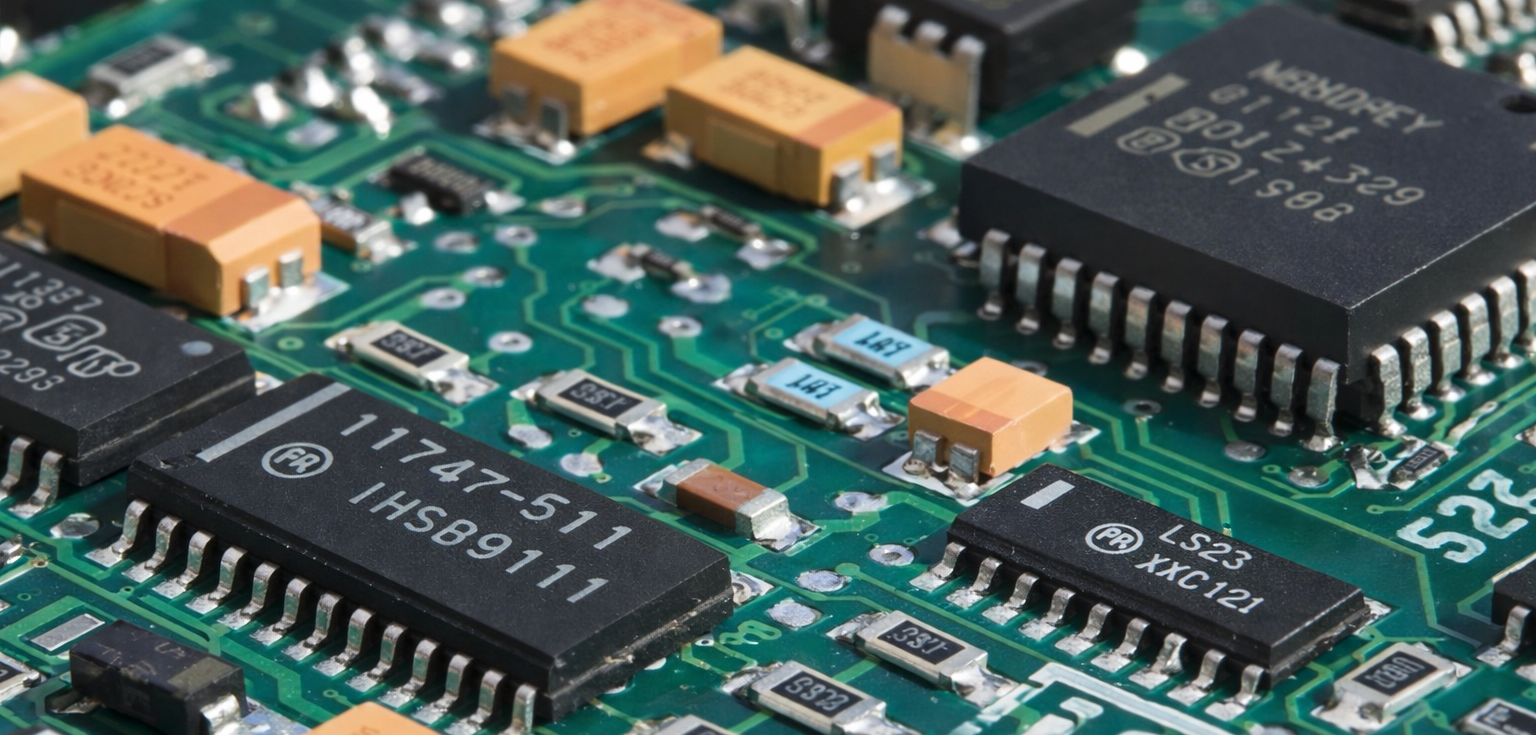

Figure 3. PCBA (Printed Circuit Board Assembly)

PCBA (Printed Circuit Board Assembly) is a circuit board that already has electronic components attached to it. These components are soldered onto the board, turning it into a working electronic circuit. Unlike a PCB, which is only an empty board with copper paths, a PCBA can perform real functions such as controlling signals or managing power. The presence of chips, resistors, and capacitors shows that the board is fully assembled and ready to operate. This makes PCBA the usable form found inside electronic devices.

Types of Printed Circuit Boards (PCBs)

Printed circuit boards come in different types based on how many copper layers they have and how flexible or rigid their structure is, and the following sections describe the most common PCB types used in electronic designs.

Single-Sided PCB

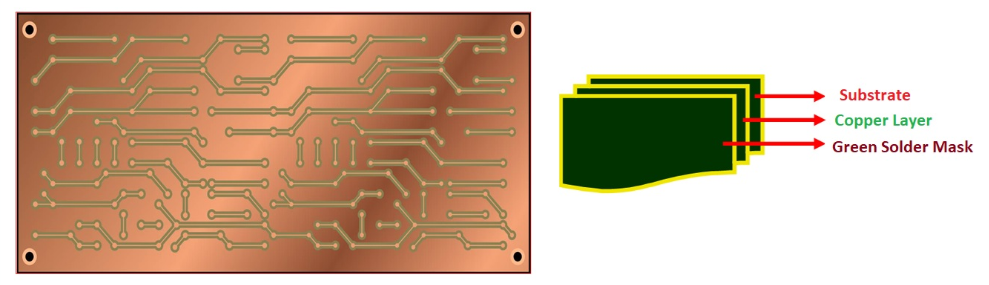

Figure 4. Single-Sided PCB

A single-sided PCB is a printed circuit board that has copper traces on only one side of the board. The figure shows a simple layout where all copper paths are placed on one surface, making the design easy to understand and manufacture. Because components are mounted on one side only, this type of PCB is low cost and easy to assemble. Compared to other PCB types, single-sided PCBs support fewer components and simpler circuits. They are commonly used in basic electronics such as LED boards, power supplies, and simple control circuits.

Double-Sided PCB

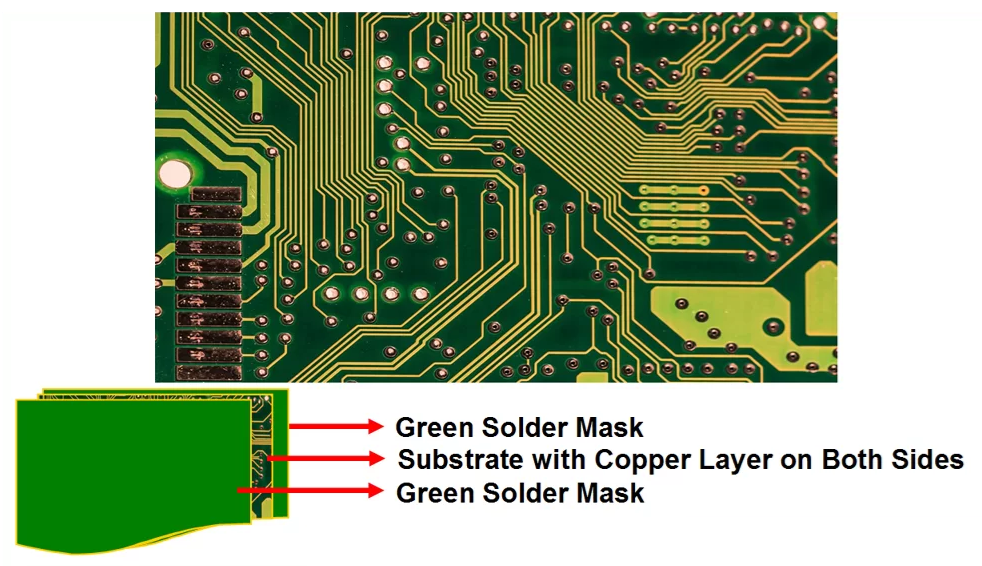

Figure 5. Double-Sided PCB

A double-sided PCB has copper layers on both the top and bottom sides of the board. As seen in the figure, copper traces appear on both surfaces and are connected using small holes called vias. This design allows more components and denser routing than a single-sided PCB. Compared to single-sided boards, double-sided PCBs support more complex circuits while still keeping a compact size. They are widely used in industrial electronics, power systems, and consumer devices.

Multilayer PCB

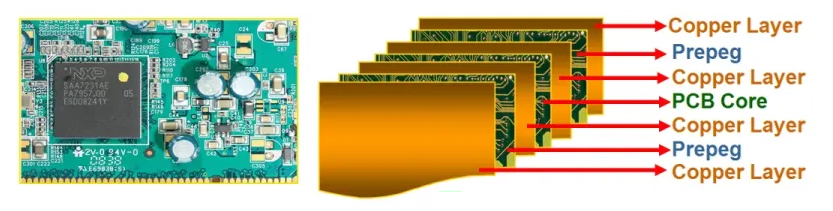

Figure 6. Multilayer PCB

A multilayer PCB is made by stacking three or more copper layers with insulating material in between. The figure clearly illustrates multiple copper layers bonded together, showing how signals can travel inside the board, not just on the surface. This layered structure allows high circuit density and better signal control. Compared to single-sided and double-sided PCBs, multilayer PCBs support advanced and high-speed electronic designs. They are commonly found in computers, networking equipment, and complex electronic systems.

Rigid PCB

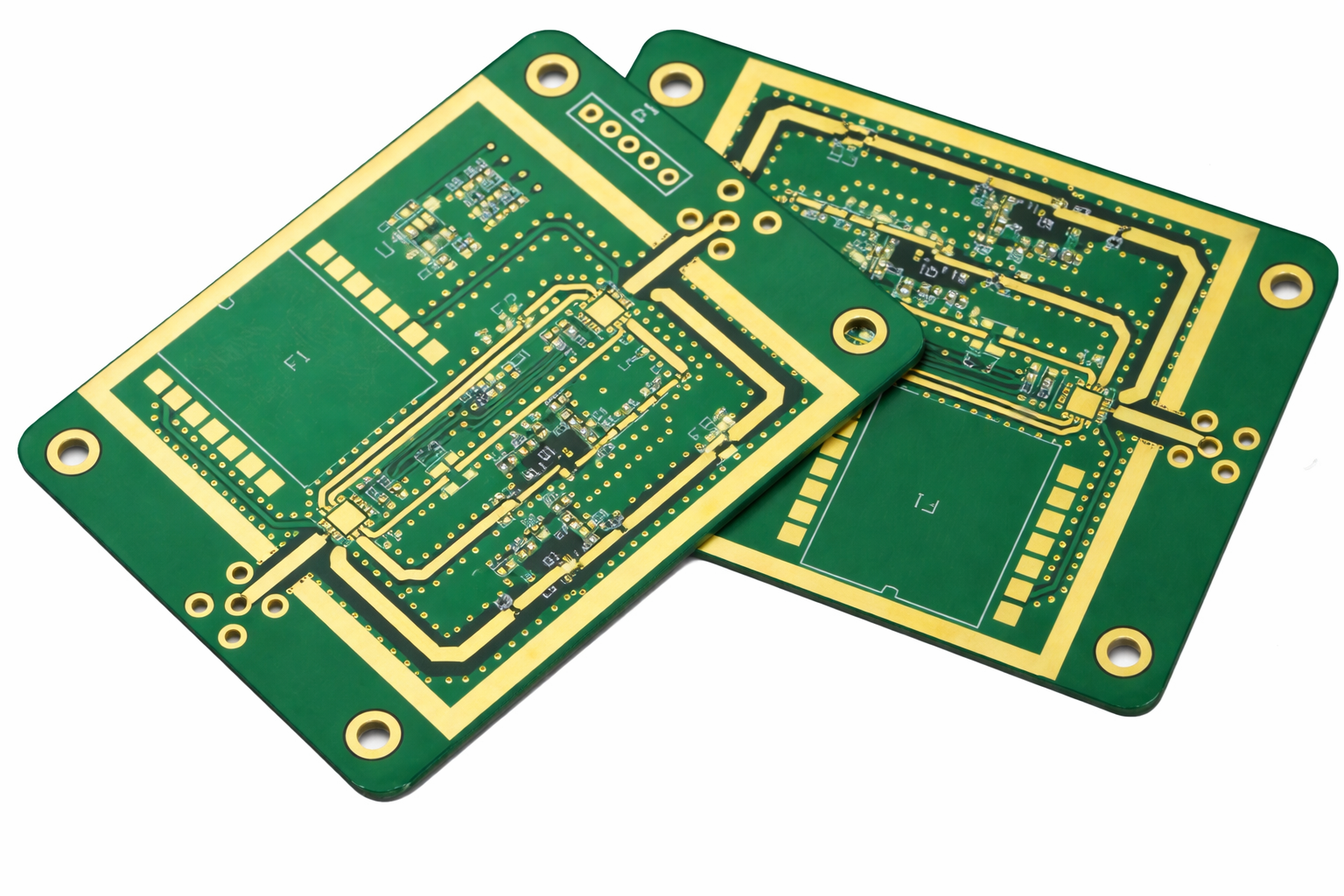

Figure 7. Rigid PCB

A rigid PCB is a printed circuit board built on a solid, non-flexible base that keeps its shape during installation and use. The figure shows a rigid fiberglass substrate with fixed copper traces and defined pads for surface-mounted components, clearly illustrating how the circuit remains stable without bending. This firm structure ensures reliable electrical connections and precise component placement. Compared to flexible PCBs, rigid boards cannot bend but offer greater mechanical strength. They are widely used in consumer electronics, industrial equipment, and computer hardware.

Flexible PCB

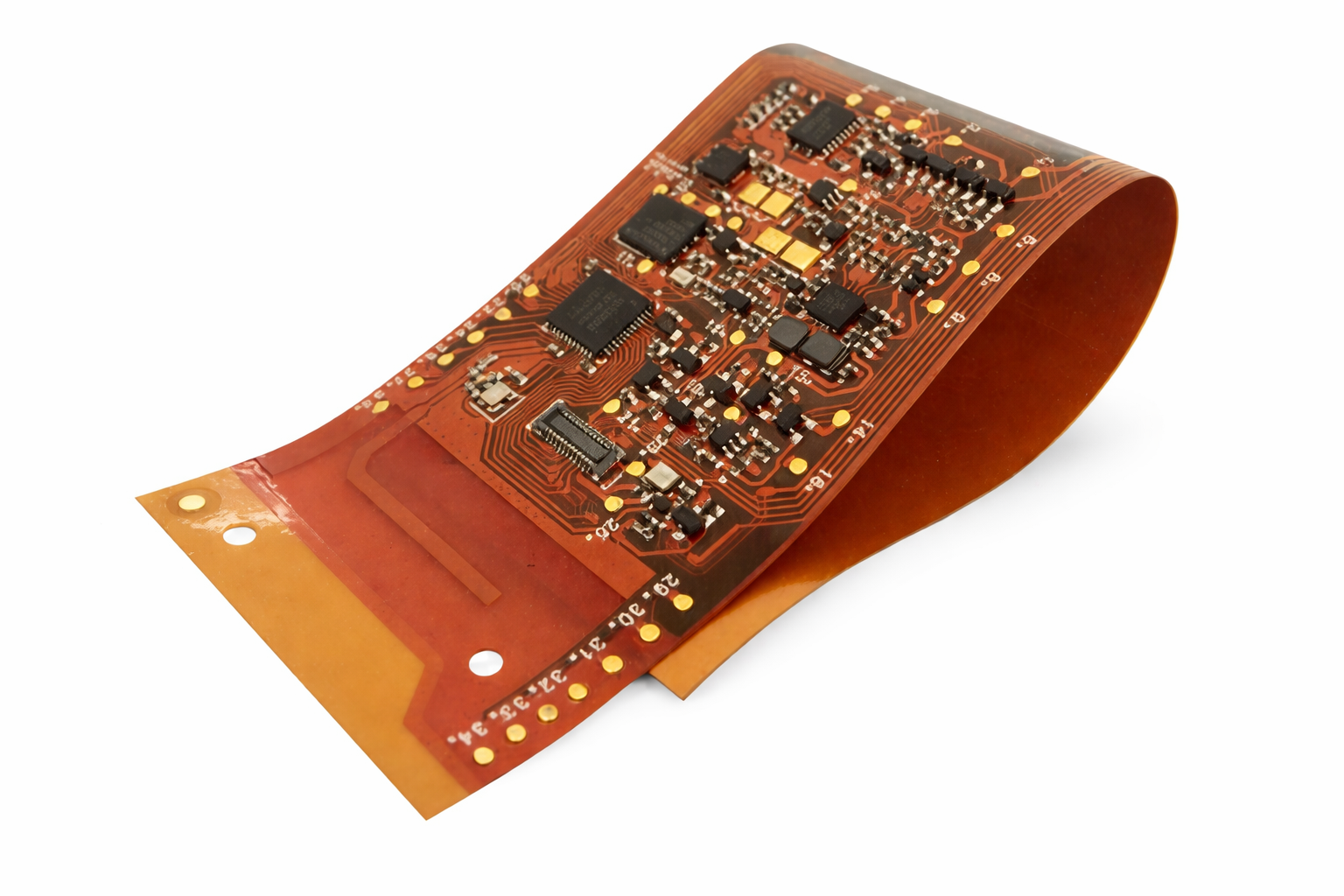

Figure 8. Flexible PCB

A flexible PCB is a printed circuit board made from thin, bendable materials that allow it to flex or fold without damage. The figure shows the board smoothly bending while the copper traces remain intact, demonstrating how electrical connections are maintained during movement. This flexibility makes it easy to fit the circuit into tight or curved spaces. Compared to rigid PCBs, flexible PCBs reduce space, weight, and connector needs. They are commonly used in cameras, wearable devices, and compact electronics.

Rigid-Flex PCB

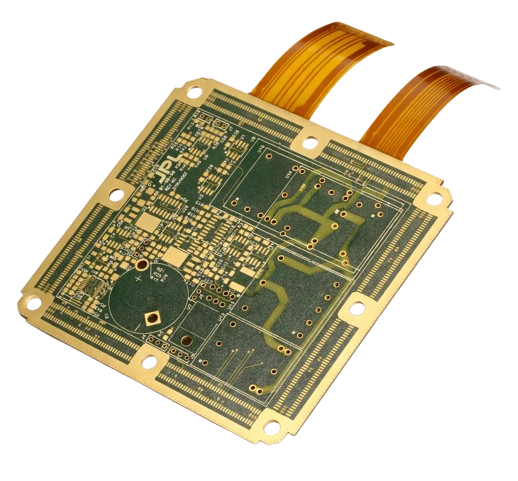

Figure 9. Rigid-Flex PCB

A rigid-flex PCB combines rigid board sections with flexible connections in a single printed circuit board. The figure shows solid areas holding components linked by flexible sections that allow bending without breaking the copper traces. This design provides both stability and flexibility in one structure. Compared to rigid or flexible PCBs alone, rigid-flex PCBs save space and improve reliability by reducing connectors. They are commonly used in aerospace systems, medical devices, and advanced consumer electronics.

Types of PCBA Assembly Technologies

Printed circuit board assemblies are built using different assembly technologies depending on component size, strength requirements, and production needs, and the following sections describe the most widely used PCBA methods in modern electronics manufacturing.

Surface Mount Technology (SMT)

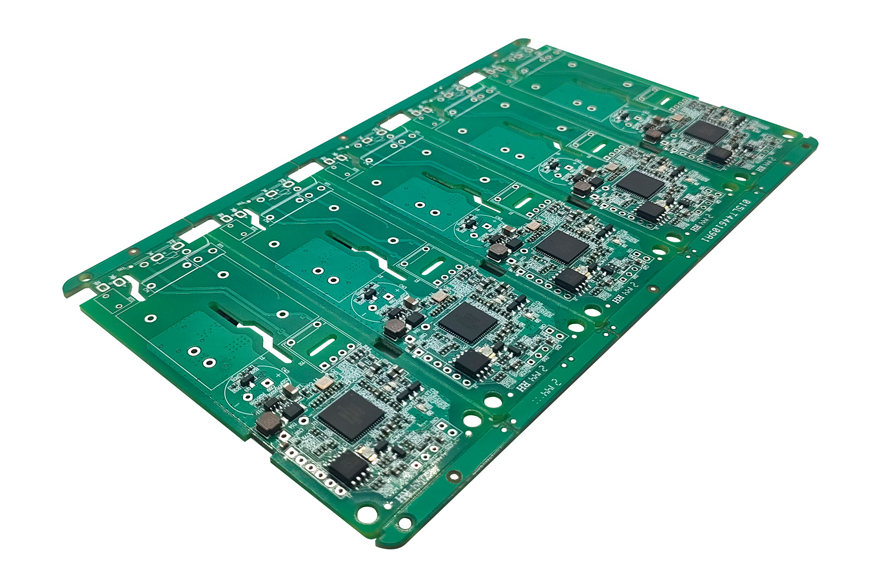

Figure 10. Surface Mount Technology (SMT)

Surface Mount Technology (SMT) is a PCBA method where electronic components are placed directly onto flat pads on the surface of a PCB. In the figure, small components are mounted neatly on the board without passing through holes, showing how compact and dense the layout can be. This surface placement allows more components to fit into a smaller space. Compared to through-hole assembly, SMT supports faster automated production and lighter board designs. Because of these advantages, SMT is the most commonly used PCBA technology today.

Through-Hole Technology (THT)

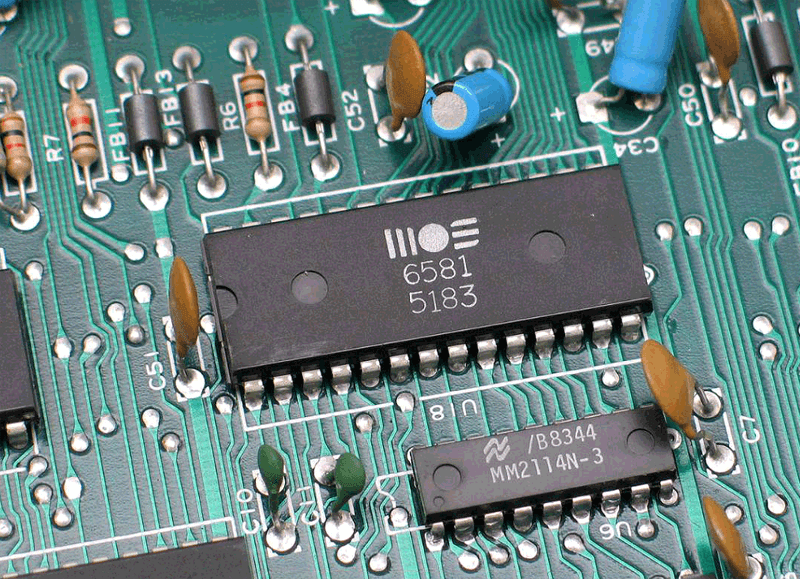

Figure 11. Through-Hole Technology (THT)

Through-Hole Technology (THT) is a PCBA method where component leads are inserted into drilled holes in the PCB and soldered on the opposite side. The figure shows components with long metal leads passing through the board, creating strong physical connections. This method provides excellent mechanical strength, especially for larger or heavier parts. Compared to SMT, THT uses more space and manual steps. It is often chosen for power components, connectors, and parts exposed to stress.

Mixed Assembly Technology

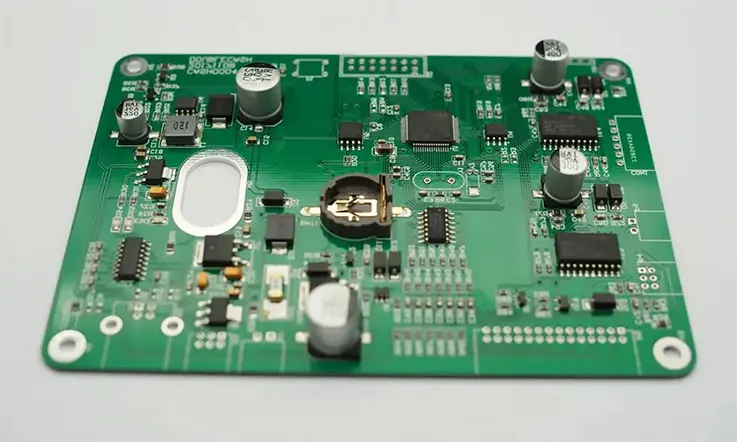

Figure 12. Mixed Assembly Technology

Mixed assembly technology combines surface mount and through-hole components on the same PCBA. The figure illustrates a board where small surface-mounted parts share space with larger through-hole components. This combination allows a balance between compact size and mechanical strength. Compared to using SMT or THT alone, mixed assembly offers greater design flexibility. It is commonly used in complex electronic products that require both high-density circuits and durable connections.

Components of a PCB and PCBA

Components of a PCB

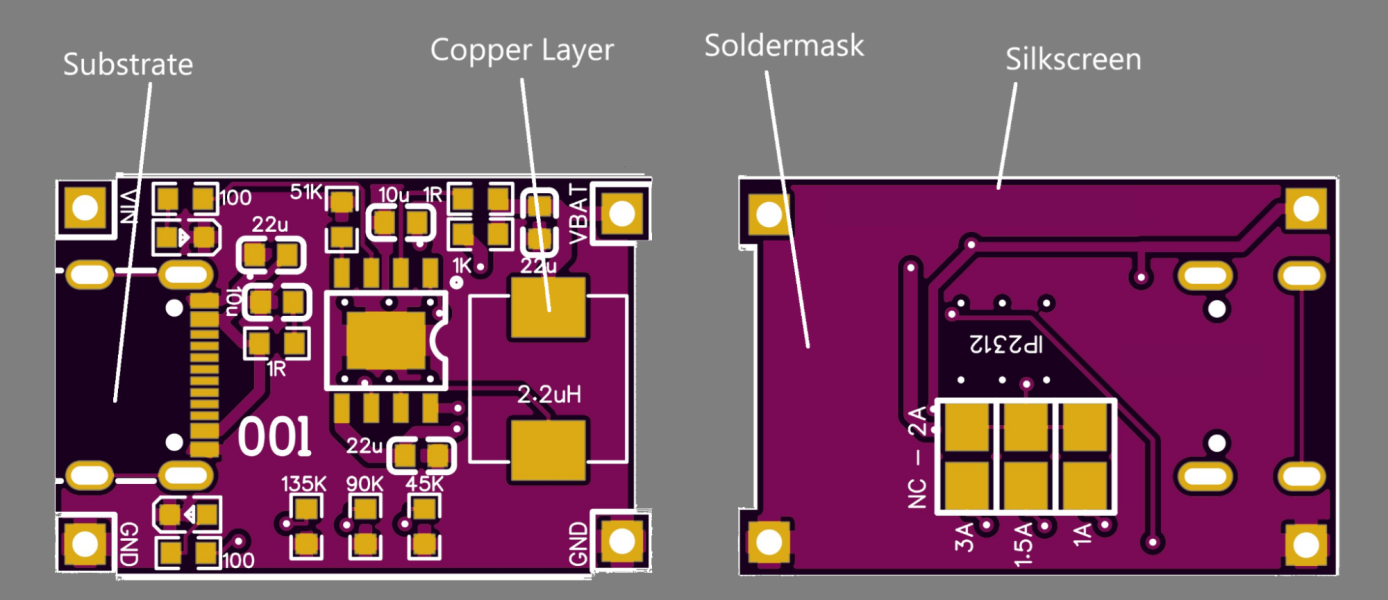

Figure 13. Components of a PCB

A printed circuit board (PCB) is built from multiple layers, each with a specific role in ensuring electrical performance, mechanical strength, and reliable assembly. The main PCB components shown in the figure are explained below.

• Substrate (Base Material)

The substrate is the foundation of the PCB, typically made from FR-4 fiberglass material. It provides mechanical support and insulation between conductive layers, helping the PCB maintain strength, durability, and electrical stability.

• Copper Layer

The copper layer forms the conductive paths that carry electrical signals and power across the PCB. These copper traces are precisely etched to connect electronic components according to the circuit design, ensuring accurate signal flow and low resistance.

• Solder Mask

The solder mask is a protective coating applied over the copper layer, usually green, red, or purple. It prevents short circuits, protects copper traces from oxidation, and ensures solder flows only to intended pads during assembly.

• Silkscreen

The silkscreen layer contains printed text, symbols, and reference markings on the PCB surface. It helps identify components, pin numbers, and orientation, making assembly, inspection, and troubleshooting easier.

Components of a PCBA

A printed circuit board assembly (PCBA) is a complete electronic unit formed by mounting and soldering electronic parts onto a PCB. In addition to the PCB structure, the following components work together to create a fully functional circuit.

• PCB (Printed Circuit Board)

The PCB acts as the base platform that provides mechanical support and electrical pathways for all components. It holds copper traces, pads, and layers that enable proper signal routing and power distribution.

• Electronic Components

Electronic components such as resistors, capacitors, integrated circuits (ICs), diodes, transistors, connectors, and modules are mounted onto the PCB. These parts perform specific functions like signal processing, power regulation, switching, and connectivity.

• Solder

Solder is used to create strong electrical and mechanical connections between component leads and PCB pads. It ensures reliable current flow while securely fixing components in place during long-term operation.

• Adhesives

Adhesives are sometimes applied to secure large or heavy components, especially in vibration-prone or high-stress environments. They improve mechanical stability and help prevent component movement or solder joint damage.

PCB and PCBA Manufacturing Process Differences

PCB Fabrication Process (Bare Board)

PCB fabrication is the process of making the empty printed circuit board before any parts are added.

1. Design the PCB layout using ECAD software.

2. Transfer the design onto copper-clad board material.

3. Etch the copper to remove unwanted areas and form the circuit traces.

4. Drill holes for vias and through-hole parts.

5. Plate the holes so electricity can pass through layers.

6. Apply solder mask to protect traces and prevent short circuits.

7. Print the silkscreen to add labels and component markings.

8. Add a surface finish like HASL, ENIG, or OSP to protect copper pads.

9. Test electrically for continuity and isolation.

10. Route the boards out of the production panel into individual PCBs.

PCBA Manufacturing Process (Assembled Board)

PCBA manufacturing turns the PCB into a working circuit by adding and soldering components.

1. Apply solder paste to SMT pads (for surface-mount parts).

2. Place components using automated pick-and-place machines.

3. Reflow solder to melt the paste and form permanent joints.

4. Insert through-hole parts (if the design uses them).

5. Wave solder or hand solder the through-hole connections.

6. Inspect the board using AOI and manual checks.

7. Test the assembly with in-circuit testing (ICT) and functional testing.

8. Apply conformal coating if protection from moisture/dust is needed (optional).

9. Do final assembly such as adding connectors, screws, or housings.

PCB and PCBA Functional Differences

Functional Aspect	PCB (Printed Circuit Board)	PCBA (Printed Circuit Board Assembly)
Electronic Operation	No electronic function	Fully functional electronic circuit
Primary Role	Structural base and layout	Active system operation
Component Support	Holds components physically	Holds and electrically connects components
Signal Routing	Provides signal paths only	Processes and controls signals
Power Handling	No power regulation	Regulates and distributes power
Data Processing	Cannot process data	Performs data and logic processing
Control Function	No control capability	Executes control operations
User Interaction	No interaction ability	Interfaces with users and devices
Communication	No communication function	Supports communication protocols
Programmability	Cannot run programs	Runs firmware or software logic
System Integration	Mechanical interface only	Acts as a system-level module
Testing Capability	Electrical continuity testing only	Functional and in-circuit testing
Thermal Management	Passive heat spreading only	Active heat-generating operation
Operational Output	No output or response	Produces electrical outputs

Applications of PCB and PCBA

Automotive Electronics

Modern vehicles rely on PCBAs for engine control units, infotainment systems, sensors, and safety features. PCBs help organize complex circuits in limited spaces, while PCBAs handle data processing and power control. They are designed to withstand heat, vibration, and harsh environments. This makes them important for vehicle performance and safety systems.

Industrial and Automation Systems

PCBs and PCBAs are used in industrial controllers, PLCs, motor drives, and robotic systems. The PCB ensures stable electrical routing, while the PCBA performs control, monitoring, and automation tasks. These systems often operate continuously in demanding conditions. As a result, durability and reliability are important design requirements.

Telecommunications and Networking

Networking equipment such as routers, switches, and base stations depend on PCBs and PCBAs for high-speed signal transmission. PCBs support precise trace routing, while PCBAs manage data processing and communication protocols. These assemblies are designed to reduce signal loss and interference. They play a key role in stable wired and wireless communication.

Medical Devices

Medical electronics use PCBs and PCBAs in monitoring equipment, diagnostic machines, and wearable health devices. The PCB provides accurate and repeatable layouts, while the PCBA performs sensing, control, and data processing functions. High reliability and precision are needed in this field. These assemblies must meet strict safety and quality standards.

LED Lighting and Display Systems

PCBs and PCBAs are commonly found in LED lighting panels, displays, and signage systems. The PCB helps manage heat dissipation and electrical connections, while the PCBA controls brightness and power distribution. Proper design improves efficiency and lifespan. This makes them suitable for both indoor and outdoor lighting applications.

Advantages and Limitations of PCB and PCBA

Category	PCB (Printed Circuit Board)	PCBA (Printed Circuit Board Assembly)
Advantages
1	Provides a stable and organized base for circuits	Forms a fully functional electronic circuit
2	Ensures reliable electrical paths through fixed traces	Supports high-performance signal and power control
3	Enables compact and lightweight electronic designs	Allows automated, precise, and repeatable assembly
4	Supports mass production with consistent quality	Integrates components efficiently to reduce system size
5	Reduces wiring errors and improves signal integrity	Improves reliability through controlled soldering
6	Offers good mechanical strength and durability	Ready for direct installation into electronic products
Limitations
1	Cannot operate without electronic components	Higher cost due to components and assembly
2	Design changes require new fabrication	Assembly defects can be hard to diagnose
3	High initial setup cost for small batches	Repairs and rework are complex
4	Limited flexibility after manufacturing	Dependent on component availability
5	Environmental impact if waste is unmanaged	Requires strict quality control

Conclusion

A PCB provides the physical structure and electrical pathways, while a PCBA transforms that structure into a fully working electronic circuit. Different PCB types and PCBA assembly methods support varying levels of complexity, size, and performance. Each manufacturing process plays a specific role, from bare board fabrication to complete electronic assembly. Together, PCB and PCBA technologies enable reliable, compact, and efficient electronic systems used in automotive, industrial, medical, and consumer applications.
