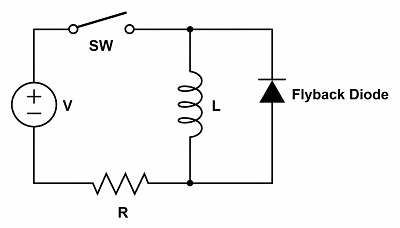

Figure 1. Flyback Diode Circuit
A flyback diode is a protection diode connected in an inductive circuit to prevent high voltage spikes when current is suddenly switched off. It is also called a freewheeling diode, snubber diode, or back EMF diode. This diode is mainly used with coils such as relays, solenoids, and motors that store energy in a magnetic field. When the switching device turns off, the stored energy can create a dangerous reverse voltage. The flyback diode protects transistors, MOSFETs, and other switching components from damage caused by back EMF in inductive circuits.
Inductive components such as coils and relays store energy in the form of a magnetic field while current flows through them. When the power supply is suddenly disconnected, the magnetic field collapses very quickly. This sudden change in current generates a high voltage spike, known as back EMF (electromotive force). The voltage spike can be much higher than the supply voltage and may damage sensitive switching devices. A flyback diode is needed to prevent this high-voltage transient from destroying or weakening the circuit components.

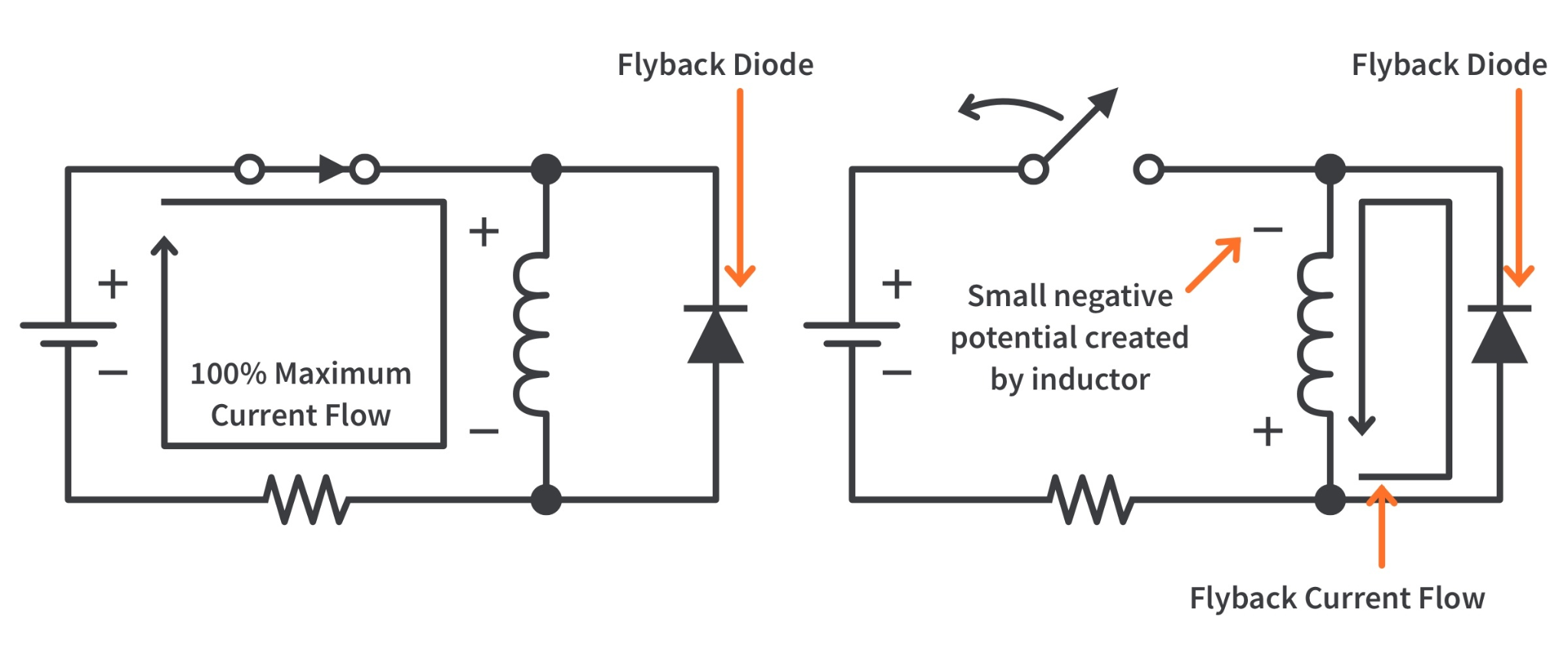

Figure 2. Flyback Diode Operation (Normal and Switch-Off Conditions)
Under normal operation, when the switch is closed and current flows through the coil, the flyback diode is reverse-biased and does not conduct. In this state, it remains inactive and does not affect the circuit. When the switch opens, the current through the inductor cannot stop instantly because inductors resist sudden changes in current. The collapsing magnetic field produces a reverse voltage across the coil. This reverse voltage forward-biases the flyback diode, allowing current to circulate through the coil and diode loop. The recirculating current gradually decreases as the stored energy is released. During this process, the diode clamps the voltage to a safe level, protecting the switching device from high voltage spikes.

Figure 3. Flyback Diode Connection
A flyback diode is connected in parallel with the inductive load, such as a relay coil or motor winding. The diode is placed with correct polarity, meaning its cathode connects to the positive supply side of the coil and its anode connects to the negative side. This orientation ensures the diode remains reverse-biased during normal operation. When the switch turns off, the polarity across the coil reverses and the diode becomes forward-biased. As shown in Figure 3, connecting the diode directly across the coil provides immediate protection to the switching device.
Selecting the correct flyback diode ensures reliable circuit protection and long component life. The diode must match the electrical characteristics of the inductive load and switching device.
The diode’s reverse voltage rating must be higher than the circuit’s supply voltage. This ensures the diode can safely withstand the normal operating voltage without breaking down. A safety margin is recommended to prevent failure under transient conditions. Always verify the maximum supply voltage before selecting the diode.
The diode must handle the peak current that flows through the coil when the switch turns off. The forward current rating should be equal to or greater than the inductor’s operating current. If the rating is too low, the diode may overheat and fail. Choose a diode with sufficient current capacity for reliable performance.
In fast-switching circuits, such as PWM motor control, recovery speed becomes important. A slow recovery diode may not respond quickly enough in high-frequency applications. For such circuits, a fast recovery diode improves performance and reduces switching losses. Standard diodes are suitable for low-frequency relay circuits.
Standard rectifier diodes work well for basic relay and solenoid protection. Fast recovery diodes are preferred in switching power supplies and high-speed control circuits. Schottky diodes offer very fast switching and lower forward voltage drop, which improves efficiency. The choice depends on switching speed and circuit requirements.
After understanding how to choose a flyback diode, it helps to know the common diode types used in circuits. Each type is selected based on switching speed, efficiency, and circuit frequency requirements.

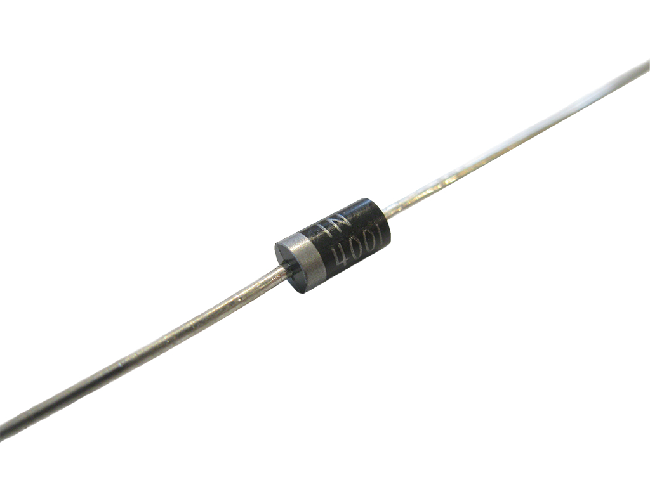

Figure 4. 1N400x Diode
The 1N4001–1N4007 series is a group of general-purpose rectifier diodes commonly used as flyback diodes in low-frequency circuits. These diodes are designed for standard power rectification and basic inductive load protection. They handle moderate current and are widely used in relay driver circuits and small DC motor control systems. The difference between each model lies mainly in their maximum reverse voltage rating. Because they are slow recovery diodes, they are best suited for low-speed switching applications. As shown in figure, this axial-lead diode is simple in structure and widely available in electronic components.

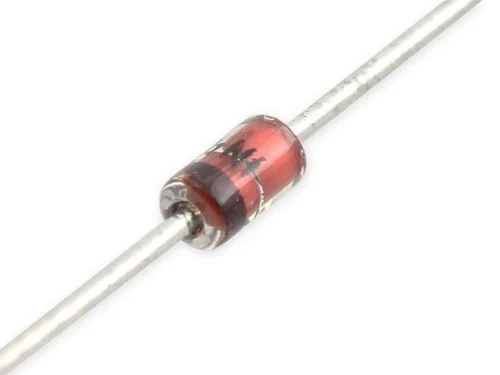

Figure 5. HER108 Diode
The HER108 is a high-efficiency fast recovery diode designed for higher-speed switching applications. It is commonly used as a flyback diode in switching power supplies and PWM control circuits. Compared to standard rectifier diodes, it has a faster reverse recovery time, which reduces switching losses. This makes it suitable for circuits operating at higher frequencies. The HER108 also supports higher voltage handling capability, making it reliable in demanding environments. As illustrated in figure, it typically comes in an axial package similar to other rectifier diodes.

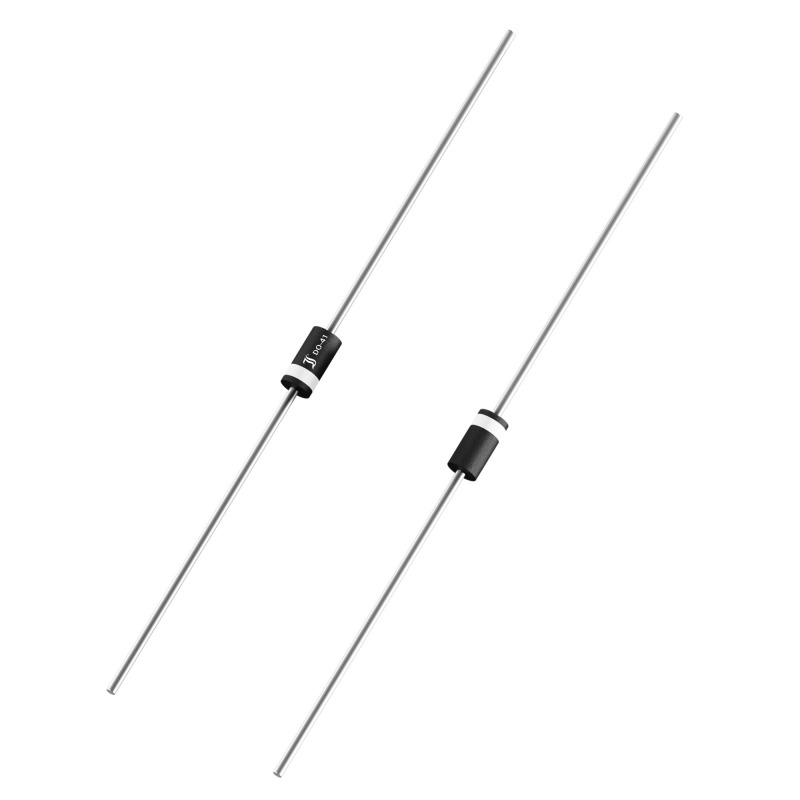

Figure 6. UF4007 Diode
The UF4007 is an ultra-fast recovery diode widely used for flyback protection in high-speed electronic circuits. It offers the same voltage rating range as the 1N4007 but with much faster switching performance. This feature makes it ideal for switching regulators, inverters, and SMPS circuits. Because of its fast recovery time, it reduces noise and improves overall system efficiency. It is often selected when standard diodes are too slow for the application. As seen in figure, it looks similar to a regular rectifier diode but is optimized for high-frequency operation.

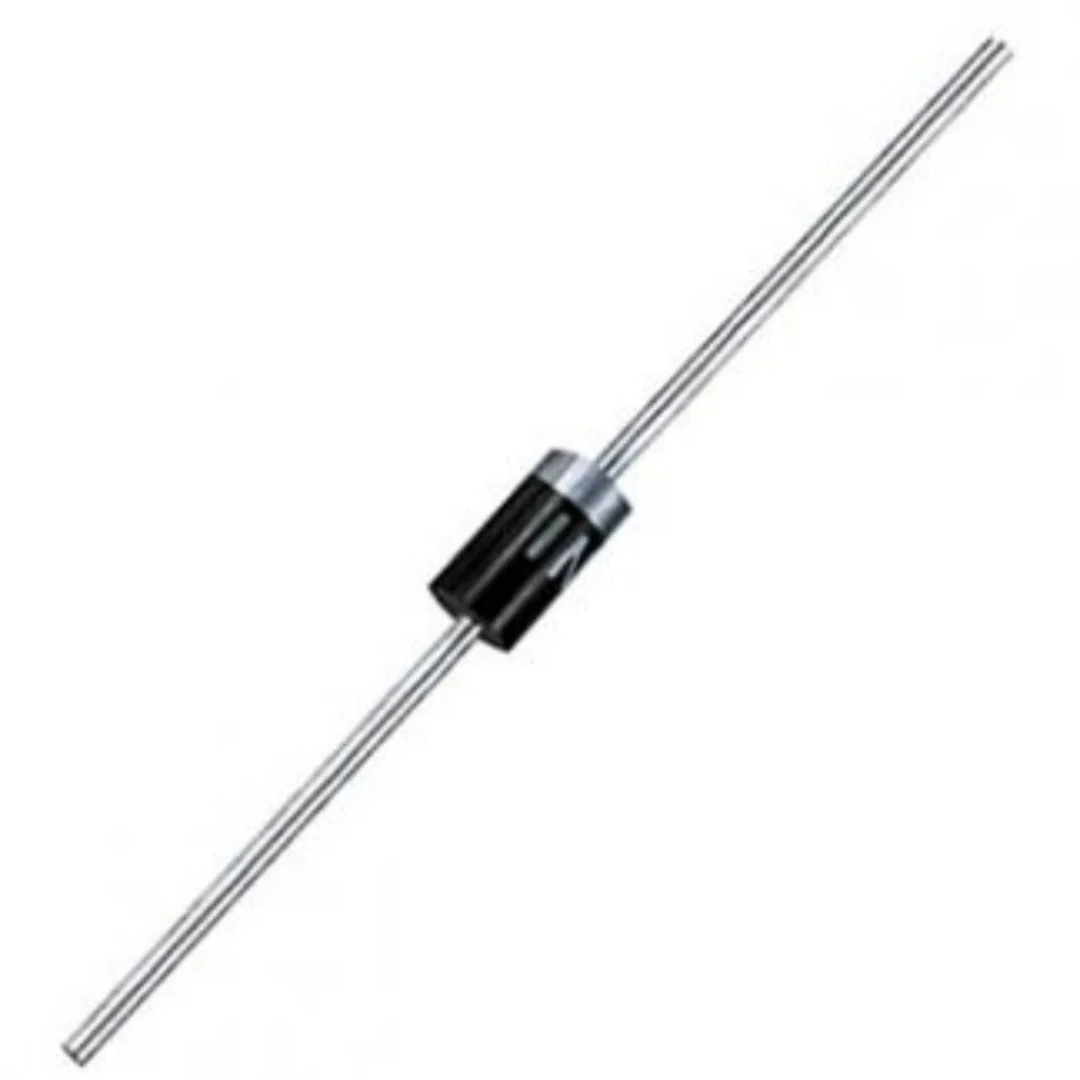

Figure 7. FR107 Diode
The FR107 is a fast recovery rectifier diode commonly used for flyback and freewheeling applications. It provides faster reverse recovery compared to standard 1N400x diodes. This makes it suitable for medium-frequency switching circuits and motor driver systems. The FR107 supports moderate current handling and stable performance under switching conditions. It is often used in power supply circuits where improved response speed is required. As displayed in Figure 7, it comes in a compact axial-lead package for easy PCB mounting.

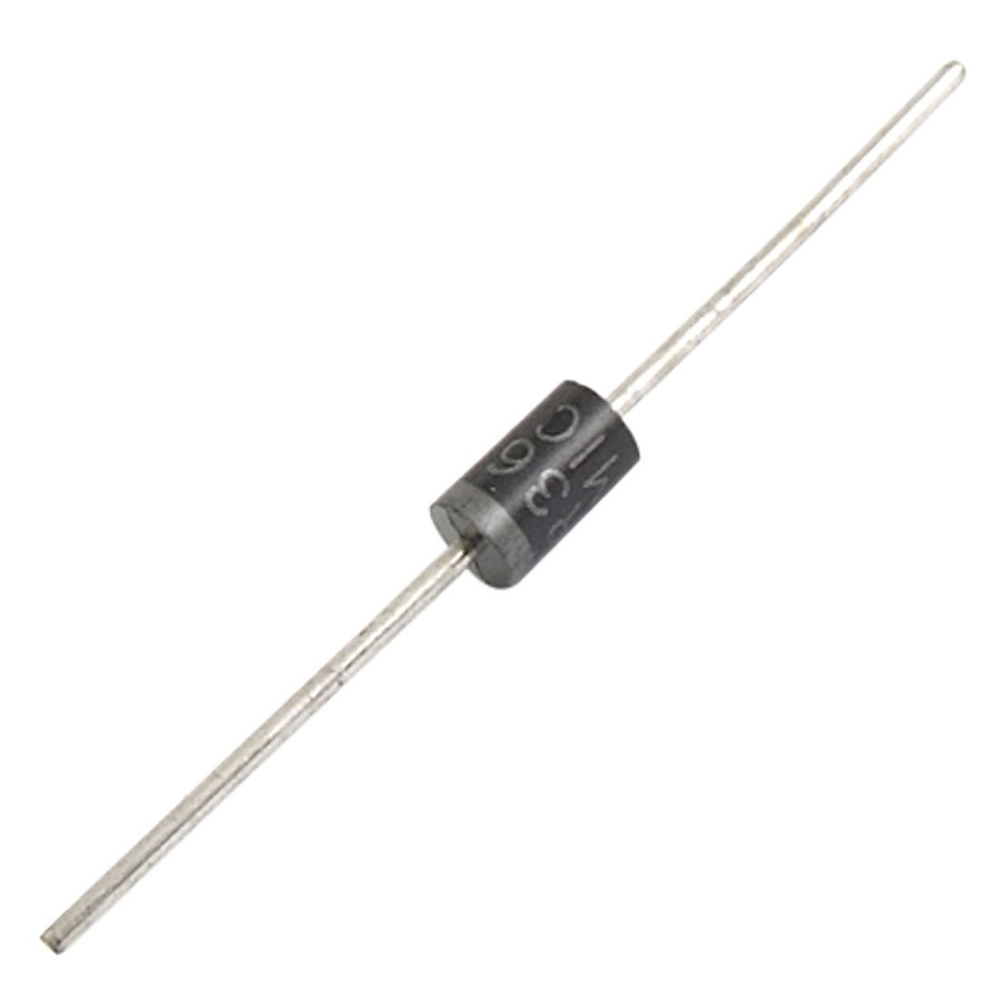

Figure 8. 1N5819 Schottky Diode
The 1N5819 is a Schottky diode commonly used as a flyback diode in low-voltage, high-efficiency circuits. Unlike standard rectifier diodes, it has a very low forward voltage drop. This reduces power loss and improves efficiency in battery-powered systems. It also offers very fast switching performance, making it suitable for high-frequency DC-DC converters. Because of its low voltage drop, it is widely used in low-voltage motor drivers and embedded electronics. As shown in figure, the diode has a typical axial form factor but uses Schottky barrier technology internally.
The terms flyback diode and freewheeling diode are often used interchangeably, but they refer to slightly different usage contexts. A snubber circuit, however, is a broader protection method that may use resistors and capacitors instead of a diode.
|
Parameter |
Flyback Diode |
Freewheeling Diode |
RC Snubber Circuit |
|
Basic Definition |
Protection diode for inductive loads |
Diode that allows current recirculation |
Resistor-capacitor voltage suppression network |
|
Main Purpose |
Suppress back EMF |
Maintain current path |
Reduce voltage spikes and ringing |
|
Typical Components |
Single diode |
Single diode |
Resistor + Capacitor |
|
Used With |
Relays, motors, coils |
Inductors in converters |
Switching devices |
|
Placement |
Across inductive load |
Across inductor |
Across switch or load |
|
Voltage Control |
Clamps voltage to safe level |
Maintains current flow |
Absorbs transient energy |
|
Circuit Complexity |
Very simple |
Very simple |
More complex |
|
EMI Reduction |
Moderate |
Moderate |
High |
|
Switching Speed Impact |
Slows current decay |
Slows current decay |
Allows controlled decay |
|
Power Dissipation |
Low |
Low |
Higher due to resistor |
|
Frequency Suitability |
Low to medium |
Medium to high |
High frequency circuits |
|
Energy Handling |
Magnetic energy |
Magnetic energy |
Electrical transient energy |
|
Common Usage Term |
Relay protection |
Power converter inductor |
High-speed switching protection |
|
Component Count |
One |
One |
Two or more |
Flyback diodes are widely used because they provide simple and effective circuit protection. They improve reliability and reduce failure risk in switching systems.
• Protects transistors, MOSFETs, and switching devices from voltage spikes
• Reduces electrical noise and electromagnetic interference (EMI)
• Low-cost and widely available component
• Easy to install with simple parallel connection
• Improves overall circuit durability and lifespan
• Requires minimal additional design complexity
Flyback diodes are commonly used in circuits that contain inductive loads. Their role is great in maintaining stable and safe operation in many electronic systems.
1. Relay Driver Circuits
Flyback diodes are widely used in relay driver circuits to protect transistors controlling the relay coil. When the relay switches off, the diode prevents high-voltage spikes. This ensures reliable operation in automation and control systems.
2. DC Motor Control
In DC motor driver circuits, flyback diodes protect switching devices from inductive voltage spikes. They are used in H-bridge motor control and PWM speed controllers. This helps maintain stable motor operation.
3. Solenoid Control Systems
Solenoids generate strong inductive voltage when switched off. A flyback diode prevents damage to control electronics. These systems are common in industrial automation and valve control.
4. Automotive Electronics
Flyback diodes are used in automotive relay modules and actuator circuits. Vehicles contain many inductive loads such as fuel injectors and relays. Proper protection improves long-term reliability in harsh environments.
5. Switching Power Supplies
In switching power circuits, flyback diodes are used to manage energy flow in inductive components. They help protect MOSFETs and control voltage spikes. This improves system stability in regulated power systems.
6. Embedded and Microcontroller Systems
Microcontrollers often control relays and motors through transistors. Flyback diodes protect these low-voltage logic systems from inductive transients. This prevents unexpected resets or hardware damage.
A flyback diode protects switching devices by providing a safe path for inductive current when power is turned off. Proper placement across the inductive load and correct selection based on voltage rating, current capacity, and recovery speed are important for effective protection. Different diode types, including standard, fast recovery, and Schottky diodes, are chosen depending on switching frequency and efficiency needs. By reducing voltage spikes, electrical noise, and component stress, flyback diodes improve reliability and extend the lifespan of electronic systems.
Please send an inquiry, we will respond immediately.
Without a flyback diode, the relay coil can generate a high-voltage spike when switched off, which may destroy transistors, damage MOSFET gates, or cause microcontroller resets over time.
Yes. A standard flyback diode slows current decay, which can slightly delay relay release. Faster clamp methods or Zener-based protection reduce this delay.
A standard flyback diode is designed for DC circuits. For AC loads, alternative protection methods such as RC snubbers or bidirectional TVS devices are used.
A flyback diode provides a current path for inductive energy. A TVS diode clamps voltage spikes quickly but does not allow continuous recirculating current.
Yes, a Zener diode can be used for faster current decay by allowing a higher clamp voltage. This improves switching speed but increases stress on components.
