Brushless DC Motor (BLDC): Working, Types, Benefits and Applications

A Brushless DC Motor (BLDC) is a modern advancement in electric motor design that replaces traditional brushes and commutators with electronic control. This article explores what a BLDC motor is, how it works, and the different configurations such as inner rotor, outer rotor, trapezoidal commutation, and sinusoidal commutation. It also examines the wide range of applications and outlines the key advantages and limitations of BLDC technology.

Catalog

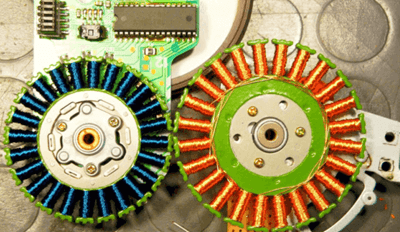

Figure 1. Brushless DC Motor (BLDC)

What is a BLDC Motor?

A Brushless DC Motor (BLDC) is a type of synchronous motor powered by direct current. Unlike traditional DC motors, it does not use brushes or a commutator. Instead, it relies on electronic switches typically MOSFETs or IGBTs to control current flow. The rotor is fitted with permanent magnets. The stator carries windings arranged around the rotor. By energizing these windings in a controlled order, the motor creates a rotating magnetic field that drives the rotor forward.

The absence of brushes eliminates friction, sparking, and wear. As a result, BLDC motors last longer, produce less noise, and can spin at higher speeds. Since torque comes directly from the interaction of magnetic fields, they achieve higher efficiency and power density than brushed motors. This makes them useful in battery-powered systems, where energy efficiency translates into longer runtime.

How a BLDC Motor Works?

Figure 2. Working of a BLDC Motor

The diagram above shows the two main parts of a BLDC motor: the stator (outer ring with coils) and the rotor (inner circle with permanent magnets).

The stator windings, shown as copper coils, are energized one after another in a repeating sequence. Each energized coil creates a magnetic field. As this sequence moves around the stator, it forms a rotating magnetic field. The rotor, made of permanent magnets marked with north (N) and south (S) poles, continuously tries to align with the rotating field. This constant alignment pulls the rotor around in smooth, continuous rotation.

To make sure the coils switch on and off at the right moment, the motor must track the rotor’s position. This is often done with Hall-effect sensors mounted near the rotor. In sensorless designs, the controller estimates position by measuring the voltage (back-EMF) produced in coils that are not currently powered.

A controller or microcontroller handles all of this in time. It regulates current flow using pulse-width modulation (PWM), which finely adjusts torque, speed, and efficiency. With this setup, BLDC motors can also support advanced features like regenerative braking, fast torque response, and smooth integration with feedback systems. Compared to brushed motors, this electronic method produces steadier torque, supports higher speeds, and offers much finer control.

Types of BLDC Motor

Inner Rotor BLDC Motor

Figure 3. Inner Rotor BLDC Motor

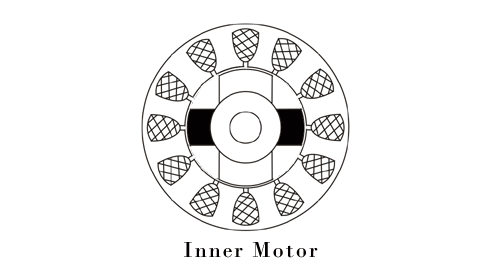

In an inner rotor BLDC motor, the rotor is placed at the center while the stator windings surround it, as illustrated in the figure. The central black section represents the rotor, and the patterned sections around the edge represent the stator windings. With the windings on the outside, heat can be released efficiently, supporting higher torque output and reliable performance. This compact and responsive design is why inner rotor motors are common in industrial robots, automated tools, and production machinery.

Outer Rotor BLDC Motor

Figure 4. Outer Rotor BLDC Motor

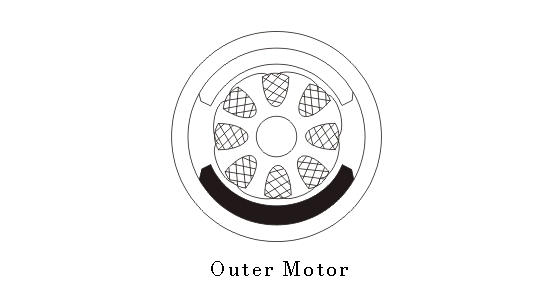

In an outer rotor BLDC motor, the permanent magnet rotor is positioned on the outside, surrounding the stator windings. In the figure, the dark outer ring represents the rotor shell, while the patterned inner sections indicate the stator windings at the center. Because the rotor has a larger diameter, it generates higher torque at lower speeds, which makes the motor stable, quiet, and smooth in operation. This design is well suited for applications such as ceiling fans, drones, e-bikes, and HVAC systems, where steady motion and reduced vibration are important.

Trapezoidal Commutation BLDC Motor

Figure 5. Trapezoidal Motor

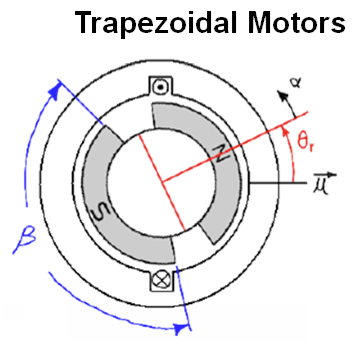

Trapezoidal commutation BLDC motors operate using trapezoidal-shaped back-EMF waveforms and rectangular current pulses. Their control system is straightforward and cost-effective, often managed by basic electronic speed controllers (ESCs). This simplicity makes them affordable and easy to integrate, but it also introduces torque ripple, which can create noticeable vibration and noise. Even with this limitation, they remain widely used in pumps, blowers, and common household appliances where performance demands are moderate and cost efficiency is a priority.

Sinusoidal Commutation BLDC Motor

Figure 6. Sinusoidal Motor

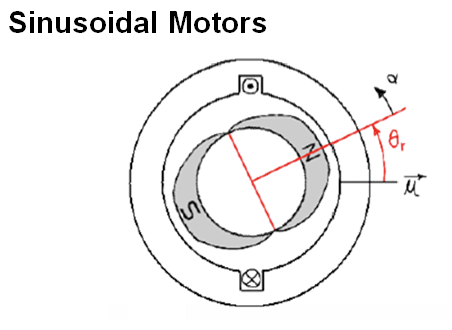

Sinusoidal commutation BLDC motors use sinusoidal current inputs and produce sinusoidal back-EMF waveforms. This results in smooth torque delivery with very little ripple, minimizing vibration and reducing operational noise. To achieve this performance, more advanced electronics are required, such as digital signal processors (DSPs) or microcontrollers with feedback control. Because of their high precision and stability, these motors are chosen for sensitive and demanding applications, including medical equipment, CNC machinery, robotics, and high-end devices.

Applications of BLDC Motor

Automotive

BLDC motors are widely used in electric and hybrid vehicles because of their high efficiency and precise control. They power traction systems, regenerative brakes, steering units, and cooling fans, ensuring reliable performance across multiple functions. Their quiet operation improves passenger comfort, while their durability and low maintenance make them well-suited for demanding automotive environments.

Industrial Automation and Robotics

In factories and automated systems, BLDC motors provide the accurate torque and speed control needed for robotic arms, CNC machines, and conveyors. Their ability to respond quickly to load changes makes them ideal for tasks that require precision and flexibility. Since they generate less heat and operate efficiently, they can run continuously in high-volume production without performance loss.

Home Appliances

Modern home appliances such as washing machines, refrigerators, and air conditioners depend on BLDC motors to reduce power consumption. Their variable-speed control allows appliances to adjust energy use based on demand, which helps lower electricity bills. In addition, they make appliances quieter, enhancing comfort while meeting stricter energy efficiency standards.

Aerospace and Drones

BLDC motors are use in aerospace applications because they deliver high thrust while keeping overall weight low. This power-to-weight advantage makes them valuable in drones and UAVs, where endurance and maneuverability are needed. Their precise control ensures stable hovering, agile flight paths, and longer mission times compared to traditional motor types.

Medical Equipment

In medical environments, BLDC motors power devices such as ventilators, infusion pumps, and surgical tools that require quiet and vibration-free operation. Their reliability ensures consistent performance in care situations where downtime is unacceptable. Their compact size also makes them suitable for portable medical devices, expanding their role in modern healthcare solutions.

Brushed vs. Brushless DC Motors

Figure 7. Brushed vs. Brushless DC Motor

Feature	Brushed DC Motor	Brushless DC Motor (BLDC)
Commutation Method	Uses brushes and a commutator to mechanically switch current between windings.	Uses electronic controllers and sensors or sensorless methods to handle switching.
Construction	Built with rotor windings, brushes, and a commutator. These parts create direct contact and wear over time.	Built with a rotor that has permanent magnets and a stator with windings. Operation depends on an external electronic controller.
Efficiency	Moderate efficiency because friction and sparking cause energy loss and extra heat.	High efficiency because there is minimal energy loss and the motor runs cooler.
Torque Control	Provides limited precision and torque ripple can appear at higher speeds.	Provides very precise torque control with smooth delivery across a wide speed range.
Speed Range	Works in a narrow range and becomes less stable at very high speeds.	Operates across a wide range and remains stable at both low and high speeds.
Noise and Vibration	Produces noticeable noise during operation and sparking causes electromagnetic interference and vibration.	Operates quietly with very little vibration and very low electromagnetic interference.
Maintenance	Requires frequent replacement of brushes and regular cleaning of the commutator.	Requires very little maintenance because only the bearings experience wear over time.
Durability and Lifespan	Shorter lifespan because the brushes wear out quickly and reduce motor reliability.	Longer lifespan because there are no brushes. The only limiting part is the bearings.
Heat Management	Generates concentrated heat at the brushes, which is harder to remove.	Dissipates heat more evenly through external windings, making cooling more effective.
Power Density	Offers moderate power output relative to its size.	Offers high power output in a compact design with stronger performance.
Initial Cost	Has a low purchase price because the materials and controls are simple.	Has a higher initial cost because advanced electronic controls are required.
System Complexity	Simple to design, build, and operate.	More complex to design because it needs controllers, microcontrollers, and sometimes sensors.
Startup Control	Starts easily and produces torque immediately.	More difficult in sensorless designs because rotor position must be detected at startup.
Applications	Used in toys, basic household appliances, and simple tools.	Used in electric vehicles, drones, robotics, medical equipment, and advanced appliances.

Advantages of BLDC Motor

• High efficiency with minimal energy loss

• Long lifespan, since no brushes wear out

• Very low maintenance needs

• Quiet operation with little vibration or EMI

• Compact size with strong torque output

• Precise control over speed and torque

• Excellent high-speed stability and efficiency

• High power-to-size ratio for portable designs

Disadvantages of BLDC Motor

• Higher initial cost due to advanced controllers

• Complex circuitry requiring microcontrollers and sensors

• Difficulty in sensorless startup at zero speed

• More challenging system design and integration

• Reliance on rare-earth magnets, which raises costs and supply risks

• Repairs are harder since failures usually involve electronics rather than simple mechanical parts

Conclusion

BLDC motors stand out for their high efficiency, long lifespan, low maintenance, and precise control, making them important in automotive systems, industrial automation, appliances, aerospace, and medical devices. Their ability to deliver strong torque with quiet operation has made them the preferred choice over brushed motors in most modern applications. While they demand more advanced electronics and come with higher initial costs, the performance, reliability, and energy savings they provide ensure that BLDC motors continue to drive innovation in both everyday products and advanced technologies.
