CY7C1329-100AC: A Reliable SRAM Solution for Networking and Data Storage

Catalog

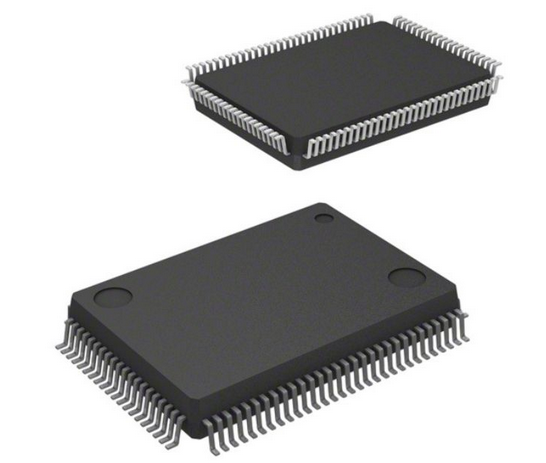

CY7C1329-100AC Overview

The CY7C1329-100AC is a high-speed synchronous SRAM designed for efficient data handling. With a 133 MHz clock speed and 4.2 ns access time, it delivers fast and reliable performance. It supports both linear and interleaved burst sequences, making it compatible with processors like Pentium and i486. The device features on-chip burst counters, allowing smooth address advancement during burst operations.

For writing, it includes Byte Write capability, controlled through BWE and BW[3:0] signals, ensuring precise data storage. The synchronous self-timed Write mechanism simplifies operations, and three synchronous Chip Selects (CE1, CE2, CE3) allow flexible memory access. The OE signal ensures proper output control, preventing conflicts.

Ideal for cache memory and high-speed computing, this SRAM enhances system performance. Bulk buyers can contact us for special pricing and large orders.

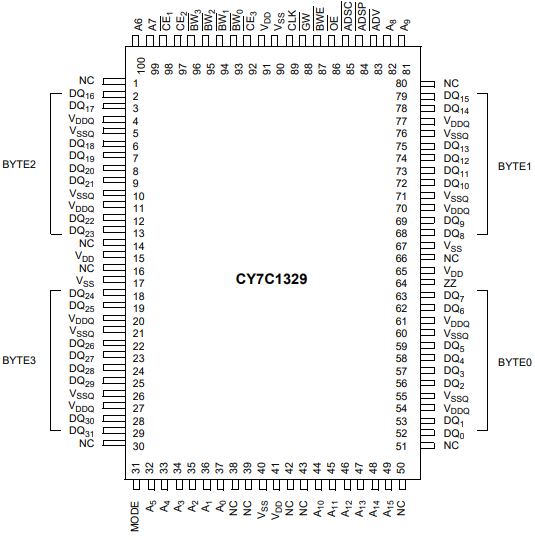

CY7C1329-100AC Pinout Details

This is a pinout diagram for the CY7C1329 memory chip. It shows the 100 pins of the chip and their functions. The pins are arranged around the rectangular chip, with labels indicating their roles.

CY7C1329-100AC Features

High-Speed Performance

The CY7C1329-100AC supports a 133 MHz bus, ensuring smooth and efficient data transfers with zero wait states. This allows your system to process data continuously without delays, making it well-suited for high-speed computing. It works seamlessly with Pentium and PowerPC processors, providing reliable compatibility with advanced systems.

Fully Registered Inputs and Outputs

All synchronous inputs and outputs are processed through input and output registers controlled by the rising edge of the clock. This design stabilizes data flow and enhances performance, making it ideal for pipelined operations where data is managed in consecutive steps without disruption.

Common I/O Architecture

With a 64K x 32 common I/O structure, this device supports both read and write operations through a shared data path. This simplifies memory integration, reducing complexity while maintaining fast and reliable performance.

Single 3.3V Power Supply

The CY7C1329-100AC operates on a single 3.3V power supply, reducing power consumption while ensuring a stable voltage for reliable operation. This makes it suitable for applications that require both performance and efficiency.

Fast Clock-to-Output Times

Speed is a defining feature of this SRAM. It delivers 4.2 ns access time at 133 MHz and 5.5 ns at 100 MHz, allowing rapid data retrieval and storage. This quick response time is critical for applications that demand fast memory access.

User-Selectable Burst Counter

The integrated burst counter supports both Intel Pentium interleaved burst sequences and linear burst sequences, offering flexibility in data handling. The burst sequence is determined by the MODE input, making it adaptable to different system requirements.

Separate Address Strobes

The CY7C1329-100AC includes dedicated signals for addressing. The Processor Address Strobe (ADSP) allows processor-initiated access, while the Controller Address Strobe (ADSC) enables memory controller-initiated access. These independent address strobes improve memory efficiency by allowing multiple components to manage read and write operations without interfering with each other.

Synchronous Self-Timed Writes

Writing data is simplified with a self-timed write mechanism, eliminating the need for complex timing control. This allows the SRAM to handle write operations automatically, improving performance while reducing the risk of timing errors.

Asynchronous Output Enable

The Output Enable (OE) signal provides an asynchronous method to control data output. When OE is deasserted (HIGH), the data outputs switch to three-state mode, preventing conflicts on the data bus. This ensures that only one component drives the bus at a time, improving system stability.

JEDEC-Standard Pinout

The CY7C1329-100AC follows the JEDEC-standard 100-lead TQFP pinout, ensuring compatibility with a wide range of systems. This standardized design allows for easier integration into existing hardware without the need for custom configurations.

Power-Saving Options

To help reduce power consumption, the CY7C1329-100AC includes a “ZZ” Sleep Mode, which puts the device into a low-power state when not in use. The Stop Clock option allows you to pause clock signals when memory access is not required, further reducing energy use. These features improve energy efficiency while maintaining high-speed performance.

CY7C1329-100AC Technical Specifications

Technical Specifications of Infineon Technologies, CY7C1329-100AC.

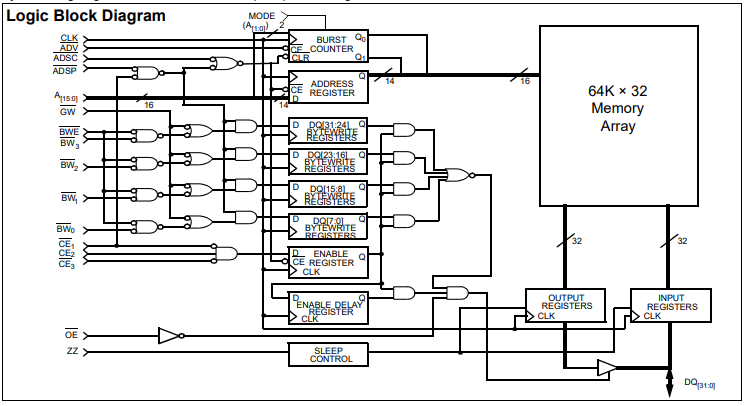

CY7C1329-100AC Logic Block Diagram

The logic block diagram of the CY7C1329-100AC shows how the memory chip processes data. It starts with address inputs (A0–A18) that go into an address register, which helps locate where data is stored. A burst counter works alongside to manage continuous data transfers.

Control signals like GW (Global Write), BW (Byte Write), and WE (Write Enable) determine whether the chip should read or write data. These signals pass through logic gates before reaching the write and enable delay blocks, which help manage timing.

The 64K × 32 memory array is the core storage area, where data is written or read. Data flows through input registers when written and through output registers when read. The OE (Output Enable) and ZZ (Sleep Control) signals help manage power and control data output.

This setup ensures smooth data handling, proper memory access, and efficient read/write operations.

CY7C1329-100AC Applications

High-Speed Computing

The CY7C1329-100AC is designed for high-performance computing, where fast data access is needed to keep up with demanding workloads. Its 133 MHz clock speed and 4.2 ns access time make it an excellent choice for processors, cache memory, and high-speed data processing systems. It helps reduce latency and ensures smooth operation in performance-driven applications.

Networking Equipment

Networking devices require fast and reliable memory to handle data traffic efficiently. The CY7C1329-100AC is used in routers, switches, and network storage systems, where quick memory access improves data transmission and processing. Its burst mode capability allows it to handle multiple data requests efficiently, making it ideal for high-bandwidth network environments.

Telecommunications Systems

Telecommunication infrastructure depends on fast, consistent data storage and retrieval to manage signals, voice transmission, and data exchange. The CY7C1329-100AC is widely used in base stations, signal processing units, and digital communication equipment, where low-latency memory enhances system responsiveness and reliability.

Embedded Systems

Embedded applications require compact, high-speed memory solutions that support smooth real-time processing. The CY7C1329-100AC is used in industrial automation, automotive electronics, and smart devices, ensuring stable operation and efficient data handling. Its low-power design and high-speed capabilities make it suitable for performance-focused embedded applications.

Data Storage and Caching

Efficient data storage is a key requirement in many systems, and the CY7C1329-100AC plays a crucial role in cache memory, RAID controllers, and SSD buffers. Its fast read and write speeds ensure quick data retrieval, improving system responsiveness in storage-intensive environments.

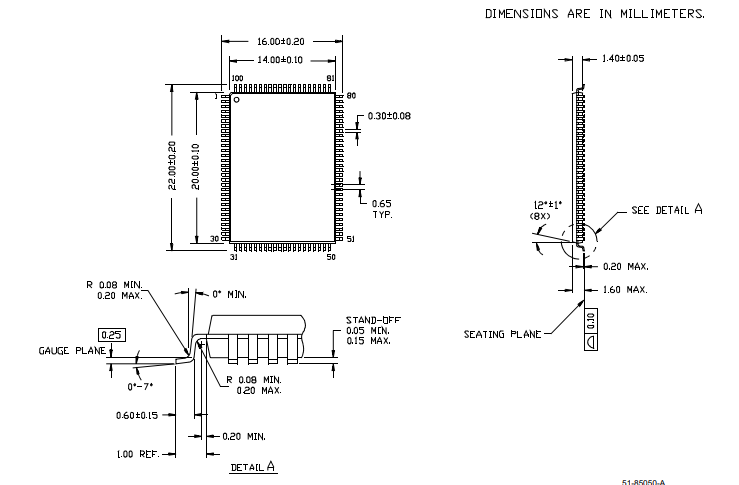

CY7C1329-100AC Outline Dimensions

The outline dimensions of the CY7C1329-100AC show the physical size and shape of the chip. The measurements are in millimeters, ensuring accuracy when designing circuits.

The diagram provides three views: top, side, and a detailed close-up. The top view shows the length and width, which are around 21 mm by 16 mm, with small variations allowed. The side view highlights the thickness and pin height, ensuring proper alignment when mounting the chip. The detailed section (Detail A) focuses on the pins, showing their spacing, curvature, and how they connect to the board.

These measurements help in designing circuit boards, ensuring the chip fits correctly and connects properly.

CY7C1329-100AC Advantages and Disadvantages

Advantages

• Rapid data access speeds improve overall system performance

• Synchronous operation supports high-bandwidth applications

• Low-voltage design helps reduce power consumption

• User-selectable burst modes provide flexibility for different systems

• Fully registered inputs and outputs ensure stable data processing

• Wide operating temperature range allows use in different environments

Disadvantages

• Requires precise timing control for proper operation

• Common I/O structure may limit simultaneous read and write operations

• Higher speed variants may generate more heat, requiring proper cooling

• JEDEC-standard pinout may not fit all custom PCB layouts

• Limited to 3.3V operation, which may not be compatible with lower voltage systems

CY7C1329-100AC Alternatives

CY7C1329-100AC Buying Guide

Looking for a high-speed memory solution? The CY7C1329-100AC is a great choice for handling memory-heavy tasks. It delivers fast performance and reliable operation, making it ideal for systems that need stable and efficient memory.

Even though this model is discontinued, its well-tested design still works well for older systems that require its specific features. Its power-efficient build helps reduce energy costs while maintaining smooth operation.

At allelcoelec.com, we offer the CY7C1329-100AC at competitive prices, ensuring you get a dependable product for your needs. Whether you're replacing a failed component or working on a legacy system, this memory chip provides a proven solution.

Browse our stock today and secure the CY7C1329-100AC while supplies last. If you have any questions, our team is here to help you find the right match for your project.

About Infineon Technologies

Infineon Technologies is a leading company known for developing high-quality semiconductor solutions. You can find their products in many industries, from computing and networking to automotive and industrial applications. They focus on creating reliable, energy-efficient technology that helps improve performance and efficiency in electronic systems. With a strong reputation for innovation, Infineon continues to provide advanced memory solutions like the CY7C1329-100AC, ensuring smooth and high-speed operation in various applications.

Conclusion

The CY7C1329-100AC is a high-speed SRAM that delivers reliable performance for memory-intensive tasks. It supports fast data access, flexible burst modes, and efficient power usage, making it a solid choice for older systems that still rely on its features. Even though it's discontinued, it remains a great option for legacy applications. If you're looking for a dependable memory solution, check out our stock at allelcoelec.com while supplies last.
