How to Choose Fast-Blow and Slow-Blow Fuses to Protect Power Circuits

This article explains the key differences between fast-blow fuses and slow-blow (time-delay) fuses, including how they work, their types, benefits, and where they are best used. It covers how each fuse responds to current surges, the kinds of circuits they protect, and practical tips for selecting the right fuse based on load type, inrush current, and component sensitivity.

Catalog

Figure 1: Slow-Blow and Fast-Blow Fuses

Fast-Blow Fuse

A fast-blow fuse also called a quick-acting fuse is designed to respond almost instantly to overcurrent conditions. It provides immediate protection to sensitive electronic components and power circuits. This makes it ideal for applications where even a short surge can cause serious damage. Choosing the right fast-blow fuse will protect power supplies, control boards, and precision instruments from short circuits and sudden current spikes.

Working Principle of Fast-Blow Fuse

A fast-blow fuse operates on a simple but highly effective mechanism. Inside its body, a thin metal wire or strip is designed to melt rapidly when the current surpasses the rated limit. Its low thermal inertia makes the element responds almost instantly. Typically, within milliseconds during an overload or short-circuit event.

As excessive current flows, the metal conductor heats up quickly through Joule heating (I²R losses). Once the temperature reaches its melting point, the wire breaks and interrupts the circuit, cutting off the fault current before it can cause damage. This swift reaction makes fast-blow fuses particularly suitable for safeguarding sensitive semiconductors, control circuits, and power supplies where even a momentary surge could be harmful.

Slow-Blow Fuse

Figure 2: Slow-Blow Fuse

A slow-blow fuse is also known as a time-delay fuse. It is designed to tolerate short-duration current surges without blowing immediately. This type of fuse is especially useful in power circuits where inrush currents are common. By allowing brief surges while still protecting against sustained overloads or short circuits, slow-blow fuses help maintain reliable operation and minimize nuisance tripping in industrial and electronic systems.

Working Principle of Slow-Blow Fuse

Unlike fast-blow fuses that respond almost instantly, a slow-blow fuse incorporates a special element. This element is often a coiled wire or a wire with a solder joint. It delays the opening time during short surges. When a temporary inrush current occurs, the fuse element heats up gradually but doesn’t melt right away. This time delay gives power-hungry devices the chance to stabilize without interrupting the circuit.

If the overcurrent persists beyond the designed time-delay threshold, the fuse element continues to heat through Joule heating (I²R losses) until it reaches its melting point. At this stage, the element opens the circuit, stopping the flow of current and protecting downstream components from damage.

Different Types of Fast-Blow and Slow-Blow Fuse

Figure 3: Glass Tube Fuse

• Glass Tube Fuses

These are the most common quick-acting fuses, consisting of a glass body with metal end caps. They allow easy visual inspection to check if the fuse has blown. Typical applications include consumer electronics, instrumentation, and low-voltage power supplies.

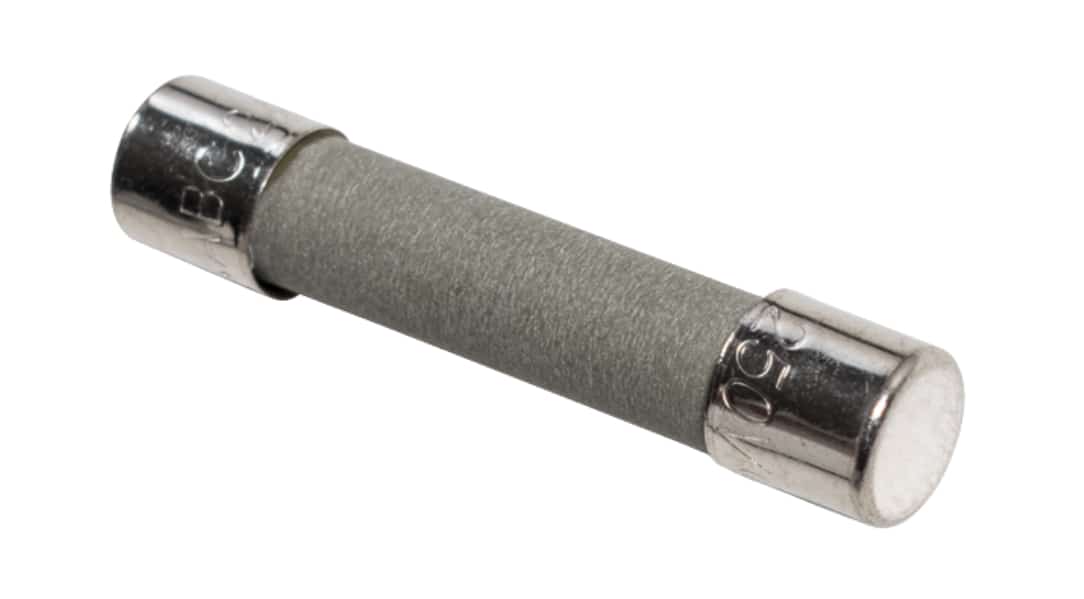

Figure 4: Ceramic Tube Fuse

• Ceramic Tube Fuses

Ceramic fuses offer higher interrupting ratings and better arc suppression compared to glass fuses. They are preferred for high-current or high-voltage power circuits, such as in industrial control panels, UPS systems, and power distribution units.

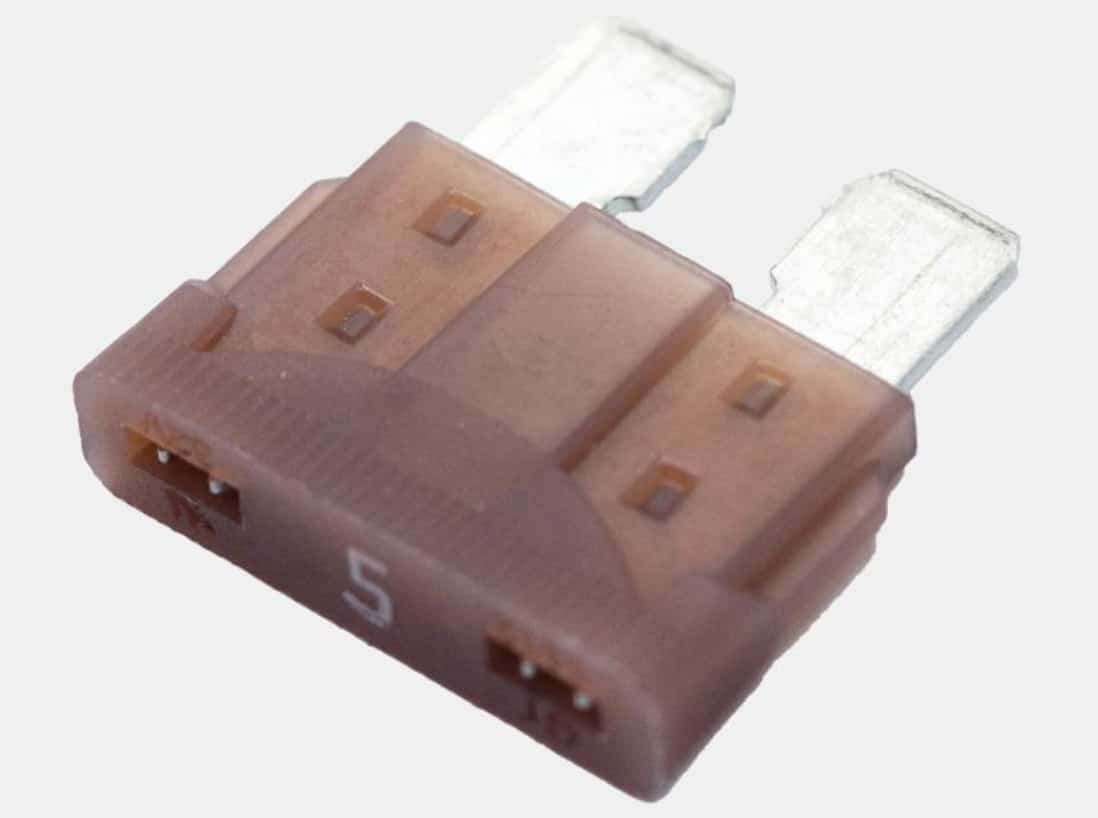

Figure 5: Blade-Type Fuse

• Blade-Type Fuses

Often found in automotive and low-voltage DC applications, these fuses use flat, plug-in terminals for quick replacement. Their fast-acting nature provides immediate protection to vehicle electronics, control modules, and auxiliary circuits.

Figure 6: SMD Fuse

• Surface-Mount (SMD) Fuses

These compact fuses are designed for modern PCBs and surface-mount assembly. They are commonly used in laptops, power adapters, and compact power electronics that require precise overcurrent protection in a small footprint.

Advantages of Using Fast-Blow and Slow-Blow Fuse

Advantage	Fast-Blow Fuse	Slow-Blow Fuse
1. Circuit Protection	Reacts quickly to faults, cutting power in milliseconds to protect sensitive parts.	Handles short surges without blowing, then protects if overload continues.
2. Longer Equipment Life	Stops damaging currents fast, reducing wear on components.	Let harmless surges pass, giving balanced protection and longer lifespan.
3. Less Downtime	Catches real faults early, avoiding major damage.	Prevents nuisance trips during startup, keeping systems running smoothly.
4. Versatile Use	Best for sensitive electronics and control circuits.	Ideal for motors, transformers, audio equipment, and surge-heavy circuits.
5. Safety Compliance	Provides precise overcurrent protection to meet standards.	Protects against overloads while allowing normal surges, ensuring reliability.

Application of Fast-Blow and Slow-Blow Fuse

Fast-blow and slow-blow fuses are used across a wide range of electrical and electronic systems to provide reliable overcurrent and short-circuit protection. Choosing the right fuse type for your application helps ensure safe operation, extend equipment life, and prevent costly failures.

Applications of Fast-Blow Fuse

• Consumer Electronics – TVs, computers, audio systems, and other devices with sensitive circuits that require quick protection.

• Power Supplies and Control Boards – Protects semiconductors and components from sudden short circuits or overloads.

• Measurement and Instrumentation Equipment – Ensures accurate operation by preventing damage from quick fault spikes.

• Medical and Laboratory Devices – Provides fast, reliable protection to maintain safety and performance in critical equipment.

• Telecommunications systems – Guards sensitive circuits in routers, modems, and network devices against power faults.

Applications of Slow-Blow Fuse

• Motors and Transformers – Handles high startup currents without tripping, commonly used in HVAC systems, pumps, and industrial drives.

• Power Supplies and Chargers – Allows initial capacitor charging surges while protecting against long-term faults.

• Audio Amplifiers – Prevents nuisance blowing during power-up or sudden volume spikes while protecting against real faults.

• Industrial Machinery – Ideal for equipment with heavy loads or frequent power cycles, ensuring stable operation.

• Automotive Circuits – Protects auxiliary systems, lighting, and control electronics from sustained overloads while tolerating startup surges.

Fast Blow Vs Slow-Blow Fuse

The table below highlights the main differences between fast-blow and slow-blow fuses, making it easier to choose the right type for your power circuit protection needs.

Feature	Fast-Blow Fuse (Quick-Acting Fuse)	Slow-Blow Fuse (Time-Delay Fuse)
Response Time	Reacts almost instantly (within milliseconds) when current exceeds the rated value	Delays its response to handle short inrush currents before opening the circuit
Protection Behavior	Provides immediate overcurrent and short-circuit protection	Allows brief surges to pass but interrupts sustained overloads
Surge Tolerance	Low – blows quickly during any surge	High – tolerates temporary startup surges without nuisance tripping
Best For	Sensitive circuits with low inrush current	Circuits with high inrush or inductive loads
Circuit Type	Precision and fast-response circuits	Inductive or surge-heavy circuits
Common Problem if Misused	May blow unnecessarily in surge-heavy applications, causing downtime	May allow damaging fault currents if used in sensitive circuits
Maintenance Impact	Can lead to frequent fuse replacements if inrush currents are present	Helps reduce nuisance trips and downtime in surge-prone environments
Cost Implications	Low cost but can increase maintenance if used incorrectly	Similar cost, but better suited for reducing unnecessary fuse changes in appropriate applications
Fuse Selection Tip	Choose when you need immediate fault protection for delicate components	Choose when you need surge tolerance and protection against sustained overloads

Choosing Between Fast-Blow and Slow-Blow Fuses

Know Your Circuit

• Use a fast-blow fuse for circuits with low or no inrush current, like control boards, sensitive electronics, and instrumentation. These fuses react instantly to faults.

• Use a slow-blow fuse for circuits with high inrush current, like motors, transformers, or audio amplifiers. These fuses allow short surges without blowing unnecessarily.

Match the Fuse to the Load

• Resistive loads such as heaters and lamps: Fast-blow fuse for quick protection.

• Inductive loads like motors and solenoids: Slow-blow fuse to handle startup surges.

• Electronic loads: Fast-blow for delicate circuits, slow-blow if there’s a power-on surge.

Consider Sensitivity and Ratings

If your circuit has delicate components like ICs or sensors, fast-blow fuses offer better protection. For heavy loads that can handle brief surges, slow-blow fuses are more reliable.

Always check the voltage, current rating, and breaking capacity to make sure the fuse fits your circuit.

Circuit Type	Recommended Fuse	Reason
Sensitive electronics	Fast-Blow Fuse	Instant fault protection for delicate components
Control boards, instrumentation	Fast-Blow Fuse	Low inrush, requires quick reaction
Motors and transformers	Slow-Blow Fuse	Handles high inrush during startup
Audio amplifiers	Slow-Blow Fuse	Prevents nuisance tripping from sudden power surges
Power supplies	Depends on surge behavior	Fast-blow for sensitive; slow-blow if there’s a high inrush at power-on

Conclusion

Fast-blow fuses provide quick protection for sensitive, low-inrush circuits, while slow-blow fuses handle startup surges in inductive or heavy-load applications. Choosing correctly depends on understanding the circuit’s current behavior, load type, and component sensitivity, along with matching voltage, current, and breaking capacity. Using the right fuse improves safety, reduces downtime, and extends equipment life.
