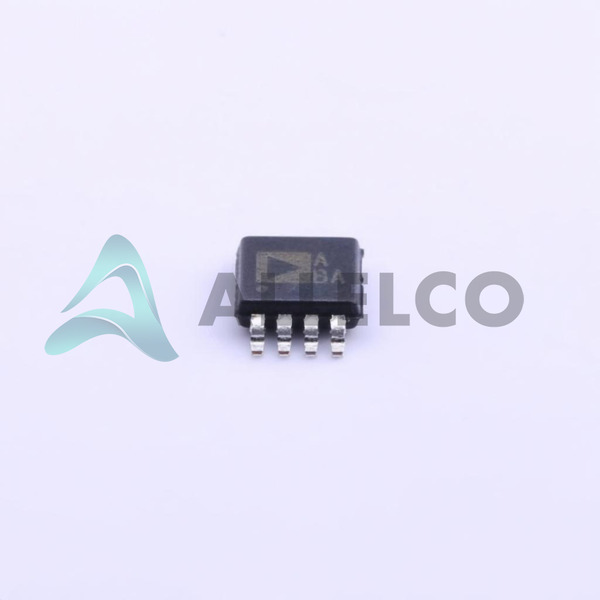

AD8602ARMZ-REEL (1)
Manufacturer Part Number
AD8602ARMZ-REEL
Manufacturer
Analog Devices, Inc.
Introduction
High-performance, low-noise, dual operational amplifier (op amp) with CMOS input stage
Product Features and Performance
4 MHz gain-bandwidth product
Rail-to-rail output
Low input offset voltage of 80 μV
Low input bias current of 0.2 pA
Slew rate of 6 V/μs
Dual channel design
Product Advantages
Excellent AC and DC performance
High-speed and low-noise operation
Small size and low power consumption
Wide operating temperature range of -40°C to 125°C
AD8602ARMZ-REEL (2)
Key Technical Parameters
Operating voltage range: 2.7 V to 5.5 V
Supply current: 750 μA per channel
Output current: 50 mA per channel
Gain-bandwidth product: 8.4 MHz
Quality and Safety Features
RoHS3 compliant
8-pin MSOP package
Compatibility
Suitable for a wide range of applications, including instrumentation, buffering, and general-purpose amplification.
Application Areas
Medical equipment
Industrial automation
Test and measurement equipment
Consumer electronics
Product Lifecycle
This product is currently in production and is not nearing discontinuation. Replacements and upgrades may be available in the future.
Key Reasons to Choose This Product
Exceptional performance in terms of speed, noise, and power consumption
Compact and energy-efficient design
Wide operating temperature range for reliable operation in diverse environments
Versatile application potential across various industries
