HomeProductsCircuit ProtectionTVS - Diodes1SMB150AT3

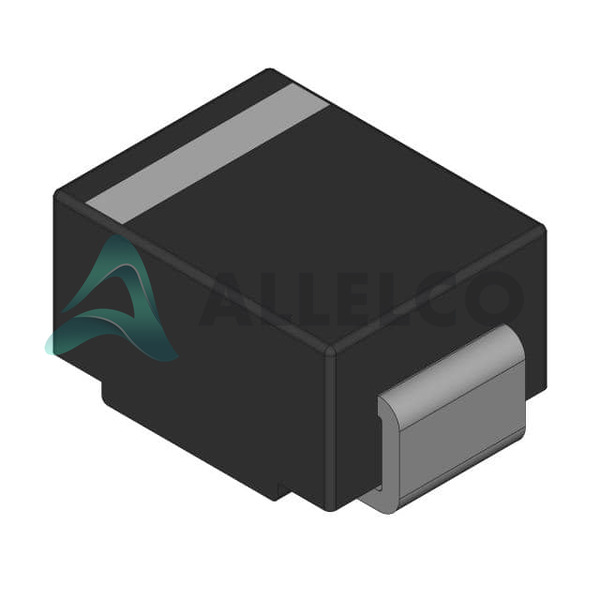

1SMB150AT3 Image
1SMB150AT3 Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

1SMB150AT3 - onsemi

Manufacturer Part Number
1SMB150AT3
Manufacturer
onsemi
Allelco Part Number
32D-1SMB150AT3
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
TVS DIODE 150VWM 243VC SMB
Package
SMB
Data sheet
1.1SMB150AT3.pdf ...

Environmental Information

onsemi RoHS.pdf

PCN Obsolescence/ EOL

Multiple Devices 27/Jun/2007.pdf
Compare
Our certification
In stock: 4040

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity
EXPRESS OPTION
Payment method
Our certification

Specifications

1SMB150AT3 Tech Specifications
onsemi - 1SMB150AT3 technical specifications, attributes, parameters and parts with similar specifications to onsemi - 1SMB150AT3

Product Attribute Attribute Value
Manufacturer onsemi
Voltage - Reverse Standoff (Typ) 150V
Voltage - Clamping (Max) @ Ipp 243V
Voltage - Breakdown (Min) 167V
Unidirectional Channels 1
Type Zener
Supplier Device Package SMB
Series -
Power Line Protection No
Product Attribute Attribute Value
Power - Peak Pulse 600W
Package / Case DO-214AA, SMB
Package Tape & Reel (TR)
Operating Temperature -65°C ~ 150°C (TJ)
Mounting Type Surface Mount
Current - Peak Pulse (10/1000µs) 2.5A
Capacitance @ Frequency 135pF @ 1MHz
Base Product Number 1SMB15
Applications General Purpose

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status RoHS non-compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080

Parts Introduction

Manufacturer Part Number

1SMB150AT3

Manufacturer

onsemi

Introduction

The 1SMB150AT3 is a high-voltage, unidirectional transient voltage suppressor (TVS) diode designed for general-purpose circuit protection applications. It offers robust overvoltage protection and fast clamping response to safeguard sensitive electronic components from harmful voltage spikes and transients.

Product Features and Performance

Unidirectional, single-channel transient voltage suppressor

Reverse standoff voltage (Typ.): 150V

Breakdown voltage (Min.): 167V

Clamping voltage (Max. @ Ipp): 243V

Peak pulse current (10/1000 μs): 2.5A

Peak pulse power: 600W

Capacitance @ 1 MHz: 135pF

Operating temperature range: -65°C to 150°C

Product Advantages

Robust overvoltage protection for sensitive electronic components

Fast clamping response to suppress harmful voltage spikes and transients

High reverse standoff voltage and breakdown voltage for reliable performance

Compact surface-mount SMB package for efficient board-level integration

Key Reasons to Choose This Product

Comprehensive circuit protection against transient overvoltage events

Reliable and durable performance in a wide range of operating temperatures

Efficient surface-mount package for easy integration into compact designs

Cost-effective solution for general-purpose transient voltage suppression needs

Quality and Safety Features

Complies with industry safety standards and regulations

Robust construction and packaging for reliable long-term operation

Undergoes stringent quality control and testing processes

Compatibility

Suitable for use in a variety of electronic applications and circuits

Application Areas

General-purpose circuit protection against transient overvoltage events

Safeguarding sensitive electronic components in consumer, industrial, and automotive applications

Product Lifecycle

The 1SMB150AT3 is an obsolete product, meaning it is no longer in active production. However, onsemi may offer alternative or equivalent models that can provide similar functionality and performance. Customers are advised to contact our website's sales team for more information on available options and alternatives.

Parts with Similar Specifications

The three parts on the right have similar specifications to onsemi 1SMB150AT3

Product Attribute 1SMB150CA TR13 1SMB150A TR13 1SMB150CA TR13 PBFREE 1SMB150AT3G
Part Number 1SMB150CA TR13 1SMB150A TR13 1SMB150CA TR13 PBFREE 1SMB150AT3G
Manufacturer Central Semiconductor Central Semiconductor Central Semiconductor Corp Littelfuse Inc.
Type - - - -
Power Line Protection - - - -
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Voltage - Clamping (Max) @ Ipp - - - -
Voltage - Reverse Standoff (Typ) - - - -
Applications - - - -
Unidirectional Channels - - - -
Package / Case - 196-LFBGA 16-DIP (0.300', 7.62mm) 64-VFQFN Exposed Pad
Capacitance @ Frequency - - - -
Supplier Device Package - 196-NFBGA (12x12) 16-PDIP 64-VQFN (9x9)
Mounting Type - Surface Mount Through Hole Surface Mount
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Base Product Number - DAC34H84 MAX500 ADS62P42
Voltage - Breakdown (Min) - - - -
Current - Peak Pulse (10/1000µs) - - - -
Power - Peak Pulse - - - -
Series - - - -

1SMB150AT3 Datasheet PDF
