Specifications

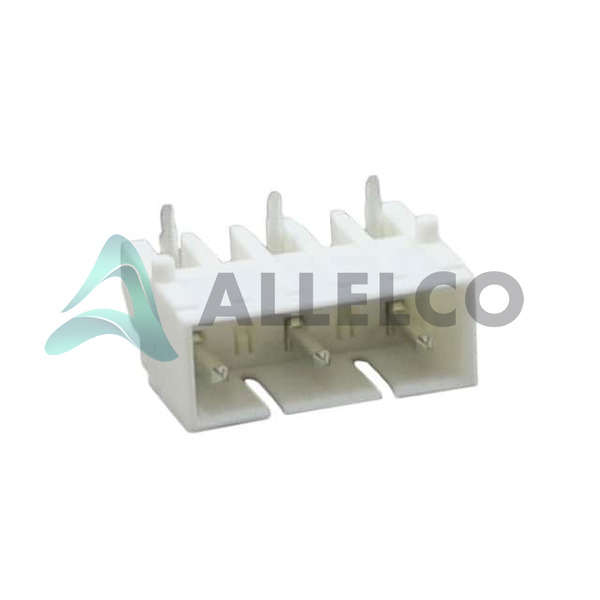

0532660329 Tech Specifications
Molex - 0532660329 technical specifications, attributes, parameters and parts with similar specifications to Molex - 0532660329
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Molex |
|
| Voltage Rating |
250VAC/DC |
|
| Termination |
Solder |
|
| Style |
Board to Cable/Wire |
|
| Shrouding |
Shrouded - 4 Wall |
|
| Series |
53266 |
|
| Row Spacing - Mating |
- |
|
| Pitch - Mating |
0.276" (7.00mm) |
|
| Package |
Tray |
|
| Overall Contact Length |
- |
|
| Operating Temperature |
-40°C ~ 105°C |
|
| Number of Rows |
1 |
|
| Number of Positions Loaded |
All |
|
| Number of Positions |
3 |
|
| Mounting Type |
Through Hole, Right Angle |
|
| Material Flammability Rating |
UL94 V-0 |
|
| Mated Stacking Heights |
- |
|
| Insulation Material |
Polybutylene Terephthalate (PBT), Glass Filled |
|
| Product Attribute |
Attribute Value
| |
| Insulation Height |
0.311" (7.90mm) |
|
| Insulation Color |
Black |
|
| Ingress Protection |
- |
|
| Features |
Board Guide |
|
| Fastening Type |
Locking Ramp |
|
| Current Rating (Amps) |
Varies by Wire Gauge |
|
| Contact Type |
Male Pin |
|
| Contact Shape |
Rectangular |
|
| Contact Material |
Brass |
|
| Contact Length - Post |
0.138" (3.50mm) |
|
| Contact Length - Mating |
- |
|
| Contact Finish Thickness - Post |
40.0µin (1.02µm) |
|
| Contact Finish Thickness - Mating |
40.0µin (1.02µm) |
|
| Contact Finish - Post |
Tin |
|
| Contact Finish - Mating |
Tin |
|
| Connector Type |
Header |
|
| Base Product Number |
053266 |
|
| Applications |
- |
|
