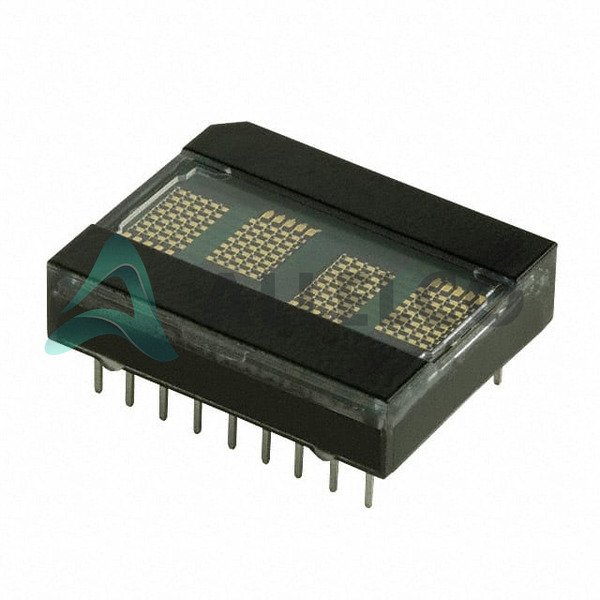

Image may be representation.
See specifications for product details.

~~Favorite~~

EXPRESS OPTION

Payment method

HDLG-2416 - Broadcom Limited

Name: Broadcom Limited HDLG-2416
Brand: Broadcom Limited
SKU: HDLG-2416
Price: 22.84 USD
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer Part Number: HDLG-2416

Manufacturer: Avago Technologies (Broadcom)

Allelco Part Number: 32D-HDLG-2416

Warranty: 1 Year Allelco Warranty - Find out more

Parts Description: LED DISPLAY 5X7 5MM 4CHAR GREEN

Package: Tube

Data sheet: 1.HDLG-2416.pdf ...

PCN Design/Specification
Cylindrical Battery Holders.pdf

RoHs Status: ROHS3 Compliant

~~Compare~~

Our certification

In stock: 28065

Unit Price: $23.948
Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity	Unit Price	Ext. Price
1+	$23.948	$23.95
20+	$22.84	$456.80

The above prices does not include taxes and freight rates, which will be calculated on the order pages.

EXPRESS OPTION

Payment method

Our certification

Specifications

HDLG-2416 Tech Specifications
Broadcom Limited - HDLG-2416 technical specifications, attributes, parameters and parts with similar specifications to Broadcom Limited - HDLG-2416

Product Attribute	Attribute Value
Manufacturer	Avago Technologies (Broadcom)
Voltage - Forward (Vf) (Typ)	-
Size / Dimension	0.99' L x 0.79' W x 0.26' H (25.15mm x 20.07mm x 6.60mm)
Series	HDLx-2416
Package	Tube
Millicandela Rating	5.6mcd

Product Attribute	Attribute Value
Internal Connection	-
Interface	7-Bit ASCII
Configuration	5 x 7
Color	Green
Base Product Number	HDLG-2416

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8531.20.0040

Parts with Similar Specifications

The three parts on the right have similar specifications to Broadcom Limited HDLG-2416

Product Attribute
Part Number	HDLG-2416	HDLU-1414	HDLO-1414	HDL7591041P0004
Manufacturer	Broadcom Limited	Broadcom Limited	Broadcom Limited	Harwin Inc.
Voltage - Forward (Vf) (Typ)	-	-	-	-
Millicandela Rating	5.6mcd	1.20mcd ~ 13.30mcd	1.20mcd ~ 13.30mcd	-
Size / Dimension	0.99' L x 0.79' W x 0.26' H (25.15mm x 20.07mm x 6.60mm)	0.70' L x 0.79' W x 0.24' H (17.66mm x 20.12mm x 6.10mm)	0.70' L x 0.79' W x 0.24' H (17.66mm x 20.12mm x 6.10mm)	-
Series	HDLx-2416	HDLx-1414	HDLx-1414	*
Configuration	5 x 7	5 x 7	5 x 7	-
Color	Green	Red	Red	-
Package	Tube	Tube	Tube	Bulk
Base Product Number	HDLG-2416	HDLU-1414	HDLO-1414	-
Internal Connection	-	-	-	-
Interface	7-Bit ASCII	7-Bit ASCII	7-Bit ASCII	-

HDLG-2416 Datasheet PDF

Download HDLG-2416 pdf datasheets and Broadcom Limited documentation for HDLG-2416 - Broadcom Limited.
