Home Products Inductors, Coils, Chokes Fixed Inductors~~SRR1260-180M~~

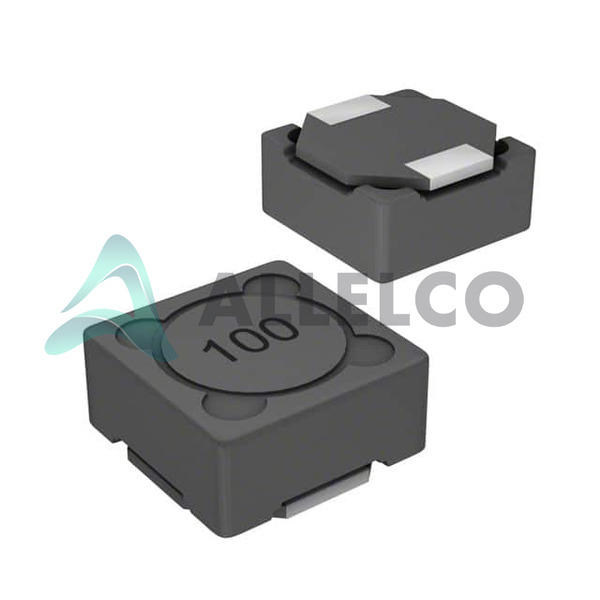

Image may be representation.
See specifications for product details.

~~Favorite~~

EXPRESS OPTION

Payment method

SRR1260-180M - Bourns Inc.

Name: Bourns Inc. SRR1260-180M
Brand: Bourns Inc.
SKU: SRR1260-180M
Price: 0.685 USD
Availability: InStock
Rating: 5 (2 reviews)

Manufacturer Part Number: SRR1260-180M

Manufacturer: Bourns, Inc.

Allelco Part Number: 32D-SRR1260-180M

Warranty: 1 Year Allelco Warranty - Find out more

Parts Description: FIXED IND 18UH 4.2A 36 MOHM SMD

Package: Nonstandard

Data sheet: 1.SRR1260-180M.pdf ...

Datasheets
Cylindrical Battery Holders.pdf

Environmental Information
Bourns REACH.pdf RoHS SRR Series.pdf SRR1260 Series Material Declaration.pdf

PCN Assembly/Origin
2.73KHz.pdf

PCN Design/Specification
SRR12(6,8,1)0, PM12(5,7)SH Models 17/Aug/2011.pdf

RoHs Status: ROHS3 Compliant

~~Compare~~

Our certification

In stock: 37700

Unit Price: $0.729
Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity	Unit Price	Ext. Price
1+	$0.729	$0.73
10+	$0.71	$7.10
30+	$0.698	$20.94
100+	$0.685	$68.50

The above prices does not include taxes and freight rates, which will be calculated on the order pages.

EXPRESS OPTION

Payment method

Our certification

Specifications

SRR1260-180M Tech Specifications
Bourns Inc. - SRR1260-180M technical specifications, attributes, parameters and parts with similar specifications to Bourns Inc. - SRR1260-180M

Product Attribute	Attribute Value
Manufacturer	Bourns, Inc.
Type	Drum Core, Wirewound
Tolerance	±20%
Supplier Device Package	-
Size / Dimension	0.492' L x 0.492' W (12.50mm x 12.50mm)
Shielding	Shielded
Series	SRR1260
Ratings	-
Q @ Freq	28 @ 2.52MHz
Package / Case	Nonstandard
Package	Tape & Reel (TR)

Product Attribute	Attribute Value
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Material - Core	Ferrite
Inductance Frequency - Test	100 kHz
Inductance	18 µH
Height - Seated (Max)	0.256' (6.50mm)
Frequency - Self Resonant	15.5MHz
DC Resistance (DCR)	36mOhm Max
Current Rating (Amps)	4.2 A
Current - Saturation (Isat)	3.9A
Base Product Number	SRR1260

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000

Parts with Similar Specifications

The three parts on the right have similar specifications to Bourns Inc. SRR1260-180M

Product Attribute
Part Number	SRR1260-101M	SRR1260-120M	SRR1260-150M	SRR1260-100M
Manufacturer	Bourns Inc.	Bourns Inc.	Bourns Inc.	Bourns Inc.
Tolerance	-	-	-	-
Inductance Frequency - Test	-	-	-	-
Q @ Freq	-	-	-	-
Mounting Type	-	Surface Mount	Through Hole	Surface Mount
Ratings	-	-	-	-
Material - Core	-	-	-	-
Package / Case	-	196-LFBGA	16-DIP (0.300', 7.62mm)	64-VFQFN Exposed Pad
Shielding	-	-	-	-
Operating Temperature	-	-40°C ~ 85°C	0°C ~ 70°C	-40°C ~ 85°C
Type	-	-	-	-
Height - Seated (Max)	-	-	-	-
Base Product Number	-	DAC34H84	MAX500	ADS62P42
DC Resistance (DCR)	-	-	-	-
Package	-	Tape & Reel (TR)	Tube	Tape & Reel (TR)
Frequency - Self Resonant	-	-	-	-
Inductance	-	-	-	-
Current Rating (Amps)	-	-	-	-
Series	-	-	-	-
Supplier Device Package	-	196-NFBGA (12x12)	16-PDIP	64-VQFN (9x9)
Size / Dimension	-	-	-	-
Current - Saturation (Isat)	-	-	-	-

SRR1260-180M Datasheet PDF

Download SRR1260-180M pdf datasheets and Bourns Inc. documentation for SRR1260-180M - Bourns Inc..

Datasheets: Cylindrical Battery Holders.pdf
Environmental Information: Bourns REACH.pdf RoHS SRR Series.pdf SRR1260 Series Material Declaration.pdf
PCN Assembly/Origin: 2.73KHz.pdf
PCN Design/Specification: SRR12(6,8,1)0, PM12(5,7)SH Models 17/Aug/2011.pdf
