Specifications

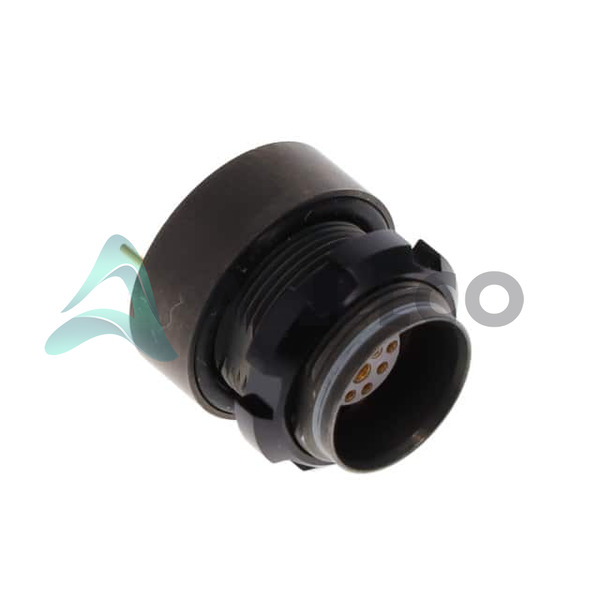

HDX-WGKM0-16UBCL Tech Specifications
ITT Cannon, LLC - HDX-WGKM0-16UBCL technical specifications, attributes, parameters and parts with similar specifications to ITT Cannon, LLC - HDX-WGKM0-16UBCL
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Cannon (ITT Cannon) |
|
| Voltage Rating |
250V |
|
| Termination |
Solder |
|
| Shielding |
Unshielded |
|
| Shell Size, MIL |
- |
|
| Shell Size - Insert |
0-16 |
|
| Shell Material |
Brass |
|
| Shell Finish |
Ruthenium over Electroless Nickel |
|
| Series |
HDX |
|
| Primary Material |
Metal |
|
| Package |
Bag |
|
| Orientation |
C |
|
| Operating Temperature |
-51°C ~ 125°C |
|
| Number of Positions |
16 |
|
| Mounting Type |
Panel Mount, Through Hole |
|
| Mounting Feature |
Bulkhead - Front Side Nut |
|
| Product Attribute |
Attribute Value
| |
| Material Flammability Rating |
- |
|
| Insert Material |
Polyetherimide (PEI), Glass Filled |
|
| Ingress Protection |
IPX8/IPX9K - Water Resistant, Waterproof |
|
| Features |
- |
|
| Fastening Type |
Push-Pull |
|
| Current Rating (Amps) |
1A, 5A |
|
| Contact Material |
Copper Alloy |
|
| Contact Finish Thickness - Mating |
- |
|
| Contact Finish - Mating |
Gold |
|
| Connector Type |
Receptacle, Female Sockets |
|
| Color |
Silver |
|
| Cable Opening |
- |
|
| Base Product Number |
HDX-WGKM0 |
|
| Backshell Material, Plating |
- |
|
| Applications |
- |
|
