Specifications

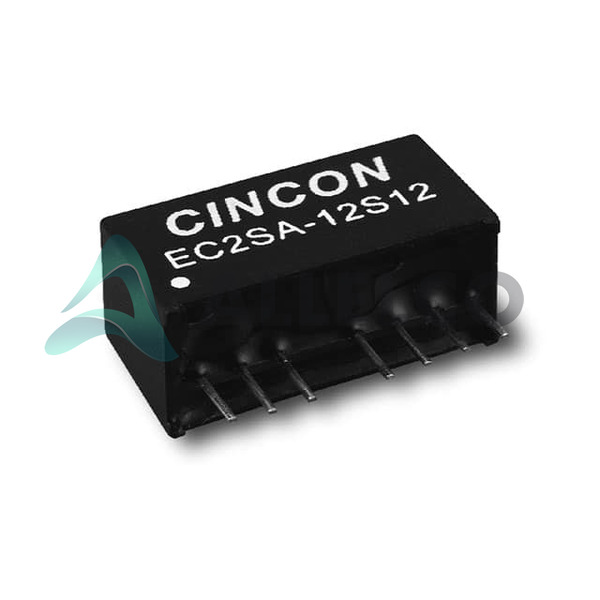

EC2SA-05S05N Tech Specifications
Cincon Electronics Co. LTD - EC2SA-05S05N technical specifications, attributes, parameters and parts with similar specifications to Cincon Electronics Co. LTD - EC2SA-05S05N
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Cincon |
|
| Voltage - Output 4 |
- |
|
| Voltage - Output 3 |
- |
|
| Voltage - Output 2 |
- |
|
| Voltage - Output 1 |
5V |
|
| Voltage - Isolation |
1.5 kV |
|
| Voltage - Input (Min) |
4.5V |
|
| Voltage - Input (Max) |
9V |
|
| Type |
Isolated Module |
|
| Supplier Device Package |
- |
|
| Standard Number |
60950-1 |
|
| Size / Dimension |
0.86" L x 0.36" W x 0.44" H (21.8mm x 9.2mm x 11.1mm) |
|
| Series |
EC2SA (2W) |
|
| Product Attribute |
Attribute Value
| |
| Power (Watts) |
2 W |
|
| Package / Case |
8-SIP Module, 7 Leads |
|
| Package |
Tube |
|
| Operating Temperature |
-40°C ~ 85°C (With Derating) |
|
| Number of Outputs |
1 |
|
| Mounting Type |
Through Hole |
|
| Features |
Remote On/Off, SCP, UVLO |
|
| Efficiency |
76% |
|
| Current - Output (Max) |
400mA |
|
| Control Features |
- |
|
| Base Product Number |
EC2SA |
|
| Approval Agency |
CE |
|
| Applications |
ITE (Commercial) |
|
