Home Products Discrete Semiconductor Products Diodes - Rectifiers - Single~~CDBU0230~~

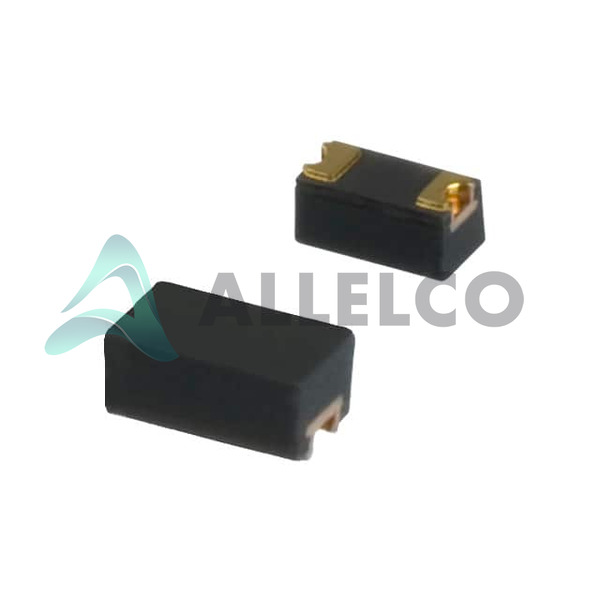

Image may be representation.
See specifications for product details.

~~Favorite~~

EXPRESS OPTION

Payment method

CDBU0230 - Comchip Technology

Name: Comchip Technology CDBU0230
Brand: Comchip Technology
SKU: CDBU0230
Price: 0.551 USD
Availability: InStock
Rating: 5 (1 reviews)

Manufacturer Part Number: CDBU0230

Manufacturer: Comchip Technology

Allelco Part Number: 32D-CDBU0230

Warranty: 1 Year Allelco Warranty - Find out more

Parts Description: DIODE SCHOTTKY 30V 200MA 0603C

Package: 0603C/SOD-523F

Data sheet: 1.CDBU0230.pdf ...

Datasheets
CDBU0230.pdf

Environmental Information
Comchip Technology RoHS Cert.pdf

PCN Packaging
Label D/C Chg 24/Mar/2016.pdf

RoHs Status: ROHS3 Compliant

~~Compare~~

Our certification

In stock: 587300

Unit Price: $0.905
Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity	Unit Price	Ext. Price
1+	$0.905	$0.91
10+	$0.768	$7.68
30+	$0.692	$20.76
100+	$0.606	$60.60
500+	$0.569	$284.50
1000+	$0.551	$551.00

The above prices does not include taxes and freight rates, which will be calculated on the order pages.

EXPRESS OPTION

Payment method

Our certification

Specifications

CDBU0230 Tech Specifications
Comchip Technology - CDBU0230 technical specifications, attributes, parameters and parts with similar specifications to Comchip Technology - CDBU0230

Product Attribute	Attribute Value
Manufacturer	Comchip Technology
Voltage - Forward (Vf) (Max) @ If	500 mV @ 200 mA
Voltage - DC Reverse (Vr) (Max)	30 V
Technology	Schottky
Supplier Device Package	0603C/SOD-523F
Speed	Small Signal =< 200mA (Io), Any Speed
Series	-
Package / Case	2-SMD, No Lead

Product Attribute	Attribute Value
Package	Tape & Reel (TR)
Operating Temperature - Junction	125°C (Max)
Mounting Type	Surface Mount
Current - Reverse Leakage @ Vr	30 µA @ 30 V
Current - Average Rectified (Io)	200mA
Capacitance @ Vr, F	9pF @ 10V, 1MHz
Base Product Number	CDBU0230

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99

Parts with Similar Specifications

The three parts on the right have similar specifications to Comchip Technology CDBU0230

Product Attribute
Part Number	CDBU0230L-HF	CDBU0230R-HF	CDBU0230-HF	CDBU0130L-HF
Manufacturer	Comchip Technology	Comchip Technology	Comchip Technology	Comchip Technology
Current - Average Rectified (Io)	-	-	-	-
Operating Temperature - Junction	-	-	-	-
Package / Case	-	196-LFBGA	16-DIP (0.300', 7.62mm)	64-VFQFN Exposed Pad
Capacitance @ Vr, F	-	-	-	-
Package	-	Tape & Reel (TR)	Tube	Tape & Reel (TR)
Base Product Number	-	DAC34H84	MAX500	ADS62P42
Current - Reverse Leakage @ Vr	-	-	-	-
Series	-	-	-	-
Supplier Device Package	-	196-NFBGA (12x12)	16-PDIP	64-VQFN (9x9)
Technology	-	-	-	-
Voltage - Forward (Vf) (Max) @ If	-	-	-	-
Speed	-	-	-	-
Mounting Type	-	Surface Mount	Through Hole	Surface Mount
Voltage - DC Reverse (Vr) (Max)	-	-	-	-

CDBU0230 Datasheet PDF

Download CDBU0230 pdf datasheets and Comchip Technology documentation for CDBU0230 - Comchip Technology.

Datasheets: CDBU0230.pdf
Environmental Information: Comchip Technology RoHS Cert.pdf
PCN Packaging: Label D/C Chg 24/Mar/2016.pdf
