Specifications

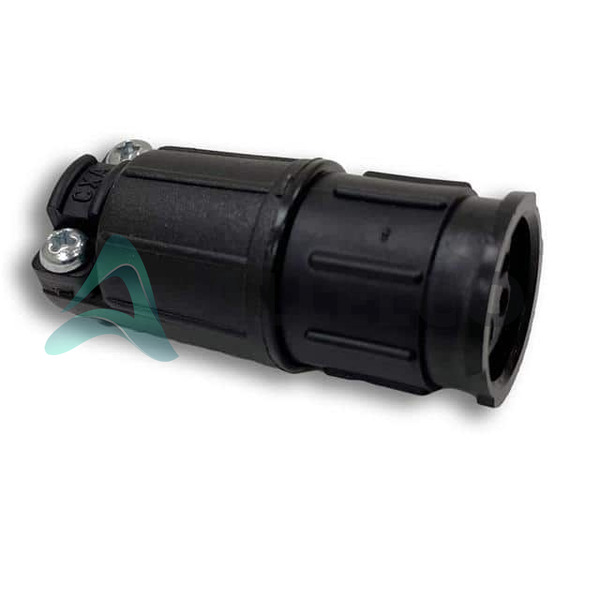

W5180-2SG-P-535 Tech Specifications
Conxall/Switchcraft - W5180-2SG-P-535 technical specifications, attributes, parameters and parts with similar specifications to Conxall/Switchcraft - W5180-2SG-P-535
| Product Attribute |
Attribute Value
| |
| Manufacturer |
Corcom Filters / TE Connectivity |
|
| Voltage Rating |
600VAC/DC |
|
| Termination |
Crimp |
|
| Shielding |
Unshielded |
|
| Shell Size, MIL |
- |
|
| Shell Size - Insert |
- |
|
| Shell Material |
Thermoplastic |
|
| Shell Finish |
- |
|
| Series |
Multi-Con-X®, Insta-Click™ |
|
| Primary Material |
Plastic |
|
| Package |
Bulk |
|
| Orientation |
Keyed |
|
| Operating Temperature |
-40°C ~ 85°C |
|
| Number of Positions |
2 |
|
| Mounting Type |
Free Hanging (In-Line) |
|
| Product Attribute |
Attribute Value
| |
| Mounting Feature |
- |
|
| Material Flammability Rating |
UL94 HB |
|
| Insert Material |
Thermoplastic |
|
| Ingress Protection |
IP67 - Dust Tight, Waterproof |
|
| Features |
Backshell, UV Resistant |
|
| Fastening Type |
Bayonet Lock |
|
| Current Rating (Amps) |
Varies by Wire Gauge |
|
| Contact Material |
Copper Alloy |
|
| Contact Finish Thickness - Mating |
- |
|
| Contact Finish - Mating |
Gold |
|
| Connector Type |
Plug, Female Sockets |
|
| Color |
Black |
|
| Cable Opening |
0.350" ~ 0.400" (8.89mm ~ 10.16mm) |
|
| Backshell Material, Plating |
Thermoplastic |
|
| Applications |
- |
|
