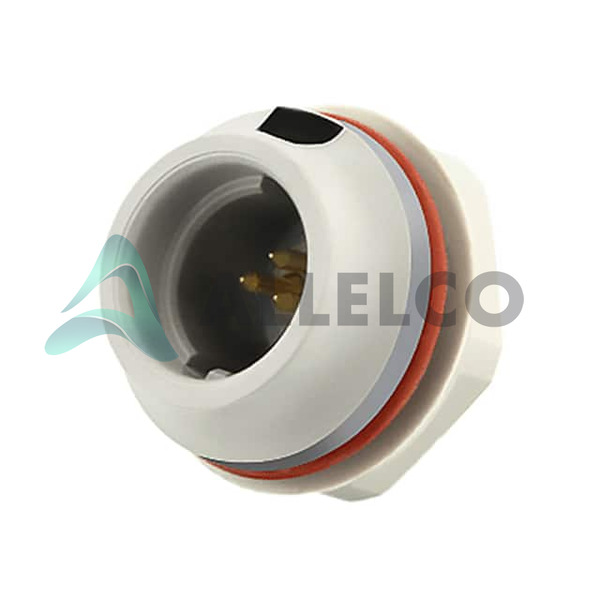

JMXHH1G03MCUDSG - Souriau-Sunbank by Eaton

Name: Souriau-Sunbank by Eaton JMXHH1G03MCUDSG
Brand: Souriau-Sunbank by Eaton
SKU: JMXHH1G03MCUDSG
Availability: InStock
Rating: 5 (9 reviews)

Manufacturer Part Number: JMXHH1G03MCUDSG

Manufacturer: Eaton Souriau-Sunbank

Allelco Part Number: 98D-JMXHH1G03MCUDSG

Warranty: 1 Year Allelco Warranty - Find out more

Stock Status:: 43,634 pcs available, New & Original

Parts Description: CONN RCPT MALE 3POS GOLD CRIMP

Package: Bulk

Data sheet: JMXHH1G03MCUDSG.pdf

Datasheets
JMXHH1GxxFSxDSx Drawing.pdf

RoHs Status: ROHS3 Compliant

~~Compare~~

Our certification

In stock: 43634

Specifications

JMXHH1G03MCUDSG Tech Specifications
Souriau-Sunbank by Eaton - JMXHH1G03MCUDSG technical specifications, attributes, parameters and parts with similar specifications to Souriau-Sunbank by Eaton - JMXHH1G03MCUDSG

Product Attribute	Attribute Value
Manufacturer	Eaton Souriau-Sunbank
Voltage Rating	230V
Termination	Crimp
Shielding	Unshielded
Shell Size, MIL	-
Shell Size - Insert	1-3
Shell Material	Polyetherimide (PEI)
Shell Finish	-
Series	JMX
Primary Material	Plastic
Package	Bulk
Orientation	G
Operating Temperature	-20°C ~ 100°C
Number of Positions	3
Mounting Type	Panel Mount
Mounting Feature	Bulkhead - Rear Side Nut

Product Attribute	Attribute Value
Material Flammability Rating	UL94 V-0
Insert Material	Polyetheretherketone (PEEK)
Ingress Protection	IP50/IP68 - Dust Protected, Dust Tight, Waterproof
Features	-
Fastening Type	Push-Pull
Current Rating (Amps)	9A
Contact Material	Copper Nickel
Contact Finish Thickness - Mating	19.7µin (0.50µm)
Contact Finish - Mating	Gold
Connector Type	Receptacle, Male Pins
Color	Gray
Cable Opening	-
Base Product Number	JMXHH1
Backshell Material, Plating	-
Applications	Industrial, Instrumentation, Medical

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4020

Parts with Similar Specifications

The three parts on the right have similar specifications to Souriau-Sunbank by Eaton JMXHH1G03MCUDSG

Product Attribute
Part Number	JMXHH1G03MCUDSP	JMXHH1G03MSUDSG	JMXHH1G03MCUDSA	JMXHH1G03MCUDSU
Manufacturer	Souriau-Sunbank by Eaton	Souriau-Sunbank by Eaton	Souriau-Sunbank by Eaton	Souriau-Sunbank by Eaton
Cable Opening	-	-	-	-
Features	-	-	-	Simultaneous Sampling
Contact Finish - Mating	-	-	-	-
Shell Finish	-	-	-	-
Insert Material	-	-	-	-
Shell Size - Insert	-	-	-	-
Color	-	-	-	-
Contact Finish Thickness - Mating	-	-	-	-
Primary Material	-	-	-	-
Backshell Material, Plating	-	-	-	-
Mounting Type	-	Surface Mount	Through Hole	Surface Mount
Package	-	Tape & Reel (TR)	Tube	Tape & Reel (TR)
Current Rating (Amps)	-	-	-	-
Fastening Type	-	-	-	-
Material Flammability Rating	-	-	-	-
Shell Material	-	-	-	-
Connector Type	-	-	-	-
Contact Material	-	-	-	-
Voltage Rating	-	-	-	-
Shell Size, MIL	-	-	-	-
Operating Temperature	-	-40°C ~ 85°C	0°C ~ 70°C	-40°C ~ 85°C
Shielding	-	-	-	-
Termination	-	-	-	-
Applications	-	-	-	-
Base Product Number	-	DAC34H84	MAX500	ADS62P42
Ingress Protection	-	-	-	-
Mounting Feature	-	-	-	-
Series	-	-	-	-
Number of Positions	-	-	-	-
Orientation	-	-	-	-

JMXHH1G03MCUDSG Datasheet PDF

Download JMXHH1G03MCUDSG pdf datasheets and Souriau-Sunbank by Eaton documentation for JMXHH1G03MCUDSG - Souriau-Sunbank by Eaton.

Datasheets: JMXHH1GxxFSxDSx Drawing.pdf
