Manufacturer Part Number

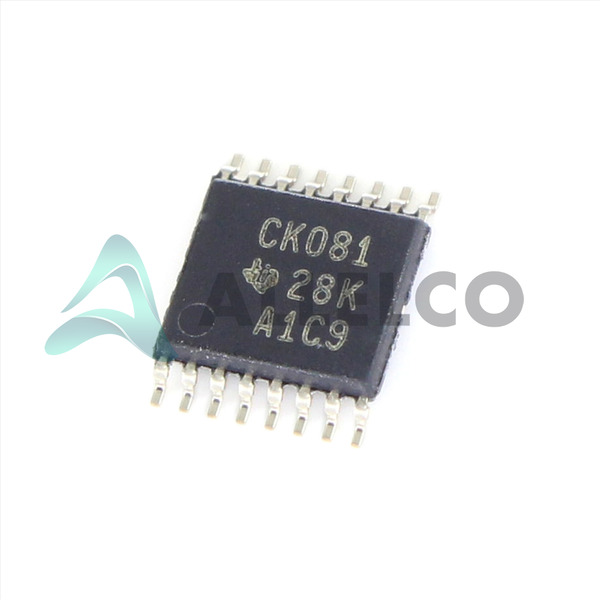

CDCVF25081PWR
Manufacturer
Texas Instruments
Introduction
CDCVF25081PWR is a PLL Clock Driver designed for high-speed, low-skew clock distribution in digital systems.
Product Features and Performance
PLL Clock Driver with Bypass
LVTTL Input and Output Interface
Single Circuit Design
2:8 Input to Output Ratio
Supports Maximum Frequency up to 200MHz
Operates on 3V to 3.6V Supply Voltage
Suitable for Operating Temperatures ranging from -40°C to 85°C
Surface Mount 16-TSSOP Packaging
Product Advantages
Provides low-skew clock distribution
Enhances system performance with integrated PLL
Flexible usage with bypass capability
Supports multiple outputs from a single input
Key Technical Parameters
Frequency Range up to 200MHz
Voltage Supply between 3V and 3.6V
Input:Output Ratio of 2:8
No Differential Input to Output
Surface Mount 16-TSSOP Package
Quality and Safety Features
Operational in -40°C to 85°C temperature range
Designed for robust performance in varying conditions
Compatibility
Compatible with LVTTL signal levels
Surface Mount compatible with existing PCB layouts
Application Areas
Digital Electronics
Telecommunications
Computing Systems
Industrial Controls
Product Lifecycle
Active Product
Not currently listed as nearing discontinuation
Potential for future upgrades or replacements
Several Key Reasons to Choose This Product
Highly reliable manufacturer Texas Instruments
Optimizes system performance with integrated PLL and output distribution
Flexible design with bypass feature for PLL
Suitable for demanding operational temperature ranges
Provides precise clock distribution necessary for high-speed digital systems
Comes in industry-standard packaging for ease of design integration
Consistent supply and support from Texas Instruments
