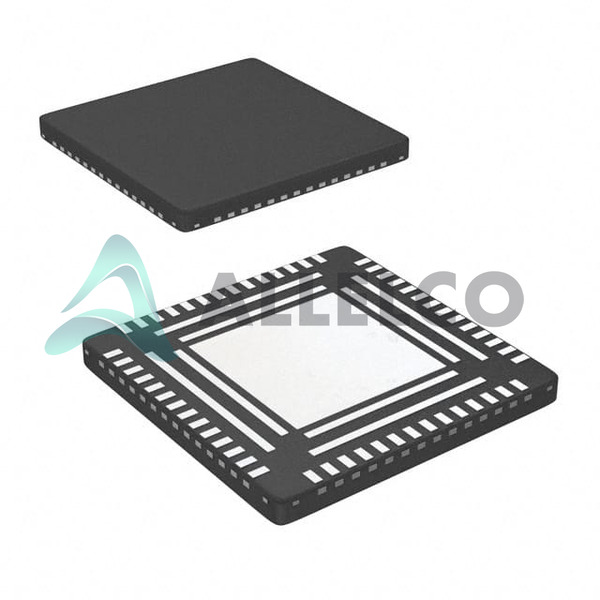

Image may be representation.
See specifications for product details.

~~Favorite~~

EXPRESS OPTION

Payment method

DP83847ALQA56A - Texas Instruments

Name: Texas Instruments DP83847ALQA56A
Brand: Texas Instruments
SKU: DP83847ALQA56A
Availability: InStock
Rating: 5 (10 reviews)

Manufacturer Part Number: DP83847ALQA56A

Manufacturer: Texas Instruments

Allelco Part Number: 32D-DP83847ALQA56A

Warranty: 1 Year Allelco Warranty - Find out more

Parts Description: IC TRANSCEIVER 1/1 56WQFN

Package: 56-WQFN (9x9)

Data sheet: -

~~Compare~~

Our certification

In stock: 16760

EXPRESS OPTION

Payment method

Our certification

Specifications

DP83847ALQA56A Tech Specifications
Texas Instruments - DP83847ALQA56A technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - DP83847ALQA56A

Product Attribute	Attribute Value
Manufacturer	Texas Instruments
Voltage - Supply	3V ~ 3.6V
Type	Transceiver
Supplier Device Package	56-WQFN (9x9)
Series	-
Protocol	Ethernet
Package / Case	56-WFQFN Exposed Pad

Product Attribute	Attribute Value
Package	Tray
Operating Temperature	0°C ~ 70°C
Number of Drivers/Receivers	1/1
Mounting Type	Surface Mount
Duplex	-
Data Rate	-
Base Product Number	DP8384

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	RoHS non-compliant
Moisture Sensitivity Level (MSL)	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	5A991B1
HTSUS	8542.39.0001

Parts Introduction

Manufacturer Part Number

DP83847ALQA56A

Manufacturer

Texas Instruments

Introduction

The DP83847ALQA56A is an Ethernet transceiver designed for network connectivity and data transmission applications.

Product Features and Performance

Single-port Ethernet transceiver

Supports 10BASE-T and 100BASE-TX networks

Integrated PHY for both half and full-duplex operation

Auto-negotiation for speed and duplex

Auto-MDIX for automatic cable detection

Energy-efficient operation

ASIC designed PHY core

Product Advantages

Optimized for low-power consumption

Robust signal integrity

Advanced power management features

Easy to implement in a wide range of applications

Key Technical Parameters

Interface Type: Ethernet

Number of Drivers/Receivers: 1/1

Voltage - Supply: 3V to 3.6V

Operating Temperature Range: 0°C to 70°C

Physical Interface: 56-WFQFN Exposed Pad

Quality and Safety Features

Built following stringent industry standards

Reliable performance in specified temperature ranges

Compatibility

Designed to be compatible with various microcontrollers and network processors

Application Areas

Embedded systems

Industrial automation

Networking equipment

Consumer electronics

Product Lifecycle

Obsolete status

Potential for limited availability

No direct replacements or upgrades specified

Several Key Reasons to Choose This Product

Highly integrated single-chip solution

Texas Instruments' renowned quality and support

Proven performance in commercial product deployments

Ease of design and integration into existing systems

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments DP83847ALQA56A

Product Attribute
Part Number	DP83847ALQA56A/J7002155	DP83847ALQA56AX	DP83846AVHG/NOPB	DP83846AVHG
Manufacturer	Texas Instruments	Texas Instruments	Texas Instruments	Texas Instruments
Base Product Number	-	DAC34H84	MAX500	ADS62P42
Data Rate	-	-	-	-
Duplex	-	-	-	-
Type	-	-	-	-
Supplier Device Package	-	196-NFBGA (12x12)	16-PDIP	64-VQFN (9x9)
Mounting Type	-	Surface Mount	Through Hole	Surface Mount
Protocol	-	-	-	-
Series	-	-	-	-
Voltage - Supply	-	-	-	-
Package / Case	-	196-LFBGA	16-DIP (0.300', 7.62mm)	64-VFQFN Exposed Pad
Operating Temperature	-	-40°C ~ 85°C	0°C ~ 70°C	-40°C ~ 85°C
Number of Drivers/Receivers	-	-	-	-
Package	-	Tape & Reel (TR)	Tube	Tape & Reel (TR)
