HomeProductsIntegrated Circuits (ICs)PMIC - LED DriversLP8864QDCPRQ1

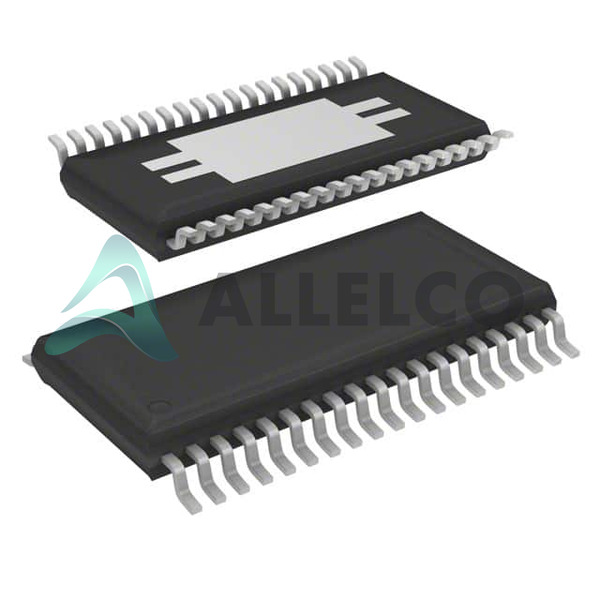

LP8864QDCPRQ1 Image
LP8864QDCPRQ1 Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

LP8864QDCPRQ1 - Texas Instruments

Manufacturer Part Number
LP8864QDCPRQ1
Manufacturer
Texas Instruments
Allelco Part Number
32D-LP8864QDCPRQ1
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
IC LED DRVR CTRLR PWM 38HTSSOP
Package
38-HTSSOP
Data sheet
1.LP8864QDCPRQ1.pdf ...

Datasheets

LP8864-Q1.pdf

PCN Design/Specification

Design 22/Feb/2022.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 17845
  • Unit Price: $2.644
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $2.644 $2.64
10+ $2.582 $25.82
30+ $2.542 $76.26
100+ $2.50 $250.00
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

LP8864QDCPRQ1 Tech Specifications
Texas Instruments - LP8864QDCPRQ1 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - LP8864QDCPRQ1

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply (Min) 3V
Voltage - Supply (Max) 48V
Voltage - Output 0V ~ 48V
Type DC DC Controller
Topology SEPIC, Step-Up (Boost)
Supplier Device Package 38-HTSSOP
Series Automotive, AEC-Q100
Package / Case 38-PowerTFSOP (0.173", 4.40mm Width)
Package Tape & Reel (TR)
Product Attribute Attribute Value
Operating Temperature -40°C ~ 125°C (TA)
Number of Outputs 4
Mounting Type Surface Mount
Internal Switch(s) Yes
Frequency 100kHz ~ 2.2MHz
Dimming PWM
Current - Output / Channel 200mA
Base Product Number LP8864
Applications Automotive, Backlight

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

LP8864QDCPRQ1

Manufacturer

Texas Instruments

Introduction

The LP8864QDCPRQ1 is an efficient, automotive-grade power management integrated circuit (PMIC) designed specifically for LED driving applications.

Product Features and Performance

Integrated DC DC controller for SEPIC and boost topologies

Four output channels for multiple LED string driving

Internal switches for cost and space efficiency

Wide input voltage range from 3V to 48V

Adjustable output voltage range from 0V to 48V

Max current output of 200mA per channel

Variable frequency operation from 100kHz to 2.2MHz

PWM dimming support for brightness control

Product Advantages

High integration reduces external component count

Flexible power topology design

Supports a broad range of input and output voltages

Precise brightness control through dimming

Automotive-grade reliability and performance

Key Technical Parameters

Voltage Supply (Min): 3V

Voltage Supply (Max): 48V

Voltage Output: 0V ~ 48V

Current Output / Channel: 200mA

Frequency: 100kHz ~ 2.2MHz

Operating Temperature: -40°C ~ 125°C (TA)

Package / Case: 38-PowerTFSOP

Quality and Safety Features

AEC-Q100 qualified for automotive applications

Operational over a wide temperature range

Compatibility

Compatible with a variety of automotive lighting systems

Can be used for backlight applications

Application Areas

Automotive lighting

LED backlighting systems

Product Lifecycle

Product status: Active

Not nearing discontinuation

Continuous manufacturer support for replacements and upgrades

Several Key Reasons to Choose This Product

High level of integration for space and cost savings

Flexibility to support various LED driving applications

Robust design for harsh automotive environments

Compliance with industry quality standards (AEC-Q100)

Supports advanced dimming features for precise light control

Wide range of supported input and output voltages for flexibility in design

Developed by Texas Instruments, a trusted industry leader in semiconductor solutions

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments LP8864QDCPRQ1

Product Attribute LP8864SQDCPRQ1 LP8866SQDCPRQ1 LP8866QDCPRQ1 LP8863BDCPRQ1
