Manufacturer Part Number

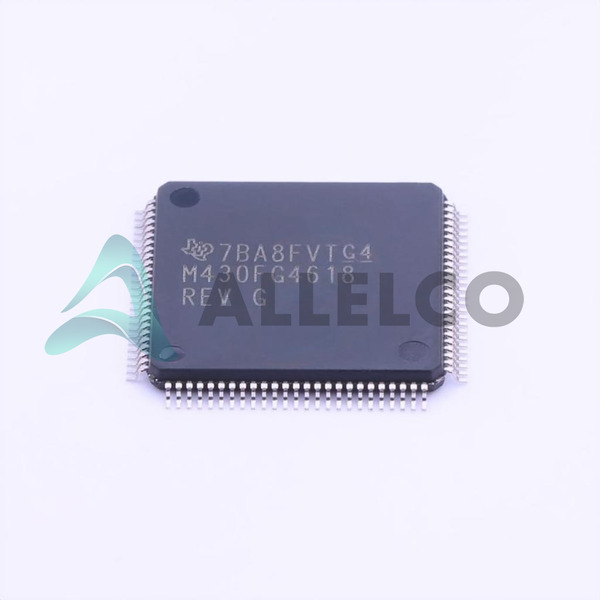

MSP430FG4618IPZ
Manufacturer
Texas Instruments
Introduction
High-performance mixed-signal microcontroller with low-power operation suited for various embedded applications
Product Features and Performance
Advanced 16-bit MSP430 CPUX core
Integrated digital and analog peripherals
Versatile connectivity options including I2C, IrDA, LIN, SCI, SPI, UART/USART
Comprehensive power management features
Extended temperature range operation for harsh environments
Large set of programmable input/output pins
Product Advantages
Energy-efficient design for battery-operated devices
Capable of complex signal processing and control tasks
Extensive interrupt system for real-time applications
Robust I/O capabilities enabling flexible interface options
Strong development support from Texas Instruments
Key Technical Parameters
Core Processor: MSP430 CPUX
Core Size: 16-Bit
Speed: 8MHz
Connectivity: I2C, IrDA, LIN, SCI, SPI, UART/USART
Peripherals: Brown-out Reset, DMA, LCD, POR, PWM, WDT
Number of I/O: 80
Program Memory Size: 116KB + 256B
Program Memory Type: FLASH
RAM Size: 8KB
Voltage Supply: 1.8V to 3.6V
Data Converters: A/D 12x12b, D/A 2x12b
Operating Temperature: -40°C to 85°C
Quality and Safety Features
Brown-out Detect/Reset for reliable operation under varying power conditions
Watchdog Timer (WDT) for system stability
Power-on Reset (POR) ensures proper startup
Compatibility
Fully compatible with the MSP430 microcontroller family toolchain
Easy to integrate with existing MSP430-based systems due to common core architecture
Application Areas
Industrial automation
Sensor systems
Consumer electronics
Instrumentation
Portable medical devices
Product Lifecycle
Active product with ongoing support and availability
No known discontinuation schedule, with potential for future upgrades and replacements
Several Key Reasons to Choose This Product
Proven track record of Texas Instruments quality and support
High integration reduces system complexity and BOM cost
Extensive documentation and development resources available
Ideal for low-power and high-reliability requirements
Scalable and future-proof platform with broad industry adoption
