HomeProductsIntegrated Circuits (ICs)Embedded - MicroprocessorsOMAP5910JGZG2

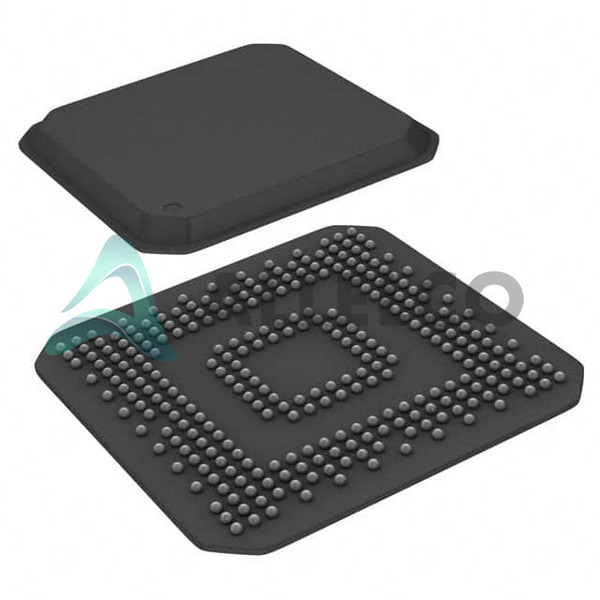

OMAP5910JGZG2 Image
OMAP5910JGZG2 Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

OMAP5910JGZG2 - Texas Instruments

Manufacturer Part Number
OMAP5910JGZG2
Manufacturer
Texas Instruments
Allelco Part Number
32D-OMAP5910JGZG2
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
IC MPU OMAP-59XX 150MHZ 289BGA
Package
289-BGA MICROSTAR (12x12)
Data sheet
1.OMAP5910JGZG2.pdf ...

PCN Packaging

2.73KHz.pdf

PCN Design/Specification

Wire Bond Conversion 25/Mar/2013.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 6930

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity
EXPRESS OPTION
Payment method
Our certification

Specifications

OMAP5910JGZG2 Tech Specifications
Texas Instruments - OMAP5910JGZG2 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - OMAP5910JGZG2

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - I/O 1.8V, 2.75V, 3.3V
USB USB 2.0 (2)
Supplier Device Package 289-BGA MICROSTAR (12x12)
Speed 150MHz
Series OMAP-59xx
Security Features -
SATA -
RAM Controllers SDRAM
Package / Case 289-TFBGA
Package Tube
Product Attribute Attribute Value
Operating Temperature -40°C ~ 85°C (TC)
Number of Cores/Bus Width 1 Core, 32-Bit
Mounting Type Surface Mount
Graphics Acceleration No
Ethernet -
Display & Interface Controllers Keypad, LCD
Core Processor ARM9TDMI
Co-Processors/DSP Signal Processing; C55x, System Control; CP15
Base Product Number OMAP5
Additional Interfaces 1-Wire/HDQ, AC97, I²C, I²S, IrDA, McBSP, MCSI, MICROWIRE, MMC/SD, SPI, UART

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 4 (72 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001

Parts Introduction

Manufacturer Part Number

OMAP5910JGZG2

Manufacturer

Texas Instruments

Introduction

The OMAP5910JGZG2 is part of the OMAP-59xx series, designed for advanced embedded processing in multimedia and industrial applications.

Product Features and Performance

Core Processor: ARM9TDMI

Number of Cores/Bus Width: 1 Core, 32-Bit

Speed: 150MHz

Co-Processors/DSP: Signal Processing, C55x, System Control, CP15

RAM Controllers: Supports SDRAM

No Graphics Acceleration

Display & Interface Controllers: Keypad, LCD

USB 2.0 Support with 2 Ports

Voltage I/O: Versatile options with 1.8V, 2.75V, 3.3V

Operating Temperature Range: -40°C to 85°C

Mounting Type: Surface Mount

Package / Case: 289-TFBGA

Supplier Device Package: 289-BGA MICROSTAR (12x12)

Additional Interfaces: 1-Wire/HDQ, AC97, I2C, I2S, IrDA, McBSP, MCSI, MICROWIRE, MMC/SD, SPI, UART

Product Advantages

Integrated signal processing and system control for efficient multimedia handling

Wide range of interfaces for extensive peripheral connectivity

Support for various I/O voltage standards enhances compatibility

Key Technical Parameters

Processor Speed: 150MHz

Core: ARM9TDMI, 32-Bit

SDRAM Support

USB 2.0 (2 ports)

Operating Temperature: -40°C ~ 85°C

289-Pin TFBGA Package

Quality and Safety Features

Stringently tested for temperature durability and reliability

Compatibility

Offers a variety of interfaces for connectivity with multiple peripherals

Voltage I/O compatibility with several standards

Application Areas

Multimedia devices

Industrial control

Embedded systems

Portable equipment

Product Lifecycle

Status: Obsolete

Availability: May not be available directly; check for replacements or upgrades

Several Key Reasons to Choose This Product

High integration reduces the need for additional components

Broad connectivity with multiple interfaces

Suitable for applications requiring precise temperature control

Product from a reputable manufacturer with support for legacy devices

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments OMAP5910JGZG2

Product Attribute OMAP5910JZZG2 OMAP5910JGVL2 OMAP5910JZVL2 OMAP5910JZDY2
Part Number OMAP5910JZZG2 OMAP5910JGVL2 OMAP5910JZVL2 OMAP5910JZDY2
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Security Features - - - -
Supplier Device Package - 196-NFBGA (12x12) 16-PDIP 64-VQFN (9x9)
Voltage - I/O - - - -
Number of Cores/Bus Width - - - -
Mounting Type - Surface Mount Through Hole Surface Mount
Series - - - -
Package / Case - 196-LFBGA 16-DIP (0.300', 7.62mm) 64-VFQFN Exposed Pad
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Co-Processors/DSP - - - -
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
USB - - - -
Base Product Number - DAC34H84 MAX500 ADS62P42
Display & Interface Controllers - - - -
Ethernet - - - -
Additional Interfaces - - - -
Graphics Acceleration - - - -
RAM Controllers - - - -
Core Processor - - - -
Speed - - - -
SATA - - - -

OMAP5910JGZG2 Datasheet PDF

Download OMAP5910JGZG2 pdf datasheets and Texas Instruments documentation for OMAP5910JGZG2 - Texas Instruments.

PCN Packaging
2.73KHz.pdf
PCN Design/Specification
Wire Bond Conversion 25/Mar/2013.pdf
