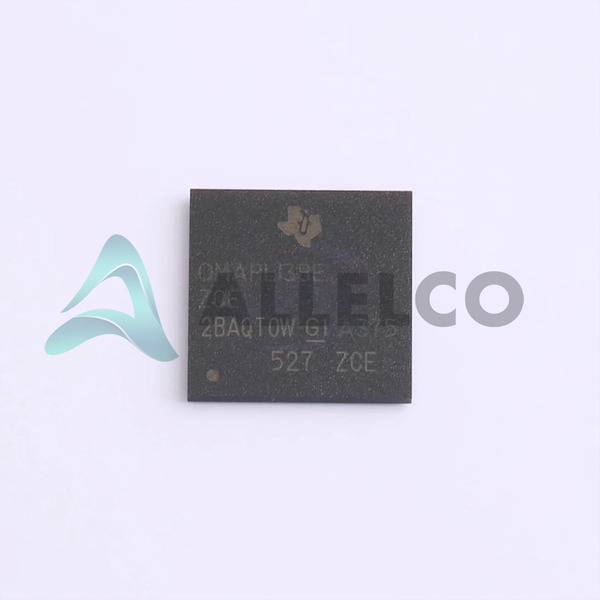

OMAPL138EZCEA3 Image
OMAPL138EZCEA3 Image - 1OMAPL138EZCEA3 Image - 2
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

OMAPL138EZCEA3 - Texas Instruments

Manufacturer Part Number
OMAPL138EZCEA3
Manufacturer
Texas Instruments
Allelco Part Number
32D-OMAPL138EZCEA3
Warranty
1 Year Allelco Warranty - Find out more
Stock Status:
9,499 pcs available, New & Original
Parts Description
IC MPU OMAP-L1X 300MHZ 361NFBGA
Package
361-NFBGA (13x13)
Data sheet
OMAPL138EZCEA3.pdf

HTML Datasheet

OMAP-L138 Datasheet.pdf

PCN Assembly/Origin

2.73KHz.pdf

PCN Design/Specification

Cylindrical Battery Holders.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 9499
  • Unit Price: $21.51
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $21.51 $21.51
30+ $20.53 $615.90
The above prices does not include taxes and freight rates, which will be calculated on the order pages.

Specifications

OMAPL138EZCEA3 Tech Specifications
Texas Instruments - OMAPL138EZCEA3 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - OMAPL138EZCEA3

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - I/O 1.8V, 3.3V
USB USB 1.1 + PHY (1), USB 2.0 + PHY (1)
Supplier Device Package 361-NFBGA (13x13)
Speed 375MHz
Series OMAP-L1x
Security Features Boot Security, Cryptography
SATA SATA 3Gbps (1)
RAM Controllers SDRAM
Package / Case 361-LFBGA
Package Tray
Product Attribute Attribute Value
Operating Temperature -40°C ~ 105°C (TJ)
Number of Cores/Bus Width 1 Core, 32-Bit
Mounting Type Surface Mount
Graphics Acceleration No
Ethernet 10/100Mbps (1)
Display & Interface Controllers LCD
Core Processor ARM926EJ-S
Co-Processors/DSP Signal Processing; C674x, System Control; CP15
Base Product Number OMAPL138
Additional Interfaces HPI, I²C, McASP, McBSP, MMC/SD, SPI, UART

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001

Parts Introduction

OMAPL138EZCEA3 Image
OMAPL138EZCEA3 (1)

Manufacturer Part Number

OMAPL138EZCEA3

Manufacturer

Texas Instruments

Introduction

The OMAPL138EZCEA3 is an embedded microprocessor from Texas Instruments, designed for applications requiring a high-performance ARM and DSP core with low power consumption.

Product Features and Performance

ARM926EJ-S Core Processor

32-Bit Single Core

375MHz Operating Speed

DSP C674x for Signal Processing

System Control CP15

SDRAM Memory Support

Integrated LCD Controller

10/100Mbps Ethernet

SATA 3Gbps Interface

USB Support Including USB 1.1 and USB 2.0

Multiple I/O Voltages (1.8V, 3.3V)

Surface Mount 361-LFBGA Package

Product Advantages

Optimized for high-speed signal processing

Efficient power consumption suitable for embedded applications

Scalable with OMAP-L1x series

Support for a wide range of interfaces and peripherals

OMAPL138EZCEA3 Image
OMAPL138EZCEA3 (2)

Key Technical Parameters

Core: ARM926EJ-S

Number of Cores/Bus Width: 1 Core, 32-Bit

Speed: 375MHz

RAM Controller: SDRAM

Ethernet: 10/100Mbps

SATA: 3Gbps

USB: 1.1 & 2.0

Operating Temperature: -40°C to 105°C

Quality and Safety Features

Reliable operating temperature range from -40°C to 105°C

Boot Security and Cryptography for enhanced security

Compatibility

Compatible with various industrial and communication interface standards

Application Areas

Industrial automation

Medical devices

Communication infrastructure

Digital audio and multimedia applications

Product Lifecycle

Currently Active

Regular updates and support from Texas Instruments

Key Reasons to Choose This Product

High integration helps reduce system cost and complexity

Texas Instruments' reputation for reliability and longevity in the embedded space

Active product lifecycle status ensures long-term availability and support

Frequently Asked Questions(FAQ)
