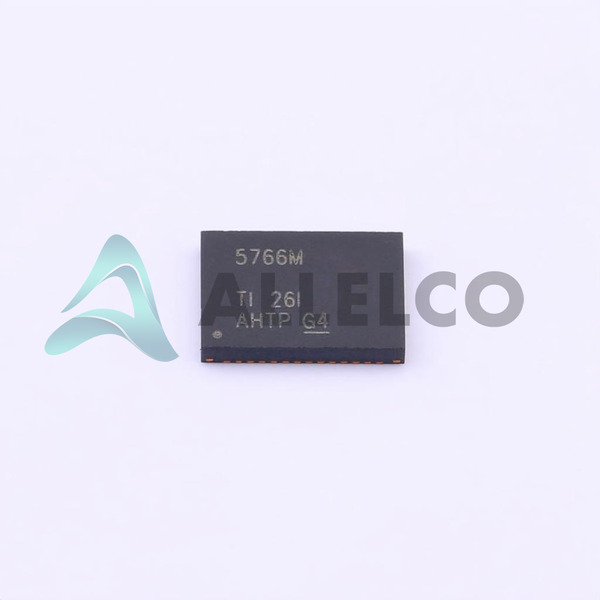

TAS5766MRMTR Image
TAS5766MRMTR Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

TAS5766MRMTR - Texas Instruments

Manufacturer Part Number
TAS5766MRMTR
Manufacturer
Texas Instruments
Allelco Part Number
32D-TAS5766MRMTR
Warranty
1 Year Allelco Warranty - Find out more
Stock Status:
11,683 pcs available, New & Original
Parts Description
IC AMP CLASS D STEREO 48VQFN
Package
48-VQFN (7x5)
Data sheet
TAS5766MRMTR.pdf

PCN Design/Specification

TAS5766M/68M DS Update 17/Oct/2018.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 11683
  • Unit Price: $3.402
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $3.402 $3.40
10+ $3.315 $33.15
30+ $3.256 $97.68
100+ $3.198 $319.80
The above prices does not include taxes and freight rates, which will be calculated on the order pages.

Specifications

TAS5766MRMTR Tech Specifications
Texas Instruments - TAS5766MRMTR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TAS5766MRMTR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply 3V ~ 3.6V
Type Class D
Supplier Device Package 48-VQFN (7x5)
Series PurePath™
Package / Case 48-VFQFN Exposed Pad
Package Tape & Reel (TR)
Product Attribute Attribute Value
Output Type 2-Channel (Stereo)
Operating Temperature -25°C ~ 85°C (TA)
Mounting Type Surface Mount
Max Output Power x Channels @ Load -
Features Depop, Short-Circuit Protection
Base Product Number TAS5766

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99

Parts Introduction

TAS5766MRMTR Image
TAS5766MRMTR (1)

Manufacturer Part Number

TAS5766MRMTR

Manufacturer

Texas Instruments

Introduction

The TAS5766MRMTR is a high-performance, two-channel (stereo) Class D audio amplifier integrated circuit (IC) designed for a wide range of audio applications.

Product Features and Performance

High-efficiency Class D operation

Low quiescent current

Short-circuit protection

Depop feature for smooth power-up and power-down

Wide supply voltage range of 3V to 3.6V

Operating temperature range of -25°C to 85°C

Product Advantages

Efficient and power-saving Class D design

Robust protection features for reliable operation

Versatile voltage and temperature operating ranges

Compact 48-VQFN package for space-constrained applications

Key Technical Parameters

2-channel (stereo) operation

Surface mount package (48-VQFN)

Output type: Class D

Supply voltage range: 3V to 3.6V

Quality and Safety Features

RoHS3 compliant

Short-circuit protection

Depop feature for smooth power transitions

Compatibility

The TAS5766MRMTR is compatible with a wide range of audio applications, including portable devices, home audio systems, and automotive infotainment systems.

Application Areas

Portable audio devices (e.g., smartphones, tablets, and MP3 players)

Home audio systems (e.g., soundbars, speakers, and receivers)

Automotive infotainment systems

Other audio applications requiring efficient, high-performance Class D amplification

Product Lifecycle

The TAS5766MRMTR is an active and available product from Texas Instruments. There are no plans for discontinuation, and replacement or upgrade options are available if needed.

Several Key Reasons to Choose This Product

High-efficiency Class D operation for power-saving performance

Robust protection features, including short-circuit protection and depop, for reliable operation

Wide supply voltage and temperature ranges, enabling use in a variety of applications

Compact 48-VQFN package for space-constrained designs

Compatibility with a wide range of audio applications, providing design flexibility

Continuous product availability and support from a trusted manufacturer, Texas Instruments

Frequently Asked Questions(FAQ)

How does the TAS5766MRMTR handle power supply variations in a battery-powered audio application, and what impact does this have on output stability?
The TAS5766MRMTR operates across a narrow voltage range of 3.0V to 3.6V, which aligns closely with typical single-cell lithium-ion battery voltages during discharge. This design minimizes the need for complex DC-DC conversion in portable systems, but also means that as the battery depletes toward the lower end of the range, headroom for peak signal output decreases. Engineers should account for this by evaluating maximum output swing under minimum supply conditions—typically resulting in ~8–10% reduction in dynamic range compared to nominal supply levels.
What are the thermal implications of using the TAS5766MRMTR in a compact enclosure without forced airflow, especially when driving high-impedance loads?
Although the TAS5766MRMTR is highly efficient due to its Class D architecture, it still dissipates significant heat under continuous full-power operation. With a 48-VQFN package (7x5 mm), the exposed pad provides good thermal coupling to the PCB, but junction temperatures can rise rapidly—especially when driving low-impedance loads at high volumes. In sealed enclosures, passive cooling becomes critical; empirical testing shows sustained output above 5W per channel may require thermal vias or copper pours exceeding 200 mils² under the package to keep die temperature below 85°C.
Can the TAS5766MRMTR be safely used in automotive environments, and how does its protection circuitry mitigate fault conditions?
While not explicitly AEC-Q100 qualified, the TAS5766MRMTR incorporates robust internal protections such as short-circuit detection, overcurrent limiting, and depop circuits that reduce turn-on/turn-off transients. These features help protect downstream speakers from damage during miswiring or overload events. However, system-level validation against ISO 16750-3 transient requirements is recommended before deployment in automotive audio subsystems, particularly where load dumps or hot-plug scenarios are possible.
How does the TAS5766MRMTR compare to other Class D amplifiers like the LM4604 or TPA3122D2 in terms of efficiency and THD+N performance at 1 kHz?
At 1 kHz and 3.3V supply with a 4Ω load, the TAS5766MRMTR achieves approximately 92% efficiency and THD+N of 0.02%, which is competitive with leading devices in its class. Compared to the TPA3122D2, which offers higher output power but lower PSRR, the TAS5766MRMTR excels in noise immunity due to integrated digital input stages and better supply rejection. Against the LM4604 (a switching regulator, not an amp), direct comparison is invalid, but when matched by output power and supply voltage, the TAS5766MRMTR provides superior audio fidelity with minimal external components.
What layout considerations are essential for minimizing EMI when implementing the TAS5766MRMTR near sensitive RF modules?
Due to its high switching frequency (typically >300 kHz), the TAS5766MRMTR generates conducted and radiated emissions that can interfere with nearby wireless receivers. Critical layout practices include placing the power inductor and output filter capacitors within 10 mm of the IC pins, using star grounding for analog and power sections, and routing MOSFET drive traces perpendicular to antenna lines. Additionally, a common-mode choke on the speaker outputs and ferrite beads on the VDD line further suppress differential-mode emissions, ensuring compliance with CISPR 25 Class 5 limits.
Is it possible to cascade multiple TAS5766MRMTR units for multi-zone audio distribution without introducing phase distortion or timing skew?
Cascading two TAS5766MRMTRs is feasible for stereo-to-multi-room setups, but synchronization must be managed externally via I²S clock sharing. Without careful clock alignment, inter-channel delay differences can exceed 1 µs, leading to audible comb filtering in overlapping zones. Using a master clock generator feeding both devices ensures sample-rate coherence. That said, daisy-chaining more than two units increases cumulative latency and complicates debug access, so distributed amplifier topologies with separate regulators are often preferred in commercial installations.
How does the TAS5766MRMTR’s depop feature function during power-up and shutdown sequences, and why is it important?
The depop circuit gradually ramps up the output stage voltage during startup to avoid loud popping sounds caused by capacitor charging or relay closures. Similarly, during shutdown it slowly discharges the output nodes to prevent transient spikes into connected speakers. This is implemented through soft-start control of internal charge pumps and gate drivers. Omitting proper decoupling capacitors or bypassing this feature risks damaging tweeters or midrange drivers, particularly in consumer electronics where abrupt transitions degrade user experience.
What role does the base product number TAS5766 play in selecting compatible evaluation boards or reference designs?
All variants of the TAS5766 family—including the TAS5766MRMTR—share identical pinout, register map, and functional block diagram. Texas Instruments provides reference designs such as the TAS5766EVM based on the TAS5766M variant, which can be adapted for the MRMTR by adjusting component values for 3.3V operation instead of 5V. Engineers frequently use these EVMs to prototype configurations before committing to custom PCBs, leveraging validated schematics for layout and firmware development.
