HomeProductsIntegrated Circuits (ICs)Data Acquisition - Analog to Digital Converters (ADC)TLC2543CDW

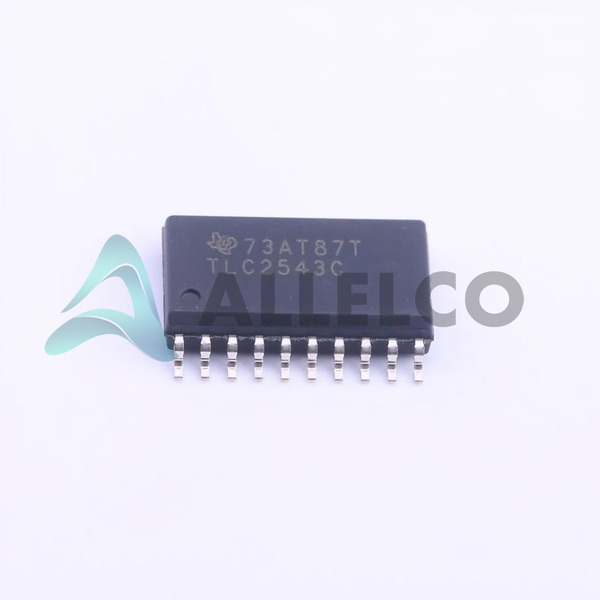

TLC2543CDW Image
TLC2543CDW Image - 1TLC2543CDW Image - 2
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

TLC2543CDW - Texas Instruments

Manufacturer Part Number
TLC2543CDW
Manufacturer
Texas Instruments
Allelco Part Number
32D-TLC2543CDW
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
IC ADC 12BIT SAR 20SOIC
Package
20-SOIC
Data sheet
1.TLC2543CDW.pdf ...

PCN Design/Specification

Cylindrical Battery Holders.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 3472

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity
EXPRESS OPTION
Payment method
Our certification

Specifications

TLC2543CDW Tech Specifications
Texas Instruments - TLC2543CDW technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TLC2543CDW

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Supply, Digital 5V
Voltage - Supply, Analog 5V
Supplier Device Package 20-SOIC
Series -
Sampling Rate (Per Second) 66k
Reference Type External
Ratio - S/H:ADC 1:1
Package / Case 20-SOIC (0.295', 7.50mm Width)
Package Tube
Operating Temperature 0°C ~ 70°C
Product Attribute Attribute Value
Number of Inputs 11
Number of Bits 12
Number of A/D Converters 1
Mounting Type Surface Mount
Input Type Single Ended
Features -
Data Interface SPI
Configuration MUX-S/H-ADC
Base Product Number TLC2543
Architecture SAR

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

TLC2543CDW

Manufacturer

Texas Instruments

Introduction

TLC2543CDW is a precision analog-to-digital converter with 12-bit resolution.

Product Features and Performance

12-bit resolution

Sampling rate up to 66k samples per second

11 single-ended input channels

SPI data interface

Multiplexed sample-and-hold for analog inputs

Successive approximation register (SAR) architecture

External voltage reference

Product Advantages

High-resolution ADC for accurate data acquisition

Multiple input channels allow for various signal measurements

SPI interface for easy integration with microcontrollers and digital systems

Key Technical Parameters

Number of Bits: 12

Sampling Rate: 66k SPS

Number of Inputs: 11

Input Type: Single Ended

Data Interface: SPI

Configuration: MUX-S/H-ADC

Ratio - S/H:ADC: 1:1

Number of A/D Converters: 1

Architecture: SAR

Reference Type: External

Voltage - Supply, Analog: 5V

Voltage - Supply, Digital: 5V

Operating Temperature Range: 0°C to 70°C

Quality and Safety Features

Precision design adhering to Texas Instruments' quality standards

Compatibility

Compatible with devices that support the SPI communication protocol

Mounting Type: Surface Mount

Application Areas

Data acquisition systems

Automation and control systems

Instrumentation and measurement equipment

Industrial electronics

Medical equipment

Product Lifecycle

Status: Last Time Buy

Replacements or upgrades may be available (check manufacturer's resources)

Several Key Reasons to Choose This Product

High accuracy with 12-bit resolution for detailed data capture

Robust sampling rate accommodating fast signals

Supports a wide range of analog inputs with 11 channels

Industry-standard SPI interface for widespread compatibility

Designed for reliability and performance by Texas Instruments

Suitable for various applications across multiple industries

Availability of detailed documentation and support from Texas Instruments

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TLC2543CDW

Product Attribute TLC2543CDWRG4 TLC2543CDWG4 TLC2543CDWR TLC2543CDBR
Part Number TLC2543CDWRG4 TLC2543CDWG4 TLC2543CDWR TLC2543CDBR
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Number of Inputs - - - 2
Configuration - - - S/H-ADC
Package / Case - 196-LFBGA 16-DIP (0.300', 7.62mm) 64-VFQFN Exposed Pad
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Mounting Type - Surface Mount Through Hole Surface Mount
Sampling Rate (Per Second) - - - 65M
Data Interface - LVDS - Parallel I²C LVDS - Parallel, Parallel
Base Product Number - DAC34H84 MAX500 ADS62P42
Number of Bits - 16 8 14
Supplier Device Package - 196-NFBGA (12x12) 16-PDIP 64-VQFN (9x9)
Features - - - Simultaneous Sampling
Voltage - Supply, Analog - 3.14V ~ 3.46V 11.4V ~ 16.5V 3V ~ 3.6V
Voltage - Supply, Digital - 1.14V ~ 1.26V 11.4V ~ 16.5V 1.65V ~ 3.6V
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Ratio - S/H:ADC - - - 1:1
Architecture - Current Source R-2R Pipelined
Input Type - - - Differential
Series - - - -
Reference Type - External, Internal External External, Internal
Number of A/D Converters - - - 2

TLC2543CDW Datasheet PDF

Download TLC2543CDW pdf datasheets and Texas Instruments documentation for TLC2543CDW - Texas Instruments.

PCN Design/Specification
Cylindrical Battery Holders.pdf
