Manufacturer Part Number
TMS320DM641GNZ500
Manufacturer
Texas Instruments
Introduction

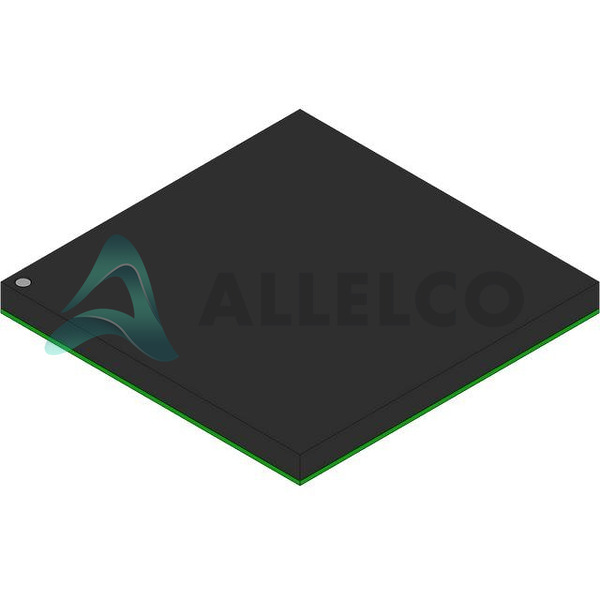

The TMS320DM641GNZ500 is a fixed-point digital signal processor from Texas Instruments' TMS320DM64x, DaVinci™ series, designed for advanced digital video and image processing applications. It is packaged in a 548-FCBGA (27x27) form factor for surface mounting.
Product Features and Performance
Fixed point DSP
Clock rate of 500MHz for high-speed processing
Host Interface, I2C, McASP, McBSP interfaces available
Advanced video and image processing capabilities
Incorporates 160kB of on-chip RAM for efficient data handling
Product Advantages
Fast processing power suitable for demanding applications
Multiple interfaces for easy integration with other devices
High on-chip RAM simplifies system design
Surface mount technology facilitates compact and flexible designs
Key Technical Parameters
Type: Fixed Point
Interface: Host Interface, I2C, McASP, McBSP
Clock Rate: 500 MHz
Non-Volatile Memory: External
On-Chip RAM: 160 kB
Voltage I/O: 3.30V
Voltage Core: 1.40V
Operating Temperature: 0°C ~ 90°C (TC)
Mounting Type: Surface Mount
Package / Case: 548-BBGA, FCBGA
Quality and Safety Features
Operates within industrial temperature ranges from 0°C to 90°C ensuring reliability under varying environmental conditions
Compatibility
Compatible with a variety of external non-volatile memory options for flexible storage solutions
Application Areas
Digital video processing
Image signal processing
Multimedia applications
Industrial control systems
Product Lifecycle
Status: Active
Continues to be supported, with no current plans for discontinuation
Availability of replacements or upgrades not specified
Several Key Reasons to Choose This Product
High-speed 500MHz clock rate facilitates rapid processing and quick response times
Supports multiple interfaces ensuring easy integration with various systems and peripherals
Suitable for robust multimedia processing tasks
Active product lifecycle with ongoing support from Texas Instruments
