Manufacturer Part Number

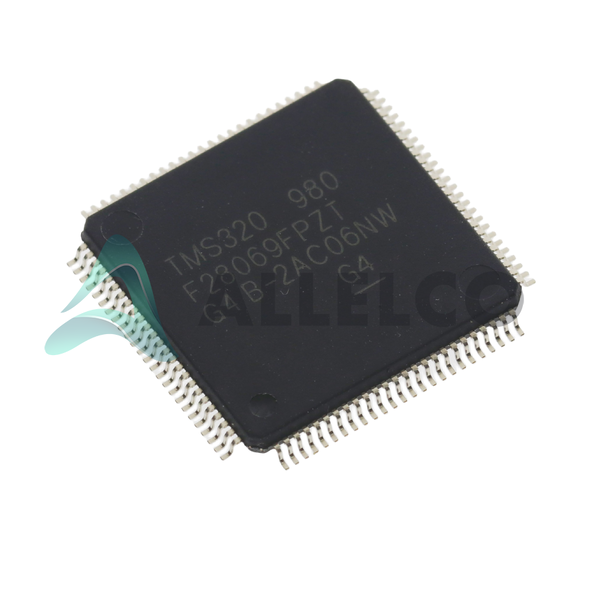

TMS320F28069FPZT
Manufacturer
Texas Instruments
Introduction
Embedded microcontroller from the C2000 C28x Piccolo series designed for advanced control applications.
Product Features and Performance
32-bit C28x core processor with a speed of 90MHz
Multiple connectivity options: CANbus, I2C, McBSP, SCI, SPI, UART/USART
Integrated peripherals: Brown-out Detect/Reset, DMA, Power-on Reset (POR), PWM, Watchdog Timer (WDT)
54 digital I/O pins for versatile interfacing
256KB flash program memory
50K x 16 RAM for data processing
Product Advantages
Highly integrated system for control applications
Efficient 32-bit processing for real-time computing
Robust set of peripherals supporting a variety of functionalities
Ample memory capacity for complex programs
Key Technical Parameters
Core Size: 32-Bit Single-Core
Speed: 90MHz
Program Memory Size: 256KB (128K x 16)
RAM Size: 50K x 16
Voltage Supply Range: 1.71V ~ 1.995V
Analog to Digital Converters: 16x12-bit
Operating Temperature Range: -40°C ~ 105°C
Quality and Safety Features
Brown-out Detect ensures proper operation under low voltage conditions
Watchdog Timer for system reliability and recovery
Extended operational temperature range for harsh environments
Compatibility
Standard 100-LQFP (14x14) package for surface mount technology
Cross-industry compatibility with standard communication protocols
Application Areas
Industrial control systems
Motor control
Power management
Automation
Renewable energy solutions
Product Lifecycle
Product Status: Active
No immediate indication of discontinuation
Support for long-term availability and potential upgrades
Several Key Reasons to Choose This Product
High-performance 32-bit processing for demanding control applications
Wide range of peripherals for extensive system functions
Reliable operation ensured by quality features
Adaptable to various applications due to compatibility
Active product with long-term support from Texas Instruments
