Manufacturer Part Number

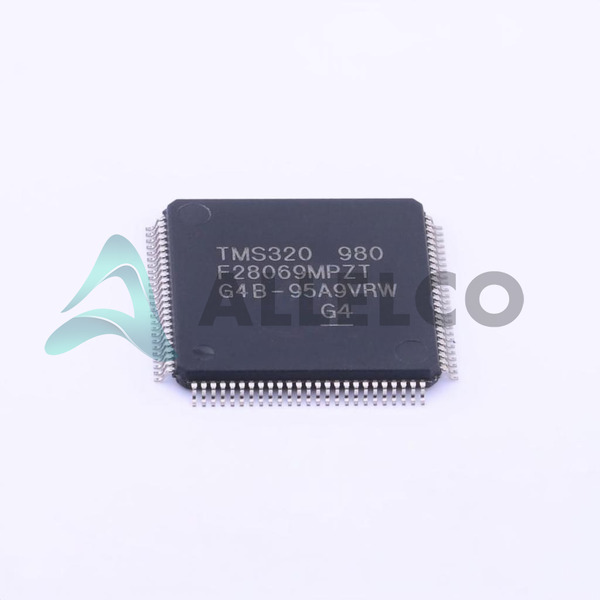

TMS320F28069MPZT
Manufacturer
Texas Instruments
Introduction
The TMS320F28069MPZT is part of the C2000™ C28x Piccolo™ series, designed for advanced control applications requiring high levels of signal processing performance.
Product Features and Performance
Core Processor: C28x
Core Size: 32-Bit Single-Core
Speed: 90MHz
Connectivity: CANbus, I2C, McBSP, SCI, SPI, UART/USART
Peripherals: Brown-out Detect/Reset, DMA, POR, PWM, WDT
Program Memory Size: 256KB (128K x 16)
Program Memory Type: FLASH
RAM Size: 50K x 16
Voltage Supply Range: 1.71V ~ 1.995V
Data Converters: A/D 16x12b
Oscillator Type: Internal
Operating Temperature Range: -40°C ~ 105°C
Product Advantages
High-speed performance at 90MHz
Robust connectivity options including CANbus and SPI
Enhanced power management with brown-out detect and power-on reset
Wide operating temperature for extreme environments
Key Technical Parameters
Number of I/O: 54
Voltage - Supply (Vcc/Vdd): 1.71V ~ 1.995V
Data Converters: A/D 16x12b
Operating Temperature: -40°C ~ 105°C (TA)
Quality and Safety Features
Brown-out Detect/Reset
Power-On Reset
Watchdog Timer (WDT)
Compatibility
Compatible with various protocols including CANbus, I2C, McBSP, SCI, SPI, and UART/USART
Application Areas
Advanced motor control
Power management systems
Renewable energy systems
Industrial automation systems
Product Lifecycle
Product Status: Active
No scheduled discontinuation announced
Alternative parts or upgrades, if needed, can be checked with Texas Instruments
Several Key Reasons to Choose This Product
Powerful 32-bit C28x core processor with a speed of 90MHz for efficient processing
Extensive range of connectivity options to interface with other systems
Built-in safety features for reliable operation in harsh conditions
Applicable in a variety of demanding industrial and control applications
Supports advanced control techniques and real-time processing requirements
