HomeProductsIntegrated Circuits (ICs)PMIC - Voltage Regulators - DC DC Switching RegulatorsTPS54060ADRCR

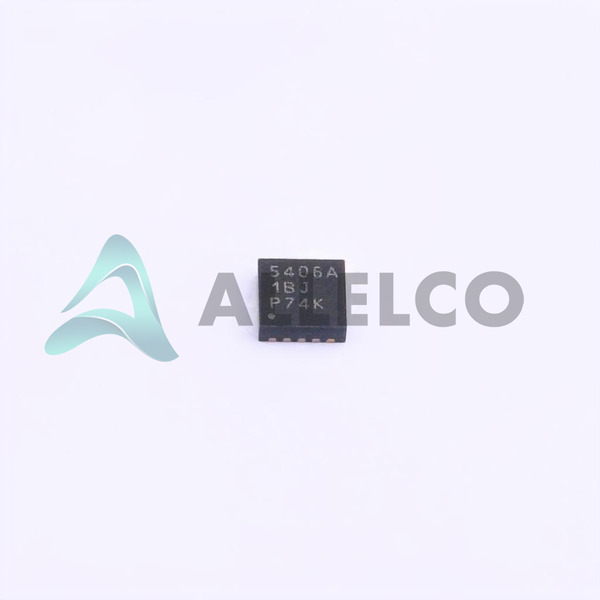

TPS54060ADRCR Image
TPS54060ADRCR Image - 1TPS54060ADRCR Image - 2
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

TPS54060ADRCR - Texas Instruments

Manufacturer Part Number
TPS54060ADRCR
Manufacturer
Texas Instruments
Allelco Part Number
32D-TPS54060ADRCR
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
IC REG BCK SPLIT RAIL ADJ 10VSON
Package
10-VSON (3x3)
Data sheet
1.TPS54060ADRCR.pdf ...

PCN Design/Specification

Material Set 21/Jun/2016.pdf

PCN Assembly/Origin

Multiple 04/May/2022.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 29247
  • Unit Price: $0.548
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $0.548 $0.55
10+ $0.501 $5.01
30+ $0.475 $14.25
100+ $0.348 $34.80
500+ $0.334 $167.00
1000+ $0.329 $329.00
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

TPS54060ADRCR Tech Specifications
Texas Instruments - TPS54060ADRCR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS54060ADRCR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage - Output (Min/Fixed) 0.8V
Voltage - Output (Max) 58V
Voltage - Input (Min) 3.5V
Voltage - Input (Max) 60V
Topology Buck, Split Rail
Synchronous Rectifier No
Supplier Device Package 10-VSON (3x3)
Series SWIFT™, Eco-Mode™
Package / Case 10-VFDFN Exposed Pad
Product Attribute Attribute Value
Package Tape & Reel (TR)
Output Type Adjustable
Output Configuration Positive
Operating Temperature -40°C ~ 150°C (TJ)
Number of Outputs 1
Mounting Type Surface Mount
Function Step-Down
Frequency - Switching 100kHz ~ 2.5MHz
Current - Output 500mA
Base Product Number TPS54060

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

TPS54060ADRCR

Manufacturer

Texas Instruments

Introduction

High-efficiency step-down regulator

Product Features and Performance

Wide input voltage range 3.5V to 60V

Adjustable output voltage from 0.8V to 58V

500mA output current capability

100kHz to 2.5MHz adjustable switching frequency

High efficiency with Eco-Mode™ operation

Thermally enhanced 10-VFDFN package

Internal soft start

Product Advantages

Ability to work with high input voltages

Low power consumption in Eco-Mode™

Flexible design options with adjustable output and frequency

Robust thermal performance for reliability

Key Technical Parameters

Input Voltage Min/Max: 3.5V to 60V

Output Voltage Min/Max: 0.8V to 58V

Current Output: 500mA

Frequency – Switching: 100kHz to 2.5MHz

Temperature Range: -40°C to 150°C

Quality and Safety Features

Built-in over temperature protection

Over voltage and current protection for safety

Exposed pad package for thermal dissipation

Compatibility

Surface mount compatible for modern PCB designs

Adjustability allows compatibility with various circuit requirements

Application Areas

Telecommunications

Automotive systems

Industrial power supplies

Computing and networking equipment

Product Lifecycle

Currently Active status

Not indicated as nearing discontinuation

Texas Instruments typically offers product longevity and support

Several Key Reasons to Choose This Product

Robust voltage range for versatile applications

High efficiency for energy saving

Texas Instruments' reputation for reliability and quality

Expandable design opportunities with variable output and frequency

Supports demanding temperature environments with operation up to 150°C

Eco-Mode™ feature for reduced power loss at light loads

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TPS54060ADRCR

Product Attribute TPS54060DRCR TPS54060ADRCT TPS54040QDRCRQ1 TPS54060ADGQR
Part Number TPS54060DRCR TPS54060ADRCT TPS54040QDRCRQ1 TPS54060ADGQR
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Synchronous Rectifier - - - -
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Voltage - Output (Max) - - - -
Number of Outputs - - - -
Voltage - Output (Min/Fixed) - - - -
Voltage - Input (Min) - - - -
Current - Output - - - -
Base Product Number - DAC34H84 MAX500 ADS62P42
Series - - - -
Supplier Device Package - 196-NFBGA (12x12) 16-PDIP 64-VQFN (9x9)
Output Configuration - - - -
Output Type - Current - Unbuffered Voltage - Buffered -
Voltage - Input (Max) - - - -
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Package / Case - 196-LFBGA 16-DIP (0.300', 7.62mm) 64-VFQFN Exposed Pad
Function - - - -
Frequency - Switching - - - -
Mounting Type - Surface Mount Through Hole Surface Mount
Topology - - - -

TPS54060ADRCR Datasheet PDF

Download TPS54060ADRCR pdf datasheets and Texas Instruments documentation for TPS54060ADRCR - Texas Instruments.

PCN Design/Specification
Material Set 21/Jun/2016.pdf
PCN Assembly/Origin
Multiple 04/May/2022.pdf
