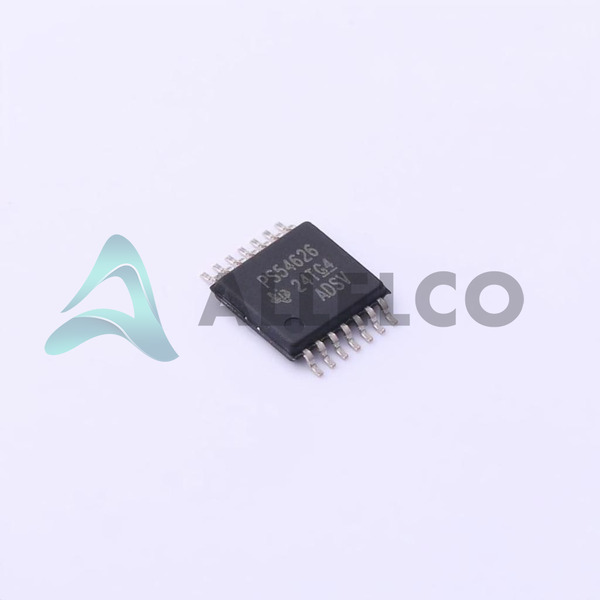

Image may be representation.
See specifications for product details.

~~Favorite~~

EXPRESS OPTION

Payment method

TPS54626PWPR - Texas Instruments

Name: Texas Instruments TPS54626PWPR
Brand: Texas Instruments
SKU: TPS54626PWPR
Availability: InStock
Rating: 5 (10 reviews)

Manufacturer Part Number: TPS54626PWPR

Manufacturer: Texas Instruments

Allelco Part Number: 32D-TPS54626PWPR

Warranty: 1 Year Allelco Warranty - Find out more

Parts Description: IC REG BUCK ADJ 6.5A 14HTSSOP

Package: 14-HTSSOP

Data sheet: 1.TPS54626PWPR.pdf ...

PCN Design/Specification
Cylindrical Battery Holders.pdf

PCN Assembly/Origin
2.73KHz.pdf

PCN Packaging
TSSOP Symbolization Update 24/Oct/2022.pdf

RoHs Status: ROHS3 Compliant

~~Compare~~

Our certification

In stock: 26357

EXPRESS OPTION

Payment method

Our certification

Specifications

TPS54626PWPR Tech Specifications
Texas Instruments - TPS54626PWPR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS54626PWPR

Product Attribute	Attribute Value
Manufacturer	Texas Instruments
Voltage - Output (Min/Fixed)	0.765V
Voltage - Output (Max)	5.5V
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	18V
Topology	Buck
Synchronous Rectifier	Yes
Supplier Device Package	14-HTSSOP
Series	SWIFT™, D-CAP2™, Eco-Mode™
Package / Case	14-PowerTSSOP (0.173', 4.40mm Width)

Product Attribute	Attribute Value
Package	Tape & Reel (TR)
Output Type	Adjustable
Output Configuration	Positive
Operating Temperature	-40°C ~ 85°C (TA)
Number of Outputs	1
Mounting Type	Surface Mount
Function	Step-Down
Frequency - Switching	650kHz
Current - Output	6.5A
Base Product Number	TPS54626

Environmental & Export Classifications

ATTRIBUTE	DESCRIPTION
RoHs Status	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001

Parts Introduction

Manufacturer Part Number

TPS54626PWPR

Manufacturer

Texas Instruments

Introduction

The TPS54626PWPR is an adjustable output, synchronous step-down switcher with integrated MOSFETs.

Product Features and Performance

Integrated low RDS(on) MOSFETs

650kHz switching frequency

Supports a wide input voltage range from 4.5V to 18V

Adjustable output voltage from 0.765V to 5.5V

Capable of delivering up to 6.5A of continuous output current

Adopts D-CAP2™ control mode for fast transient response

Features Eco-Mode™ for light load efficiency

Thermal shutdown protection and overcurrent protection

Product Advantages

High efficiency and fast transient response

Optimized for space-constrained applications

Reduces external component count

Supports pre-biased startup

Key Technical Parameters

Input Voltage (Min): 4.5V

Input Voltage (Max): 18V

Output Voltage (Min/Fixed): 0.765V

Output Voltage (Max): 5.5V

Output Current: 6.5A

Switching Frequency: 650kHz

Operating Temperature Range: -40°C to 85°C

Quality and Safety Features

Overcurrent protection

Thermal shutdown

Cycle-by-cycle current limit

Compatibility

Compatible with surface mount technology

Suitable for use with a wide range of output capacitors

Application Areas

Computing systems, servers, and telecom infrastructure

Graphics cards and memory modules

Consumer electronics and networking equipment

Product Lifecycle

Product status is active

Not nearing discontinuation

Replacements and upgrades are available

Several Key Reasons to Choose This Product

Highly efficient power conversion

Robust power delivery for high current applications

Easy to use with minimal external components required

Excellent thermal performance for reliability

Versatile for a broad range of electronic devices

Ongoing product support and availability

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TPS54626PWPR

Product Attribute
Part Number	TPS54626PWP	TPS54625PWPR	TPS54625PWP	TPS54672PWP
Manufacturer	Texas Instruments	Texas Instruments	Texas Instruments	Texas Instruments
Operating Temperature	-	-40°C ~ 85°C	0°C ~ 70°C	-40°C ~ 85°C
Voltage - Input (Min)	-	-	-	-
Output Type	-	Current - Unbuffered	Voltage - Buffered	-
Supplier Device Package	-	196-NFBGA (12x12)	16-PDIP	64-VQFN (9x9)
Current - Output	-	-	-	-
Topology	-	-	-	-
Synchronous Rectifier	-	-	-	-
Package	-	Tape & Reel (TR)	Tube	Tape & Reel (TR)
Number of Outputs	-	-	-	-
Voltage - Output (Max)	-	-	-	-
Package / Case	-	196-LFBGA	16-DIP (0.300', 7.62mm)	64-VFQFN Exposed Pad
Voltage - Input (Max)	-	-	-	-
Function	-	-	-	-
Output Configuration	-	-	-	-
Base Product Number	-	DAC34H84	MAX500	ADS62P42
Frequency - Switching	-	-	-	-
Series	-	-	-	-
Mounting Type	-	Surface Mount	Through Hole	Surface Mount
Voltage - Output (Min/Fixed)	-	-	-	-
