HomeProductsIntegrated Circuits (ICs)PMIC - Voltage Regulators - LinearTPS74901DRCR

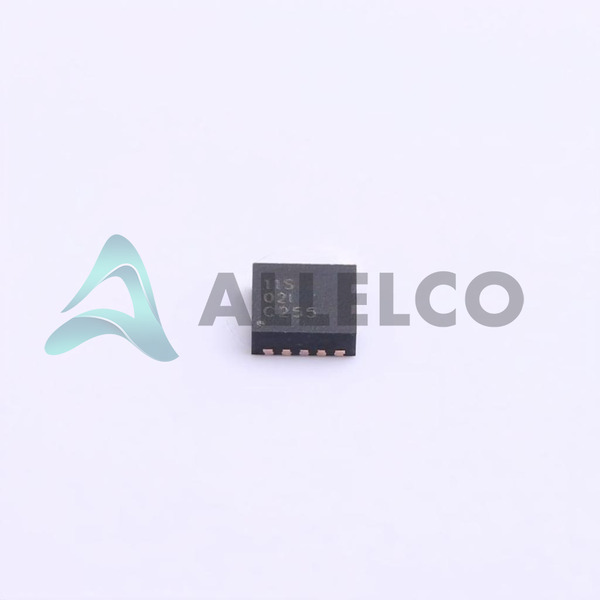

TPS74901DRCR Image
TPS74901DRCR Image - 1TPS74901DRCR Image - 2
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

TPS74901DRCR - Texas Instruments

Manufacturer Part Number
TPS74901DRCR
Manufacturer
Texas Instruments
Allelco Part Number
32D-TPS74901DRCR
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
IC REG LINEAR POS ADJ 3A 10VSON
Package
10-VSON (3x3)
Data sheet
1.TPS74901DRCR.pdf ...

PCN Assembly/Origin

Mult Dev 27/Dec/2019.pdf

PCN Design/Specification

Mult Dev Material Chg 29/Mar/2018.pdf

HTML Datasheet

TPS749xx Datasheet.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 17757

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity
EXPRESS OPTION
Payment method
Our certification

Specifications

TPS74901DRCR Tech Specifications
Texas Instruments - TPS74901DRCR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS74901DRCR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage Dropout (Max) 0.28V @ 3A
Voltage - Output (Min/Fixed) 0.8V
Voltage - Output (Max) 3.6V
Voltage - Input (Max) 5.5V
Supplier Device Package 10-VSON (3x3)
Series -
Protection Features Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Package / Case 10-VFDFN Exposed Pad
Package Tape & Reel (TR)
Product Attribute Attribute Value
PSRR 60dB ~ 30dB (1kHz ~ 300kHz)
Output Type Adjustable
Output Configuration Positive
Operating Temperature -40°C ~ 125°C
Number of Regulators 1
Mounting Type Surface Mount
Current - Output 3A
Control Features Enable, Power Good, Soft Start
Base Product Number TPS74901

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

TPS74901DRCR

Manufacturer

Texas Instruments

Introduction

The TPS74901DRCR is a voltage regulator designed for power management applications.

Product Features and Performance

Low dropout voltage regulator

Adjustable output voltage

Support for output currents up to 3A

High power supply rejection ratio (PSRR)

Enabled with power good signal

Soft start functionality to reduce inrush current

Single regulator integration

Product Advantages

High-efficiency operation at low voltage differentials

Stable operation with ceramic output capacitors

Fast transient response

Low quiescent current

Key Technical Parameters

Input voltage up to 5.5V

Adjustable output voltage from 0.8V to 3.6V

Dropout voltage of 0.28V @ 3A

Current output capability is 3A

PSRR of 60dB to 30dB from 1kHz to 300kHz

Temperature range from -40°C to 125°C

Quality and Safety Features

Overcurrent protection

Overtemperature protection

Short circuit protection

Under voltage lockout (UVLO)

Compatibility

Compatible with surface mount technology (SMT)

Designed for 10-VFDFN Exposed Pad packages

10-VSON (3x3) package compatibility

Application Areas

Consumer electronics

Telecommunication systems

Computers and computer peripherals

Industrial applications

Product Lifecycle

The product status is active

Not nearing discontinuation

Availability of replacements or upgrades should be verified through Texas Instruments

Several Key Reasons to Choose This Product

Robust power management with high output current capacity

Versatile use across multiple application areas due to an adjustable output

Enhanced safety features for reliable performance

Ideal for compact and high-density designs

Support from leading semiconductor manufacturer Texas Instruments

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TPS74901DRCR

Product Attribute TPS74901DRCT TPS74801TDRCRQ1 TPS74901RGWR TPS74901KTWR
Part Number TPS74901DRCT TPS74801TDRCRQ1 TPS74901RGWR TPS74901KTWR
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Voltage - Output (Min/Fixed) - - - -
Voltage - Input (Max) - - - -
Protection Features - - - -
Package / Case - 196-LFBGA 16-DIP (0.300', 7.62mm) 64-VFQFN Exposed Pad
PSRR - - - -
Output Configuration - - - -
Number of Regulators - - - -
Base Product Number - DAC34H84 MAX500 ADS62P42
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Current - Output - - - -
Voltage Dropout (Max) - - - -
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Output Type - Current - Unbuffered Voltage - Buffered -
Voltage - Output (Max) - - - -
Mounting Type - Surface Mount Through Hole Surface Mount
Series - - - -
Supplier Device Package - 196-NFBGA (12x12) 16-PDIP 64-VQFN (9x9)
Control Features - - - -

TPS74901DRCR Datasheet PDF

Download TPS74901DRCR pdf datasheets and Texas Instruments documentation for TPS74901DRCR - Texas Instruments.

Datasheets
LDOs Quick Reference Guide.pdf
PCN Assembly/Origin
Mult Dev 27/Dec/2019.pdf
PCN Design/Specification
Mult Dev Material Chg 29/Mar/2018.pdf
HTML Datasheet
TPS749xx Datasheet.pdf
