Manufacturer Part Number

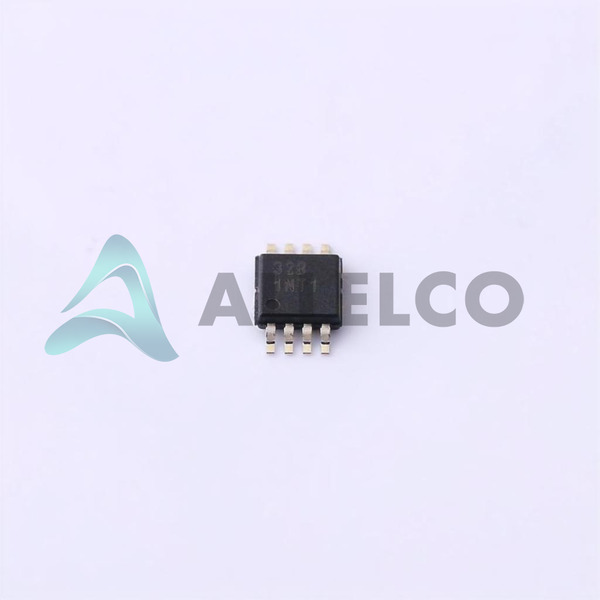

TPS7A1601AQDGNRQ1
Manufacturer
Texas Instruments
Introduction
Automotive grade low-dropout linear voltage regulator
Product Features and Performance
Positive adjustable output configuration
Single regulator design
High input voltage range up to 60V
Low dropout voltage of 0.265V @ 100mA
Stable output between 1.2V and 18.5V
Low quiescent current at 15 µA
Power supply rejection ratio (PSRR) of 50dB at 100Hz
Includes enable and power good control features
Product Advantages
Robust thermal performance for automotive applications
High reliability with over current, over temperature, and under-voltage lockout (UVLO) protections
Energy-efficient operation with low current consumption
Flexible application use with adjustable output voltage
Complies with AEC-Q100 automotive qualification standards
Key Technical Parameters
Input Voltage (Max): 60V
Output Voltage (Min/Fixed): 1.2V
Output Voltage (Max): 18.5V
Voltage Dropout (Max): 0.265V @ 100mA
Current - Output: 100mA
Quiescent Current (Iq): 15 µA
Supply Current (Max): 60 µA
PSRR: 50dB (100Hz)
Quality and Safety Features
Over current protection
Over temperature protection
UVLO safety feature
Compatibility
Surface mount compatible
Packages compatible with 8-TSSOP, 8-MSOP (3.00mm width) with exposed pad
Application Areas
Automotive electronics
Power supplies for sensitive electronics
Battery-powered devices
Industrial control systems
Product Lifecycle
Status: Active
No indication of discontinuation, replacement or upgrades needed at this time
Several Key Reasons to Choose This Product
Highly suitable for automotive and industrial applications
Exceptional input voltage range catering to various designs
Stable and energy-efficient performance for extended product usage
Low dropout feature enabling better battery life in portable devices
AEC-Q100 qualified ensuring reliability and safety standards
Compact package suitable for space-constrained applications
