HomeProductsIntegrated Circuits (ICs)PMIC - Voltage Regulators - LinearTPS7A5301RPSR

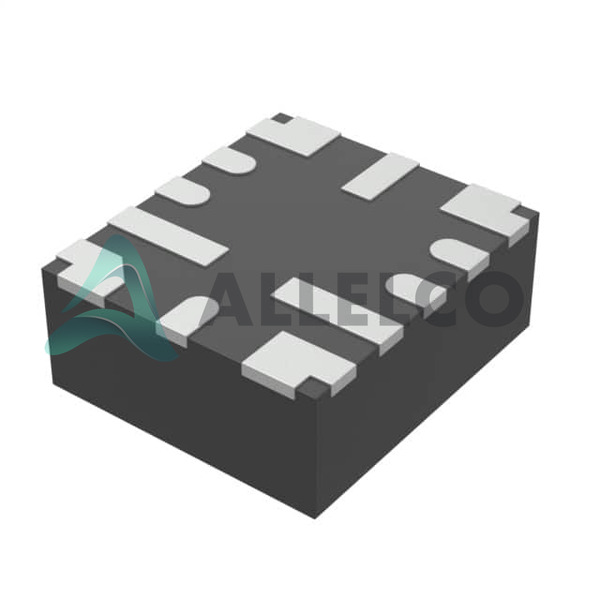

TPS7A5301RPSR Image
TPS7A5301RPSR Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

TPS7A5301RPSR - Texas Instruments

Manufacturer Part Number
TPS7A5301RPSR
Manufacturer
Texas Instruments
Allelco Part Number
32D-TPS7A5301RPSR
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
IC REG LINEAR POS ADJ 4A 12VQFN
Package
12-VQFN-HR (2.2x2.5)
Data sheet
1.TPS7A5301RPSR.pdf ...
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 16575
  • Unit Price: $1.726
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $1.726 $1.73
10+ $1.485 $14.85
30+ $1.335 $40.05
100+ $1.181 $118.10
500+ $1.112 $556.00
1000+ $1.081 $1,081.00
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

TPS7A5301RPSR Tech Specifications
Texas Instruments - TPS7A5301RPSR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments - TPS7A5301RPSR

Product Attribute Attribute Value
Manufacturer Texas Instruments
Voltage Dropout (Max) 0.375V @ 3A
Voltage - Output (Min/Fixed) 0.8V
Voltage - Output (Max) 5.15V
Voltage - Input (Max) 6.5V
Supplier Device Package 12-VQFN-HR (2.2x2.5)
Series -
Protection Features Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Package / Case 12-VFQFN
Package Tape & Reel (TR)
PSRR 35dB ~ 44dB (10kHz ~ 500kHz)
Product Attribute Attribute Value
Output Type Adjustable
Output Configuration Positive
Operating Temperature -40°C ~ 125°C (TJ)
Number of Regulators 1
Mounting Type Surface Mount
Current - Supply (Max) 5.5 mA
Current - Quiescent (Iq) 4 mA
Current - Output 4A
Control Features Enable, Power Good, Soft Start
Base Product Number TPS7A5301

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001

Parts Introduction

Manufacturer Part Number

TPS7A5301RPSR

Manufacturer

Texas Instruments

Introduction

The TPS7A5301RPSR is a highly efficient, low dropout (LDO) linear voltage regulator designed for power-sensitive applications, offering adjustable output in a compact package.

Product Features and Performance

Low dropout voltage: 0.375V @ 3A ensuring efficiency

Adjustable output voltage range: 0.8V to 5.15V for diverse application needs

High output current: 4A supporting heavy-load conditions

Power Supply Rejection Ratio (PSRR): 35dB ~ 44dB across 10kHz to 500kHz, minimizing noise

Integrated control features: Enable, Power Good, Soft Start for smooth operation

Comprehensive protection features: Over Current, Over Temperature, Under Voltage Lockout (UVLO)

Product Advantages

High efficiency and low power consumption due to minimal dropout voltage

Flexible voltage regulation for a wide range of applications

Robust protection features ensure reliability and safety in various conditions

Compact 12-VFQFN package for space-sensitive applications

Key Technical Parameters

Voltage Input (Max): 6.5V

Voltage Output (Min/Fixed): 0.8V

Voltage Output (Max): 5.15V

Current Output: 4A

Current Quiescent (Iq): 4 mA

Current Supply (Max): 5.5 mA

Operating Temperature: -40°C ~ 125°C (TJ)

Quality and Safety Features

Overcurrent protection prevents damage from excessive current

Overtemperature protection ensures safe operation under high-temperature conditions

Under Voltage Lockout (UVLO) for safe startup and shutdown

Compatibility

Surface Mount technology for compatibility with modern PCB designs

Compatible with various digital and analog circuits due to adjustable output voltage

Application Areas

Industrial

Telecommunications

Consumer electronics

Portable devices

Product Lifecycle

Current Status: Active

Not nearing discontinuation, ensuring long-term availability

Replacements or upgrades can be found in Texas Instruments' extensive LDO portfolio

Several Key Reasons to Choose This Product

High efficiency and low dropout enhance battery life in portable applications

Flexible output voltage support broadens usability across multiple devices

Enhanced protection features ensure durability and safety

Compact package suitable for space-constrained applications

Active product lifecycle status guarantees future availability and support

Parts with Similar Specifications

The three parts on the right have similar specifications to Texas Instruments TPS7A5301RPSR

Product Attribute TPS7A5401RPSR TPS7A5201RPSR TPS7A5201RPST TPS7A5301QRGRRQ1
Part Number TPS7A5401RPSR TPS7A5201RPSR TPS7A5201RPST TPS7A5301QRGRRQ1
Manufacturer Texas Instruments Texas Instruments Texas Instruments Texas Instruments
Current - Output - - - -
Voltage - Input (Max) - - - -
Current - Quiescent (Iq) - - - -
Output Configuration - - - -
Voltage Dropout (Max) - - - -
Number of Regulators - - - -
Mounting Type - Surface Mount Through Hole Surface Mount
Package / Case - 196-LFBGA 16-DIP (0.300', 7.62mm) 64-VFQFN Exposed Pad
Protection Features - - - -
Control Features - - - -
Output Type - Current - Unbuffered Voltage - Buffered -
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
PSRR - - - -
Series - - - -
Supplier Device Package - 196-NFBGA (12x12) 16-PDIP 64-VQFN (9x9)
Current - Supply (Max) - - - -
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
Voltage - Output (Max) - - - -
Base Product Number - DAC34H84 MAX500 ADS62P42
Voltage - Output (Min/Fixed) - - - -

TPS7A5301RPSR Datasheet PDF

Download TPS7A5301RPSR pdf datasheets and Texas Instruments documentation for TPS7A5301RPSR - Texas Instruments.

PCN Assembly/Origin
Assembly Materials 03/Aug/2021.pdf

Customers Also Interested in
