Manufacturer Part Number
TSB81BA3DPFP
Manufacturer
Texas Instruments
Introduction
The TSB81BA3DPFP is a three-port physical layer device that supports IEEE 1394 protocol.
Product Features and Performance
IEEE 1394b compliant
Integrated transceiver
Supports S100/S200/S400/S800 operation
Cable power sensing
Cable ports monitor line conditions
Enhanced power-saving features
Product Advantages
High-integration reduces external component count
Optimized for high-speed signal quality
Power-efficient design for reduced energy consumption
Key Technical Parameters
Number of Drivers/Receivers: 6/6
Half Duplex communication
Voltage Supply: 3V to 3.6V
Operating Temperature Range: 0°C to 70°C
Mounting Type: Surface Mount

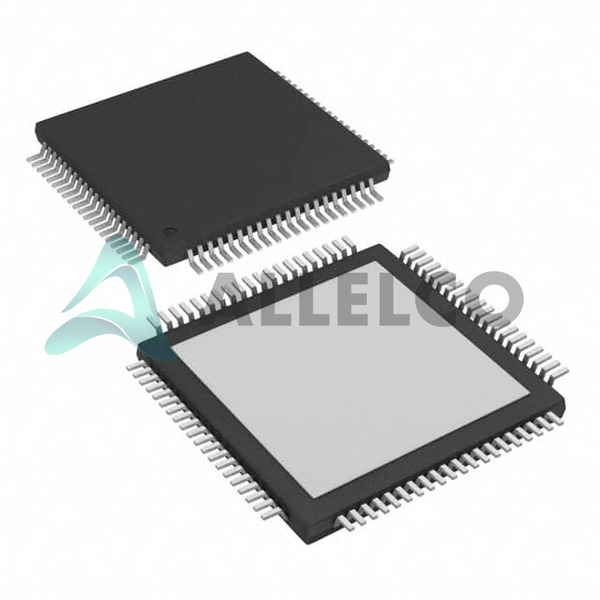

Package: 80-TQFP Exposed Pad
Supplier Device Package: 80-HTQFP (12x12)
Quality and Safety Features
Robust electrostatic discharge (ESD) protection
Overcurrent protection
Temperature range ensures reliable operation under standard conditions
Compatibility
Compatible with IEEE 1394-1995 and 1394a-2000 standard specifications
Interoperable with FireWire, i.LINK, and SB1394 implementations of IEEE 1394
Application Areas
Consumer Electronics
Computer Peripherals
Industrial Control
Automotive Applications
Networking
Product Lifecycle
Last Time Buy status indicating the product is nearing discontinuation
Alternatives or upgrade paths may be suggested by the manufacturer
Several Key Reasons to Choose This Product
Proven Texas Instruments reliability and support
Suitable for various high-speed data transfer applications
Enables robust and efficient system designs with minimal external components
Flexible power management options to suit various end-user applications
Comprehensive technical documentation and support available
Offers backward compatibility easing system upgrades and maintenance
