HomeProductsIntegrated Circuits (ICs)Embedded - MicrocontrollersATSAMV71Q21B-CB

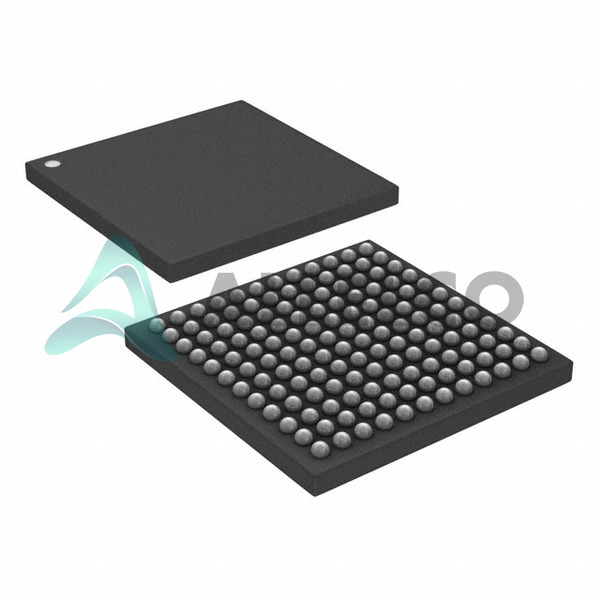

ATSAMV71Q21B-CB Image
ATSAMV71Q21B-CB Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

ATSAMV71Q21B-CB - Microchip Technology

Manufacturer Part Number
ATSAMV71Q21B-CB
Manufacturer
Microchip Technology
Allelco Part Number
32D-ATSAMV71Q21B-CB
ECAD Model
Parts Description
IC MCU 32BIT 2MB FLASH 144TFBGA
Package
144-TFBGA
Data sheet
SAM E70/S70/V70/V71.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 9985

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity
EXPRESS OPTION
Payment method
Our certification

Specifications

ATSAMV71Q21B-CB Tech Specifications
Microchip Technology - ATSAMV71Q21B-CB technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology - ATSAMV71Q21B-CB

Product Attribute Attribute Value
Manufacturer Microchip Technology
Voltage - Supply (Vcc/Vdd) 3V ~ 3.6V
Supplier Device Package 144-TFBGA (10x10)
Speed 300MHz
Series Automotive, AEC-Q100, SAM V71
RAM Size 384K x 8
Program Memory Type FLASH
Program Memory Size 2MB (2M x 8)
Peripherals Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT
Package / Case 144-TFBGA
Package Tray
Product Attribute Attribute Value
Oscillator Type Internal
Operating Temperature -40°C ~ 105°C (TA)
Number of I/O 114
Mounting Type Surface Mount
EEPROM Size -
Data Converters A/D 24x12b; D/A 2x12b
Core Size 32-Bit Single-Core
Core Processor ARM® Cortex®-M7
Connectivity CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SPI, SSC, UART/USART, USB
Base Product Number ATSAMV71

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8542.31.0001

Parts Introduction

Manufacturer Part Number

ATSAMV71Q21B-CB

Manufacturer

Microchip Technology

Introduction

High-performance Automotive-grade Microcontroller

Product Features and Performance

ARM Cortex-M7 Core

32-Bit Single-Core Architecture

Maximum Frequency of 300MHz

Extensive Connectivity Options

Integrated DMA, I2S, POR, PWM, WDT Peripherals

Large Number of I/O Pins

Product Advantages

Superior Computational Performance

Robust Peripheral Set for Versatile Applications

Support for High-speed Communication Interfaces

Suitable for Challenging Automotive Environments

AEC-Q100 Qualified

Key Technical Parameters

Core Processor: ARM Cortex-M7

Speed: 300MHz

Program Memory Size: 2MB

RAM Size: 384KB

Operating Temperature Range: -40°C to 105°C

Automotive Grade with AEC-Q100 Qualification

Quality and Safety Features

Brown-out Detect/Reset

Programmable Watchdog Timer

Quality Certification AEC-Q100

Compatibility

Wide Range I/O Compatibility

Supports Multiple Communication Protocols

Application Areas

Automotive Applications

Industrial Control

Embedded Systems

Communication Systems

Product Lifecycle

Active Product Status

Not Nearing Discontinuation

Replacements or Upgrades Available

Several Key Reasons to Choose This Product

High Processing Power for Demanding Applications

Extensive I/O and Connectivity for Flexible System Integration

Large Memory Capacity for Complex Software

High Operating Temperature Range for Automotive Reliability

Longevity and Support with Active Product Status

Parts with Similar Specifications

The three parts on the right have similar specifications to Microchip Technology ATSAMV71Q21B-CB

Product Attribute ATSAMV71Q21B-CB ATSAMV71N21B-CBT ATSAMV71Q21B-AABT ATSAMV71Q21B-AAB
Part Number ATSAMV71Q21B-CB ATSAMV71N21B-CBT ATSAMV71Q21B-AABT ATSAMV71Q21B-AAB
Manufacturer Microchip Technology Microchip Technology Microchip Technology Microchip Technology
Mounting Type Surface Mount Surface Mount Surface Mount Surface Mount
Voltage - Supply (Vcc/Vdd) 3V ~ 3.6V 3V ~ 3.6V 3V ~ 3.6V 3V ~ 3.6V
Data Converters A/D 24x12b; D/A 2x12b A/D 10x12b; D/A 2x12b A/D 24x12b; D/A 2x12b A/D 24x12b; D/A 2x12b
Speed 300MHz 300MHz 300MHz 300MHz
Package / Case 144-TFBGA 100-TFBGA 144-LQFP 144-LQFP
Base Product Number ATSAMV71 ATSAMV71 ATSAMV71 ATSAMV71
Number of I/O 114 75 114 114
EEPROM Size - - - -
Series Automotive, AEC-Q100, SAM V71 Automotive, AEC-Q100, SAM V71 Automotive, AEC-Q100, SAM V71 Automotive, AEC-Q100, SAM V71
Peripherals Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT
Program Memory Type FLASH FLASH FLASH FLASH
Connectivity CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SPI, SSC, UART/USART, USB CANbus, Ethernet, I²C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SPI, SSC, UART/USART, USB CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SPI, SSC, UART/USART, USB CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, MMC/SD/SDIO, QSPI, SPI, SSC, UART/USART, USB
Operating Temperature -40°C ~ 105°C (TA) -40°C ~ 105°C (TA) -40°C ~ 105°C (TA) -40°C ~ 105°C (TA)
Supplier Device Package 144-TFBGA (10x10) 100-TFBGA (9x9) 144-LQFP (20x20) 144-LQFP (20x20)
Program Memory Size 2MB (2M x 8) 2MB (2M x 8) 2MB (2M x 8) 2MB (2M x 8)
Package Tray Tape & Reel (TR) Tape & Reel (TR) Tray
Core Size 32-Bit Single-Core 32-Bit Single-Core 32-Bit Single-Core 32-Bit Single-Core
Core Processor ARM® Cortex®-M7 ARM® Cortex®-M7 ARM® Cortex®-M7 ARM® Cortex®-M7
RAM Size 384K x 8 384K x 8 384K x 8 384K x 8
Oscillator Type Internal Internal Internal Internal

ATSAMV71Q21B-CB Datasheet PDF

Download ATSAMV71Q21B-CB pdf datasheets and Microchip Technology documentation for ATSAMV71Q21B-CB - Microchip Technology.

Datasheets
SAM E70/S70/V70/V71.pdf
PCN Part Number
Atmel MCU32 06/Oct/2017.pdf
PCN Packaging
Boxes 07/Dec/2016.pdf MBB/Label Chgs 16/Nov/2018.pdf
PCN Design/Specification
Datasheet Update 12/Nov/2021.pdf SAM E70/S70/V70/V71 28/Dec/2020.pdf
