HomeProductsCircuit ProtectionTVS - Varistors, MOVsEZJ-PZV6R8GA

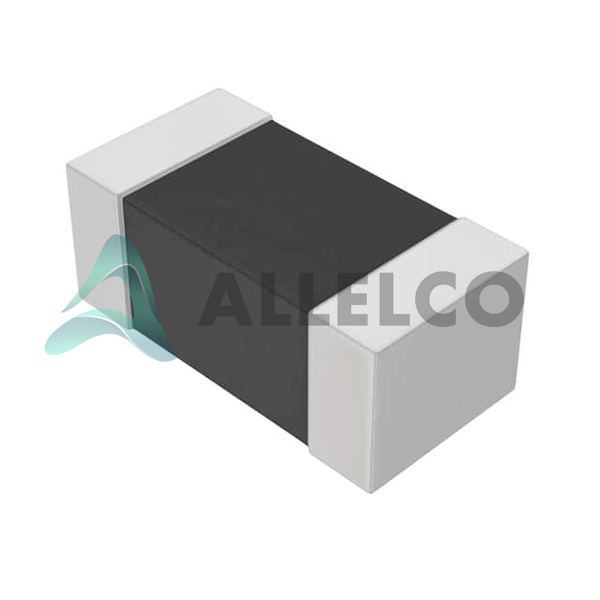

EZJ-PZV6R8GA Image
EZJ-PZV6R8GA Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

EZJ-PZV6R8GA - Panasonic Electronic Components

Manufacturer Part Number
EZJ-PZV6R8GA
Manufacturer
Panasonic
Allelco Part Number
98D-EZJ-PZV6R8GA
Warranty
1 Year Allelco Warranty - Find out more
Stock Status:
15,221 pcs available, New & Original
Parts Description
VARISTOR 6.8V 5A 0201
Package
0201 (0603 Metric)
Data sheet
-
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 15221
  • Unit Price: $0.11
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
1+ $0.11 $0.11
The above prices does not include taxes and freight rates, which will be calculated on the order pages.

Specifications

EZJ-PZV6R8GA Tech Specifications
Panasonic Electronic Components - EZJ-PZV6R8GA technical specifications, attributes, parameters and parts with similar specifications to Panasonic Electronic Components - EZJ-PZV6R8GA

Product Attribute Attribute Value
Manufacturer Panasonic
Varistor Voltage (Typ) 6.8 V
Series -
Package / Case 0201 (0603 Metric)
Package Tape & Reel (TR)
Operating Temperature -40°C ~ 85°C (TA)
Number of Circuits 1
Product Attribute Attribute Value
Mounting Type Surface Mount, MLCV
Maximum DC Volts 3.7 V
Energy -
Current - Surge 5 A
Capacitance @ Frequency 85 pF @ 1 MHz
Base Product Number EZJ-PZV6

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.4000

Frequently Asked Questions(FAQ)

What are the key electrical characteristics of the EZJ-PZV6R8GA varistor that influence its selection for transient voltage suppression in compact PCB designs?
The EZJ-PZV6R8GA operates with a maximum DC voltage of 3.7 V and a typical varistor voltage of 6.8 V, making it suitable for protecting low-voltage circuits from overvoltage events such as electrostatic discharge (ESD) or voltage transients. With a surge current rating of 5 A, it can absorb moderate energy pulses commonly encountered in portable electronics. Its capacitance at 1 MHz is 85 pF, which helps maintain signal integrity in high-speed or RF-sensitive paths when used in data lines or communication interfaces.
How does the package size of the EZJ-PZV6R8GA impact thermal performance and layout density in space-constrained applications like wearables or IoT devices?
The 0201 (0603 metric) footprint of the EZJ-PZV6R8GA enables high-density PCB layouts, critical in miniaturized systems. However, the small surface area limits heat dissipation, meaning sustained overvoltage conditions may not be safely handled without risking degradation. Engineers should evaluate whether the 5 A surge capability is sufficient for expected transient loads, as prolonged stress could lead to failure even within rated specifications due to localized heating.
Can the EZJ-PZV6R8GA be used interchangeably with other Panasonic MLCV series components, such as the EZJ-PZV4R7G or EZJ-PZV10G, in the same circuit topology?
While all three are part of Panasonic’s MLCV 0201 varistor family, their varistor voltages differ—4.7 V, 6.8 V, and 10 V respectively—so they are not directly interchangeable without recalculating protection thresholds. Using an incorrect voltage rating could result in either inadequate clamping during surges or premature conduction under normal operating conditions. Designers must match the varistor voltage closely to the system’s nominal operating voltage to ensure reliable protection.
What design considerations should be made when integrating the EZJ-PZV6R8GA into a high-frequency serial interface like I²C or SPI?
Due to its 85 pF capacitance at 1 MHz, the EZJ-PZV6R8GA introduces minimal capacitive loading, which is generally favorable for preserving signal rise times in fast digital buses. However, in ultra-high-speed interfaces exceeding several hundred MHz, even this capacitance can distort timing margins. In such cases, alternative protection strategies like TVS diodes with lower junction capacitance might be preferable, unless the EZJ-PZV6R8GA’s response speed and clamping precision outweigh capacitance concerns.
Is the EZJ-PZV6R8GA suitable for automotive-grade environments requiring extended temperature ranges beyond -40°C to +85°C?
No, the EZJ-PZV6R8GA is rated only for industrial temperatures (-40°C to +85°C). Automotive applications often demand operation up to +125°C, where material stability, solder joint reliability, and varistor performance degrade significantly. For automotive designs, a component specifically qualified to AEC-Q200 with wider temperature coverage should be selected instead of relying on the EZJ-PZV6R8GA outside its specified range.
How does the moisture sensitivity level (MSL) classification of the EZJ-PZV6R8GA affect manufacturing handling procedures compared to higher-level components?
Classified as MSL 1, the EZJ-PZV6R8GA has unlimited floor life before reflow, simplifying assembly scheduling and reducing the need for baking prior to soldering. This contrasts with MSL 3 or 4 parts, which require strict humidity control and limited exposure windows. Manufacturers benefit from easier logistics, though proper storage still follows standard IPC guidelines due to lead-free soldering requirements.
What is the significance of the base product number EZJ-PZV6 in relation to the full model EZJ-PZV6R8GA, and how does this numbering convention aid in component traceability?
The prefix "EZJ-PZV6" identifies the broader family of 6.8 V varistors in the MLCV 0201 series, allowing engineers to identify compatible variants by adjusting the last digit, which denotes tolerance or packaging. For example, EZJ-PZV6R8G indicates a 6.8 V ±10% unit in tape-and-reel format. This hierarchical naming supports efficient BOM management and simplifies substitutions while maintaining consistent electrical behavior across the subfamily.
Can the EZJ-PZV6R8GA effectively protect against inductive kickback from relay coils or motor drivers in power supply circuits?
While the EZJ-PZV6R8GA can clamp voltage spikes, its primary role is overvoltage protection rather than energy absorption from large inductive transients. Relay or motor-induced flyback typically involves higher energies and slower rise times than what this device is optimized for. In such scenarios, parallel combinations with fast-acting diodes or dedicated snubber networks are more effective, and using the EZJ-PZV6R8GA alone may result in insufficient suppression or device failure.
Does the RoHS3 compliance status of the EZJ-PZV6R8GA guarantee full regulatory acceptance in global markets including the EU, China, and North America?
Yes, RoHS3 compliance ensures the absence of restricted substances like lead, mercury, cadmium, and certain phthalates, satisfying environmental regulations across major jurisdictions. However, market-specific certifications such as REACH SVHC declarations or China RoHS labeling may still require additional documentation depending on import requirements. Compliance alone does not cover safety standards like UL or IEC, which are separate from chemical restrictions.
How does the energy handling capability of the EZJ-PZV6R8GA compare to larger form-factor varistors when subjected to repeated surge events?
Although the datasheet does not specify energy absorption values for the EZJ-PZV6R8GA, physical constraints of the 0201 package limit its ability to dissipate heat from high-energy surges compared to larger devices like 0402 or 0603 varistors. Under repeated transient stress, cumulative thermal cycling may reduce reliability. Therefore, in applications expecting frequent or high-energy transients, larger packages with better thermal mass should be considered despite increased board space requirements.
What precautions should be taken during reflow soldering when mounting the EZJ-PZV6R8GA on a high-temperature PCB laminate?
The EZJ-PZV6R8GA is designed for standard lead-free reflow profiles, typically peaking around 240–260°C. Exceeding these temperatures or prolonging dwell above 30 seconds can compromise the internal structure of the ceramic-based varistor, leading to parametric drift or catastrophic failure. Engineers should verify compatibility with their specific PCB materials and ensure flux chemistry minimizes residue, especially given the small pad geometry of the 0201 footprint.
Is it feasible to use multiple EZJ-PZV6R8GA units in parallel for enhanced surge current handling in critical protection circuits?
Technically possible, but generally not recommended due to mismatch risks between individual varistors. Even minor variations in threshold voltage or response time can cause uneven current sharing, potentially overstressing one device. Parallel configurations require careful derating and testing under real-world surge conditions. Instead, designers are advised to select a single varistor with adequate current margin or opt for discrete TVS solutions engineered for parallel operation.

Parts with Similar Specifications

The three parts on the right have similar specifications to Panasonic Electronic Components EZJ-PZV6R8GA

Product Attribute EZJ-PZV6R8JA EZJ-PZV080GA EZJ-PZV120GA EZJ-PZV270RA
Part Number EZJ-PZV6R8JA EZJ-PZV080GA EZJ-PZV120GA EZJ-PZV270RA
Manufacturer Panasonic Panasonic Electronic Components Panasonic Panasonic Electronic Components
Series - - - -
Base Product Number - DAC34H84 MAX500 ADS62P42
Package - Tape & Reel (TR) Tube Tape & Reel (TR)
Package / Case - 196-LFBGA 16-DIP (0.300', 7.62mm) 64-VFQFN Exposed Pad
Current - Surge - - - -
Varistor Voltage (Typ) - - - -
Number of Circuits - - - -
Energy - - - -
Mounting Type - Surface Mount Through Hole Surface Mount
Maximum DC Volts - - - -
Capacitance @ Frequency - - - -
Operating Temperature - -40°C ~ 85°C 0°C ~ 70°C -40°C ~ 85°C
