Manufacturer Part Number

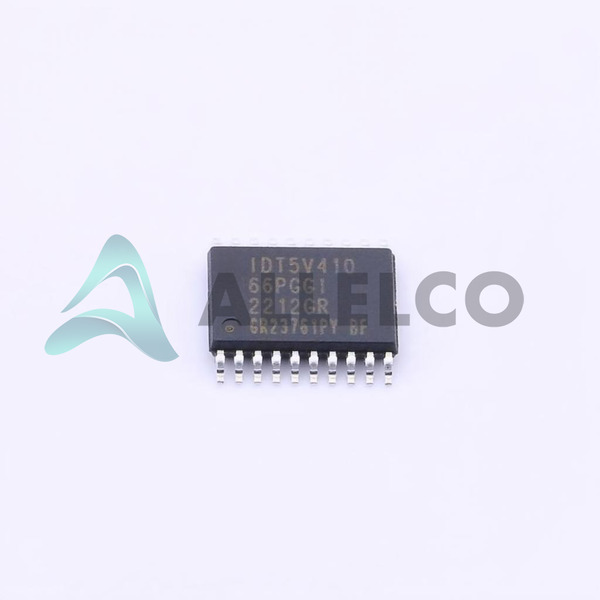

5V41066PGGI8
Manufacturer
renesas-electronics-america
Introduction
The 5V41066PGGI8 is a clock/timing application-specific product designed for precision clock generation and distribution. It supports Ethernet and PCI Express (PCIe) applications, reflecting its versatility in modern digital systems.
Product Features and Performance
Integrated Phase-Locked Loop (PLL) for stable clock multiplication
Supports both Ethernet and PCI Express (PCIe) main purposes
Accepts Clock and Crystal inputs for flexible source selection
Provides HCSL and LVDS outputs, suitable for high-speed digital interfaces
Capable of outputting clock signals up to 200MHz
Operates over a wide voltage supply range from 3.135V to 3.465V
Ensures reliable performance from -40°C to 85°C operating temperature
Product Advantages
High signal integrity with low jitter performance
Dual output types (HCSL and LVDS) enhance compatibility with different systems
Flexible input options support varied design requirements
Wide temperature and voltage range accommodate demanding environments
Compact 20-TSSOP package saves board space
Key Technical Parameters
Ratio Input:Output: 1:4
Differential Input:Output: No/Yes
Frequency Max: 200MHz
Voltage Supply Range: 3.135V ~ 3.465V
Operating Temperature Range: -40°C ~ 85°C
Package / Case: 20-TSSOP
Quality and Safety Features
Manufactured by renesas-electronics-america, a renowned entity in electronic components for reliability
Complies with industry-standard specifications for safety and performance
Compatibility
Compatible with Ethernet and PCI Express (PCIe) applications
HCSL and LVDS output compatibility with a broad range of digital interfaces
Application Areas
Network infrastructure (Ethernet)
High-speed data transfer systems (PCI Express)
Computing and data storage systems
Communication equipment
Product Lifecycle
Currently active, with no immediate indication of discontinuation
Future replacements or upgrades will adhere to compatibility standards
Several Key Reasons to Choose This Product
Versatile application scope, especially in high-speed networking and data interfaces
Reliable manufacturer with a proven track record in clock/timing solutions
High performance with integrated PLL and dual output modes
Flexibility in design with multiple input and output configurations
Robust quality and safety features ensuring long-term reliability
