HomeProductsDiscrete Semiconductor ProductsTransistors - Bipolar (BJT) - SingleTIP42C

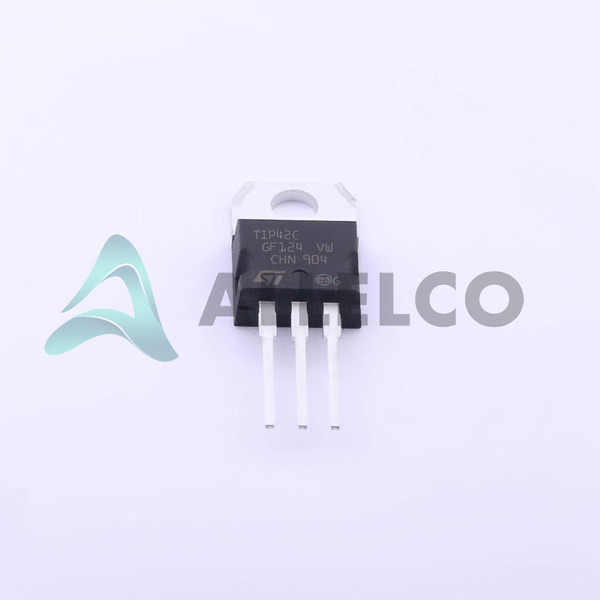

TIP42C Image
TIP42C Image - 1TIP42C Image - 2TIP42C Image - 3TIP42C Image - 4TIP42C Image - 5TIP42C Image - 6
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

TIP42C - STMicroelectronics

Manufacturer Part Number
TIP42C
Manufacturer
STMicroelectronics
Allelco Part Number
32D-TIP42C
Warranty
1 Year Allelco Warranty - Find out more
Parts Description
TRANS PNP 100V 6A TO220
Package
TO-220
Data sheet
1.TIP42C.pdf ...

Datasheets

TIP4(1,2)C.pdf

PCN Obsolescence/ EOL

Multiple Devicese 06/Mar/2014.pdf
RoHs Status
ROHS3 Compliant
Compare
Our certification
In stock: 117440
  • Unit Price: $0.158
  • Subtotal: $0.00

Want a better price?
Add to Cart and Submit RFQ now, we'll contact you immediately.

Quantity Unit Price Ext. Price
5+ $0.158 $0.79
50+ $0.124 $6.20
150+ $0.111 $16.65
500+ $0.095 $47.50
2000+ $0.088 $176.00
5000+ $0.084 $420.00
The above prices does not include taxes and freight rates, which will be calculated on the order pages.
EXPRESS OPTION
Payment method
Our certification

Specifications

TIP42C Tech Specifications
STMicroelectronics - TIP42C technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics - TIP42C

Product Attribute Attribute Value
Manufacturer STMicroelectronics
Voltage - Collector Emitter Breakdown (Max) 100 V
Vce Saturation (Max) @ Ib, Ic 1.5V @ 600mA, 6A
Transistor Type PNP
Supplier Device Package TO-220
Series -
Power - Max 65 W
Package / Case TO-220-3
Product Attribute Attribute Value
Package Tube
Operating Temperature 150°C (TJ)
Mounting Type Through Hole
Frequency - Transition -
DC Current Gain (hFE) (Min) @ Ic, Vce 15 @ 3A, 4V
Current - Collector Cutoff (Max) 700µA
Current - Collector (Ic) (Max) 6 A
Base Product Number TIP42

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99

Parts with Similar Specifications

The three parts on the right have similar specifications to STMicroelectronics TIP42C

Product Attribute TIP42C 0805ZG684ZAT2A
Part Number TIP42C 0805ZG684ZAT2A
Manufacturer STMicroelectronics KYOCERA AVX
Operating Temperature 150°C (TJ) -30°C ~ 85°C
Mounting Type Through Hole Surface Mount, MLCC
Current - Collector (Ic) (Max) 6 A -
Voltage - Collector Emitter Breakdown (Max) 100 V -
Transistor Type PNP -
Frequency - Transition - -
Base Product Number TIP42 -
Series - -
Supplier Device Package TO-220 -
Power - Max 65 W -
Package Tube Tape & Reel (TR)
DC Current Gain (hFE) (Min) @ Ic, Vce 15 @ 3A, 4V -
Current - Collector Cutoff (Max) 700µA -
Vce Saturation (Max) @ Ib, Ic 1.5V @ 600mA, 6A -
Package / Case TO-220-3 0805 (2012 Metric)

TIP42C Datasheet PDF

Download TIP42C pdf datasheets and STMicroelectronics documentation for TIP42C - STMicroelectronics.

Datasheets
TIP4(1,2)C.pdf
PCN Obsolescence/ EOL
Multiple Devicese 06/Mar/2014.pdf
PCN Design/Specification
Mult Dev Adv Material Notice 8/Apr/2019.pdf
PCN Assembly/Origin
TO-220 Capacity Expansion 18/Jun/2013.pdf
