HomeProductsIntegrated Circuits (ICs)PMIC - Voltage Regulators - LinearPQ20WZ1UJ00H

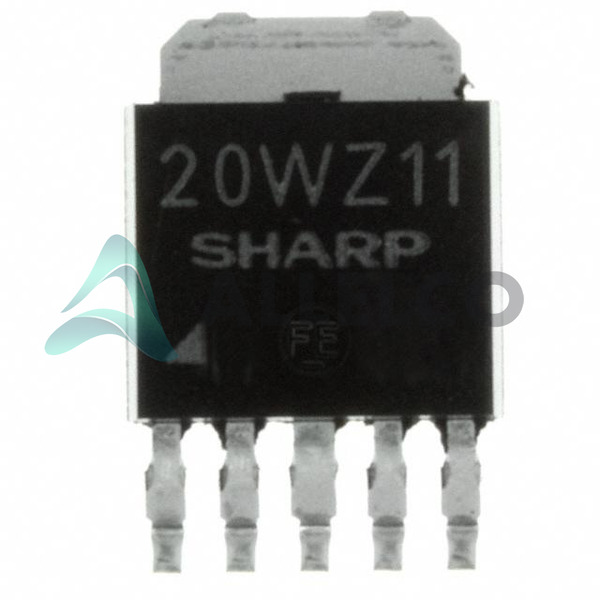

PQ20WZ1UJ00H Image
PQ20WZ1UJ00H Image - 1
Image may be representation.
See specifications for product details.
Share
 Favorite
EXPRESS OPTION
Payment method

PQ20WZ1UJ00H - Sharp Microelectronics

Manufacturer Part Number
PQ20WZ1UJ00H
Manufacturer
Sharp Microelectronics
Allelco Part Number
32D-PQ20WZ1UJ00H
Warranty
1 Year Allelco Warranty - Find out more
Stock Status:
7,330 pcs available, New & Original
Parts Description
IC REG LINEAR POS ADJ 1A SC63
Package
SC-63
Data sheet
PQ20WZ1UJ00H.pdf
RoHs Status
Lead free / RoHS Compliant
Compare
Our certification
In stock: 7330

Required fields are indicated by an asterisk (*)
Please send RFQ, we will respond immediately.

Quantity

Specifications

PQ20WZ1UJ00H Tech Specifications
Sharp Microelectronics - PQ20WZ1UJ00H technical specifications, attributes, parameters and parts with similar specifications to Sharp Microelectronics - PQ20WZ1UJ00H

Product Attribute Attribute Value
Manufacturer Sharp Microelectronics
Voltage Dropout (Max) 0.5V @ 500mA
Voltage - Output (Min/Fixed) 3V
Voltage - Output (Max) 20V
Voltage - Input (Max) 24V
Supplier Device Package SC-63
Series -
Protection Features Over Current, Over Temperature
Packaging Tape & Reel (TR)
Package / Case TO-252-6, DPak (5 Leads + Tab)
PSRR 60dB (120Hz)
Product Attribute Attribute Value
Output Type Adjustable
Output Configuration Positive
Other Names 425-2338-2
Operating Temperature -20°C ~ 80°C
Number of Regulators 1
Mounting Type Surface Mount
Lead Free Status / RoHS Status Lead free / RoHS Compliant
Detailed Description Linear Voltage Regulator IC Positive Adjustable 1 Output 3 V ~ 20 V 1A SC-63
Current - Quiescent (Iq) 8mA
Current - Output 1A
Control Features Enable

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
RoHs Status Lead free / RoHS Compliant
