1N4733A Zener Diode: Working, Pinout, and Datasheet

This guide explores the features and uses of the 1N4733A Zener diode, a component in modern electronics known for its reliable voltage regulation. It covers the diode’s working principles, how to use it in circuits, and its role in maintaining steady voltage in various setups.

Catalog

Overview of the 1N4733A Zener Diode

The 1N4733A diode stands out for its robust power handling and precision in voltage regulation, with a power rating of 1 Watt and a Zener voltage of 5.1V. This diode is a staple in electrical engineering, employed extensively in voltage stabilization and clipping circuits. It is valued for its low reverse leakage current, providing steady voltage levels. These qualities make it highly beneficial for converters and power supply circuits, improving their operational performance and dependability. In electronics, the diode's capability to conduct current in both forward and reverse directions distinguishes it from typical diodes. This functionality aids in voltage regulation, ensuring a stable output even with fluctuating input levels, maintaining effectiveness during breakdown scenarios. Such a feature is advantageous for complex circuit designs that demand stability. The durable construction, featuring a heavily doped PN junction encased in protective glass, allows the diode to handle a voltage spectrum of 3.3 to 91 V. This not only enhances its resilience amid varying environmental conditions but also ensures prolonged circuit life by providing a dependable reference voltage. The reliability of the diode is evident from its construction. It includes a dual slug design that resists corrosion and features easily soldered terminals, ensuring sturdy connections in circuits.

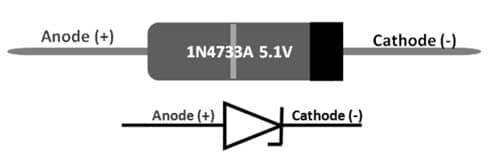

1N4733A Pin Configuration

Pin No.	Pin Name	Description
1	Anode	Current flows into this terminal.
2	Cathode	Current flows out from this terminal.

1N4733A Features and Specifications

Feature/Specification	Details
Nominal Zener Voltage (VZ)	5.1 Volts
Power Dissipation (PZ)	1.0 Watts
Zener Regulator Current (IZm)	178 mAmps
Package Type	DO-41 (Through Hole)
Nominal Voltage	5.1 Volts
Tolerance	±5%
Storage Temperature Range	-65°C to 175°C
Weight	0.35 grams
Special Features	High reliability, sharp reverse characteristics.

How does 1n4733A Works?

The 1n4733A Zener diode is designed to regulate voltage by behaving differently from standard diodes in reverse bias. In forward bias, it allows current to flow with a small voltage drop (around 0.3 to 0.7 volts), similar to regular diodes. However, under reverse bias, it exhibits a unique behavior. Once the reverse voltage reaches its breakdown point, approximately 5.5 volts, the diode starts conducting current. This controlled breakdown enables the diode to maintain a stable output voltage, even if the input voltage or circuit load fluctuates.

This voltage regulation is achieved through two processes: the Zener breakdown and the avalanche effect. At lower voltages, the Zener breakdown dominates, with a negative temperature coefficient, meaning the breakdown voltage decreases as temperature rises. At higher voltages, the avalanche effect takes over with a positive temperature coefficient, where the breakdown voltage increases with temperature. In the 1n4733A, these two effects balance out, ensuring consistent performance across a range of temperatures. This makes the diode a reliable choice for circuits that require steady voltage regulation, particularly in environments with variable conditions.

Developing an AC Voltmeter with Arduino Uno

Designing an AC voltmeter using an Arduino Uno serves as an engaging entry into the world of microcontroller applications for measuring AC voltages. This project is enriched with various components such as a 330-ohm resistor, a 10k-ohm potentiometer, a selection of resistors and capacitors, diodes like the 1N4733A Zener, and a practical breadboard that facilitates assembly. The circuit handles input voltages 110V, 220V, 380V by utilizing a voltage divider, aligning them comfortably with Arduino’s 5V range. The 1N4733A Zener diode offers protection, shielding the circuit from voltages above 5.1 volts. Displaying the measured values is achieved through an LCD screen, which enhances the visibility and comprehension of results. The accompanying Arduino program cleverly incorporates the division of peak AC voltages by √2 to calculate RMS values, a thoughtful aspect reflecting everyday scenarios where attention is often required.

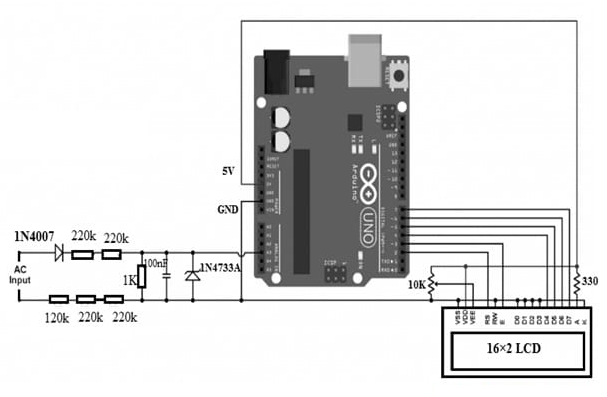

AC Voltmeter with Arduino Board

Crafting the Arduino Program

The Arduino code assumes a dynamic role in the system by persistently tracking RMS voltage via the evaluation of peak half-wave measurements. Leveraging the internal reference voltage, the code provides a more interpretation of the sine wave voltage, facilitating a higher degree of accuracy. This process demonstrates the adeptness of microcontroller programming in engineering precise and dependable measurement instruments for the field of electrical engineering.

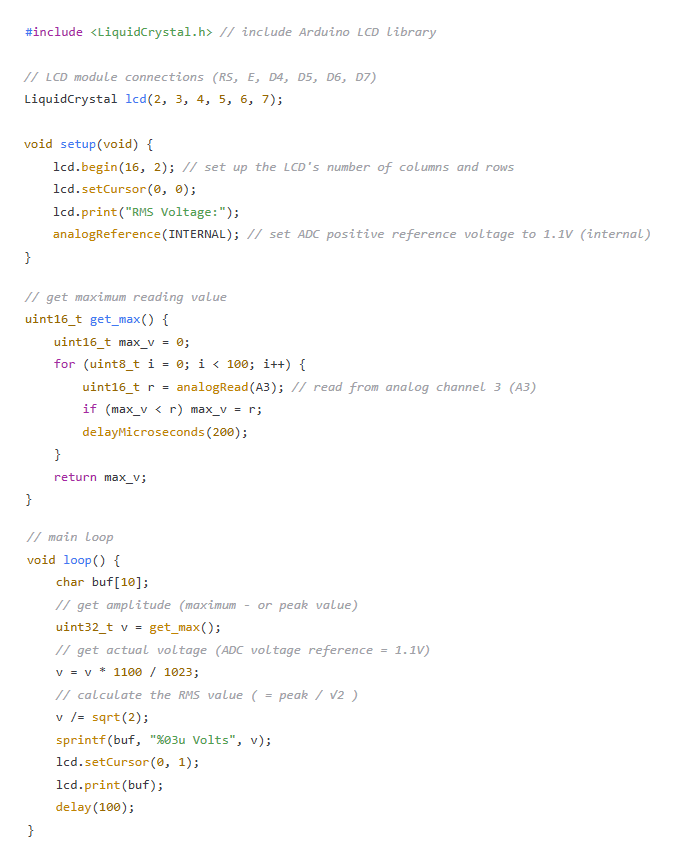

Arduino Code

Applications of the 1N4733A Zener Diode

Voltage Protection Functions

In voltage protection applications, the 1N4733A serves to shield delicate components, clamping down on excess voltage with precision, preserving circuit functionality. This diode limits maximum voltage skillfully, adeptly responding to transient conditions that might otherwise result in disruptive component failures.

Voltage Regulation for Compact Systems

For smaller circuits found in portable gadgets, the 1N4733A ensures a stable output voltage. It quietly supports the consistent performance necessary amidst varying input conditions, demonstrating its relevance in scenarios where constant voltage is a lifeline for device longevity and sustained function.

Waveform Clipping Applications

When paired in series with other diodes, the 1N4733A conducts waveform clipping, aspect of signal distortion management. This application holds great value in communication devices where retaining signal purity is a great concern.

Safeguarding Microcontrollers or ICs

The 1N4733A offers proactive input voltage protection for microcontrollers or integrated circuits, preventing over-voltage conditions that could endanger these components. It provides a cost-effective means to bolster the reliability of designs in sensitive electronic systems.

Voltage Stability in Irregular Conditions

Stability assured by the 1N4733A proves in circuits prone to power disturbances or electromagnetic interference, maintaining steady output voltage and playing a part in averting potential performance decline.

Limiting Circuit Damage from Voltage Surges

Preventive strategies against high voltage surges are integral in upholding the well-being of electronic circuits. The integration of the 1N4733A diminishes the risk of harm from unexpected high voltage spikes, contributing to the endurance of electronic designs in practice.

Voltage Shifting for Variable Outputs

The 1N4733A facilitates effective voltage shifting for output modifications, smoothing transitions across various output stages. This function supports flexible circuit configurations where versatility is advantageous.

Datasheet PDF

1N4733A Datasheets:

1N4728A - 1N4764A.pdf

SMC Diodes REACH 205.pdf

SMC Diodes RoHS.pdf

Mult Dev EOL 17/Jan/2019.pdf

OBS Mult Devices 01/Jul/2019.pdf
