A Guide to TIP41C Transistor Biasing and Heat Management

The TIP41C is a power transistor that’s widely used in electronic circuits for its ability to handle high currents and voltages. As a member of the NPN bipolar junction transistor family, it’s commonly found in power control systems, audio amplifiers, and voltage regulators. This article will explore the key features, operating principles, and various applications of the TIP41C, providing a clear understanding of how it enhances the performance of electronic devices.

Catalog

Introduction of TIP41C

The TIP41C power transistor is a versatile semiconductor device that performs well in power applications due to its sturdy build and efficiency. As a member of the NPN bipolar junction transistor family, it’s often used in power control systems, voltage regulators, and amplifier circuits.

In power control, the TIP41C helps manage switching and linear applications. When used in switching regulators, it efficiently controls energy conversion, reducing energy loss and enhancing system efficiency. This feature is especially useful in systems where conserving energy is a priority. Additionally, the durability of the TIP41C means fewer replacements and less maintenance, contributing to long-term stability and lower operational costs. Its design ensures it can handle high currents without overheating, emphasizing its reliable performance and longevity.

When it comes to voltage regulation, the TIP41C maintains a stable output voltage even when the input voltage or load conditions change. Its ability to regulate high currents is invaluable for devices that rely on a stable power supply, such as computers and communication systems. This capability prevents damage to sensitive components, ensuring smooth operation and optimal performance in complex electronic setups.

In amplifier circuits, the TIP41C boosts signal strength and clarity, making it ideal for audio systems and communication devices. Its low noise and high gain characteristics contribute to superior sound quality and signal fidelity. Whether used in professional audio equipment or personal electronics, the TIP41C delivers clear audio amplification with minimal distortion, meeting the demands of both performance and user satisfaction.

With a high collector current capacity of up to 6A, a collector-emitter breakdown voltage of 100V, and a transition frequency of 3 MHz, the TIP41C is well-suited for high-power applications. Its reliability minimizes the need for frequent replacements and maintenance, offering peace of mind and cost-efficiency over time.

Specifications

Specification	Description
Type	NPN Bipolar Junction Transistor (BJT)
Package Type	TO-220 (Through-Hole)
Collector-Emitter Voltage (VCEO)	100V
Collector-Base Voltage (VCBO)	100V
Emitter-Base Voltage (VEBO)	5V
Collector Current (IC)	6A continuous (maximum)
Power Dissipation (Ptot)	65W
DC Current Gain (hFE)	Typically around 15 to 75 (depends on collector current and other conditions)
Transition Frequency (ft)	Around 3 MHz

TIP41C Pin Configuration

Operating Principle

How the TIP41C Power Transistor Operates

The TIP41C transistor operates by controlling current flow between its three terminals: the collector, base, and emitter. A small current entering the base terminal allows a larger current to pass from the collector to the emitter. This relationship enables the transistor to either amplify an input signal or act as a switch, depending on how it’s used in a circuit.

When configured as an amplifier, the TIP41C increases the amplitude of weak input signals, making it essential for applications like audio amplification. In switching applications, the transistor behaves like an on/off switch, where a base current determines whether the larger current can flow through the collector-emitter path. This feature is particularly useful in automated systems that need precise control of electrical devices.

Understanding the Role of the TIP41C in Electronic Circuits

The TIP41C’s versatility makes it suitable for various functions in electronic circuits. In voltage regulation circuits, it helps maintain a stable output voltage by minimizing fluctuations, which is crucial for the consistent performance of sensitive devices. For instance, in voltage stabilizers, the TIP41C works with other components to provide a steady voltage, similar to how a pressure valve maintains consistent water pressure.

In switching applications, the transistor's ability to control large currents with a small base current is essential for turning devices on or off with high precision. This characteristic is commonly used in automation, where precise control is needed to manage motors, relays, or other components.

In amplification tasks, the TIP41C boosts weak signals, ensuring that even low-level inputs can be increased to a usable level without losing signal integrity. This makes it indispensable in audio circuits, where it helps deliver clear and powerful sound output. Proper usage requires understanding its thermal limits and ensuring adequate heat dissipation, just as maintaining engine temperature is vital for a car’s performance.

Diverse Applications of the TIP41C Transistor

The TIP41C transistor is widely used in various electronic circuits that involve switching operations or medium to high-power regulation. Its versatility makes it a reliable choice across different applications and industries.

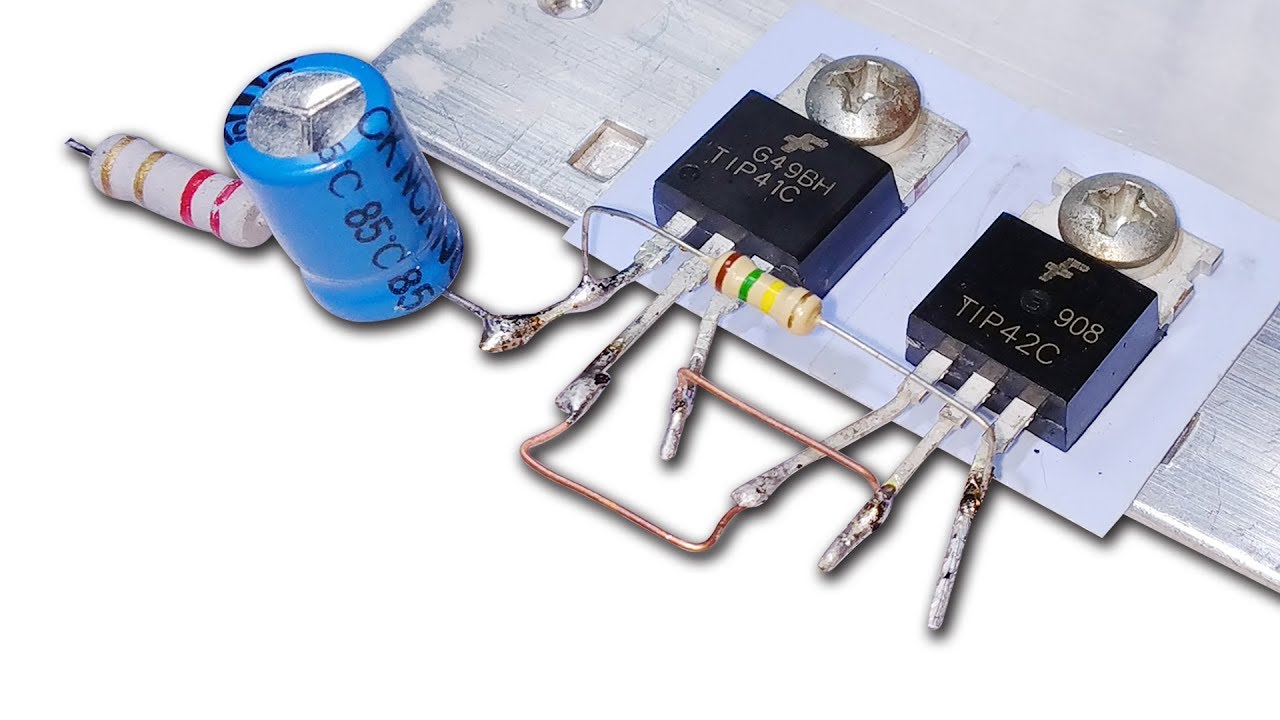

Audio Amplifiers

The TIP41C transistor is frequently used in audio amplifier circuits to enhance sound quality. It boosts weak audio signals to produce a clear and powerful sound output for speakers and other audio equipment. For optimal performance and longevity, it's important to ensure proper biasing and effective thermal management to prevent overheating.

Power Supplies

In power supply designs, the TIP41C helps regulate current and maintain stable voltage levels. This stability is especially valuable for sensitive electronic devices. Designing such circuits requires attention to factors like load regulation and heat dissipation to maintain consistent performance and reliability over time.

Switching Circuits

The TIP41C is highly effective in switching circuits such as relay drivers and motor controllers. Its high current capacity and low saturation voltage enable efficient switching with minimal power loss, making it ideal for applications in automation and control systems where performance and energy efficiency are important.

Voltage Regulators

The TIP41C plays a key role in voltage regulator circuits by stabilizing voltage levels across various electronic components. This stability not only safeguards components but also extends their lifespan. Including features like thermal cutoffs and protective circuitry can further enhance reliability and prevent damage from overstress.

LED Drivers

In LED driver circuits, the TIP41C controls current flow to ensure consistent brightness and prevent LED damage. Its efficiency supports the creation of energy-saving lighting solutions, making it a valuable component in eco-friendly lighting designs that aim to be both cost-effective and sustainable.

Inverter Circuits

In inverter circuits, the TIP41C helps convert DC power to AC power, which is crucial for motor drives and uninterruptible power supply (UPS) systems. Its capability to handle high power loads and maintain efficiency under varying conditions makes it essential in these applications, ensuring dependable performance.

Battery Chargers

The TIP41C is commonly used in battery charging systems to manage charging voltage and current. This helps prevent overcharging and thermal runaway, extending battery life. Implementing the TIP41C in these circuits requires careful attention to charge control algorithms and thermal management strategies.

Voltage and Current Amplification

The TIP41C is suitable for voltage and current amplification in signal measurement and control systems. Its ability to amplify weak signals with precision makes it invaluable in applications that demand stability and accuracy. Proper biasing and load management are critical to achieving optimal performance in these circuits.

Advantages and Disadvantages

Advantages

High Power Handling: With the capability to manage up to 6A continuous current and dissipate 65W of power, these components are highly suited for tasks involving power amplification and switching. They have consistently demonstrated their reliability in various real-world scenarios, successfully managing significant electrical loads. This attribute makes them particularly useful in applications where stable performance under heavy loads is a concern.

Robust Construction: Designed to withstand high currents and voltages, these components promise long-term reliability and durability. Their resilience is often showcased in industrial environments where equipment must consistently perform under stressful conditions. This durability assures users of dependable operation over extended periods.

Broad Versatility: These components find use in multiple applications, such as voltage regulation, power supplies, and audio amplification. This wide range of utility highlights their adaptability and efficacy across different domains, from consumer electronics to industrial automation. Their flexibility ensures they can be effectively employed in diverse projects.

Market Availability: These components are widely manufactured and easily accessible, streamlining the procurement process. Their availability ensures that they can support continuous production cycles across various industries, making them a convenient choice for manufacturers.

Economic Efficiency: Their affordable pricing paired with strong performance presents them as a cost-efficient option for numerous applications. In the context of large-scale manufacturing, this balance can be particularly beneficial, where managing costs while achieving high performance is often a challenging task.

Disadvantages

High Saturation Voltage: A noted drawback is the high saturation voltage, which can result in increased power dissipation and diminished efficiency in certain applications. This characteristic can affect overall performance, particularly in scenarios where energy efficiency is paramount.

Heat Generation: These components can generate substantial heat, requiring effective cooling solutions. Practical experience has shown that without proper thermal management, such as the integration of heat sinks or other cooling mechanisms, thermal buildup can impede performance and longevity.

Frequency Limitations: With performance effectively capped at 3 MHz, their use in high-frequency applications is limited. This restriction can complicate the design of high-speed circuits, often necessitating alternative components that can operate at higher frequencies.

Bulky Package Size: The relatively large TO-220 package is a disadvantage compared to more compact surface-mount alternatives. In modern electronics design, where space efficiency can be vital, this bulk can pose significant challenges.

Unsuitability for Low-Power Applications: These components are less viable for low-power applications. In scenarios where minimal power consumption is crucial, alternative solutions specifically designed for low-power use are generally more appropriate, ensuring better efficiency and compatibility with low-power requirements.

Practical Considerations

When working with TIP41C transistors, it’s important to carefully manage biasing and configuration. You’ll need to adjust the base current and voltage levels with precision while selecting appropriate resistance values for feedback and bias circuits. A common emitter setup is particularly effective, as it provides better stability and maintains linearity throughout the operation. Theoretical calculations help establish a strong foundation, but empirical adjustments are what truly fine-tune the circuit to achieve peak efficiency.

Managing heat is a priority, especially in high-power applications. Proper ventilation, along with the use of heat sinks and thermal compounds, helps dissipate heat efficiently. To ensure safety, continuous monitoring using devices like thermocouples can keep track of temperature changes. Testing the circuit under varying loads can reveal how heat is distributed and help prevent thermal hotspots. Addressing these hotspots is necessary to avoid issues like thermal runaway, which can impact the performance and longevity of your transistors.

When choosing components, focus on quality and compatibility with the TIP41C transistors. Pay close attention to voltage and current ratings and consider the Equivalent Series Resistance (ESR) for each component. Proper component placement and minimizing wire length can reduce noise and improve circuit stability. After assembly, thorough testing can help identify and resolve any minor interference or inefficiencies, allowing you to refine the circuit for better reliability and performance.

Conclusion

The TIP41C is a reliable and versatile transistor, suitable for a range of applications like power control, amplification, and voltage regulation. Its strong current handling and durable design make it a popular choice for both consumer and industrial electronic projects. Whether you’re designing an audio amplifier or managing power in a circuit, the TIP41C delivers stability and performance.

DATASHEET PDF

TIP41C DATASHEET:

TIP41C.pdf

TIP41C.pdf

TIP41C.pdf

Frequently Asked Questions [FAQs]

1. What is the TIP41C transistor used for?

The TIP41C transistor is used for voltage regulation, switching operations, and power amplification. It is often applied in areas such as LED drivers, power supply circuits, and audio amplifiers. Its ability to handle high current and power levels makes it a flexible component for many electronic designs.

2. How can you identify a TIP41C transistor?

You can recognize the TIP41C transistor by its distinct TO-220 package, which usually has the "TIP41C" label along with the manufacturer’s logo. For more details, you can check the component’s datasheet or look at trusted online resources. Confirming these details ensures that the transistor fits your design needs.

3. What sets the TIP41C apart from other transistors in the TIP41 series?

The main differences between transistors in the TIP41 series are related to their voltage and current ratings. The TIP41C offers a higher maximum collector current and better power handling compared to TIP41A and TIP41B. This makes the TIP41C more suitable for projects that need better performance.

4. Where is the TIP41C transistor typically used?

The TIP41C transistor is used in various circuits, including audio amplifiers, power supplies, relay drivers, motor controllers, voltage regulators, LED drivers, and inverter circuits. Its efficiency and ability to handle high currents make it popular for both household electronics and industrial projects.

5. What are the best ways to mount and manage heat for the TIP41C transistor?

To keep it working well, it’s important to manage heat. The TIP41C should be mounted securely on a suitable heat sink and paired with thermal compound to improve heat transfer. This helps keep it stable, especially in high-power setups where heat buildup can be an issue.
