AD8542AR Dual Operational Amplifier Technical Overview

You get a clear look at the AD8542AR and how it fits into everyday analog circuits. This dual operational amplifier is built for low power use and works well with single supply voltages, making it easy to drop into compact designs. You can use it for sensor signals, portable devices, or simple filtering tasks without worrying about high current draw. With rail-to-rail input and output, you make better use of your supply range while keeping signals stable and predictable.

Catalog

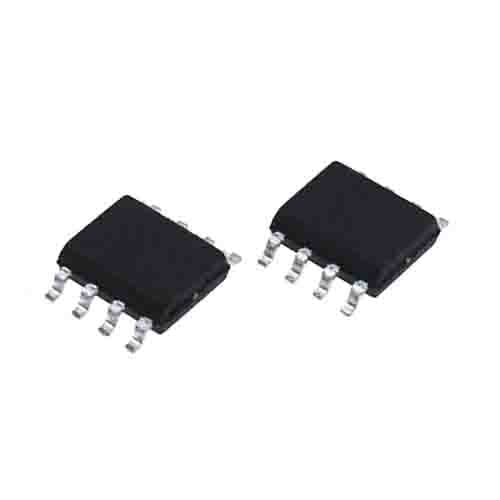

AD8542AR Overview

The AD8542AR is a dual general purpose operational amplifier built for low power operation and rail to rail input and output performance. It operates from a single supply and supports low voltage systems where efficient signal handling is required. The device provides stable amplification for small analog signals while maintaining consistent behavior across its operating range. Its dual channel design supports compact circuit layouts and reduces component count. Common uses include sensor signal conditioning, battery powered instruments, portable measurement devices, and basic analog processing stages. The part balances accuracy and power efficiency for everyday analog functions. Looking for AD8542AR? Contact us to check current stock, lead time, and pricing.

AD8542AR Pinout Details

AD8542AR Pin Description

Pin Number	Pin Name	Description
1	OUT A	Amplifier A output
2	−IN A	Amplifier A inverting input
3	+IN A	Amplifier A noninverting input
4	V−	Negative supply or ground
5	+IN B	Amplifier B noninverting input
6	−IN B	Amplifier B inverting input
7	OUT B	Amplifier B output
8	V+	Positive supply

AD8542AR CAD Model

AD8542AR Symbol

AD8542AR Footprint

AD8542AR 3D Model

Features of AD8542AR

Dual Channel Configuration

The AD8542AR contains two independent amplifier channels within one device. This allows a single component to handle paired analog signals, which helps reduce board space and simplifies circuit layout. Both channels operate with matched electrical behavior, supporting balanced and consistent signal processing.

Rail to Rail Input and Output Operation

Inputs and outputs can swing close to both supply levels. This allows better use of the available voltage range, especially in low voltage systems. Signals can be processed with minimal loss of dynamic range when operating from a single supply.

Low Power Operating Characteristics

The device draws very little supply current during normal operation. This supports longer battery life and lower overall power demand. It is well suited for systems that remain active for extended periods.

Low Input Offset Voltage

A small input offset voltage helps maintain accuracy when amplifying low level signals. This reduces unwanted voltage error at the output. Stable offset behavior supports repeatable measurements.

Extremely Low Input Bias Current

The input stage draws only a very small amount of current. This minimizes interaction with high impedance signal sources. It helps preserve signal integrity in sensitive input paths.

General Purpose Gain Bandwidth

The gain bandwidth supports common analog signal frequencies used in sensing and control circuits. It provides steady amplification without excessive signal distortion. This makes the device suitable for a wide range of everyday analog tasks.

Controlled Slew Rate Behavior

The slew rate allows smooth output transitions when the input signal changes. This supports stable signal tracking without abrupt edges. It helps maintain predictable time response.

Output Drive Capability

The output stage can source and sink moderate current levels. This allows direct connection to loads such as filters or converters. In many designs, no additional buffer stage is required.

Wide Single Supply Voltage Range

The amplifier operates across a broad range of supply voltages. This allows compatibility with different system power levels. It supports flexible integration into mixed voltage designs.

Extended Temperature Operation

The device is specified to operate over a wide temperature range. Electrical performance remains stable under varying thermal conditions. This supports use in industrial and outdoor environments.

AD8542AR Technical Specifications

Product Attribute	Attribute Value
Manufacturer	Analog Devices, Inc.
Voltage - Supply Span (Min)	2.7 V
Voltage - Supply Span (Max)	5.5 V
Voltage - Input Offset	1 mV
Gain Bandwidth Product	1 MHz
Slew Rate	0.92 V/µs
Output Type	Rail-to-Rail
Current - Supply	45 µA (x2 Channels)
Current - Output / Channel	30 mA
Current - Input Bias	4 pA
Operating Temperature	-40°C ~ 125°C
Number of Circuits	2
Mounting Type	Surface Mount
Supplier Device Package	8-SOIC
Package / Case	8-SOIC (0.154", 3.90mm Width)
Package	Tube
Base Product Number	AD8542

Application Circuit of AD8542AR

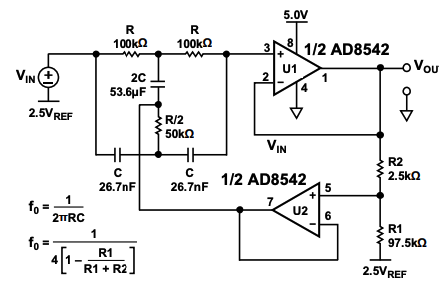

Active twin-T notch filter configured to reject 60 Hz interference using both channels of the AD8542 dual operational amplifier under single-supply operation. The circuit combines a passive twin-T network made of matched resistors and capacitors with an active amplifier stage to increase notch depth and control the quality factor, which is set to 10 through a defined resistor ratio. A 5.0 V supply is used with a 2.5 V reference to bias the signal path, allowing proper operation without a negative rail. One amplifier section processes the filtered signal while the second buffers the mid-supply reference, ensuring stable biasing. Component values are selected to establish the notch frequency according to the standard RC relationship, making the configuration suitable for suppressing power-line noise in low-frequency analog signal paths.

Applications of AD8542AR

Portable and Battery Powered Electronic Devices

The AD8542AR is commonly used in portable electronics where low supply voltage and low power operation are required. It supports stable signal amplification while drawing minimal current, which helps extend battery operating time. The rail to rail behavior allows signals to be processed accurately even as battery voltage changes.

Sensor Signal Conditioning Circuits

In sensor based systems, the AD8542AR is used to amplify, buffer, or scale low level signals before further processing. Its low input bias current helps avoid loading sensitive sensor outputs. This supports cleaner signal transfer from sensors such as temperature, pressure, or light sensing elements.

Low Power Instrumentation Systems

The device fits well in instrumentation that must remain active for long periods. It provides steady amplification while keeping power usage low. This makes it suitable for monitoring equipment where consistent signal behavior and efficiency are both required.

Consumer Electronics Analog Front End Circuits

The AD8542AR is used in analog front end stages to prepare signals for conversion or control blocks. It helps stabilize voltage levels and smooth signal transitions. This improves consistency in audio paths, user input circuits, and low speed analog interfaces.

Industrial Control and Monitoring Systems

In industrial systems, the amplifier supports signal conditioning for control feedback and monitoring paths. Its wide operating temperature range allows it to function reliably across changing environmental conditions. This supports predictable system behavior in long term operation.

General Purpose Amplification in Embedded Systems

The AD8542AR is often selected for general amplification tasks within embedded platforms. It can buffer signals between mixed analog and digital blocks. This flexibility allows it to support filtering, scaling, and isolation functions in compact designs.

Outline Dimensions of AD8542AR

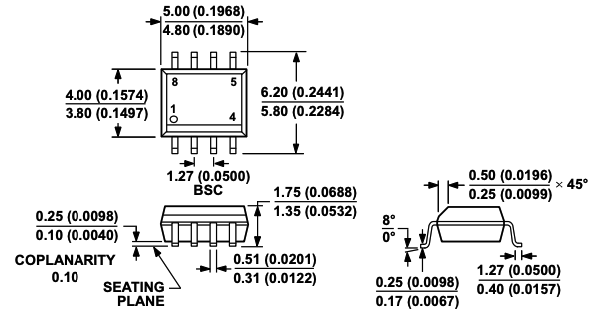

Compact surface-mount package defined by eight leads arranged symmetrically around a narrow rectangular body, with dimensions specified in millimeters and inch equivalents for reference. The layout shows a body width of approximately 3.80 to 4.00 mm and an overall length of about 4.80 to 5.00 mm, with a nominal lead pitch of 1.27 mm. Lead geometry includes defined lead width, thickness, and standoff height to ensure proper soldering and coplanarity, which is specified at 0.10 mm. The drawing identifies seating plane alignment, lead angles, and chamfer details, and notes compliance with JEDEC standard MS-012-AA, providing consistent mechanical compatibility for printed circuit board assembly.

Advantages and Disadvantages of AD8542AR

Advantages

• Dual channel design supports compact circuit layouts

• Low supply current supports energy efficient operation

• Rail to rail input and output allows better use of low supply voltages

• Very low input bias current suits high impedance signal sources

• Wide operating temperature range supports varied environments

• Stable behavior fits general purpose analog signal handling

Disadvantages

• Limited gain bandwidth restricts use in higher frequency signals

• Moderate slew rate limits response to rapid signal changes

• Supply voltage range does not support higher voltage systems

• General purpose design may not suit ultra low noise applications

AD8542AR Alternatives

Part Number	Manufacturer	Key Features	Use Case/Notes
AD8542ARM-REEL	Analog Devices, Inc.	Dual low-power operational amplifier with rail-to-rail output operation, low input bias current, and stable performance over a wide temperature range. Supplied in tape and reel packaging for automated assembly.	Well suited for battery-powered and space-limited designs that rely on automated surface-mount production, including portable instruments and sensor signal conditioning circuits.
AD8542AR-REEL7	Analog Devices, Inc.	Dual general-purpose op amp featuring rail-to-rail outputs, low quiescent current, and consistent electrical characteristics. Delivered in high-volume reel packaging.	Commonly used in high-volume manufacturing for analog signal processing tasks such as amplification, buffering, and conditioning in control and monitoring systems.
AD8542AR-REEL	Analog Devices, Inc.	Low-power dual operational amplifier with rail-to-rail output capability, moderate bandwidth, and low input bias current. Designed for surface-mount applications.	Appropriate for general analog circuits where low power consumption and compact surface-mount packaging are required, such as consumer electronics and embedded systems.

About Analog Devices, Inc.

Analog Devices, Inc. is a technology company focused on the design and production of analog, mixed signal, and digital signal components. Its product portfolio supports signal measurement, conversion, power control, and data handling across a wide range of electronic systems. The company serves markets such as industrial equipment, communications, healthcare devices, and consumer electronics. Its long operating history reflects a focus on stable performance, consistent quality, and long term product support. The company’s components are commonly used in systems that require reliable signal behavior under varying electrical and environmental conditions.

Conclusion

The AD8542AR offers a balanced mix of low power use, stable performance, and flexible signal handling. You can rely on its dual channel setup to save space and reduce extra parts in your circuit. Its rail-to-rail behavior helps you get more from low supply voltages without complex biasing. With low input bias current and offset voltage, it handles small signals cleanly. The device works well across a wide temperature range, making it dependable in many environments. Overall, it fits nicely into everyday analog designs where simplicity and efficiency matter.
