AT89S52-24PU Microcontroller: Features and How it Works?

In this article, we delve into the AT89S52-24PU’s architecture, pin configuration, and special functionalities, exploring how these elements combine to create a microcontroller that excels in a variety of applications. We will examine replacement options and alternatives, ensuring that you gain a comprehensive understanding of the AT89S52-24PU’s place in the broader landscape of microcontroller solutions.

Catalog

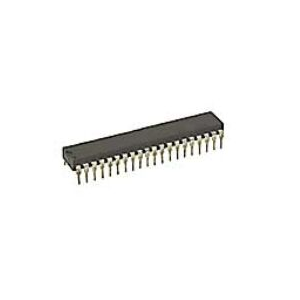

What is the AT89S52-24PU?

The AT89S52-24PU is a versatile 8-bit microcontroller celebrated for its efficiency and ability to operate at low voltages. It comes with 8K of in-system programmable flash memory. As part of the 80C51 series, it simplifies reprogramming via its on-chip FLASH, In-System Programming (ISP), and traditional programmers. The static logic design allows clock frequency adjustments to 0 Hz, enhancing flexibility with two power-saving modes.

In Idle mode, while the CPU pauses, peripheral functions continue seamlessly. In Power-down mode, RAM data is preserved, and all functions halt until an interrupt or hardware reset is triggered.

Replacement and Alternatives

• AT89S52-24PC

• STC89C52

• AT89S51

• AT89C52

• AT89S52-24PI

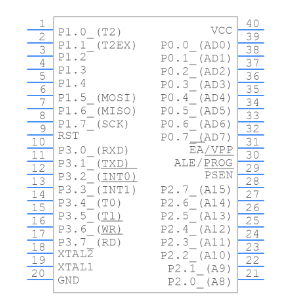

AT89S52-24PU Pin Configuration

 

The AT89S52-24PU microcontroller boasts a versatile arrangement with 40 pins, each designed for specific tasks. This setup helps to explore innovative applications within embedded systems.

For the microcontroller's smooth operation, a reliable power source is important. Pins 40 (VCC) and 20 (GND) handle power and ground duties, forming the bedrock of its performance. In practice, incorporating decoupling capacitors can help reduce power supply noise.

Port 0 (Pins 32-39): As both a data and lower-order address bus during memory and I/O tasks, this port requires a pull-up resistor when set as an input.

Port 1 (Pins 1-8): Primarily for I/O tasks, this port aligns with various peripherals, adding to the adaptability of the microcontroller.

Port 2 (Pins 21-28): Serving as both a higher-order address bus and a general I/O port, Port 2 is need for memory expansion beyond internal limits.

Port 3 (Pins 10-17): Known for its multifunctionality, Port 3 handles serial communication (RXD, TXD), interrupts (INT0, INT1), and timer control (T0, T1), enriching advanced processing capabilities.

RESET (Pin 9): This pin reboots the microcontroller with a high pulse, resetting all registers and setting the program counter to zero. The pulse's frequency and duration need careful control to ensure dependable operation.

Oscillator Pins (XTAL1, XTAL2 - Pins 18, 19): Integral to clock generation, these pins affect timing and execution speed. Choosing an appropriate crystal oscillator frequency shapes performance aspects like power use and processing speed.

AT89S52-24PU Specifications

Product Attribute	Attribute Value
Manufacturer	Microchip
Package / Case	PDIP-40
Packaging	Tube
Length	52.58 mm
Width	13.97 mm
Height	4.83 mm
Supply Voltage	4 V ~ 5.5 V
Operating Temperature	-40 °C ~ 85 °C
Program Memory Size	8 kB
Data RAM Size	256 B
Number of I/Os	32 I/O
Interface Type	UART
Maximum Clock Frequency	24 MHz
Mounting Style	Through Hole
Product Type	8-bit Microcontrollers - MCU

AT89S52-24PU Features

8-bit CPU and Programming Dynamics

The AT89S52-24PU microcontroller boasts a dynamic 8-bit CPU. Its rapid programming capabilities enhance operational efficiency across diverse applications, reflecting human desires for speed and optimization.

I/O Flexibility and Flash Memory

Equipped with 32 programmable I/O lines, it provides abundant flexibility for seamless interfacing with various devices. The flash memory supports online programming, enabling easier updates and modifications, akin to adapting to ever-changing needs without replacing hardware.

Voltage and Instruction Set

Operating voltages between 4.0V and 5.5V suit a broad range of electronic environments. The microcontroller aligns with the well-regarded MCS-51 instruction set, celebrated for its effectiveness and reliability in embedded systems.

Frequency, Power, and Efficiency

Supporting full static operations from 0 to 33 MHz allows to tailor power consumption and performance to specific needs, particularly in power-sensitive scenarios, addressing concern for resource management.

Interrupts, Memory, and Timers

With 8 interrupt sources, the microcontroller adeptly handles complex applications. It includes 256 bytes of on-chip RAM and three 16-bit timers/counters, which ensure precise timing and control, good for applications needing accuracy and reliability.

Energy Optimization and Practical Design

The inclusion of sleep modes optimizes energy usage for battery-powered devices, contributing to extended battery life, a nod to the propensity for sustainability.

Versatility

Balancing feature-rich design and system constraints, the AT89S52-24PU's adaptability broadens its appeal in educational, industrial, and consumer electronics. The microcontroller exemplifies thoughtful that effectively caters to diverse requirements.

Uses and Impact of AT89S52-24PU

The AT89S52-24PU microcontroller is utilized extensively across numerous fields, including embedded control systems, smart devices, and automation technologies. It features a flexible clock frequency and online programming that simplifies both updates and maintenance. It plays a role in electronic timers, automotive electronics, and data collection systems. Embedded system controllers, electronic display control, and communication interfaces benefit from its functionalities. It's instrumental in various automation equipment.

Armed with integrated timers, the AT89S52-24PU delivers accurate timing for applications like electronic timers and automotive ECUs. This precision is akin to how this meticulously adjust systems to achieve peak performance, acknowledging the value of timing for efficiency and reliability. Within both home and industrial landscapes, the microcontroller is use in collecting and analyzing sensor data to manage embedded systems. This mirrors use feedback to fine-tune systems, enhancing safety and optimizing energy use. The microcontroller’s capability to manage displays and enable serial communication facilitates smooth interfaces. It efficiently organizes robotic and assembly line operations, much like synchronize factory machinery for top-notch productivity and accuracy.

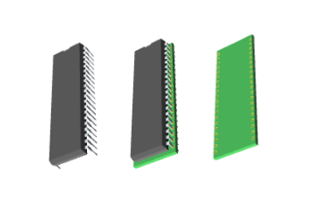

3D Model of AT89S52-24PU

The AT89S52-24PU microcontroller captures attention in embedded systems for its versatile 8-bit CPU capabilities. It's a staple in numerous electronics projects, due to its reliability and straightforward programmability.

Utilizing 3D models for components such as the AT89S52-24PU allows for visualization to prototyping. This process aids in minimizing expenses and avoiding potential assembly errors. With precise visualization, you can delve deeply into every detail of their designs, enhancing accuracy and refinement. 3D models elevate precision in PCB design, optimizing space and resource usage. Examining these models can lead to enhancements in production throughput. Once integrated into workflows, these insights are best for iterative design advancements.

Equipped with 8 KB of Flash memory and 256 bytes of RAM, the AT89S52-24PU offers solid support across diverse programming applications. Its versatility serves a wide array of uses, particularly in automation and control systems where efficiency is cherished. Modern electronics benefit from keen energy management. This microcontroller's low power consumption makes it a favorite for battery-operated applications.

Operational Process of the AT89S52 Microcontroller

Initialization and Reset Mechanism

When the AT89S52 receives power, it undergoes a series of initialization steps to prepare for smooth program execution. It starts by setting the RST pin high to reset the microcontroller. A stable reset process is needed for beginning from a known state and avoiding any unexpected behavior that might disrupt operations.

System Clock Configuration

The system clock is configured using an internal oscillator connected to a crystal, which stabilizes clock frequency and ensures timing precision. Pay careful attention to aligning the crystal oscillator’s specifications with their application's needs, striving for optimal performance.

Program Execution and Memory Management

Program execution commences with loading code and using the program counter to start processing instructions from memory. On-chip RAM and external memory interfaces play a role in data storage management. Focus on balancing on-chip and external memory usage to achieve greater efficiency and speed.

Data Input and Output Handling

The microcontroller expertly manages data inputs and outputs across various interfaces, facilitating interaction with external environments. Ports are designed to support a multitude of input/output functions. Successfully integrating with applications requires thoughtful interface design, ensuring dependable data handling and responsiveness.

External Environment Interaction

The AT89S52 enables effective communication with external peripherals, adapting to environmental changes. This flexibility suits applications from industrial automation to consumer electronics. Frequently look ahead, considering future integration potentials and scalability in planning. The AT89S52 microcontroller showcases flexibility and precision in diverse operational contexts, contingent on aligning the foundational setup with both hardware and application-specific requirements.

Datasheet PDF

AT89S52-24PU Datasheets:

AT89S52.pdf

Frequently Asked Questions [FAQ]

1. What advantages does the AT89S52 offer?

The AT89S52, harnessing Microchip's innovative nonvolatile memory, smoothly integrates with the prevalent 80C51 instruction set. Its built-in flash memory allows for hassle-free in-system updates, catering to the evolving needs of iterative development and dynamic product adjustments. This makes it an important tool to balance the tradition and modern functionality.

2. How is the AT89S52 microcontroller characterized?

This microcontroller harmonizes low power usage with high efficiency, boasting 8K bytes of flash memory based on Atmel's cutting-edge nonvolatile technology. This harmonious blend renders it fit for multiple applications where efficiency and dependability resonate deeply with user expectations for performance.

3. What is the pin count of the AT89S52 microcontroller?

Featuring a set of 40 pins, the microcontroller includes 32 GPIO pins, several timers, multiple interrupts, a serial port, and an on-chip oscillator with support circuitry. Such flexible pin architecture accommodates diverse design pathways, appealing to projects demanding sturdy interfacing solutions.

4. What roles can the AT89S52 microcontroller undertake?

This microcontroller is adaptable, overseeing a spectrum of digital control applications. Its operational modes, Operating, Idle, and Power-down, serve effectively in optimizing energy use. This is beneficial in battery-dependent devices where extending battery longevity aligns with power management goals.

5. What distinguishes the AT89C52 microcontroller?

Belonging to the 8051 lineup, the AT89C52 offers 8KB of programmable flash memory and 256 bytes of RAM. It exhibits notable resilience, enduring up to 1000 write/erase cycles, that enhances its suitability for rigorous applications. Its durability is appealing in long-term scenarios where strong performance bears importance.
