Accelerometer Guide: How It Works, Types, Specifications, and Uses

An accelerometer is a small sensor that helps you measure motion, vibration, tilt, and the effect of gravity. In this article, you will learn what an accelerometer is, how it detects acceleration using internal sensing elements, and the key specifications that define its performance. You will also explore the different types of accelerometers based on sensing technology, measurement axes, and output signals. Common applications and clear comparisons with other motion sensors are also covered.

Catalog

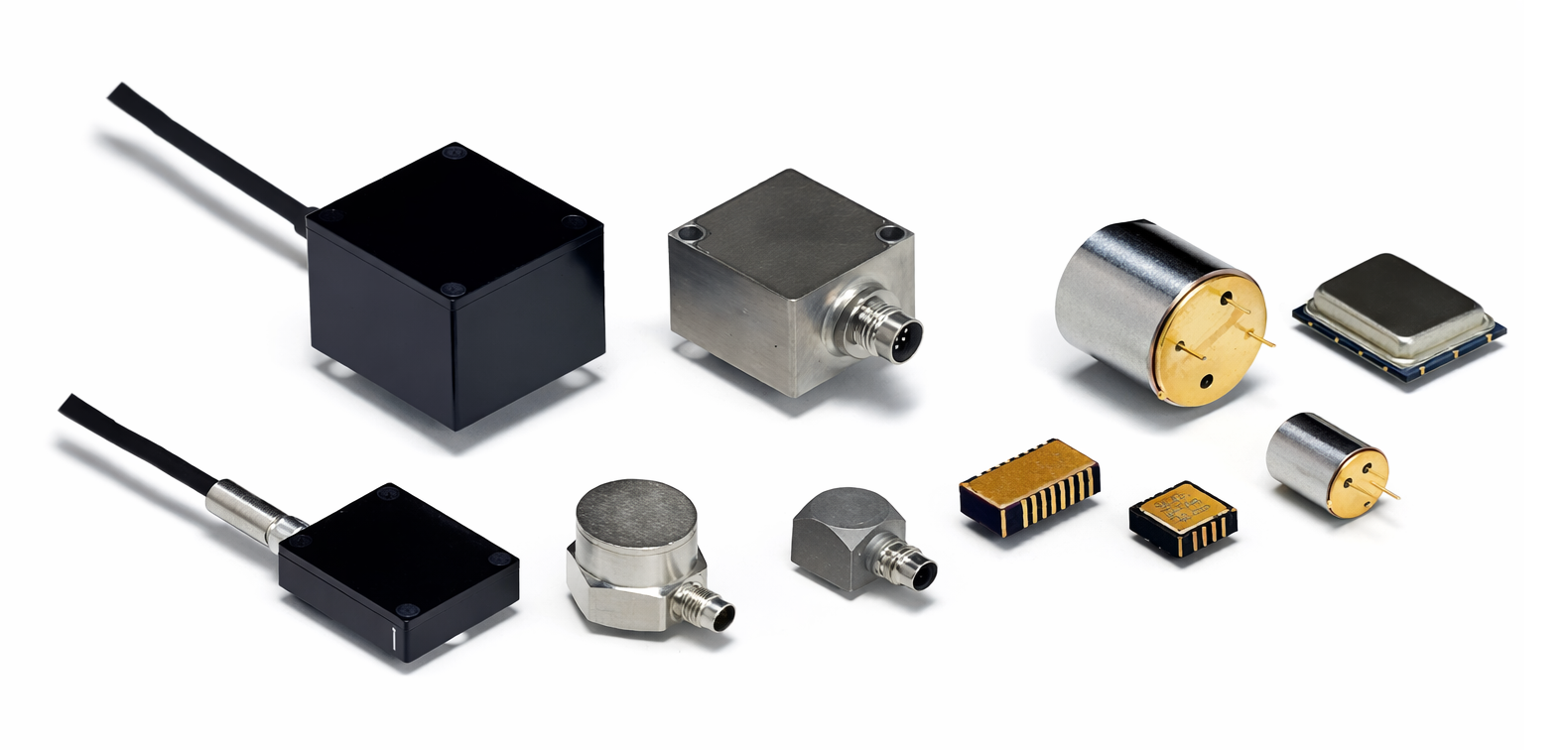

Figure 1. Accelerometers

What is an Accelerometer?

An accelerometer is a compact electronic sensor designed to detect changes in motion and orientation by sensing acceleration forces. It responds to both steady and changing forces acting on an object, including movement and gravitational effects. Accelerometers are built in various physical forms, ranging from miniature chip-level devices to rugged industrial housings. Their output provides measurable data that can be interpreted by electronic circuits or digital systems.

Working Principle of an Accelerometer

Figure 2. Working Principle of an Accelerometer

An accelerometer works by sensing the motion of a proof mass when the device experiences acceleration. Under stationary conditions, the proof mass remains in its equilibrium position. When acceleration is applied, the inertia of the proof mass causes it to move relative to the sensor frame. Figure 2 illustrates this operating principle. As acceleration acts on the sensor, the suspended mass deflects against the restoring force of the spring. The amount of displacement is directly related to the magnitude and direction of the applied acceleration.

This mechanical displacement is detected by the sensing element, which converts the motion of the proof mass into a measurable electrical change. Depending on the sensing method, this change may appear as a variation in capacitance, resistance, or generated charge. The sensing circuitry processes this change and produces an electrical signal that is proportional to the applied acceleration.

Specifications of Accelerometers

Specification	Description
Measurement Range	Common ranges are ±2 g, ±4 g, ±8 g, ±16 g, and up to ±200 g
Sensitivity	Typical sensitivity is 1 mV per g to 1000 mV per g
Resolution	Resolution ranges from 8 bit to 24 bit depending on ADC type
Output Type	Available as analog voltage or digital I2C and SPI
Axis Measurement	Single axis, dual axis, or three axis sensing
Bandwidth	Frequency bandwidth ranges from 10 Hz to 5000 Hz
Frequency Response	Flat response within the rated bandwidth range
Noise Density	Typical noise density is 20 µg per √Hz to 300 µg per √Hz
Zero g Offset	Offset error is typically ±20 mg to ±100 mg
Linearity	Linearity error is less than ±0.5 percent of full scale
Cross Axis Sensitivity	Cross axis sensitivity is below 2 percent
Operating Voltage	Supply voltage ranges from 1.8 V to 5.5 V
Current Consumption	Low power models consume 1 µA to 500 µA
Operating Temperature	Standard range is −40 °C to +85 °C
Shock Survival	Shock tolerance ranges from 2000 g to 10000 g
Output Data Rate	Data rate ranges from 1 Hz to 10 kHz
Interface Protocol	Digital types support I2C, SPI, or UART
Package Type	Common packages include LGA, QFN, and DIP
Size	Typical sensor size is 2 mm × 2 mm to 5 mm × 5 mm
Calibration	Factory calibrated for sensitivity and offset
Mounting Type	Surface mount or through hole mounting
Accuracy	Overall accuracy is typically ±1 percent to ±5 percent
Drift	Temperature drift is less than 0.01 g per °C
Response Time	Response time is below 1 ms
EMI Resistance	Designed to resist industrial electromagnetic noise

Types of Accelerometers Based on Sensing Technology

Capacitive Accelerometers

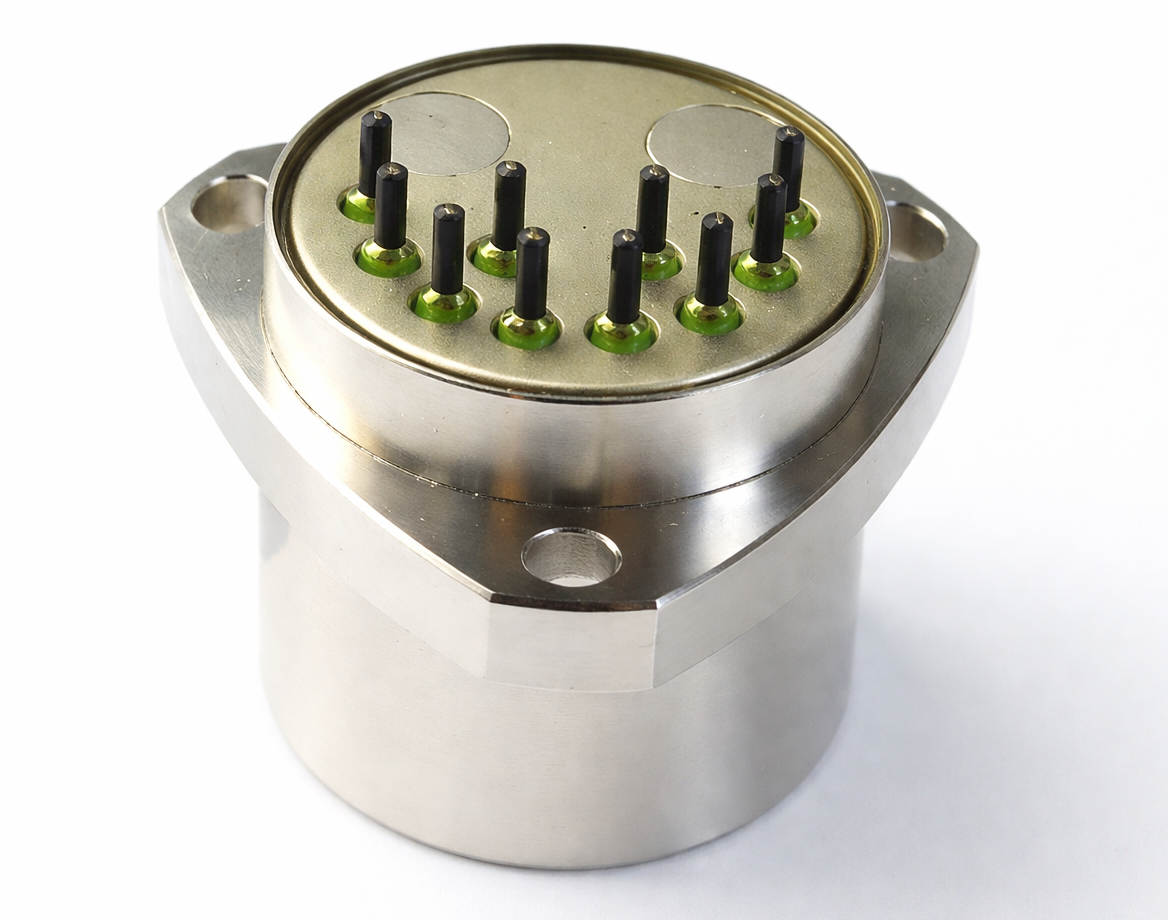

Figure 3. Capacitive Accelerometer

Capacitive accelerometers rely on changes in capacitance caused by the movement of a micro-scale proof mass within the sensor structure. Their design enables precise detection of small acceleration changes with excellent repeatability. These accelerometers are well-suited for low-frequency and static measurements such as tilt and orientation. Their compact size and low power consumption make them ideal for embedded and portable electronic systems.

Piezoelectric Accelerometers

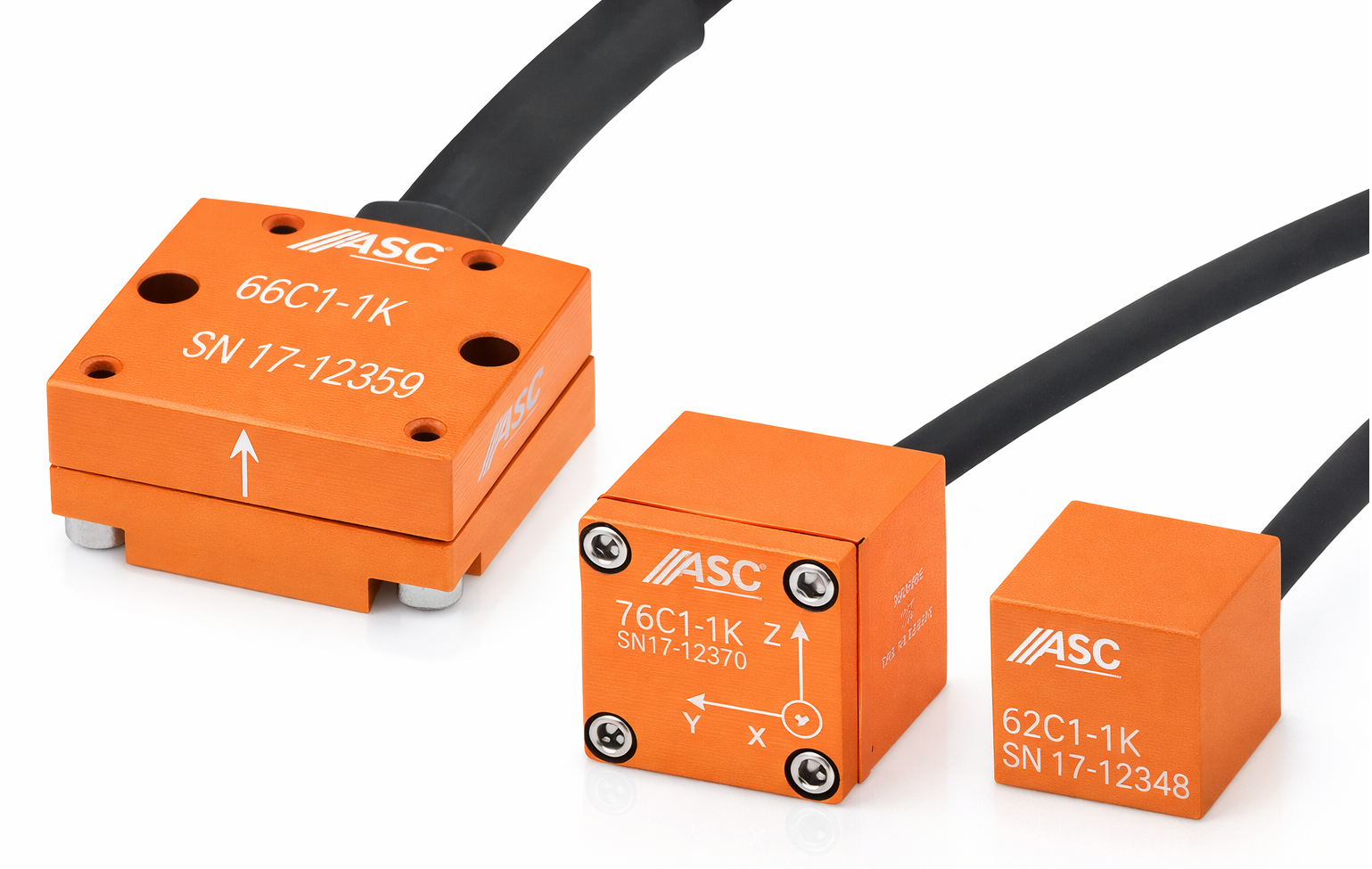

Figure 4. Piezoelectric Accelerometer

Piezoelectric accelerometers generate an electrical signal when subjected to mechanical stress induced by acceleration. They are particularly effective in capturing rapid motion and high-frequency vibrations with minimal signal distortion. Due to their operating principle, they do not respond to constant or very slow-changing acceleration. These sensors are widely used in environments where vibration analysis and dynamic response are important.

Piezoresistive Accelerometers

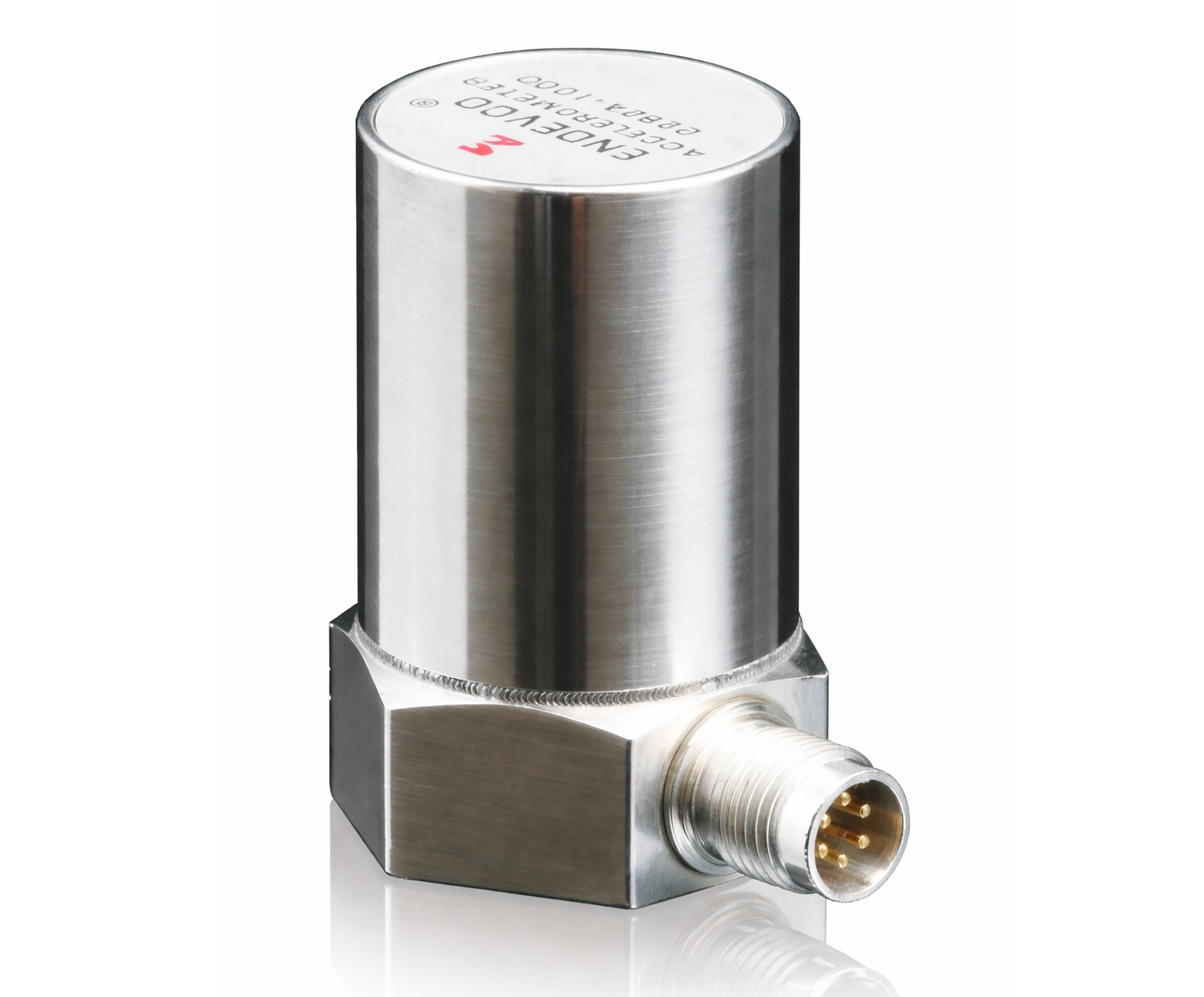

Figure 5. Piezoresistive Accelerometer

Piezoresistive accelerometers detect acceleration by monitoring resistance changes in strained sensing elements. Their robust construction allows them to withstand strong mechanical shocks and harsh operating conditions. Unlike some other technologies, they can operate reliably across wide temperature ranges. This makes them suitable for demanding applications where durability and impact resistance are needed.

Types of Accelerometers Based on Axis Measurement

Single-Axis Accelerometers

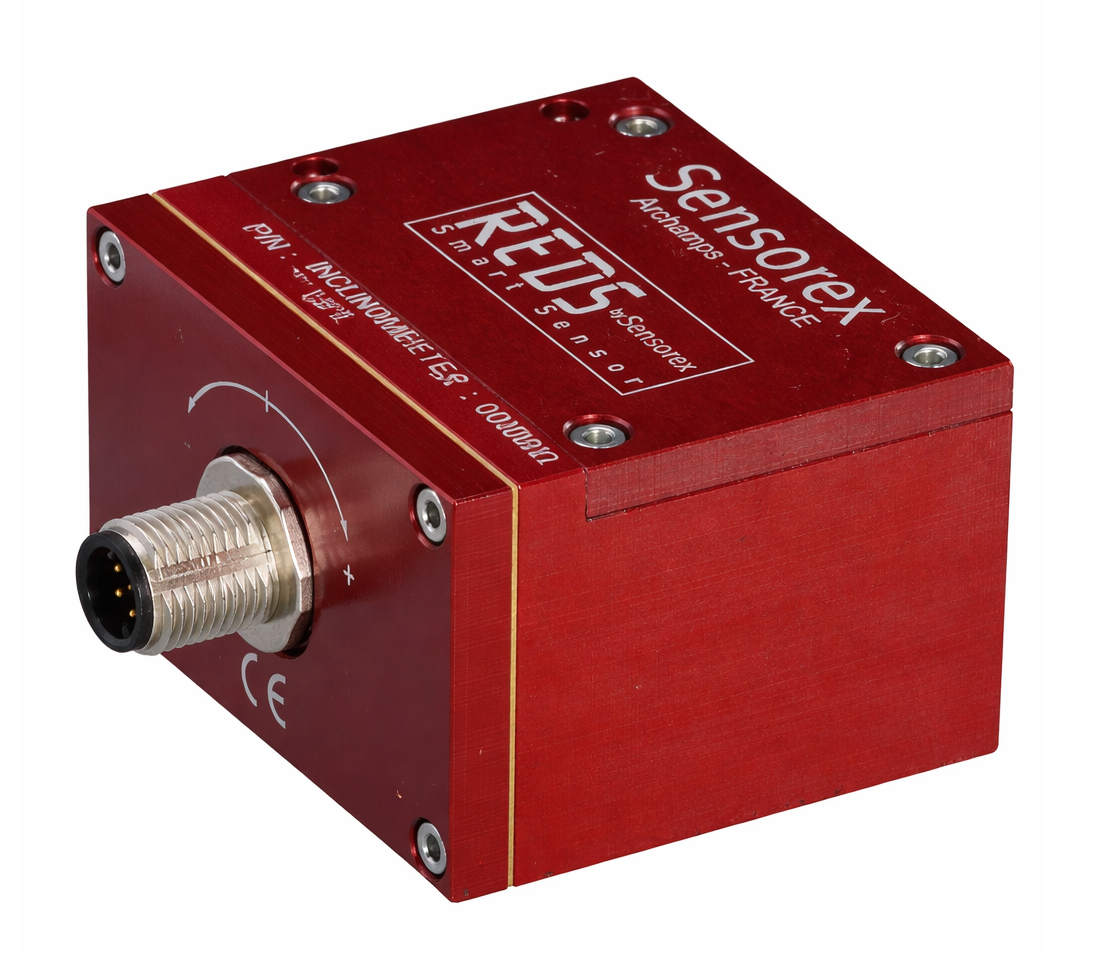

Figure 6. Single-Axis Accelerometer

Single-axis accelerometers measure acceleration along one fixed direction. They are typically used where motion is limited to a known orientation or linear path. Their simple design makes them cost-effective and easy to integrate. These sensors are often chosen for straightforward monitoring tasks with minimal directional complexity.

Dual-Axis Accelerometers

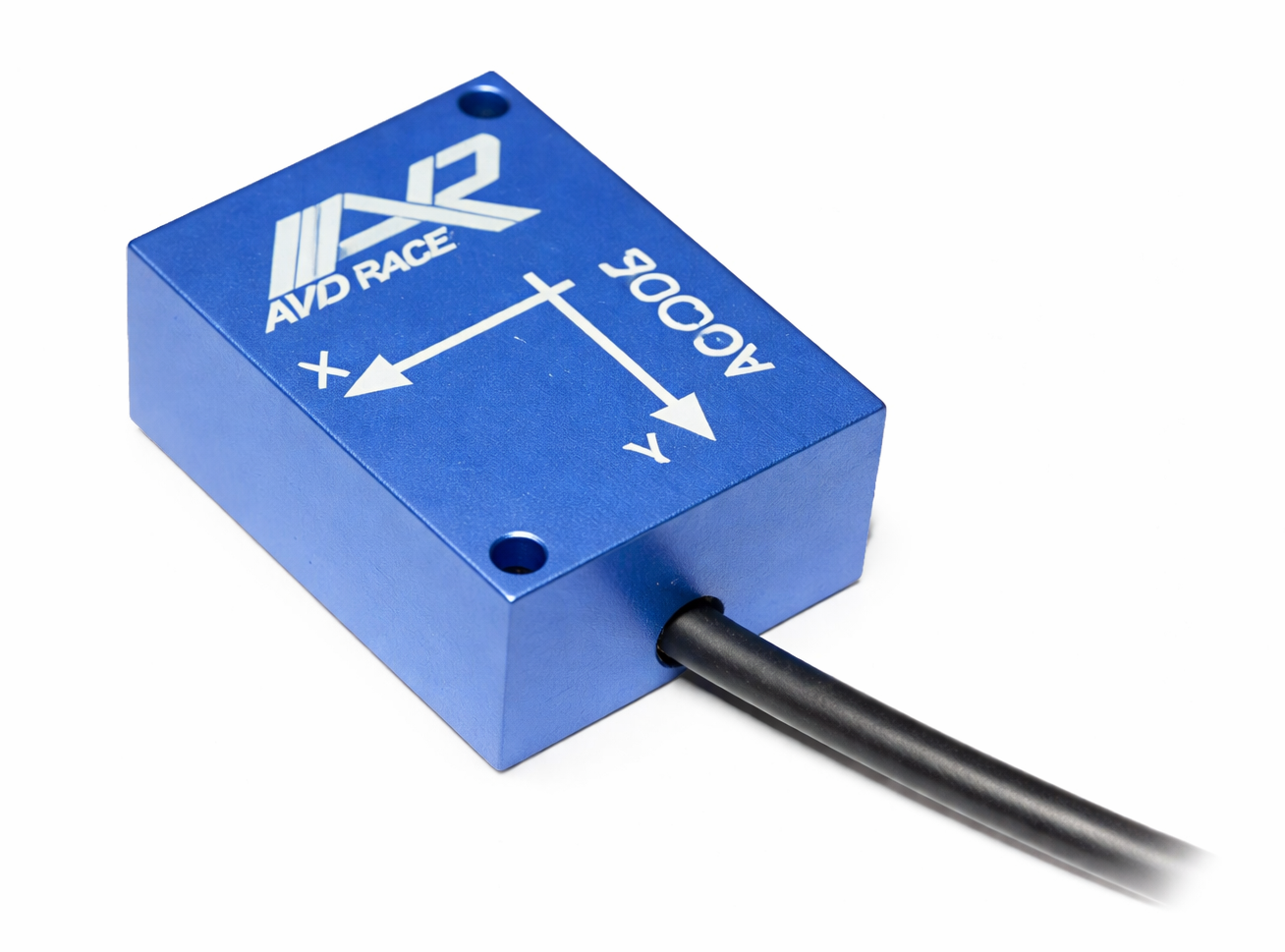

Figure 7. Dual-Axis Accelerometer

Dual-axis accelerometers measure acceleration along two perpendicular directions within the same plane. This capability allows detection of combined movements such as tilt and planar motion. They offer more spatial information than single-axis sensors while maintaining relatively simple signal processing. Dual-axis designs are commonly used where two-dimensional motion tracking is sufficient.

Triaxial (3-Axis) Accelerometers

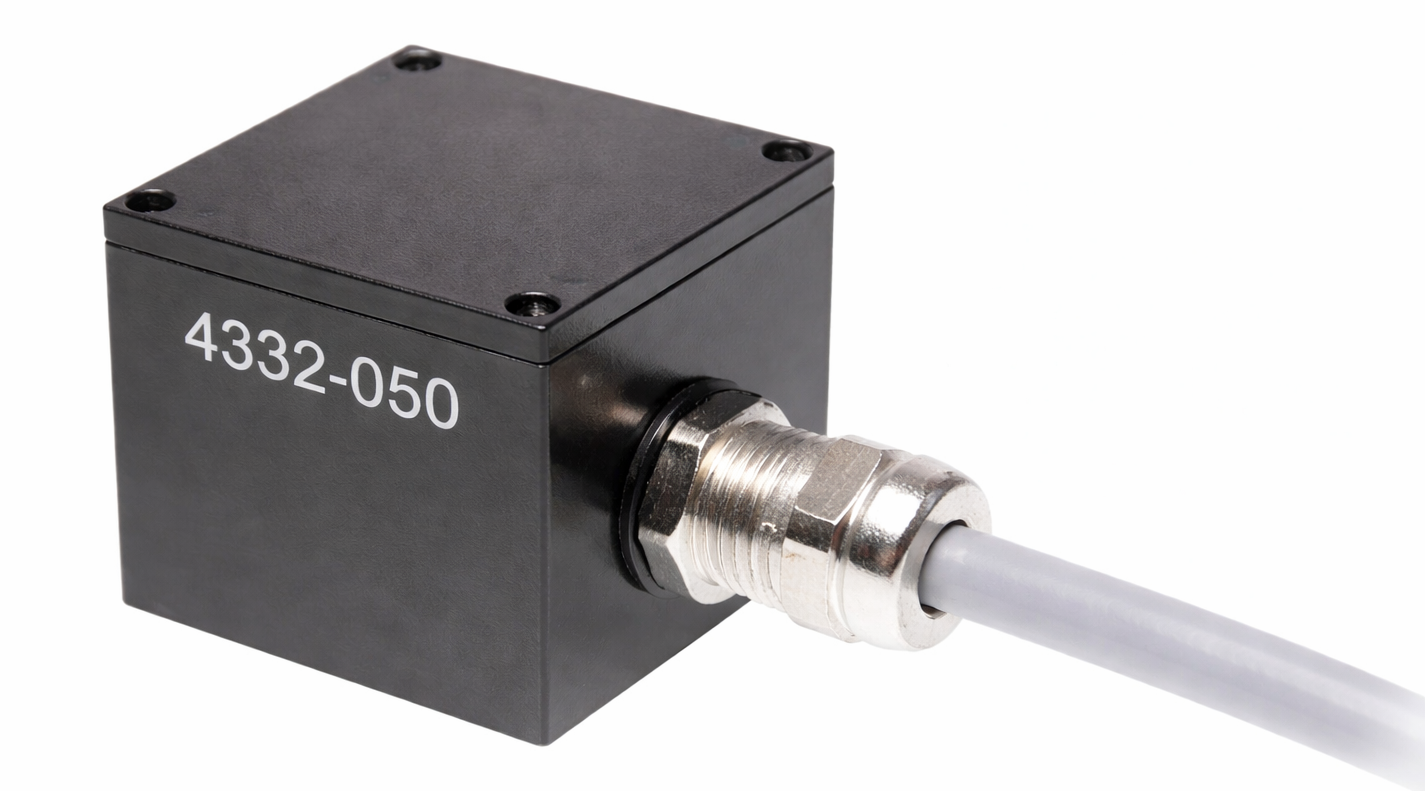

Figure 8. Triaxial (3-Axis) Accelerometer

Triaxial accelerometers measure acceleration simultaneously along three orthogonal axes. This enables complete spatial motion detection regardless of sensor orientation. They simplify system design by eliminating the need for multiple single-axis sensors. Triaxial accelerometers are used in applications requiring full motion awareness and orientation tracking.

Types of Accelerometers Based on Output Type

Analog Accelerometers

Analog accelerometers produce a continuous voltage signal that varies directly with acceleration. This output allows monitoring with minimal internal processing. However, signal quality can be affected by external electrical noise and long cable lengths. Careful signal conditioning is often required in precision applications.

Digital Accelerometers

Digital accelerometers deliver acceleration data in digital format using standardized communication protocols. This reduces susceptibility to noise and simplifies data transmission over longer distances. Many digital accelerometers include internal filtering and calibration features. Their structured output makes them well-suited for direct integration with digital control systems.

Applications of Accelerometers

1. Consumer Electronics

Accelerometers are used in smartphones and wearables to detect movement and device orientation. They allow screen rotation, step counting, and motion-based features.

2. Automotive Systems

In vehicles, accelerometers detect sudden changes in speed during accidents. They help trigger airbags and support safety systems like stability and rollover control.

3. Industrial Monitoring

Accelerometers measure vibration in machines such as motors and pumps. This helps find problems early and prevents unexpected machine failure.

4. Medical & Healthcare Devices

Accelerometers track body movement in fitness bands and medical wearables. They are also used for fall detection and patient activity monitoring.

5. Aerospace & Defense

Accelerometers help aircraft, drones, and spacecraft measure motion and direction. They are important for navigation and flight control systems.

6. Robotics & Automation

In robots, accelerometers sense movement, tilt, and sudden impacts. They help improve balance, control, and safe operation.

7. Structural & Seismic Monitoring

Accelerometers detect vibrations in buildings and bridges. They are also used to monitor ground movement during earthquakes.

Accelerometer vs Gyroscope vs Inclinometer

Specification	Accelerometer	Gyroscope	Inclinometer
Primary Measurement	Linear acceleration	Angular velocity	Tilt angle
Measured Quantity Unit	Meter per second squared	Degree per second	Degree
Typical Measurement Range	Minus 16 to plus 16 meter per second squared	250 to 2000 degree per second	Zero to 360 degree
Static Measurement Capability	Yes	No	Yes
Motion Type Detected	Translation and vibration	Rotation and spin	Inclination and slope
Sensitivity Level	High at low frequencies	High at high rotation rates	Very high for slow tilt
Output Signal Type	Analog or digital	Digital	Analog or digital
Common Sampling Rate	100 to 5000 hertz	100 to 8000 hertz	10 to 200 hertz
Typical Noise Density	50 micro g per root hertz	0.01 degree per second per root hertz	0.001 degree
Drift Over Time	Low	High without correction	Very low
Gravity Reference Usage	Uses gravity vector	Does not use gravity	Uses gravity vector
Power Consumption	10 to 300 microwatt	1 to 10 milliwatt	5 to 100 milliwatt
Common Form Factor	MEMS chip	MEMS chip	Module or sensor package
Applications	Motion sensing and vibration monitoring	Orientation tracking and stabilization	Leveling and tilt monitoring

Conclusion

Accelerometers work by converting motion into electrical signals through the movement of a proof mass. Different designs and sensing technologies allow them to measure acceleration accurately under various conditions. The number of measurement axes and output type affects how motion data is captured and processed. Due to their flexibility and reliability, accelerometers are widely used in consumer electronics, industrial systems, vehicles, healthcare, and aerospace applications.
