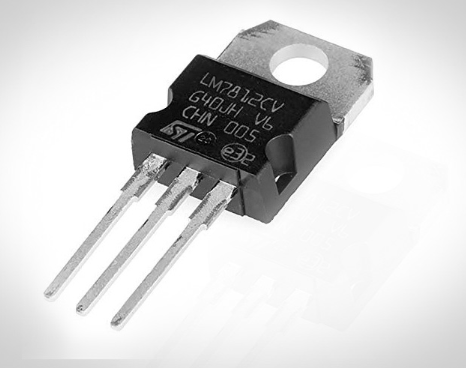

All About the LM7812 Positive Voltage Regulator: Pinout, Specs, and Application Insights

The LM7812 positive voltage regulator is a basis in stable power supply design, delivering a reliable 12V output for electronic circuits. This device, part of the LM78xx series, offers robust line and load regulation to maintain a steady voltage under varying input or load conditions, making it requisite for applications that require precise power control. Manufactured by On Semiconductor, the LM7812 supports up to 35V input and 1.5A output, ideal for both consumer and industrial electronics. With internal thermal and overload protections, this regulator ensures circuit safety, longevity, and efficiency, making it a favored choice for its dependable performance and straightforward three-pin configuration.

Catalog

Understanding the LM7812 Voltage Regulator

The LM7812, a prominent member of the LM78xx series, is renowned for its capacity to regulate voltage effectively across numerous applications. Housed in a universal TO-220 package and produced by various manufacturers, it offers a stable 12V output. It handles input voltages up to 35V with a minimum of 14V, making it versatile for diverse electronic projects.

The design of the LM7812 incorporates synchronous rectification and broad frequency response, enhancing its reliability in different environments. Such design features allow it to perform efficiently, especially when precision is chief for voltage regulation tasks. Its adjustability stands out; by using two external resistors, the output voltage can be refined, providing adaptability across multiple applications. As the LM7812 converts excess input voltage into heat, a heatsink is required for adequate heat dissipation. In practical terms, managing thermal conditions effectively is used for maintaining performance and extending the regulator's lifespan. By prioritizing thermal efficiency, similar to methodologies in advanced electronics, overheating is prevented.

Capable of supporting an output load up to 1.5A, the LM7812 needs an input current of no less than 2A. This capacity supports various devices requiring steady output power. Meeting these input current specifications ensures optimal performance and helps avoid voltage drop or power failure issues. The LM7812's use extends beyond ultimate operations, demonstrating adaptability in electronics that require a stable power source. Its combination of simplicity and efficiency highlights its continued appeal in the field of electronic components.

LM7812 Pin Configuration

Pin Number	Pin Name	Description
1	Input	Positive Input Voltage
2	GND	Connect to Ground
3	Output	Positive Output Voltage

Analysis of the LM7912 CAD Model

Symbol Representation

Footprint Specification

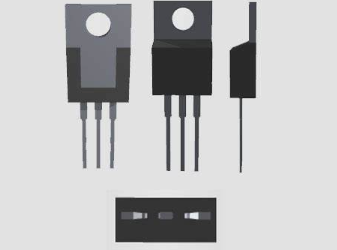

3D Model Implementation

LM7812 Features

Feature	Description
Input Voltage Range	14V to 35V
Output Voltage Range	11.75V - 12.25V DC
Typical Output Current	1A
Peak Current	2.2A
Dropout Voltage	2V
Package Types	TO-252, TO-220, TO-263
Maximum Output Current	1.5A
Output Voltage	Fixed 12V, accurate
Short Circuit Protection	Immediate shutdown
Overheat Protection	Immediate shutdown
Cost	Low price
Suitability	Authentic for commercial devices
Standby Current	Low, only 8mA
Regulator Type	Fixed voltage linear regulator, 78xx series
Output Voltage Tolerance	5%
Thermal Overload Protection	Internal
Short-Circuit Protection	Internal
External Component Requirement	None

Benefits of the LM7812

Integrated Design

The LM7812 voltage regulator captures the essence of streamlined engineering. Its design removes the need for additional balancing components. This can ease the circuit design journey, reducing failure points while offering a satisfying elegance in simplicity.

Internal Protection Features

One of the appealing characteristics of the LM7812 is its internal heat and current safeguards. These features facilitate safe operation across diverse temperatures and loads. By averting damage from overheating or excessive current, the device embodies an astute awareness of typical electronic risks.

Steadfast Performance

Featuring a built-in heat sink, the LM7812 enhances reliability by ensuring efficient heat dissipation. This integration helps maintain stable performance, even under pressure. By proactively embedding thermal management, it addresses potential issues, providing reassurance for demanding applications.

Diverse Applications

In actual situations, the regulator's safety and efficiency enable its use across various settings, from home gadgets to industrial setups. Many have found its design reduces maintenance while boosting longevity, echoing the thoughtful approach to practical design challenges.

Simplified Implementation

Incorporating protective features internally, the LM7812 facilitates easier implementation for you. This effective design allows a shift in focus towards other significant project aspects. The simplicity and intuitiveness of the component offer you the liberty to innovate and explore larger system designs.

Technical Specifications

Here is the technical specification table for the ON Semiconductor LM7812CT.

Type	Parameter
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	TO-220-3
Number of Pins	3
Weight	1.214g
Operating Temperature	-40°C ~ 125°C
Packaging	Tube
Published	2014
JESD-609 Code	e3
Pbfree Code	Yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Packing Method	Rail
Terminal Position	Single
Number of Functions	1
Terminal Pitch	2.54mm
Base Part Number	LM7812
Number of Outputs	1
Voltage - Input (Max)	35V
Output Voltage	12V
Output Type	Fixed
Max Output Current	1A
Max Supply Voltage	35V
Nominal Supply Current	5.1mA
Output Configuration	Positive
Quiescent Current	8mA
Accuracy	4%
Output Voltage 1	12V
Number of Regulators	1
Min Input Voltage	14.5V
Protection Features	Over Temperature, Short Circuit
Voltage Dropout (Max)	2V @ 1A Typ
PSRR	71dB (120Hz)
Dropout Voltage	2V
Dropout Voltage1-Nom	2V
Min Output Voltage	12V
Power Supply Rejection Ratio (PSRR)	71dB
Voltage Tolerance-Max	5%
Nominal Output Voltage	12V
Output Voltage Accuracy	4%
Height	20.4mm
Length	10.16mm
Width	4.7mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	RoHS Compliant
Lead Free	Lead Free

Equivalent Schematic

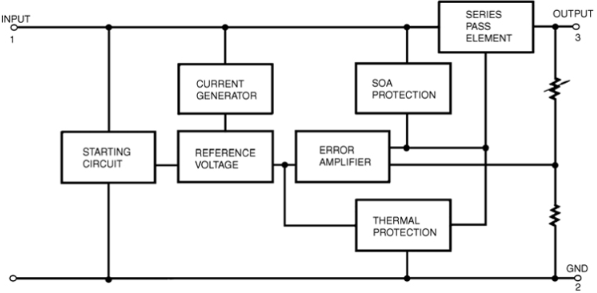

Internal Block Diagram

Alternatives of LM7812 Voltage Regulators

Part Number	Description	Manufacturer
UA7815KCKCS	15V FIXED POSITIVE REGULATOR, PSFM3, ROHS COMPLIANT, PLASTIC, TO-220, 3 PIN	Rochester Electronics LLC
5962-8855301UX	Fixed Positive Standard Regulator, 15VPSFM3	Solitron Devices Inc
LM140G-15R1	Fixed Positive Standard Regulator, 15V, TO-257, 3 PIN	TT Electronics Resistors
SG7815IG/883B	Fixed Positive Standard Regulator, 15V Bipolar, CSFM3	Microchip Technology Inc
LM7815-220MR1	Fixed Positive Standard Regulator, 15VPSFM3, ISOLATED, METAL, TO-220M, 3 PIN	TT Electronics Resistors
IP7815GR1	15V FIXED POSITIVE REGULATOR, SFM3, TO-257, 3 PIN	TT Electronics Power and Hybrid / Semelab Limited
MC7815CT	Fixed Positive Standard Regulator, 15V Bipolar, PSFM3, PLASTIC, TO-220, 3 PIN	Micro Commercial Components
5962-8777601UA	Fixed Positive Standard Regulator, 12V Bipolar, TO-257, 3 PIN	Solitron Devices Inc
IP7815AIGF-8QR-BR1	15V FIXED POSITIVE REGULATOR, MSFM3, ISOLATED, TO-257F, 3 PIN	TT Electronics Power and Hybrid / Semelab Limited
MC7815ABT	15V FIXED POSITIVE REGULATOR, SFM3, TO-220, 3 PIN	ON Semiconductor

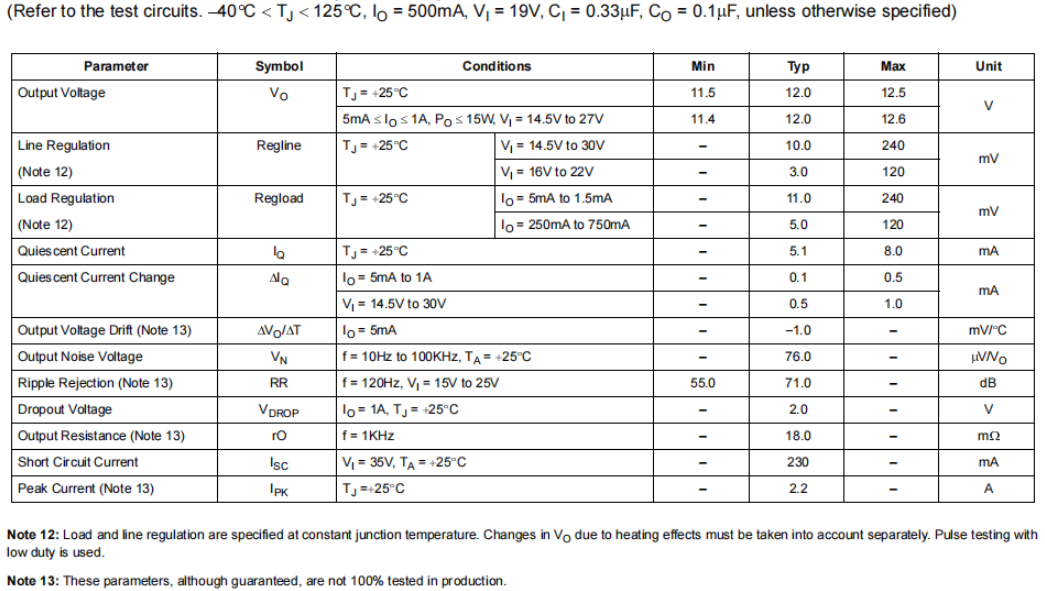

Electronic Characteristics

Applications of the LM7812

Use in Consumer Electronics

The LM7812 voltage regulator finds its place in everyday gadgets like remote controls, toys, and chargers. It plays a role in stabilizing voltage supplies, active for enhancing electronic product performance. By ensuring consistent output, it prolongs battery life and boosts your satisfaction, preventing fluctuations that could disrupt functionality.

Role in Power Distribution Circuits

In power distribution circuits, the LM7812 is basic for sustaining voltage steadiness. This aspect is mostly useful in intricate systems where incorrect voltage can lead to inefficiencies or potential component damage. Its reliability makes it a favorite in decentralized power setups, ensuring each part receives appropriate voltage without needing manual adjustments.

Current Limiting and Voltage Regulation

Acting as both a current limiter and voltage reducer, the LM7812 provides basic functions across applications. In motor drivers, for instance, it manages current to prevent overheating, safeguarding motor lifespan. Its voltage-decoupling ability aids scenarios that need lower voltages than the main supply, balancing efficiency and safety.

Integration with Renewable Energy Systems

In renewable energy sectors, specifically solar power setups, the LM7812 plays a part in effective energy conversion and regulation. By maintaining stable output amidst varying solar inputs, it supports the reliable operation of connected devices. This aspect is used for exploiting renewable resources, and preventing energy wastage due to voltage inconsistencies.

Application in Microcontroller Systems

Microcontroller systems gain from the LM7812’s stable voltage regulation. By offering a consistent power supply, it supports precise operations and reliable performance of microcontrollers in diverse projects. This steadiness aids you in crafting systems with intricate functionalities, free from power volatility concerns.

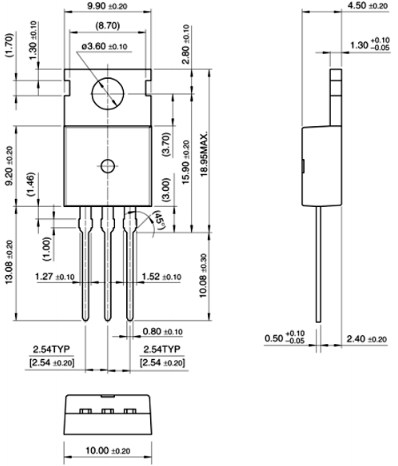

Package

Manufacturer Insights

ON Semiconductor, based in Phoenix, Arizona, plays a remarkable role in the semiconductor industry. The company offers a wide array of semiconductor products, reaching a vast global customer base. The product offerings of ON Semiconductor cover automotive, industrial, and consumer electronics. These areas highlight the company's agility to adapt to the growing appetites of modern technology. In dynamic markets, ON Semiconductor aims to craft solutions that resonate deeply with your evolving desires.

Faced with industry challenges, ON Semiconductor emphasizes the pursuit of innovation. They dedicate themselves to research and development, crafting state-of-the-art products that enhance performance across diverse sectors. Through practical industrial examples, they illustrate how strategic R&D can effectively resolve intricate technological puzzles.

With an expansive global network, ON Semiconductor maintains a strong market presence. This widespread operation allows them to quickly respond to regional market distinctions, skillfully blending efficiency with local insights. Dominant to their strategy is collaborative partnerships. By integrating varied perspectives and technologies, these alliances often lead to shared growth and innovation, emphasizing the value of thoughtful cooperation.

Datasheet PDF

LM7812CT Datasheets:

TO220B03 Pkg Drawing.pdf

LM78xx(A) Datasheet.pdf

MC7815ABT Datasheets:

Cylindrical Battery Holders.pdf

MC78zz(z), NCV78zz.pdf

Frequently Asked Questions [FAQ]

1. What is LM7812?

The LM7812 is a voltage regulator IC with three pins, admired for its consistent output and protective features against overcurrent and overheating. These traits attract you seeking reliability in electronic applications. You can appreciate how it simplifies power management, ensuring circuits perform smoothly.

2. What is the wiring method of the three-terminal regulator block LM7812?

When wiring an LM7812, position the input on the left, the output on the right, and the ground in the center. This arrangement promotes ease and efficiency in connections, appealing in scenarios where swift setup is desired. Referencing schematic diagrams proves useful, especially in detailed circuits that demand accuracy.

3. What is the maximum input voltage of LM7812?

Capable of managing up to 30V input with a 15W power limit, it's wise to keep an eye on these specs to avert hardware stress that risks circuit malfunction. Practically, using safeguards like fuses fosters system durability and dependability.

4. What is the difference between LM7812 and CW7812?

Both LM7812 and CW7812 fulfill regulatory roles yet differ in origin. The US-made LM7812 delivers over 1A of output, whereas the domestically produced CW7812 varies by package. You can factor these details into design decisions to meet specific needs.

5. What is the difference between 78L12 and LM7812?

Although LM7812, 78M12, and 78L12 ICs share functions, they differ in current capacity and manufacturing. The LM7812 supports 1A for higher current needs, the 78M12 provides 500mA, and the 78L12 offers 100mA. These variations guide choice according to the project's power demands.
