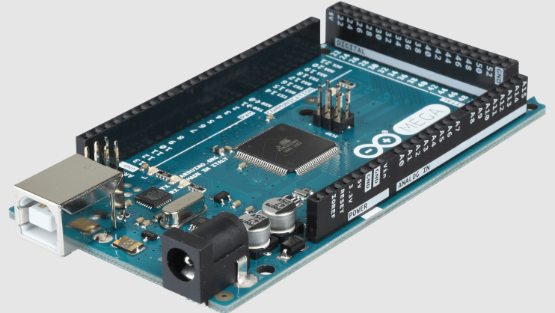

The Arduino Mega 2560 microcontroller board centers on the adaptable ATmega2560 chip, presenting a variety of features ideal for intricate electronic endeavors. It comprises 54 digital input/output pins, 16 analog inputs, and 14 PWM outputs—rendering it suitable for everything from simple designs to complex creations such as robotics and industrial automation. Featuring four serial communication ports (UARTs), the Arduino Mega 2560 facilitates smooth data interactions with other devices. This quality serves well in projects requiring multiple data streams or simultaneous device engagement, supporting applications like IoT and sophisticated sensor networks.
The board is fitted with a 16 MHz oscillator, an ICSP header, diverse power options, USB connectivity, and a reset button. Such provisions empower you to seamlessly incorporate the board into various setups, aiming for stable operation even under challenging circumstances. Additional pins, including SCL, SDA, and IOREF, heighten its connectivity scope. They enable developers to expand the system effortlessly with various shields, sparking innovation and originality in project conception. This compatibility with both legacy and modern shields fosters an adaptive development atmosphere.
|
Specification |
Details |
|
Microcontroller |
ATmega2560 |
|
Operating
Voltage |
5
volts |
|
Recommended
Input Voltage |
7 to
12 volts |
|
Input
Voltage Range |
6 to
20 volts |
|
Digital
Input/Output Pins |
54
(15 PWM output capable) |
|
Analog
Input Pins |
16 |
|
DC
Current per I/O Pin |
40
mA |
|
DC
Current for 3.3V Pin |
50
mA |
|
Flash
Memory |
256
KB (8 KB for bootloader) |
|
SRAM |
8 KB |
|
EEPROM |
4 KB |
|
Clock
Speed |
16
MHz |
|
USB
Host Chip |
MAX3421E |
|
Board
Length |
101.52
mm |
|
Board
Width |
53.3
mm |
|
Board
Weight |
36 g |

The Arduino Mega 2560 board boasts a unique pin layout, accommodating both digital and analog tasks. This adaptability invites you to customize pins according to a range of project needs. With ample memory and processing capacity, it's suited for sophisticated ventures.
The board includes power pins such as 3.3V and 5V, alongside multiple GND pins for stable power flow. The VIN pin supports tailored power inputs, adapted for complex configurations.
A dedicated reset pin allows for smooth system restarts, instrumental during debugging and iterative trials. Moreover, an onboard LED at pin 13 facilitates initial testing, proving its worth when visual feedback becomes urgent.
Serial communication is enabled through TX and RX pins, useful for projects with actual data sharing. This setup remains initial in crafting dependable communication systems.
The ability to handle six external interrupts enhances the board’s role in dynamic applications, where immediate event responses are dynamic. The AREF pin ensures precise analog readings, refining sensor data accuracy.
Pins 20 and 21 facilitate I2C data management with peripherals. For high-speed data needs, SPI communications stand out as a dependable method, aligning with industry practices.
The compatibility with various shields emphasizes the careful voltage alignment to avoid hardware damage, echoing collective experiences prioritizing system endurance.
Using the Arduino IDE, built on C language, program initiation is hassle-free due to the built-in bootloader. Although the IDE lacks native multitasking, systems like RTX and FreeRTOS can extend these capabilities, showcasing the board’s flexibility.
